ACURA INTEGRA 1994 Service Repair Manual

4. Check that the hole in the adiuste. in perfectly
aligned with the hole in the shift cable. There are two
holes in the end of the shitt cable, They are posi-
tioned 9Oo apart to allow cable adiustment in 1/4
lurn Incremenls.
ADJUSTER
CableI oo snonCableToo LongExactAlignment
5. It not perfectly aligned, loosen the locknut on the
shift cable and adjust as required.
6. Tighten the locknut to 7 N.m (O.7 kgf.m, 5lbf.ft).
7. Install the lock pin on the adiuster. lf you feel the
lock pin binding as you reinstall it, the cable is still
out of adjustment and must be readjusted.
8. Move the selector to each gear and verify that the
automatic transaxle gear position indicator tollows
the automatic transaxle gear position switch.
9. Start the engine and check the shift lever in all gea.s.
lf any gea. does not work properly, refer to
troubleshooting on page 14-86 thru 89.
1O. lnsert the ignition key into the key cylinder on the
shift indicator panel, ve.ify that the shift lock lever
is released,
CAUTION:
a All SRS electrical widng harn€sses are covar€d with
yollow insulation.
a Before disconnecting any part of ths SRS wire har-
ness, connect the shon connectors (see page 23-701.
a R€place the entire affected SRS halnass asssmbly it
it has an op€n circuit or damaged wiring.
@ tu"t" sure lifts a.e placed properly ls66
ssction 1).
Start the engine. Stritt to @ position to see if the
reverse gear engages. lf so, refer to troubleshoot-
ing on page 14-86 thru 89.
Wilh the engine off, remove the center console {see
section 20).
Shilt to N position. then remove the lock pin from
the cable adjuster.
'1.
/
''fidlfr
I
t+@
\/ \
CABLE-.'.-_--l../ADJUSTER
]H
@
@
@
Adjustment
14-171

Gearshift Selector
Disassembly/Reassembly
CAUTION:
a All SRS electrical wiing haln€ssss are covered withy6llow insulation.
a 8€fore disconnecting 8ny pan of the SRS wire har-
neaa. connOct th6 short connectors (sse page 23-701.
a Roplace the entire affected SRS hahess assembly if
il has an opon circuit or damaged wiring.
9.8 N.m {1.O kgf.m, 7.2 lbf.frl
SHIFT LOCK SOLENOID
CONTROL BRACKET
SELECT LEVER BRACKET
CONTROL SEAL
SRS MAIN HARNESS
[E--__ rocK ptN
ADJUSTER
-6{stLtcoNEGREASEe-LEVER COVER
LOCK PIN ROD
-#qSILICONE GREASE
@6
5 N.m (0.5 kgt.m, 4 lbt.ftl
AUTOMATIC TRANSAXLEGEAR POSITION SWITCHTesting, see Section 23
9.8 N.m (1.0
7 .2 tbt.ltl
12 N.m (1.2 kgf.m, 8.7 lbf.ftl
9.8 N.m 11.0 kgf'm,7.2 lbf.ftl
14-172

Shift Indicator Panel
Adjustmet
CAUTION:
a All SRS olectrical wifng harnesses aro covered withyellow insulation.
a Bofors disconnecting any pan of the SRS wire har-
ness, connect tho sho.t connectors {sse page 23-7O),
a Replace the entire aflect€d SRS harness assembly if
it has an open circuit or damaged wiring,
1.Check that the index mark on the indicator aligns
with the N]mark on the shift indicator panel when
the transmission in NEUTRAL.
lf not aligned, remove the center console (see sec-
tion 2O).
Remove the shift indicator panel mountinq screws
and adjust by moving the panel.
NOTE: Whenever the shift indicator panel is re-
moved, reinstall the panel as described above.
MOUNTING SCREW3 N'm lO.3 kst.m, 2 lbf.ftt
INDEX MARK
@
@
@
SRS MAIN HARNESS
14-173

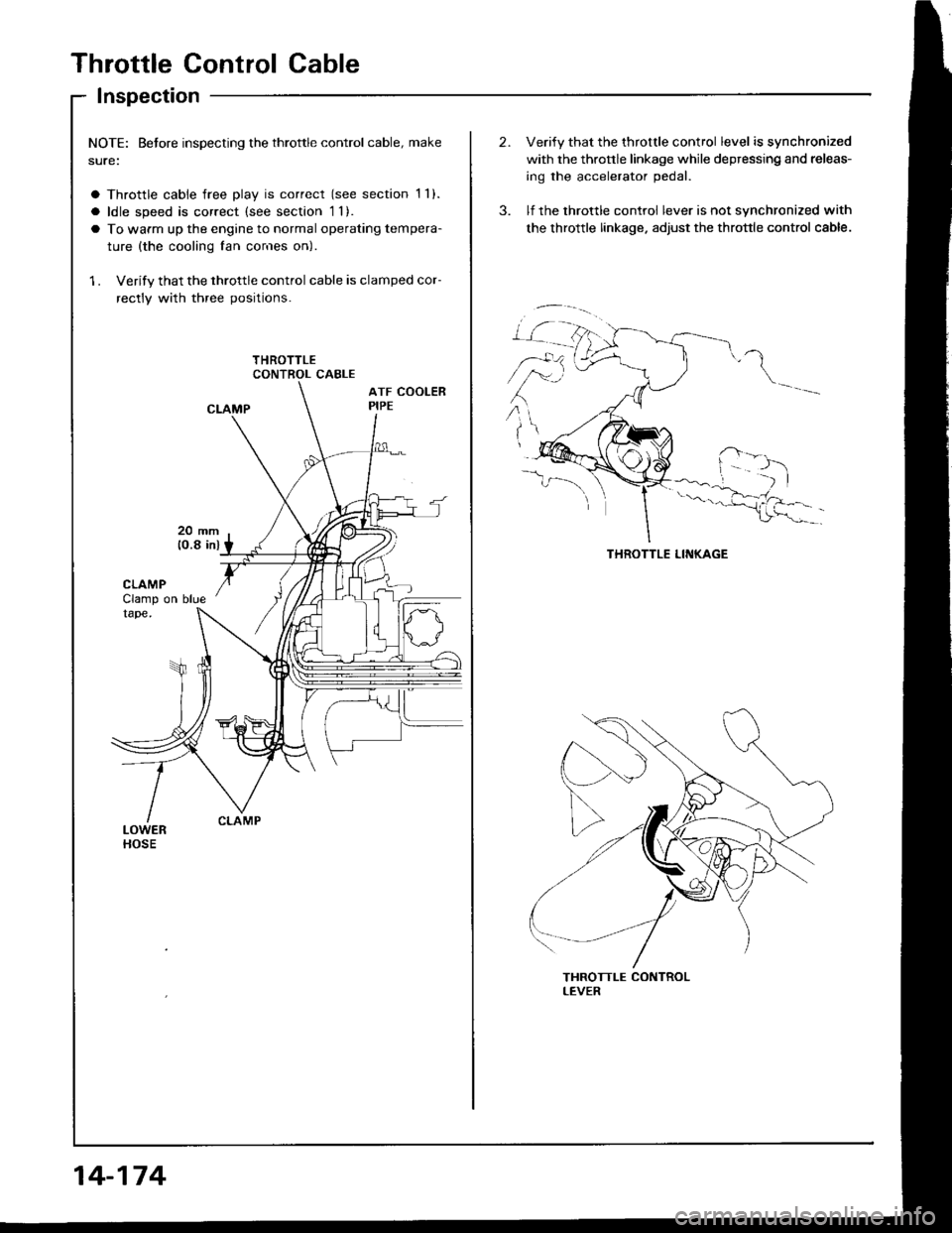

Throttle Control Cable
Inspection
NOTE: Betore inspecting the throttle control cable, make
sure:
a Throttle cable free play is correct (see section 1 1).
a ldle speed is correct (see section 1l).
a To warm up the engine to normal operating tempera-
ture {the cooling fan cor'res on)
1 . Verify that the throttle control cable is clamped cor-
rectly with three positions.
14-174
Verify that the throttle control level is synchronized
with the thronle linkage while depressing and releas-
ing the accelerator pedal.
lf the throttle control lever is not synchronized with
the throttle linkage. adjust the throttle control cable.
\
,r:

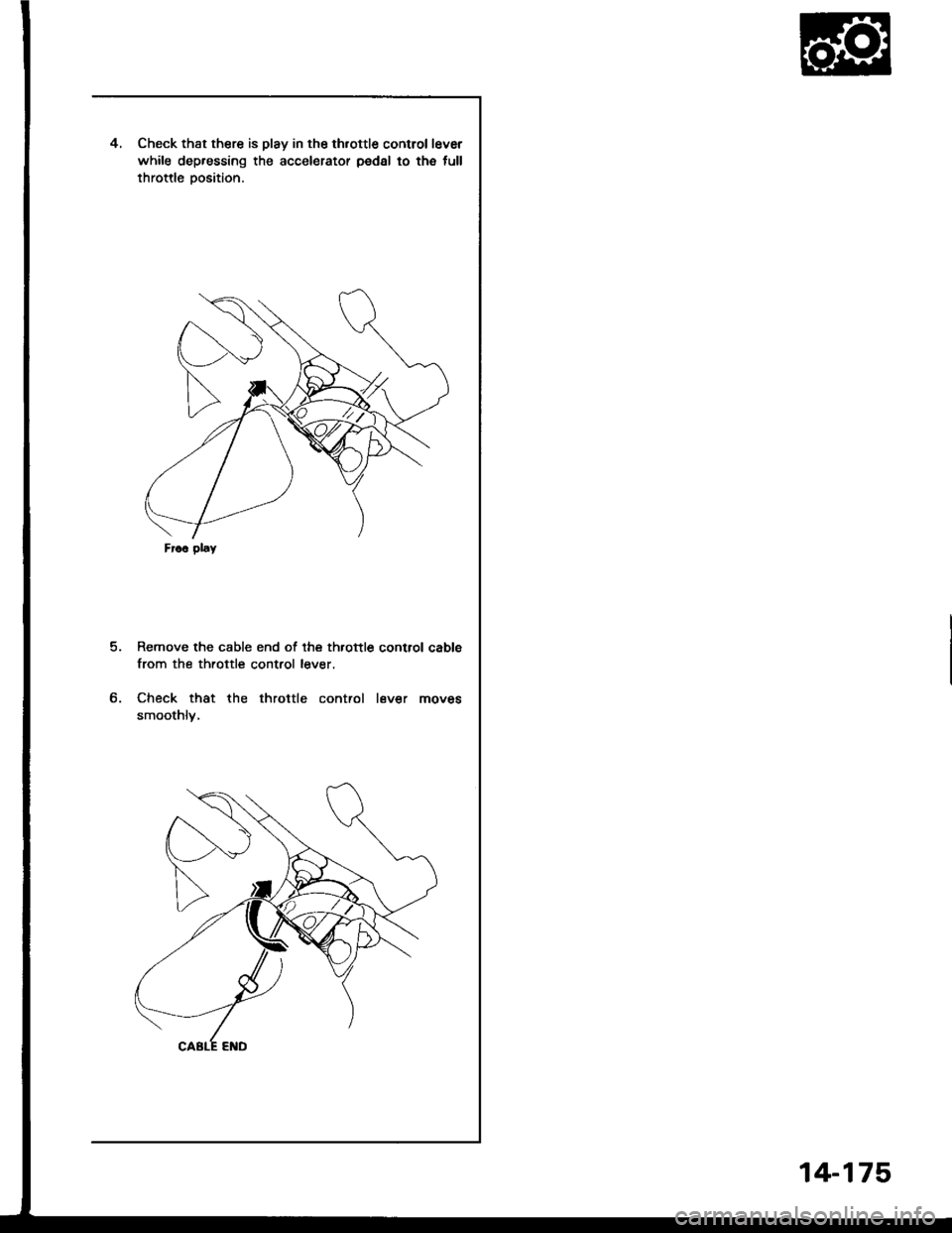

4.Check that there is play in the th,ottle control lever
while dep.essing the accelerator pedsl to th€ full
throttle Dosition.
Remove the cable end of the th.ottle control cable
from the throttle control lever.
Check that the throttle control lever moves
smoothlv,
o.
F.o. play
14-175

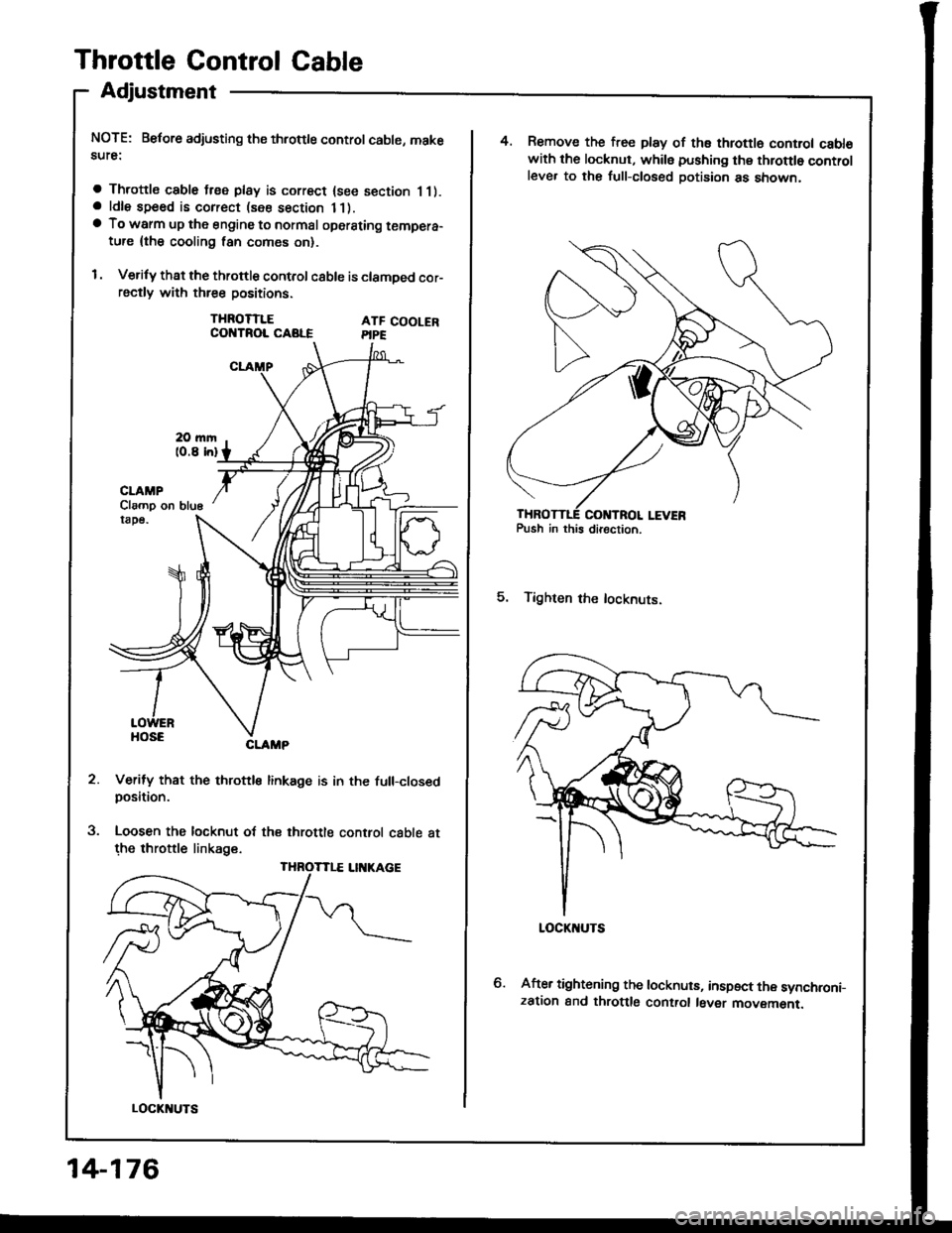

Throttle Control Cable
Adjustment
NOTE: Before adjusting ths throttle control cable, makesute:
a Throttle cable free play is correct {see section 11).a ldle speed is correct (see section 11).a To warm up the engine to normal oporsting tempera-ture {the cooling lan comes on}.
I . Verify that the throttle control c8ble is clamDed cor-rsctly with three positions.
THROTTLECOI{TROL CABLEATF COOLERPIPE
5.
CLAMP
Verify that the throttle linkage is in the full-closedposition.
Loosen the locknut of the throttle control cable atthe throttle linkage.
Clamp on blu6
THROTTLE LII{KAGE
LOCKI{UTS
14-176
4. Remove the free play of ths throttl6 control cabl€with the locknut, whils pushing thg throttlo controlleve. to the full-closed Dotision as snown,
5. Tighten the locknuts.
After tightening the locknuts, inspect the synchroni-zation and throttlg control l6ver movemenr.

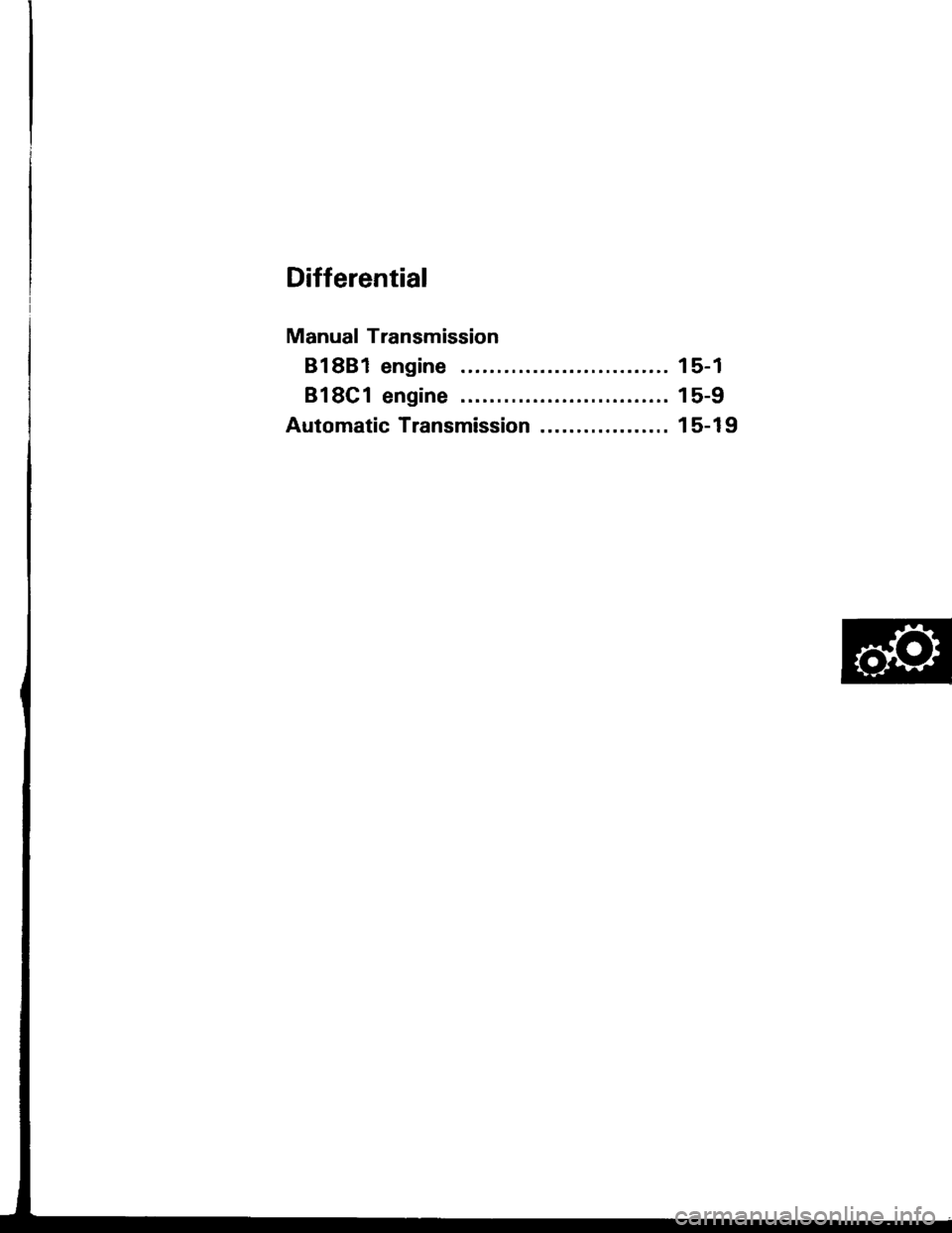

Differential
Manual Transmission
81881 engine
818C1 engine .......
Automatic Transmission ..................
15-1
15-9
15-19

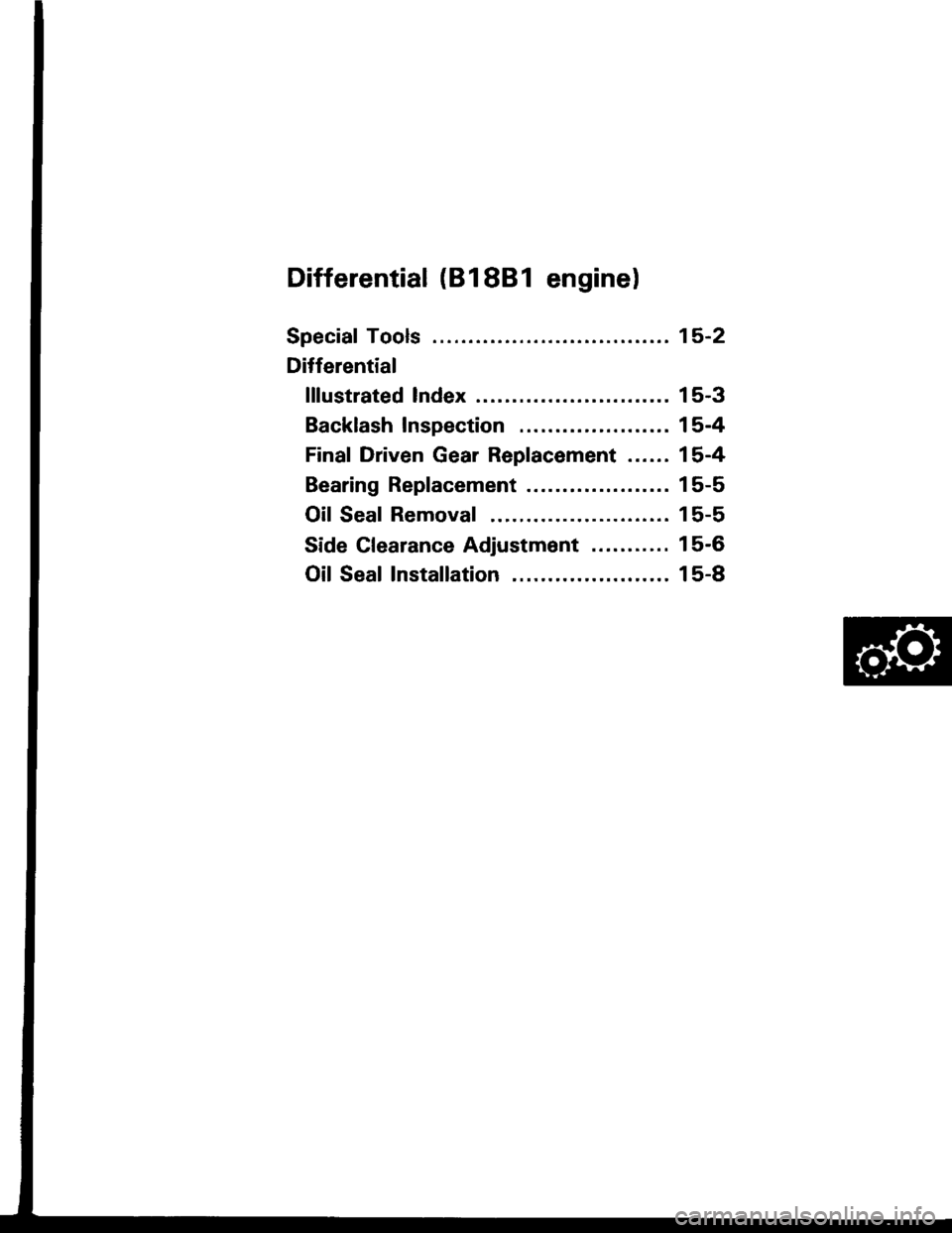

Differential (81881 enginel
Speciaf Tools ........ ........15-2
Differential
lllustrated Index ......... . 15-3
Backlash Inspection .... 15-4
Final Driven Gear Replacement ...... 15-4
Bearing Replacement .................... 1 5-5
Oil Seal Removal ........ 15-5
Side Clearance Adiustment ........... 15-6
Oil Seal lnstallation ..... 15-8

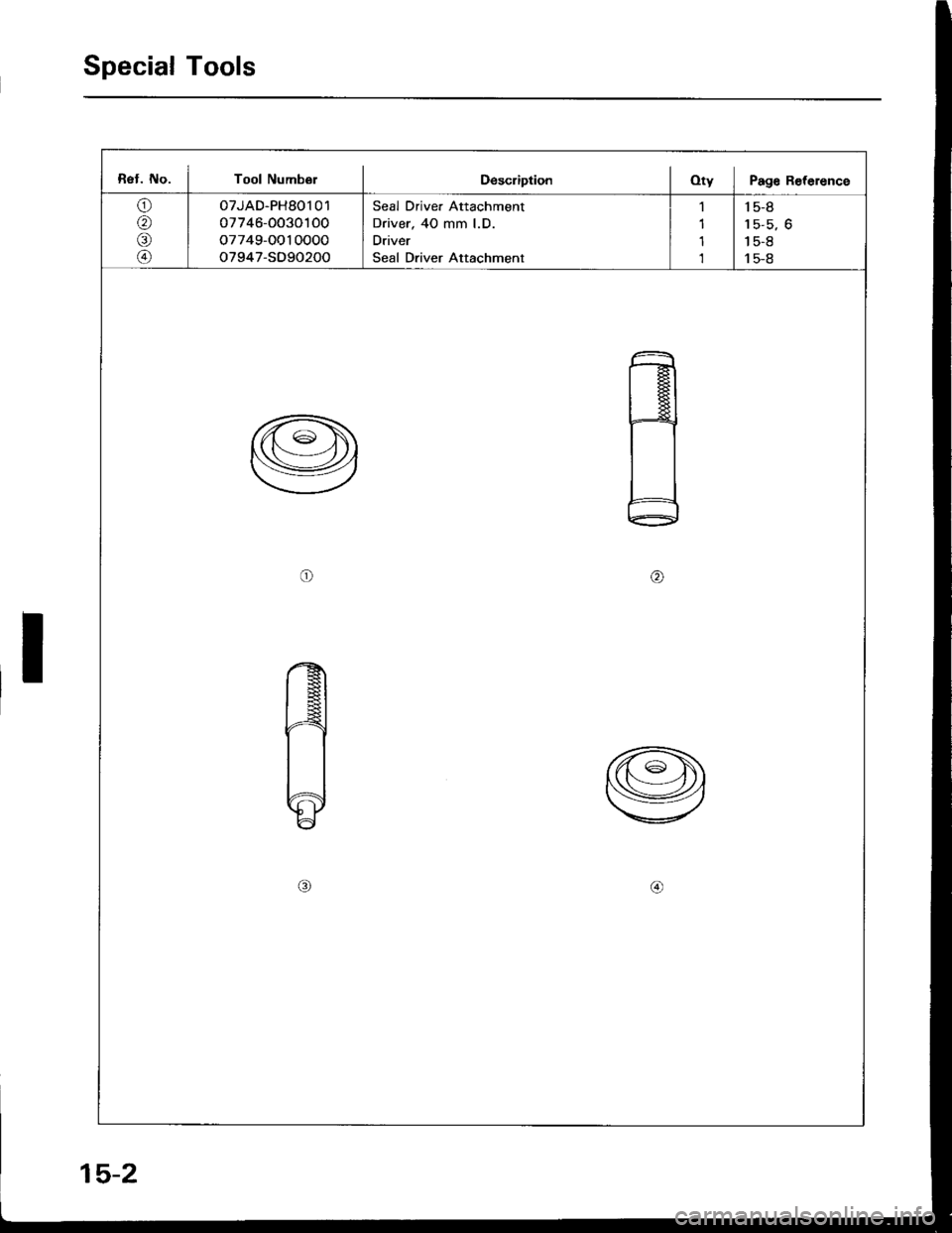

Special Tools
Ref. No. I Tool NumbolDescriptionOty I Pag€ Reference
o
ra)
@
oTJAD-PH80101
07746-OO30100
o7749-OO10000
o7947-SO90200
Seal Driver Attachment
Driver, 40 mm l.D.
Driver
Seal Driver Attachment
15-8
1 5-5. 6
15-8
15-8
o(^
o@
€
s
F
A
$-l)
I
15-2

Differential (B1881 engine)

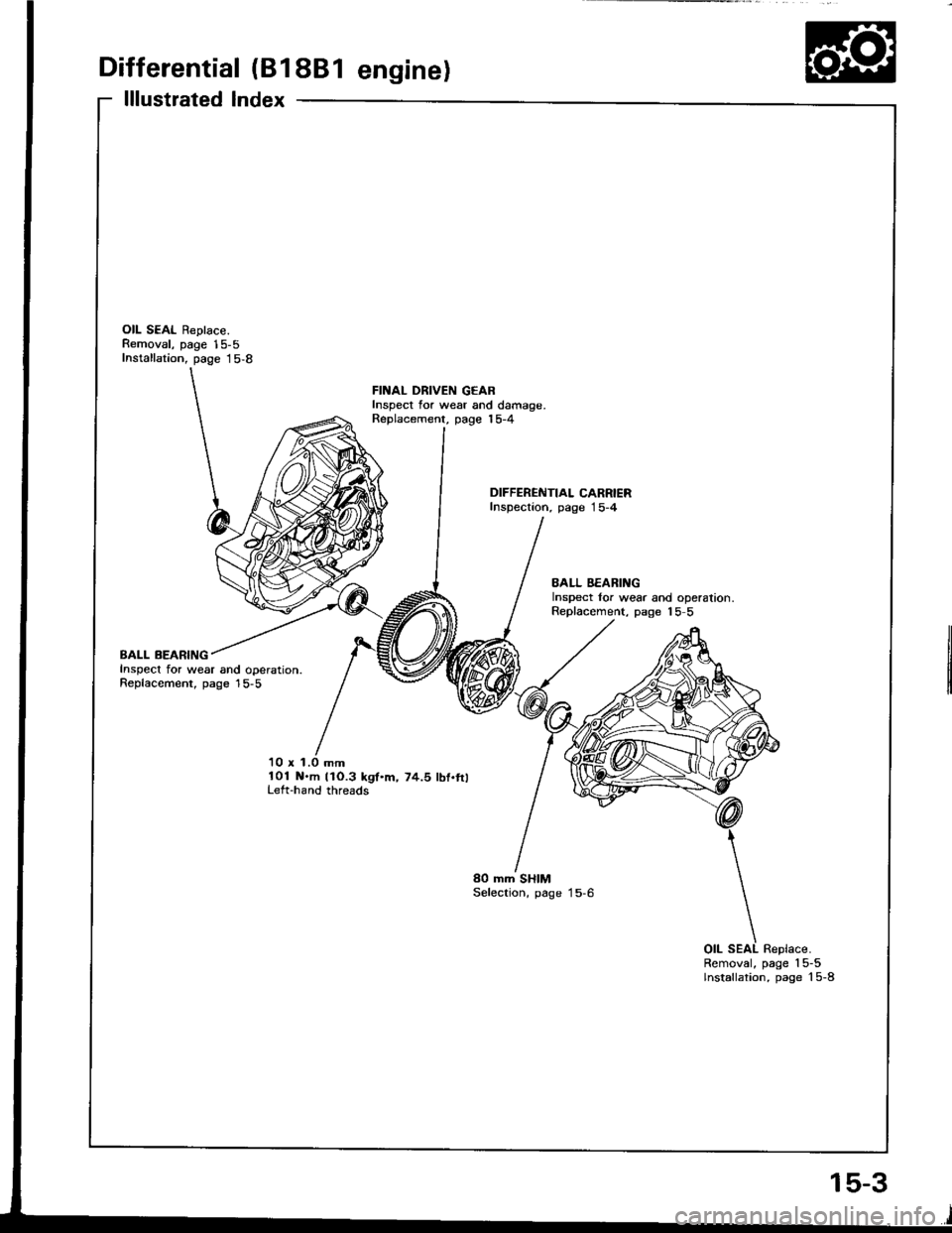

lllustrated Index
OIL SEAL Replace.Removal, page 15-5Installation, page 15-8
FINAL DRIVEN G€ARInspect for wear and damage,Replacement, page 15-4
DIFFERENTIAL CARRIERInspection. page 15-4
BALL BEARINGInspect lor wear and operation.Replacement, page 15 5
BALL BEARINGInspect for wear and operation.Replacement, page'15-5
10 x 1.0 mm101 N.m llO.3 kgt'm,74.5 lbf.ftlLeft-hand threads
80 mm SHIMSelection, page 15-6
Removal, page 'l5-5
lnstallation, page 1 5-8
15-3
