sensor ACURA INTEGRA 2023 Owner's Manual

148
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors and hatch
Touch the door lock sensor on the front door
or press the lock button on the hatch.u All the doors and hatch lock and the
security system sets.
u Some exterior lights flash once and the
beeper sounds once.
Door Lock Sensor
Lock Button
23 ACURA INTEGRA-313S56000_03.book 148 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

Continued149
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Unlocking the doors and hatch
Grab the driver’s door handle:u The driver’s door and fuel fill door
unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle: u All the doors and hatch unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press and hold the hatch release button:
u The hatch unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Opening/Closing the Hatch P. 163
1Using the Keyless Access System
•Do not leave the keyless remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the keyless remote, you
can lock/unlock the do ors and hatch while
someone else with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless remote is within range.
•If you grip a front door handle or touch the front
door lock sensor wearing gloves, the door sensor
may be slow to respon d or may not respond by
unlocking or locking the doors.
•After locking the door, you have up to 2 seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least 2 seconds befo re gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors and hatch with
the keyless remote if it is above or below the outside
handle.
•The keyless remote may not operate if it is too close
to the door, door glass and hatch.
The light flash, beep and door unlock mode settings
can be customized using the audio/information
screen or driver information interface. 2 Vehicle Settings
* P. 126
2 Customized Features P. 359
Hatch Release Button
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 149 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
152
Controls
■Locking the doors (lock presetting)
The vehicle will automatically lock after you
lock the doors in advance then close the
doors.
Activate lock presetting after closing the
driver’s door.
1. Touch the door lock sensor.
u Alert sounds and lock presetting is
activated.
2. Close all the doors.
u Some exterior lights flash and a beeper
sounds when vehicle locks.
Make sure the doors are locked before
moving away from the vehicle.1 Locking the doors (lock presetting)
You can also activate lock presetting by pressing the
lock button on the keyless remote.
Lock presetting will be re set if a door is opened
before the vehicle ha s locked completely.
Before locking a door, make sure that the key is not
inside the vehicle.
You can turn this function on and off. 2 Vehicle Settings
* P. 126
2 Customized Features P. 359
Door Lock
Sensor
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 152 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

Continued177
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
Automatic lighting control can be used when
the power mode is in ON.
When the light switch is in AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
The headlights come on when you unlock a
door in dark areas with the headlight switch in
AUTO .
u Once you lock the door, the headlights
will go off.
■Automatic Operation (automatic lighting control)1 Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a de nse fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Models without automatic
intermittent wipers
Light Sensor
Models with automatic
intermittent wipers
23 ACURA INTEGRA-313S56000_03.book 177 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuOperating the Switches Around the Steering Wheel uWipers and Washers
184
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stop in
accordance with the am ount of rainfall the
rainfall sensor detects.
■Auto sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
NOTICE
AUTO should always be turned OFF before the
following situations in order to prevent severe
damage to the wiper system:
•Cleaning the windshield•Driving through a car wash
•No rain present
Rainfall Sensor
Adjustment Ring
Low sensitivity
High sensitivity
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 184 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

189
Controls
Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you. Press
the button to turn this function on and off.
When activated, the indicator comes on.
■Automatic Dimming Rearview Mirror
1Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors befo re you start driving.
2 Front Seats P. 191
1Automatic Dimming Rearview Mirror
The auto dimming function cancels when the
transmission is in
(R.
Button/Indicator
Sensor
23 ACURA INTEGRA-313S56000_03.book 189 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

195
uuSeats uRear Seats
Continued
Controls

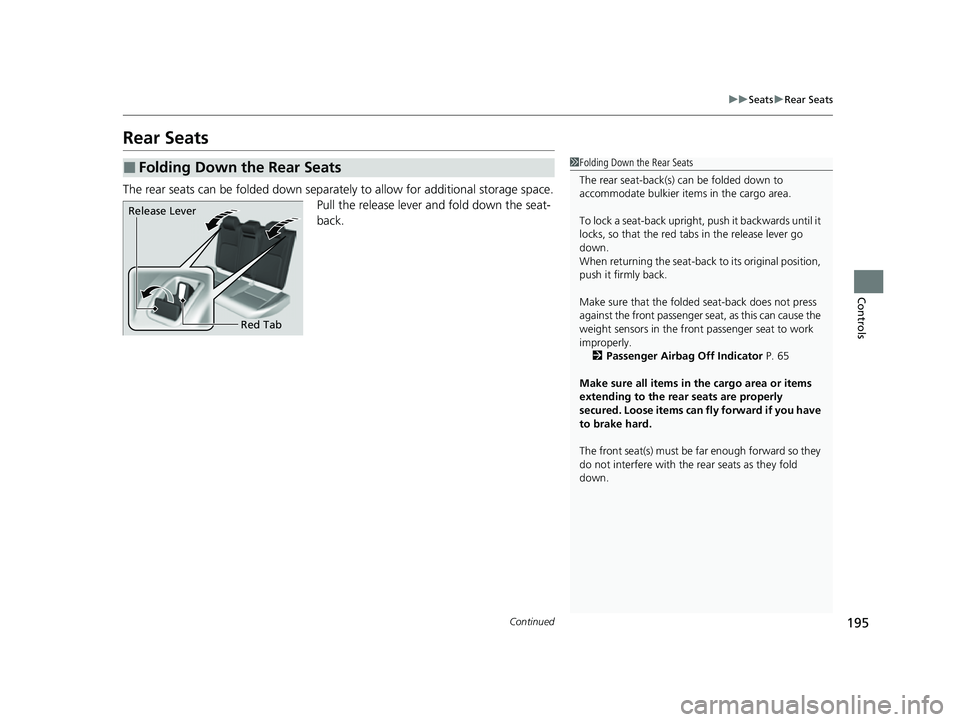

Rear Seats
The rear seats can be folded down separa tely to allow for additional storage space.
Pull the release lever and fold down the seat-
back.
■Folding Down the Rear Seats1 Folding Down the Rear Seats
The rear seat-back(s) can be folded down to
accommodate bulkier items in the cargo area.
To lock a seat-back upright, push it backwards until it
locks, so that the red tabs in the release lever go
down.
When returning the seat-back to its original position,
push it firmly back.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 65
Make sure all items in the cargo area or items
extending to the rear seats are properly
secured. Loose items can fly forward if you have
to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Release Lever
Red Tab
23 ACURA INTEGRA-313S56000_03.book 195 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

223
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Sensor
Sensor
23 ACURA INTEGRA-313S56000_03.book 223 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

372
uuCustomized Features u
Features
■Customization flow
Press the button.
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Traffic Sign Recognition System Display Setting
Road Departure Mitigation Setting
Lane Keeping Assist Suspend Beep
Blind Spot Inf–
Traffic Sign Recognition System Speed Limit Warning
Speed Limit Warning Threshold Setting
Driver Attention Monitor
Driver Assist System Setup
Select Vehicle Settings .
Rev Match System*
Rear Sensor Setting
Head-up Warning
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 372 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

376
uuCustomized Features u
Features
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Traffic Sign Recognition
System Speed Limit
Warning Enables over speed limit warning when speed limi
t is exceeded.
2Traffic Sign Recognition System P. 574ON*1/OFF
Speed Limit Warning
Threshold SettingSelect speed limit warning threshol d based on personal preference.
2Traffic Sign Recognition System P. 574
Speed Limit*1/
Speed Limit+3mph /
Speed Limit+5mph /
Speed Limit+10mph
(When mph is selected)
Speed Limit
*1/
Speed Limit+5km/h /
Speed Limit+10km/h /
Speed Limit+15km/h
(When km/h is selected)
Driver Attention Monitor Changes the setting for the driver attention monitor.
2
Driver Attention Monitor P. 117
OFF/Tactile Alert /Tactile
And Audible Alert*1
Rev Match System*Selects On/Off the rev match system.
2 Rev Match System P. 445ON*1/OFF
Rear Sensor Setting
Selects to turn ON or OFF the rear Parking Sensor. This selection will
also affect the rear Low Speed Braking Control.
2 Parking Sensor System* P. 598
2 Low Speed Braking Control* P. 493, 499
ON*1/OFF
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 376 ページ ２０２２年３月１８日　金曜日　午前１１時４７分
