sensor ACURA INTEGRA 2023 Owner's Guide

423
Driving
This chapter discusses driving and refueling.
Before Driving................................... 424
Towing a Trailer ................................ 429
When Driving
Starting the Engine .......................... 430
Precautions While Driving................. 438
Continuously Variable Transmission*... 439Shifting .................................... 440 , 444Acura Integrated Dynamics System .. 447, 449Auto Idle Stop .......................... 455, 461Vehicle Stability AssistTM (VSA®), aka
Electronic Stability Control (ESC),
System ........................................ 466
Agile Handling Assist ....................... 468 Limited Slip Differential (LSD) ........... 469
Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist .......................... 470
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 472
Blind Spot Information System ......... 474
AcuraWatch
TM................................... 478
Collision Mitigati on Braking SystemTM
(CMBSTM) ....................................... 481
Low Speed Braking Control*.... 493, 499
Adaptive Cruise Control (ACC) with Low Speed Follow
*............................... 504
Adaptive Cruise Control (ACC)*....... 525 Lane Keeping Assist System (LKAS).... 545
Traffic Jam Assist
*........................... 557
Road Departure Miti gation System... 566
Traffic Sign Recognition System ....... 574
Front Wide View Camera ................. 581
Sonar Sensors
*................................ 583
Braking .............................................. 584
Parking Your Vehicle ........................ 596
Multi-View Rear Camera .................. 606
Refueling ........................................... 608
Fuel Economy and CO
2 Emissions .... 611
Turbo Engine Vehicle ....................... 612
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 423 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

426
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 45
•Make sure that the indicators in the in strument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 84
23 ACURA INTEGRA-313S56000_03.book 426 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

470
uuWhen Driving uTire Pressure Monitoring System (TPMS) with Tire Fill Assist
Driving
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
Monitors the tire pressure while you are
driving. If your vehicle’s tire pressure becomes
significantly low, the low tire pressure/TPMS
indicator comes on and a message appears on
the driver information interface.
1 Tire Pressure Monitoring System (TPMS) with Tire Fill Assist
Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come
on. 2 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks P. 704
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become overinflated in warmer
weather.
The low tire pressure/TPMS indicator will not come
on as a result of overinflation.
Only use genuine TPMS specified wheels since your
vehicle’s wheels are equipped with the low tire
pressure/TPMS sensor.
If you drive your vehicle without the genuine TPMS
specified wheels, the low tire pressure/TPMS
indicator blinks for one minutes and then stays on.
2 Tire and Wheel Replacement P. 647
The TPMS audibly and visually informs you of
changes in tire pressure of the individual tire that you
are adjusting using audibl e and visual indications.
If a change in tire pressure has been significant, the
system beeps and the hazard lights flash continuously
for five seconds when the specified tire pressure is
reached. Stop filling the tire.Low Tire Pressure/TPMS
Indicator
23 ACURA INTEGRA-313S56000_03.book 470 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

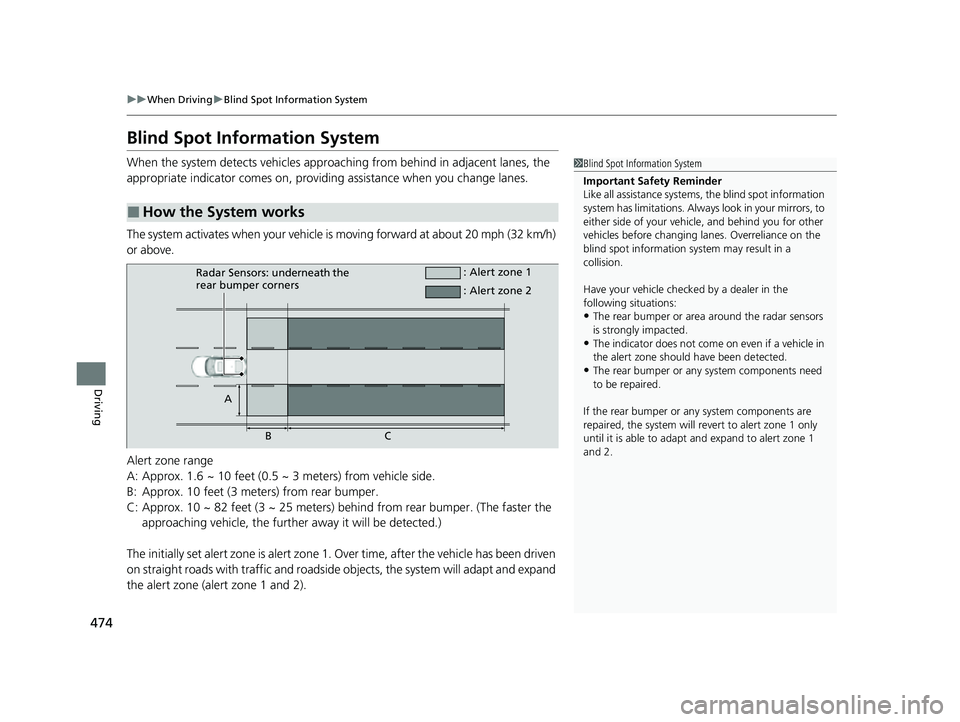

474
uuWhen Driving uBlind Spot Information System
Driving
Blind Spot Information System
When the system detects vehi cles approaching from behind in adjacent lanes, the
appropriate indicator comes on, providin g assistance when you change lanes.
The system activates when your vehicle is moving forward at about 20 mph (32 km/h)
or above.
The initially set alert zone is alert zone 1. Over time, after the vehicle has been driven
on straight roads with traffic and roadside objects, the system will adapt and expand
the alert zone (alert zone 1 and 2).
■How the System works
1 Blind Spot Information System
Important Safety Reminder
Like all assistance systems, the blind spot information
system has limitations. Always look in your mirrors, to
either side of your vehicle, and behind you for other
vehicles before changing la nes. Overreliance on the
blind spot information sy stem may result in a
collision.
Have your vehicle checked by a dealer in the
following situations:
•The rear bumper or area around the radar sensors
is strongly impacted.
•The indicator does not come on even if a vehicle in
the alert zone should have been detected.
•The rear bumper or any system components need
to be repaired.
If the rear bumper or any system components are
repaired, the system will re vert to alert zone 1 only
until it is able to adapt and expand to alert zone 1
and 2.
Alert zone range
A: Approx. 1.6 ~ 10 feet (0.5 ~ 3 meters) from vehicle side.
B: Approx. 10 feet (3 meters) from rear bumper.
C: Approx. 10 ~ 82 feet (3 ~ 25 meters) behind from rear bumper. (The faster the
approaching vehicle, the furthe r away it will be detected.)
Radar Sensors: underneath the
rear bumper corners : Alert zone 1
A BC : Alert zone 2
23 ACURA INTEGRA-313S56000_03.book 474 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

Continued475
uuWhen Driving uBlind Spot Information System
Driving
■When the system detects a vehicle
Blind spot information system alert indicator:
Located on the outside rearview mirror on
both sides.
Comes on when:
•A vehicle approaches you from behind to
overtake you at a speed difference of no
more than about 31 mph (50 km/h).
• You pass a vehicle at a speed difference of
no more than about 12 mph (20 km/h).
Blinks and a beeper sounds when:
You use the turn signal lever to signal a turn in
the direction of the detected vehicle while the
blind spot information system alert indicator is
on. u The beeper sounds three times.1Blind Spot Information System
For proper blind spot information system operation:
•Always keep the rear bumper and area around the
radar sensors clean.
•Do not cover the rear bumper corner area with
labels or sticke rs of any kind.
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur:
•The blind spot informatio n system alert indicator
does not come on and the message Blind spot
information system not available appears on
the driver information interface.
•The blind spot informatio n system alert indicator
may come on even with the message displayed.
Comes On
Blinks
23 ACURA INTEGRA-313S56000_03.book 475 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

477
uuWhen Driving uBlind Spot Information System
Driving
The blind spot information system alert indicator may not come on under the
following conditions:
• There is a large speed difference between your vehicle and the vehicle in the
adjacent lane.
• A vehicle is parked in a side lane.
• An object not detected by the radar sensors approaches or passes your vehicle.
• The vehicle driving in the ad jacent lane is a motorcycle or other small vehicle.
The Blind Spot Information System may not operate correctly under the following
conditions:
• Making a turn at an intersection.
• Objects (guard rails, poles, trees, etc.) are detected.
• An object that does not reflect radio wave s well or a motorcycle, is in the alert
zone.
• Driving on a curved road.
• A vehicle is moving from a far lane to the adjacent lane.
• The system picks up signal interference su ch as other radar sensors from another
vehicle or strong radio wave tra nsmitted from a facility nearby.
• The rear bumper or the area around the radar sensors is covered by dirt, mud,
snow, ice, etc.
• The rear bumper or the area around the radar sensors has been damaged or
deformed.
• In bad weather (heavy rain, snow, and fog).
• Making a short turn or driving on a bump y road that slightly tilts the vehicle.
• An object such as a bicycle rack is attached to the rear of the vehicle.
■Blind Spot Information System Conditions and Limitations
23 ACURA INTEGRA-313S56000_03.book 477 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

478
Driving
AcuraWatchTM
AcuraWatchTM is a driver support system which employs the use of two distinctly
different kinds of sensors: the sonar sensor s located in the front and rear bumpers,
and the front grille, and a front wide view camera mounted to the interior side of
the windshield, behind the rearview mirror.
AcuraWatch
TM is a driver support system which employs the use of a front wide view
camera mounted to the interior side of the windshield, behind the rearview mirror.
AcuraWatch
TM has the following functions.
■The functions whic h do not require switch operations to activate
• Collision Mitigation Braking SystemTM (CMBSTM) 2 P. 481
• Low Speed Braking Control* 2 P. 493
• Low Speed Braking Control* 2 P. 499
• Road Departure Mitigation System 2 P. 566
• Traffic Sign Recognition System 2 P. 574
■The functions wh ich require switch op erations to activate
• Adaptive Cruise Control ( ACC) with Low Speed Follow* 2 P. 504
• Adaptive Cruise Control (ACC)* 2 P. 525
• Lane Keeping Assist System (LKAS) 2 P. 545
• Traffic Jam Assist* 2 P. 557
Models with Low Speed Braking Control
Models without Low Speed Braking Control
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 478 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

484
uuAcuraWatchTMuCollision Mitigation Braking SystemTM (CMBSTM)
Driving
The system has three alert stages for a possible collision. However, depending on circumstances, the CMBSTM may not go through all of
the stages before initiating the last stage.
■Collision Alert Stages
Distance between vehiclesCMBSTM
The sensors detect a vehicleAudible & Visual WARNINGSBraking
Stage oneThere is a risk of a collision with the
vehicle ahead of you.
When in Long, visual and audible
alerts come on at a longer distance
from a vehicle ahead than in Normal
setting, and in Short, at a shorter
distance than in Normal.
—
Stage
twoThe risk of a collision has increased,
time to respond is reduced.
Visual and audible alerts.
Lightly applied
Stage three The CMBSTM determines that a collision
is unavoidable.Forcefully applied
Your Vehicle Vehicle
Ahead
Normal
Short
Long
Your
Vehicle Vehicle
Ahead
Your
VehicleVehicle
Ahead
23 ACURA INTEGRA-313S56000_03.book 484 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

493
uuAcuraWatchTMuLow Speed Braking Control*
Continued
Driving
Low Speed Braking Control*
Using sonar sensors located on the front an d rear bumpers, and the front grille, this
system can detect if there is danger of a potential collision with a wall or other
obstacle during normal driving or when the accelerator pedal is depressed with too
much force. The system then assists in avoiding collisions and reducing damage
from impact through assistive braking a nd/or assistive driving power suppression.
1Low Speed Braking Control*
If the Low Speed Braking Control activates in a
situation where you do not want automatic brake
application (such as when the vehicle is between two
railroad crossing gates), si mply press the brake pedal
to deactivate the system and then continue to drive
as intended.
3WARNING
The Low Speed Braking Control System
cannot avoid all collisions and may not
reduce damage in each situation where the
accelerator is mistaken ly or aggressively
pressed. Overreliance on the system may
result in a collision with serious injury or
death. Always check your surroundings,
your shift position, and your pedal use.
Driver remains responsible for safely
operating the vehicle.
Continuously variable transmission models with parking sensor system
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 493 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuAcuraWatchTMuLow Speed Braking Control*
494
Driving
■Assistive braking
Assistive braking provides a visual and audible alert when the vehicle is moving
between approximately 1 and 6 mph (2 and 10 km/h) and there is the possibility of
a collision with a detected wall or other ob stacles, as well as providing assistance
with braking.
If the only rear sensors are turned off usin g the parking sensor system, the assistive
braking is not working when reversing.
2 Customized Features P. 359
■How the System Works1Low Speed Braking Control*
For directions on the prop er handling of the sonar
sensors, please refer to the following page.
2 Sonar Sensors
* P. 583
The vehicle will release the brake and start moving a
few seconds after the system is activated. To keep the
vehicle stopped, keep the brake pedal depressed or
put the transmission into
( P.
In order to prevent the sy stem from activating when
not needed, always turn it off during vehicle
maintenance, when loading on ships, trucks, and so
on, or when using a chassis dynamometer, free
rollers for inspection or when washing the car in
conveyor type car wash machine.Audible Alert
Beep Beep
The vehicle
applies brake Driver
depresses
brake pedal
Remove
brake after
maintaining
stationary
positionStop
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 494 ページ ２０２２年３月１８日　金曜日　午前１１時４７分
