ACURA INTEGRA 2023 Owner's Guide

29
Quick Reference Guide
Maintenance (P613)
Under the Hood (P625)
●Check engine oil, engine coolant, and windshield washer fluid. Add
when necessary.
●Check brake/clutch* fluid.●Check the battery condition monthly.
aPull the hood release handle under the driver's side lower corner
of the dashboard.
bLocate the hood latch lever, push it to the side, and then raise the
hood. Once you have raised the hood slightly, you can release the
lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P637)
●Inspect all lights regularly.
Wiper Blades (P639)
●Replace blades if they leave streaks
across the windshield or become
noisy.
Tires (P641)
●Inspect tires and wheels
regularly.
●Check tire pressures regularly.●Install snow tires for winter
driving.
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 29 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

30
Quick Reference Guide
Handling the Unexpected (P665)
Flat Tire (P667)
●
Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P699)
●Identify the indicator and consult the
owner's manual.
Models with tire repair kit
Models with optional spare tire
Engine Won’t Start
(P689)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P705)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P697)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P711)
●Call a professional towing service if you
need to tow your vehicle.
23 ACURA INTEGRA-313S56000_03.book 30 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

31
Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right
after pressing the ENGINE START/STOP
button.
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2 Anti-lock Brake System (ABS) (P594)
Manual transmission models
Continuously variable transmission
models
23 ACURA INTEGRA-313S56000_03.book 31 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

32
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear door
with the outside door handle.
To cancel this function, slide the lever
up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●The Auto Idle Stop is in operation.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and hatch (Walk away auto lock ®) (P150)
23 ACURA INTEGRA-313S56000_03.book 32 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

33
Quick Reference Guide
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or any passengers are
not wearing their seat belts.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring Sy stem (TPMS) needs attention.
2Tire Pressure Monitoring System (TPMS) with Tire Fill Assist (P470)
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P* or (N. If so, select any other
position.
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 33 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

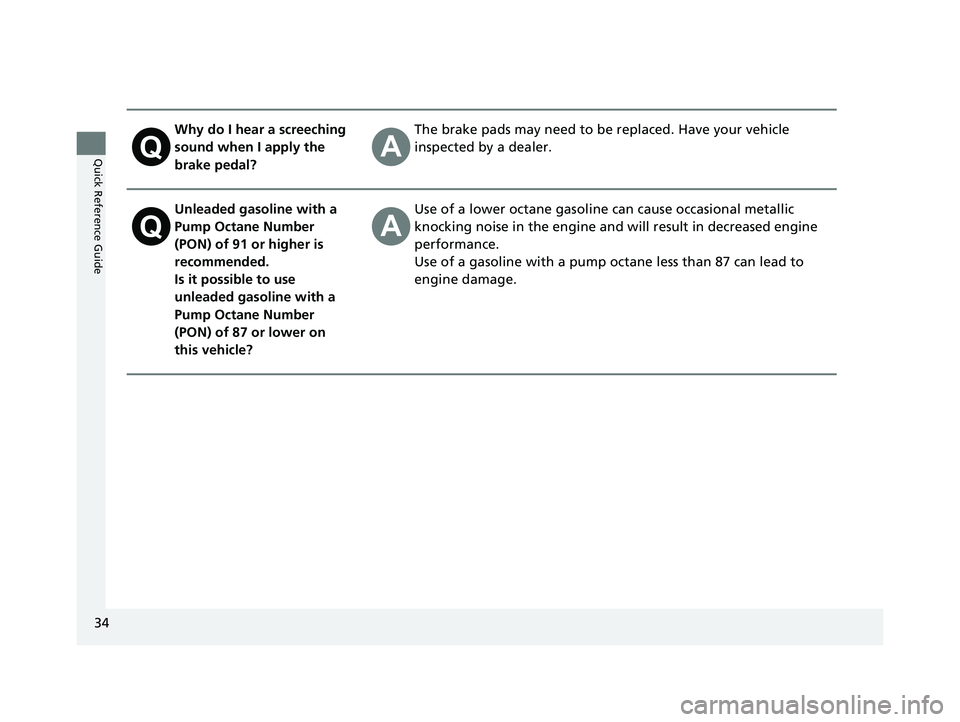

34
Quick Reference Guide
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Unleaded gasoline with a
Pump Octane Number
(PON) of 91 or higher is
recommended.
Is it possible to use
unleaded gasoline with a
Pump Octane Number
(PON) of 87 or lower on
this vehicle?Use of a lower octane gasoline can cause occasional metallic
knocking noise in the engine and will result in decreased engine
performance.
Use of a gasoline with a pump octane less than 87 can lead to
engine damage.
23 ACURA INTEGRA-313S56000_03.book 34 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

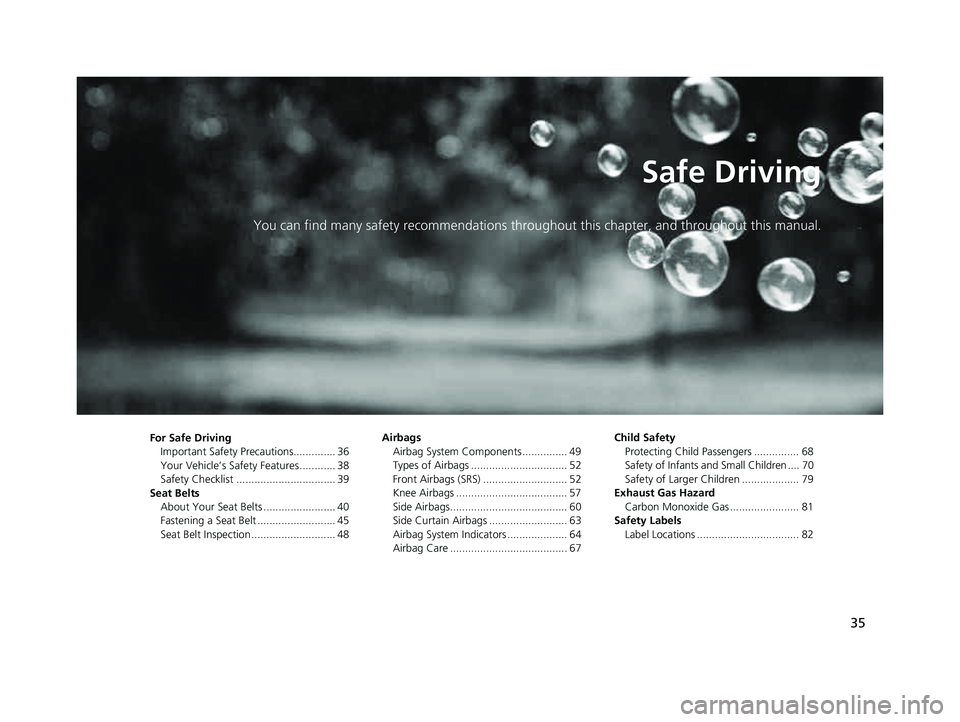

35
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions.............. 36
Your Vehicle’s Safety Features ............ 38
Safety Checklist ................................. 39
Seat Belts About Your Seat Belts ........................ 40
Fastening a Seat Belt .......................... 45
Seat Belt Inspection ............................ 48 Airbags
Airbag System Components ............... 49
Types of Airbags ................................ 52
Front Airbags (SRS) ............................ 52
Knee Airbags ..................................... 57
Side Airbags....................................... 60
Side Curtain Airbags .......................... 63
Airbag System Indicators .................... 64
Airbag Care ....................................... 67 Child Safety
Protecting Child Passengers ............... 68
Safety of Infants and Small Children .... 70
Safety of Larger Children ................... 79
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 81
Safety Labels Label Locations .................................. 82
23 ACURA INTEGRA-313S56000_03.book 35 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

36
Safe Driving
For Safe Driving
The following pages explain your vehicle's safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride prop erly restrained in a back seat, not the
front seat. Infants and small children should be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don't drink and drive
Alcohol and driving don't mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don't drink and drive, and don't let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and te rritories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
23 ACURA INTEGRA-313S56000_03.book 36 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

37
uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles , and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all re gularly scheduled maintenance.
■Do not leave children unattended in the vehicle
Children, pets, and people needing assistance left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in wh ich they and/or another person(s) can be
injured or killed. Also, depending on the am bient temperature, the temperature of
the interior may reach extreme levels, which ca n result in harm or death. Even if the
climate control system is on, never leave them in the vehicle unattended as the
climate control system can shut off at any time.
23 ACURA INTEGRA-313S56000_03.book 37 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

38
uuFor Safe Driving uYour Vehicle’s Safety Features
Safe Driving
Your Vehicle’s Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers.
1 Your Vehicle’s Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zones, a collapsi ble steering
column, and tensioners th at tighten the front and
outer rear seat belts in a sufficient crash.
However, you and your passe ngers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
67891011
Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Door Locks Side Airbags
Seat Belt Tensioners
9
9
8
10
6
11
Outer Lap Pretensioners Knee Airbags12
13
10
12
13
9
11
12
8
7
