check engine ACURA INTEGRA 2023 Owners Manual

Contents
Child Safety P. 68Exhaust Gas Hazard P. 81Safety Labels P. 82
Hatch P. 162Security System P.165 Windows P. 168 Moonroof P. 171
Mirrors P. 189 Seats P. 191
Climate Control System P. 218
Audio Error Messages P. 328 General Information on the Audio System P. 330
Bluetooth ® HandsFreeLink ® P. 383, 403
When Driving P. 430 AcuraWatchTM P. 478 Braking P. 584 Parking Your Vehicle P. 596
Fuel Economy and CO
2 Emissions P. 611 Turbo Engine Vehicle P. 612
Maintenance Under the Hood P. 625 Replacing Light Bulbs P. 637
Checking and Maintaining Tires P. 641 Batt ery P. 651 Remote Transmitter Care P. 653
Cleaning P. 656 Accessories and Modifications P. 662
Engine Does Not Start P. 689 If the Battery Is Dead P. 694
Indicator, Coming On/Blinking P. 699 Fuses P. 705Emergency Towing P. 711
If You Cannot Open the Hatch P. 713 Refueling P. 714
Devices that Emit Radio Waves P. 719 Reporting Safety Defects P. 720 Emissions Testing P. 721
Client Service Information P. 727 Open Source Licenses P. 728
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 83
ControlsP. 141
FeaturesP. 225
DrivingP. 423
MaintenanceP. 613
Handling the UnexpectedP. 665
InformationP. 715
IndexP. 729
23 ACURA INTEGRA-313S56000_03.book 5 ページ ２０２２年３月１８日　金曜日　午前１１時 ４７分

13

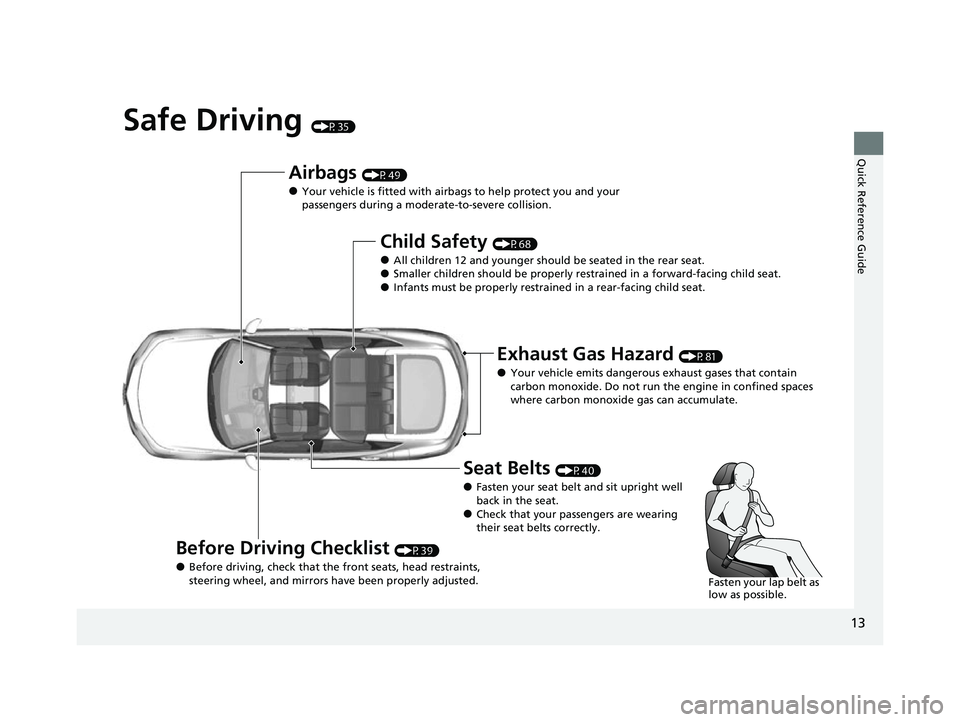

Quick Reference Guide
Safe Driving (P35)
Airbags (P49)
●Your vehicle is fitted with airbags to help protect you and your
passengers during a moderate-to-severe collision.
Child Safety (P68)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P81)
●Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P39)
●Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P40)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
23 ACURA INTEGRA-313S56000_03.book 13 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

29
Quick Reference Guide
Maintenance (P613)
Under the Hood (P625)
●Check engine oil, engine coolant, and windshield washer fluid. Add
when necessary.
●Check brake/clutch* fluid.●Check the battery condition monthly.
aPull the hood release handle under the driver's side lower corner
of the dashboard.
bLocate the hood latch lever, push it to the side, and then raise the
hood. Once you have raised the hood slightly, you can release the
lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P637)
●Inspect all lights regularly.
Wiper Blades (P639)
●Replace blades if they leave streaks
across the windshield or become
noisy.
Tires (P641)
●Inspect tires and wheels
regularly.
●Check tire pressures regularly.●Install snow tires for winter
driving.
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 29 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

30
Quick Reference Guide
Handling the Unexpected (P665)
Flat Tire (P667)
●
Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P699)
●Identify the indicator and consult the
owner's manual.
Models with tire repair kit
Models with optional spare tire
Engine Won’t Start
(P689)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P705)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P697)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P711)
●Call a professional towing service if you
need to tow your vehicle.
23 ACURA INTEGRA-313S56000_03.book 30 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

84
Instrument Panel
Indicators
Indicators come on/blink depending on the condition of the vehicle. Messages may
display on the driver information interface at the same time. Please take the
appropriate action outlined in the message, such as contacting a dealer.
M (7-speed manual
shift mode) Indicator/
Shift Indicator
* P. 89
Parking Brake and
Brake System
Indicator (Red)
Parking Brake and
Brake System
Indicator (Amber)U.S.
Canada
U.S.
Canada
Automatic Brake
Hold System
Indicator
Automatic Brake
Hold IndicatorU.S.
Canada
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being perf ormed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
 P. 86
*1Malfunction
Indicator Lamp
Charging System
Indicator
Seat Belt Reminder
Indicator
Low Fuel Indicator

P. 88
 P. 88
 P. 88 
P.
89
 P. 89
*1 *1
*1Shift Position
Indicator*
P. 89
Transmission System
Indicator
* P. 90
 P. 90
 P. 91
*1
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
AssistTM (VSA®)
System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental
Restraint System
Indicator
Electric Power
Steering (EPS) System
Indicator
*1

P. 91
 P. 91
 P. 92*1
*1
 P. 92
*1 P. 91
*1 *1
*1 *1
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 84 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

85
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being perf ormed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator High Beam
Indicator
Fog Light
Indicator*
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)

P. 92
Aut
o Idle Stop System
Indicato
r (Amber) 
P. 96
 P. 93
 P. 93 
P. 98
*1
 P. 93
 P. 93

P. 93 Immobilizer System
Indicator

P. 95
S

ec
urity System Alarm
Indicator 
P. 95
 P. 94 
P. 99
 P. 103
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(White/Green) P. 98
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) 
P. 99
*1 *1Safety Support
Indicator (Amber)

P. 100
*1
NORMAL Mode
Indicator 
P. 94
Auto Idle Stop OFF
Indicator 
P. 96
Auto
Idle Stop
Suspend
Indicator P. 97
SPORT
Mode Indi
cator
P. 94
Cruise Mode Indicator
(White/Green) 
P. 99
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Interval
Indicator 
P. 99
Auto Idle Stop
Indicator (Green) 
P. 96
COMFORT Mode
Indicator 
P. 94
INDIVIDUAL Mode
Indica
tor* P. 94
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 85 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Malfunction
Indicator Lamp
●After you have set the power mode to ON,
the vehicle performs system checks.
However, if the readiness codes have not
been set by that time, this indicator will
blink five times and then go off.●Readiness codes are part of the on-board
diagnostics for the emi ssions control systems.
2Testing of Readiness Codes P. 721
●Comes on if there is a problem with the
emissions control systems.
●Blinks when a misfire in the engine’s
cylinders is detected.
2If the Malfunction Indicator Lamp Comes On
or Blinks P. 700
Charging System
Indicator
●Comes on when there is a problem with
the charging system.●Stop in a safe place and contact a dealer
immediately.
2Checking the Battery P. 651
2 If the Charging System Indicator Comes On
P. 700
Shift Position
Indicator*
●Indicates the current shift position.
2 Shifting P. 440
M (7-speed
manual shift mode)
Indicator/Shift
Indicator
*
●Comes on when the 7- speed manual shift
mode is applied.
2 7-Speed Manual Shift Mode P. 442
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 89 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Immobilizer System
Indicator
•Blinks if the immobilizer system cannot
recognize the key information.•Blinks - You cannot start the engine. Set the
power mode to VEHICLE OFF, then select the ON
mode again.
Depress and hold the brake pedal before setting
the power mode to ON.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by a
dealer.
• Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.
Security System
Alarm Indicator
•Blinks when the security system alarm has
been set.
2 Security System Alarm P. 165
IndicatorCanadian models
Indicator
23 ACURA INTEGRA-313S56000_03.book 95 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop OFF
Indicator
●Comes on when the Auto Idle Stop system
has been turned off by the Auto Idle Stop
OFF button.
2Auto Idle Stop System ON/OFF P. 456, 462
Auto Idle Stop
System Indicator
(Amber)●Blinks if there is a problem with the Auto
Idle Stop system.●Blinks - Have your vehicle checked by a dealer.
Auto Idle Stop
Indicator (Green)●Comes on when Auto Idle Stop is in
operation. The engine automatically shuts
off.
2 Auto Idle Stop P. 455, 461
23 ACURA INTEGRA-313S56000_03.book 96 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

111
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
Driver Information Interfa ce (Right Side Area)
The driver information interface shows info rmation such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
When a warning message displays, please check the message and contact a dealer
and have the vehicle inspected if necessary . Please refer to the pages below if the
Engine oil pressure low or Engine temperature too hot message is displayed.
2If the Engine oil pressure low Warning Appears P. 699
2 Overheating P. 697
23 ACURA INTEGRA-313S56000_03.book 111 ページ ２０２２年３月１８日　金曜日　午前１１時４７分
