fog light ACURA INTEGRA 2023 Owners Manual

7
Quick Reference Guide❚ Headlights/ Turn Signals
(P175, 176)
❚ Fog Lights* (P179)
❚Paddle Shifter (Shift down)* (P442)
❚Left Selector Wheel (P230)
❚ Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P504)
❚ Lane Keeping Assist System (LKAS)
Button
(P548)
❚ Interval Button (P517)
❚Steering Wheel Adjustments (P188)
❚ Heated Steering Wheel (P215)
$BOBEJBO
NPEFMT
❚Right Selector Wheel (P112)
❚ Bluetooth ® HandsFreeLink ® System
Voice Control Button
(P403)
❚Horn (Press an area around .)
❚ Adaptive Cruise Control (ACC) Buttons*
(P525)
❚Paddle Shifter (Shift up)* (P442)
❚ Wipers/ Washers (P183)
❚Audio Remote Controls (P230)
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 7 ページ ２０２２年３月１８日　金曜日　午前１１時 ４７分

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P625)
❚Windshield Wipers (P183, 639)
❚Tires (P641, 667)
❚Fog Lights* (P179, 637)
❚Power Door Mirrors (P190)
❚How to Refuel (P609)
❚Opening/Closing the Hatch (P162)
❚Side Turn Signal Lights* (P175, 637)
❚Headlights (P176, 637)
❚Front Turn Signal Lights (P175, 637)
❚Front Side Marker Lights (P176, 637)
❚Rear Side Marker Lights (P638)
❚Door Lock/Unlock Control (P147)
❚Parking/ChicaneTM Daytime Running Lights (P179, 637)
❚Rear Turn Signal Lights (P638)
❚High-Mount Brake Light (P638)
❚Multi-View Rear Camera (P606)
❚Hatch Release Button (P163)
❚Rear License Plate Light (P638)
❚Brake Lights (P638)
❚Back-Up Lights (P638)
❚ChicaneTM Taillights (P638)
23 ACURA INTEGRA-313S56000_03.book 10 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

85
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being perf ormed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator High Beam
Indicator
Fog Light
Indicator*
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)

P. 92
Aut
o Idle Stop System
Indicato
r (Amber) 
P. 96
 P. 93
 P. 93 
P. 98
*1
 P. 93
 P. 93

P. 93 Immobilizer System
Indicator

P. 95
S

ec
urity System Alarm
Indicator 
P. 95
 P. 94 
P. 99
 P. 103
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(White/Green) P. 98
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) 
P. 99
*1 *1Safety Support
Indicator (Amber)

P. 100
*1
NORMAL Mode
Indicator 
P. 94
Auto Idle Stop OFF
Indicator 
P. 96
Auto
Idle Stop
Suspend
Indicator P. 97
SPORT
Mode Indi
cator
P. 94
Cruise Mode Indicator
(White/Green) 
P. 99
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Interval
Indicator 
P. 99
Auto Idle Stop
Indicator (Green) 
P. 96
COMFORT Mode
Indicator 
P. 94
INDIVIDUAL Mode
Indica
tor* P. 94
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 85 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Turn Signal and
Hazard Warning
Indicators•Blinks when you operate the turn signal
lever.
• Blinks along with all turn signals when you
press the hazard warning button.●Does not blink or blinks rapidly - Have your
vehicle checked by a dealer.
Lights On Indicator• Comes on when the parking, tail, and
other external lights are on.2 Light Switches P. 176
High Beam
Indicator•Comes on when the high beam headlights
are on.—
Auto High-Beam
Indicator•Comes on when all the operating
conditions of the auto high-beam are met.2 Auto High-Beam P. 180
Fog Light
Indicator*
•Comes on when the fog lights are on.2 Fog Lights* P. 179
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 93 ページ ２０２２年３月１８日　金曜日　午前１１ 時４７分

141
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 142
Locking and Unlocking the Doors Key .................................................. 144
Low Keyless Remote Signal Strength 146
Locking/Unlocking the Doors from the Outside .......................................... 147
Locking/Unlocking the Doors from the Inside ............................................. 158
Childproof Door Locks ..................... 160
Auto Door Locking/Unlocking .......... 161
Hatch ................................................. 162
Security System
Immobilizer System .......................... 165 Security System Alarm...................... 165
Windows ........................................... 168
Moonroof .......................................... 171
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 172
Turn Signals ..................................... 175
Light Switches.................................. 176
Fog Lights
*...................................... 179
ChicaneTM Daytime Running Lights ... 179
Auto High-Beam .............................. 180
Wipers and Washers ........................ 183
Rear Defogger/Heated Door Mirror Button ........................................ 185
Driving Position Memory System*..... 186
Adjusting the Steering Wheel .......... 188
Mirrors Interior Rearview Mirror ................... 189
Power Door Mirrors ......................... 190
Seats .................................................. 191
Interior Convenience Items .............. 201
Climate Control System Using Automatic Climate Control .... 218
Automatic Climate Control Sensors......223
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 141 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

Continued177
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
Automatic lighting control can be used when
the power mode is in ON.
When the light switch is in AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
The headlights come on when you unlock a
door in dark areas with the headlight switch in
AUTO .
u Once you lock the door, the headlights
will go off.
■Automatic Operation (automatic lighting control)1 Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a de nse fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Models without automatic
intermittent wipers
Light Sensor
Models with automatic
intermittent wipers
23 ACURA INTEGRA-313S56000_03.book 177 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

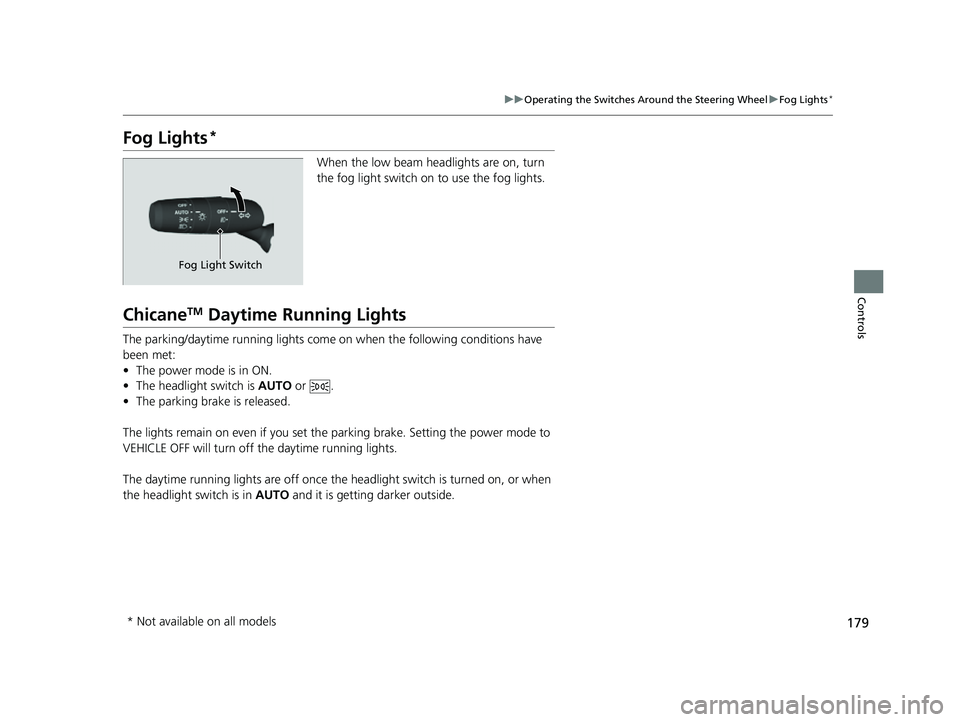

179
uuOperating the Switches Around the Steering Wheel uFog Lights*
Controls
Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
ChicaneTM Daytime Running Lights
The parking/daytime running lights come on when the following conditions have
been met:
• The power mode is in ON.
• The headlight switch is AUTO or .
• The parking brake is released.
The lights remain on even if you set th e parking brake. Setting the power mode to
VEHICLE OFF will turn off the daytime running lights.
The daytime running lights are off once the h eadlight switch is turned on, or when
the headlight switch is in AUTO and it is getting darker outside.
Fog Light Switch
* Not available on all models
23 ACURA INTEGRA-313S56000_03.book 179 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

Continued181
uuOperating the Switches Around the Steering Wheel uAuto High-Beam
Controls
■Automatic switching between high-beam and low-beam
When auto high-beam is active, the head lights switch between high beam and low
beam based on the following conditions.
Switching to high beam:Switching to low beam:
All of the following conditions must
be met before the high beams turn
on.
●Your vehicle speed is 25 mph (40
km/h) or more.
●There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
●There are few street lights on the
road ahead.
One of the following conditions
must be met before the low beams
turn on.
●Your vehicle speed is 15 mph (24
km/h) or less.
●There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
●There are many street lights on
the road ahead.
1 How to Use the Auto High-Beam
In the following cases, th e auto high-beam system
may not switch the head lights properly or the
switching timing may be ch anged. In case of the
automatic switching operation does not fit for your
driving habits, please swit ch the headlights manually.
•The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
•Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
•Surrounding light sources, such as street lights,
electric billboards and traf fic lights are illuminating
the road ahead.
•The brightness level of th e road ahead constantly
changes.
•The road is bumpy or has many curves.•A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
•Your vehicle is tilted with a heavy load in the rear.•A traffic sign, mirror, or other reflective object
ahead is reflecting strong light toward the vehicle.
•The oncoming vehicle freq uently disappears under
roadside trees or be hind median barriers.
•The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
•Windshield wipers are op erating at a high speed.
•The camera has detected a dense fog.
23 ACURA INTEGRA-313S56000_03.book 181 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

430
Driving
When Driving
Starting the Engine
1.Make sure the parking brake is applied.
u The parking brake and brake system
indicator (red) comes on for 30 seconds
when you pull up the electric parking
brake switch.
2. Check that the tr ansmission is in
(P, then
depress the brake pedal.
u Although it is possible to start the vehicle
in
(N, it is safer to start it in (P.
2. Check that the shift lever is in
(N. Then
depress the brake pedal with your right
foot, and the clutch pedal with your left
foot.
u The clutch pedal must be fully depressed
to start the engine.
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altit udes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear de fogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Bring the keyless remote close to the ENGINE
START/STOP button if the batte ry in the keyless
remote is weak.
2 If the Keyless Remote Battery is Weak P. 691
The engine may not start if the keyless remote is
subjected to strong radio waves.
Do not hold the ENGINE START/STOP button to
start the engine.
If the engine does not start, wait at least 30 seconds
before starting the engine again.
Electric Parking Brake Switch
Brake Pedal
Continuously variable transmission models
Brake Pedal
Clutch Pedal
Manual transmission models
23 ACURA INTEGRA-313S56000_03.book 430 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

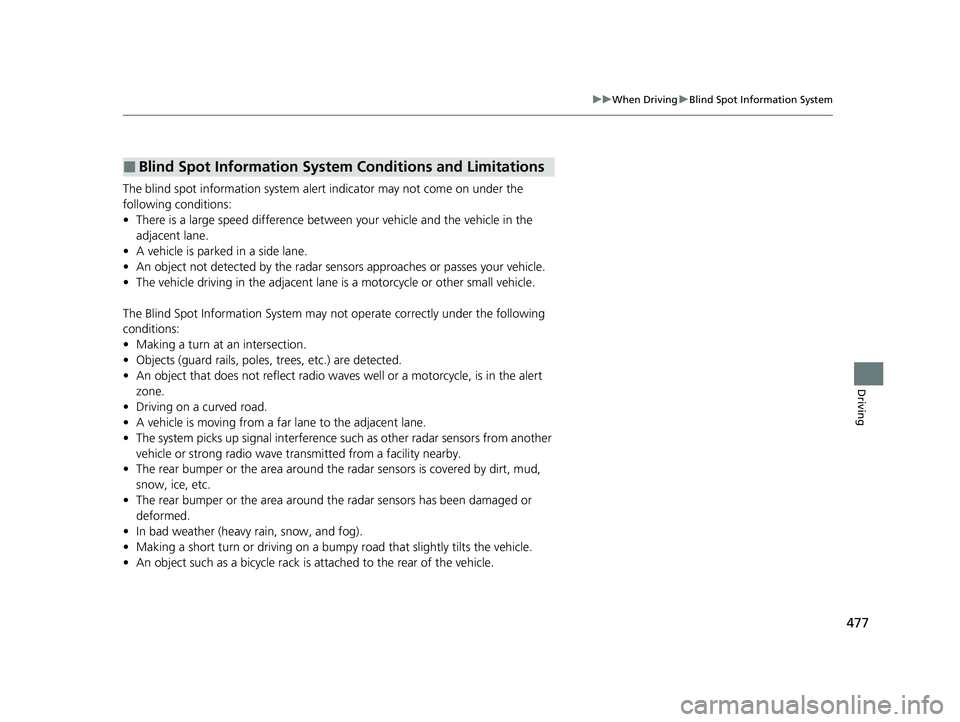

477
uuWhen Driving uBlind Spot Information System
Driving
The blind spot information system alert indicator may not come on under the
following conditions:
• There is a large speed difference between your vehicle and the vehicle in the
adjacent lane.
• A vehicle is parked in a side lane.
• An object not detected by the radar sensors approaches or passes your vehicle.
• The vehicle driving in the ad jacent lane is a motorcycle or other small vehicle.
The Blind Spot Information System may not operate correctly under the following
conditions:
• Making a turn at an intersection.
• Objects (guard rails, poles, trees, etc.) are detected.
• An object that does not reflect radio wave s well or a motorcycle, is in the alert
zone.
• Driving on a curved road.
• A vehicle is moving from a far lane to the adjacent lane.
• The system picks up signal interference su ch as other radar sensors from another
vehicle or strong radio wave tra nsmitted from a facility nearby.
• The rear bumper or the area around the radar sensors is covered by dirt, mud,
snow, ice, etc.
• The rear bumper or the area around the radar sensors has been damaged or
deformed.
• In bad weather (heavy rain, snow, and fog).
• Making a short turn or driving on a bump y road that slightly tilts the vehicle.
• An object such as a bicycle rack is attached to the rear of the vehicle.
■Blind Spot Information System Conditions and Limitations
23 ACURA INTEGRA-313S56000_03.book 477 ページ ２０２２年３月１８日　金曜日　午前１１時４７分
