lock ACURA INTEGRA 2024 Owners Manual

679
uuCleaning uExterior Care
Continued
Maintenance
Exterior Care
Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap is stuck to painted surfaces.
• If driving in conditions that cause buildup of mud, snow, ice or other debris on the
inner fender vents.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• For models equipped with automatic inte rmittent wipers, turn the wipers off.
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
• Do not spray water directly onto the ca mera or the area around it. Water may
enter the lens and cause th e camera to malfunction.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1Washing the Vehicle
Do not spray water into the air intake or hood vents
*.
It can cause a malfunction.
Lock the doors when washing the vehicle.
Do not spray water onto the fuel fill door directly. A
high-pressure spray ma y cause it to open.
Air Intake Vents
1.5 L engine models
2.0 L engine models
Air Intake
Vents
Hood Vents
2.0 L engine models
* Not available on all models
24 ACURA INTEGRA-313S56100.book 679 ページ ２０２３年２月１３日　月曜日　午後２時４１分

685
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 686
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 688
Changing a Flat Tire ......................... 704
Engine Does Not Start Checking the Engine ........................ 711
If the Keyless Remote Battery is Weak .. 712Emergency Engine Start ................... 713
Emergency Engine Stop ................... 714
If the Battery Is Dead
Jump Starting Procedure .................. 715
Shift Lever Does Not Move .............. 718Overheating
How to Handle Overheating............. 719
Indicator Coming On/Blinking If the Engine oil pressure low Warning Appears ......................................... 722
If the Charging System Indicator Comes On ................................................. 723
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 723
If the Brake System Indicator (Red) Comes On or Blinks ................................... 724
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 726
If the Electric Power Steering (EPS) System Indicator Comes On......................... 725
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 727
Fuses
Fuse Locations ................................. 728
Inspecting and Changing Fuses ........ 732
Emergency Towing ........................... 734
If You Cannot Unlock the Fuel Fill Door.. 735If You Cannot Open the Hatch ........ 736
Refueling ........................................... 737
24 ACURA INTEGRA-313S56100.book 685 ページ ２０２３年２月１３日　月曜日　午後２時４１分

705
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
1. Pull the strap on the cargo area floor lid and
open the lid.
2. Take the tool case out of the cargo area.
3. Take the jack, wheel nut wrench, and jack
handle bar out of the tool case.
4. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.
5. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire
Strap
Tool Case
Spare Tire
Wheel
Blocks
The tire to be replaced.
24 ACURA INTEGRA-313S56100.book 705 ページ ２０２３年２月１３日　月曜日　午後２時４１分

714
uuEngine Does Not StartuEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to st op the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place. With manual transmission models you can also downshift the
transmission to utilize engine braking.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, put the transmission into
(P after the vehicle
comes to a complete stop.
The power mode changes to VEHICLE OFF.
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
Continuously variable transmission models
Manual transmission models
24 ACURA INTEGRA-313S56100.book 714 ページ ２０２３年２月１３日　月曜日　午後２時４１分

718
Handling the Unexpected
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Set the power mode to VEHICLE OFF.
3. Remove the built-in key from the keyless
remote.
4. Wrap a cloth around the tip of the built-in
key. Put it into the shift lock release slot as
shown in the image, and remove the cover.
5. Insert the key into the sh ift lock release slot.
6. While pushing the key in, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Continuously variable transmission models
Slot
Cover
Release Button
Shift Lock Release Slot
24 ACURA INTEGRA-313S56100.book 718 ページ ２０２３年２月１３日　月曜日　午後２時４１分

731
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2 P/W AS 20 A
3P/W RR R20 A
4 P/W RR L 20 A
5OPTION10 A
6SRS 10 A
7T/G MTR / TRUNK ACT10 A
8 IDAS / HUD (10 A)
9FR ACC SOCKET20 A
10 DOOR LOCK 20 A
11METER10 A
12 OPTION3 (ST CUT) 10 A
13--
14 OPTION6 (VB SOL) 10 A
15DR DOOR UNLOCK10 A
16 SUNROOF*20 A
17--
18 - -
19--
20 - -
21--
22 SMART 10 A
23DR DOOR LOCK10 A
24 - -
25IMG10 A
26 SRS 10 A
27ST CUT RLY10 A
28 OPTION5 10 A
29FUEL PUMP15 A
30 L SIDE DOOR UNLOCK 10 A
31R SIDE DOOR UNLOCK10 A
32 - -
33--
34 - -
35--
36 - -
37--
38 - -
39R SIDE DOOR LOCK10 A
40 P/SEAT REC / RR HI 20 A
41P/SEAT SLIDE / FR HI20 A
42 BACK LT (7.5 A)
43A/C10 A
44 DRL 10 A
45ACC10 A
46 ACC KEY LOCK 10 A
47L SIDE DOOR LOCK 10 A
48 H/SEAT 20 A
49AS P/SEAT REC*(20 A)
50 P/LUMBAR DR*(10 A)
Circuit ProtectedAmps
51--
52 RR H/SEAT*(20 A)
53AS P/SEAT SLI*(20 A)
54 OPTION1 / FUEL LID 10 A
55AUDIO AMP*(30 A)
56 ADS*(30 A)
Circuit ProtectedAmps
ABACKUP2 MAIN(10 A)
B AUDIO SUB VST (7.5 A)
CACC VST(10 A)
D VST 1 (10 A)
EAUDIO VST(15 A)
FEOP(20 A)
G--
H VST 2 (10 A)
Circuit ProtectedAmps
Sub Fuse Box
1.5 L engine models
* Not available on all models
24 ACURA INTEGRA-313S56100.book 731 ページ ２０２３年２月１３日　月曜日　午後２時４１分

735
Handling the Unexpected
If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the hatch and remove the cover on
the left side of cargo area.
2. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
3. Open the fuel fill door.
2 How to Refuel P. 621
■What to Do If Unable to Unlock the Fuel Fill Door1What to Do If Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Cord
24 ACURA INTEGRA-313S56100.book 735 ページ ２０２３年２月１３日　月曜日　午後２時４１分

736
Handling the Unexpected

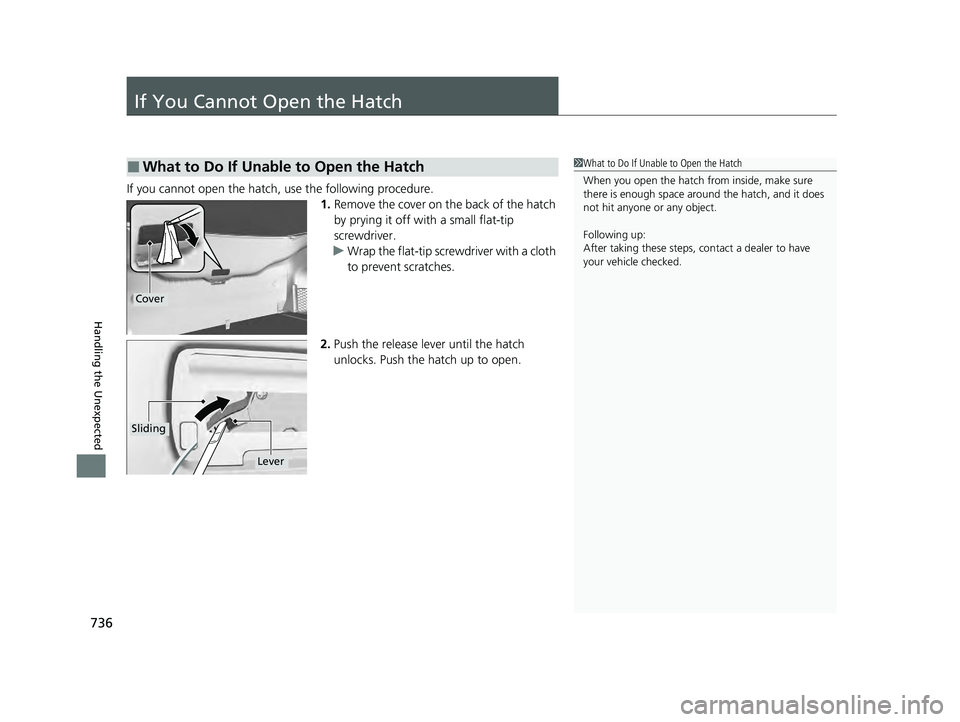

If You Cannot Open the Hatch
If you cannot open the hatch, use the following procedure.1.Remove the cover on the back of the hatch
by prying it off with a small flat-tip
screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Push the release lever until the hatch
unlocks. Push the hatch up to open.
■What to Do If Unable to Open the Hatch1What to Do If Unable to Open the Hatch
When you open the hatch fr om inside, make sure
there is enough space around the hatch, and it does
not hit anyone or any object.
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Sliding
Lever
24 ACURA INTEGRA-313S56100.book 736 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Index
755
Index
Index
Numbers
7-Speed Manual Shift Mode................... 446
Operation ............................................... 447
A
ABS (Anti-lock Brake System) .................. 605
Accelerator Position Meter ..................... 126
Accessories and Modifications ................ 682
Accessory Power Socket ........................... 218
Acura Integrated Dynamics System ............................................. 452, 454
AcuraLink® .............................................. 316
AcuraWatch
TM.................................... 27, 486
Adaptive Cruise Control (ACC) ................ 533
Adaptive Cruise Control (ACC) with Low
Speed Follow .......................................... 512
Adding the Coolant ......................... 648, 651
Additives Coolant .......................................... 648, 651
Engine Oil ............................................... 640
Washer ................................................... 654
Additives, Engine Oil ............................... 640
Adjusting
Armrest .................................................. 208
Clock ...................................................... 150
Front Head Restraints .............................. 206
Front Seats.............................................. 199
Mirrors.................................................... 197
Rear Seats ............................................... 203
Sound ............................................. 243, 285 Steering Wheel ........................................ 196
Agile Handling Assist ............................... 476
Air Conditioning System (Climate Control System) .................................................... 226
Changing the Mode ........................ 226, 227
Defrosting the Windshield and Windows ............................................... 228
Dust and Pollen Filter ............................... 675
Recirculation/Fresh Air Mode ................... 227
Sensor ..................................................... 231
Synchronization Mode ............................. 230
Using Automatic Climate Control ............ 226
Air Pressure ....................................... 661, 741
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
After a Collision ......................................... 52
Airbag Care ............................................... 67
Driver’s Knee Airbag .................................. 57
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 64, 94
Passenger Airbag Off Indicator .................. 65
Sensors ...................................................... 49
Side Airbags .............................................. 60
Side Curtain Airbags .................................. 63
AM/FM Radio .................................... 245, 292
Android Auto
TM................................ 263, 333
Anti-lock Brake System (ABS) .................. 605
Indicator .................................................... 94
Apple CarPlay ................................... 259, 326
Armrest ..................................................... 208 Audio Remote Controls
........................... 238
Audio System ............................ 234, 242, 267
Adjusting the Sound........................ 243, 285
Alexa Built-In ........................................... 291
Android Auto
TM............................... 263, 333
Apple CarPlay.................................. 259, 326
Audio/Information Screen........................ 269
Display Setup .................................. 244, 286
Error Messages ........................................ 339
General Information ................................ 341
Home Screen........................................... 274
How to Update ....................................... 280
How to Update Wirelessly ....................... 283
How to Update with a USB Device........... 284
iPod ................................................ 247, 307
Limitations for Manual Operation .............................. 287, 387, 407
Radio Data System (RDS) ................. 246, 294
Reactivating ............................................ 237
Recommended Devices............................ 342
Remote Controls ..................................... 238
Security Code .......................................... 237
Selecting an Audio Source ....................... 287
Start Up .................................................. 268
Status Area ............................................. 279
System Updates....................................... 280
System Updates Settings ......................... 281
Theft Protection ...................................... 237
USB Flash Drives ...................................... 342
USB Port(s) .............................................. 235
Wallpaper Setup...................................... 272
24 ACURA INTEGRA-313S56100.book 755 ページ ２０２３年２月１３日　月曜日　午後２時４１分

756
Index
Audio/Information Screen........................ 269
Authorized Manuals ................................. 752
Auto Door Locking/Unlocking ................. 169
Auto High-Beam ....................................... 188
Indicator .................................................... 96
Auto Idle Stop ................................... 463, 469
OFF Button ...................................... 464, 470
Automatic Brake Hold .............................. 600
Indicator ............................................ 90, 600
Automatic Brake Hold System Indicator ............................................ 90, 600
Automatic Lighting .................................. 185
Average Fuel Economy ............................. 120
Average Speed .......................................... 122
B
Battery....................................................... 671
Charging System Indicator ................. 91, 723
If the Battery Is Dead ............................... 715
Maintenance (Checking the Battery) ........ 671
Maintenance (Replacing).......................... 673
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 212
Blind Spot Information System ................ 482
Bluetooth ® Audio ............................. 253, 313
Bluetooth ® HandsFreeLink ®........... 385, 405
Booster Seats (For Children) ....................... 82
Brake System ............................................. 594
Anti-lock Brake System (ABS) ................... 605
Automatic Brake Hold.............................. 600 Brake Assist System ................................. 606
Fluid ........................................................ 653
Foot Brake............................................... 599
Indicator (Amber) .............................. 90, 726
Indicator (Red) ..................... 88, 89, 724, 726
Parking Brake .......................................... 594
Braking Pressure Meter ............................ 126
Brightness ................................................. 132
Built-in Key ............................................... 153
Bulb Replacement .................................... 655
Brake, Rear Side Marker, Brake/Chicane
TM
Taillights, Back-Up, and Rear Turn Signal
Lights .................................................. 656
Door Outer Handle Ambient Lights.......... 655
Fog Lights ............................................... 655
Front Turn Signal, Parking/Chicane
TM
Daytime Running, and Front Side Marker
Lights .................................................. 655
Headlights ............................................... 655
High-Mount Brake Light .......................... 656
Rear License Plate Light ........................... 656
Side Turn Signal/Emergency Indicator
Lights .................................................... 655
Bulb Specifications ................................... 740
C
Carbon Monoxide Gas ............................... 83
Cargo Area Cover ..................................... 217
Carrying Cargo ................................. 427, 429
Certification Label .................................... 742 Changing Bulbs
........................................ 655
Charging System Indicator ................ 91, 723
Chicane
TM Daytime Running Lights ......... 187
Child Safety ................................................ 68
Childproof Door Locks ............................ 168
Child Seat ................................................... 68
Booster Seats ............................................ 82
Child Seat for Infants ................................ 70
Child Seat for Small Children .................... 71
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 76
Larger Children ......................................... 81
Rear-facing Child Seat............................... 70
Selecting a Child Seat ............................... 72
Using a Tether .......................................... 78
Childproof Door Locks ............................. 168
Cleaning the Exterior ............................... 679
Cleaning the Interior ............................... 676
Client Service Information ....................... 753
Climate Control System ........................... 226
Changing the Mode........................ 226, 227
Defrosting the Windshield and
Windows .............................................. 228
Dust and Pollen Filter .............................. 675
Recirculation/Fresh Air Mode................... 227
Sensors ................................................... 231
Synchronization Mode ............................ 230
Using Automatic Climate Control............ 226
Clutch Fluid .............................................. 653
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 489
24 ACURA INTEGRA-313S56100.book 756 ページ ２０２３年２月１３日　月曜日　午後２時４１分
