audio ACURA INTEGRA 2024 Owners Manual

616

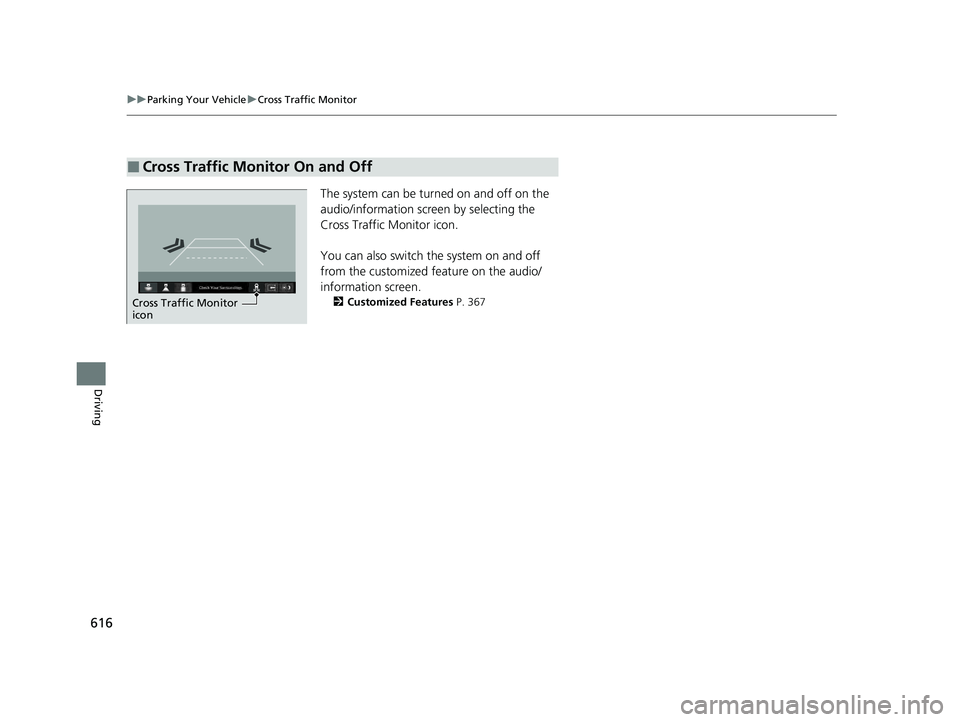

uuParking Your Vehicle uCross Traffic Monitor
Driving
The system can be turned on and off on the
audio/information scr een by selecting the
Cross Traffic Monitor icon.
You can also switch the system on and off
from the customized feature on the audio/
information screen.
2 Customized Features P. 367
■Cross Traffic Monitor On and Off
Cross Traffic Monitor
icon
24 ACURA INTEGRA-313S56100.book 616 ページ ２０２３年２月１３日　月曜日　午後２時４１分

617Continued
Driving
Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view.
The display automatically changes to the rear view when the transmission is put into
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
The rear camera view is di splayed prior to the audio/
information screen.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings. 2 Customized Features P. 362, 367
Fixed Guideline
ON: Guidelines appear when you put the
transmission into
( R.
OFF: Guidelines do not appear.
Dynamic Guideline
ON: Guidelines move according to the steering
wheel direction.
OFF: Guidelines do not move.
Approx. 39 inches (1 m)
Camera
Approx. 20 inches (50 cm)
24 ACURA INTEGRA-313S56100.book 617 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuMaintenance MinderTMuTo Use Maintenance MinderTM
636
Maintenance
Reset the maintenance minder informati on display if you have performed the
maintenance service.
1. Set the power mode to ON.
2. Roll the right selector wheel until the Ma intenance Minder screen is displayed.
3. Press and hold the right selector wheel for about 10 seconds to enter the reset
mode.
4. Roll the right selector wheel to select a maintenance item to reset, or to select All
due items (You can also select Cancel to end the process).
5. Press the right selector wheel to reset the selected item.
6. Repeat from step 3 for other items you wish to reset.
■Resetting the Display1Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance servic e results in the system
showing incorrect maintena nce intervals, which can
lead to serious mechanical problems.
The dealer will reset the Maintenance Minder
TM
display after completing th e required maintenance
service. If someone other than a dealer performs
maintenance service, reset the Maintenance
Minder
TM display yourself.
You can also reset the Maintenance Minder
TM display
using the driver information interface.
2 Vehicle Settings
* P. 134
You can also reset the Maintenance Minder
TM display
using the audio/information screen. 2 Customized Features P. 367
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
Right Selector Wheel
* Not available on all models
24 ACURA INTEGRA-313S56100.book 636 ページ ２０２３年２月１３日　月曜日　午後２時４１分

671
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery term inals for corrosion
monthly.
If your vehicle’s battery is disconnected or
goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 237
•The clock resets.
2 Clock P. 150
•The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 98
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
1.5 L engine models
2.0 L engine models
Canadian models only
24 ACURA INTEGRA-313S56100.book 671 ページ ２０２３年２月１３日　月曜日　午後２時４１分

676
Maintenance

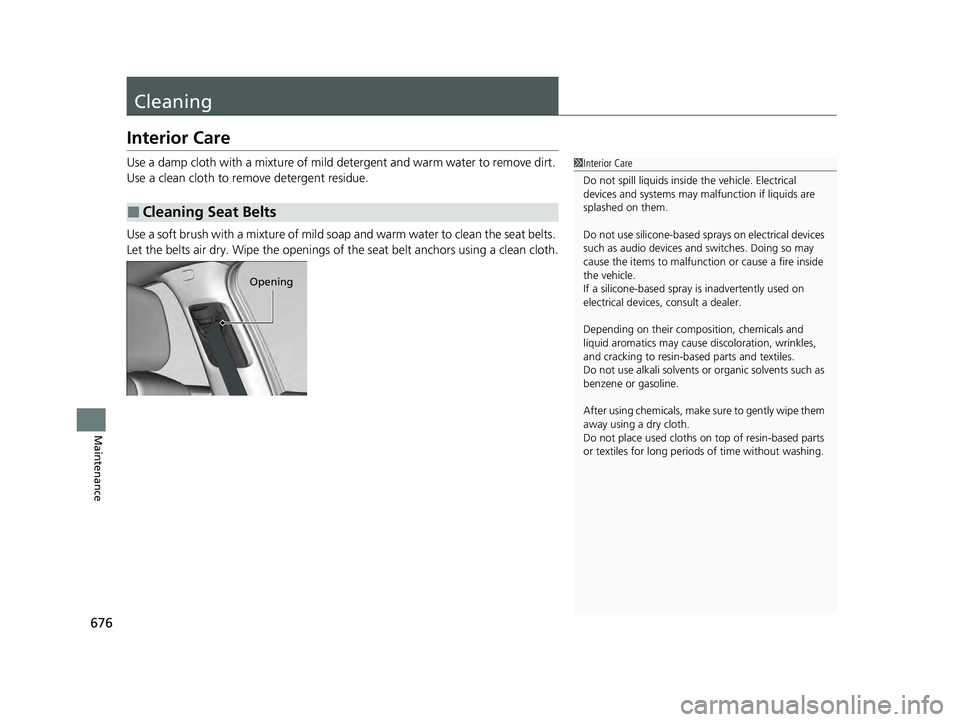

Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the openings of the seat belt anchors using a clean cloth.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone-based sp rays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone-based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemicals, make su re to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin-based parts
or textiles for long periods of time without washing.
Opening
24 ACURA INTEGRA-313S56100.book 676 ページ ２０２３年２月１３日　月曜日　午後２時４１分

715Continued
Handling the Unexpected
If the Battery Is Dead
Jump Starting Procedure
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Open the cover on the positive + terminal.
2. Connect the first jumper cable to your
vehicle’s battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.1If the Battery Is Dead
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Be careful
not to tangle the jumper cables or allow the cable
ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
1.5 L engine models
2.0 L engine models
Booster Battery
24 ACURA INTEGRA-313S56100.book 715 ページ ２０２３年２月１３日　月曜日　午後２時４１分

729
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY125 A
2 -40 A
-40 A
F/BOX OPTION 60 A -40 A
F/BOX OPTION2 40 A DC/DC2 30 A
F/BOX MAIN 60 A
3
-30 A
-30 A
-70 A
RR DEFROSTER30 A
-40 A
-30 A
HTR MTR40 A
4 -30 A
ABS/VSA MTR 40 A DC/DC 30 A
-3 0 A
IG MAIN 30 A
R/M1 30 A
R/M2 30 A
5
ST MAGNETIC SW30 A
WIPER30 A
EPS70 A
RFC*230 A*1
50 A*2
ABS/VSA FSR40 A
MAIN FAN30 A
F/BOX MAIN240 A
6 SUB FAN (30 A)
7 IG MAIN230 A
8 ACTIVE EXHAUST VALVE*2(7.5 A)
9EVP*(30 A)
10 AUDIO SUB*2(7.5 A)
11--
12 - -
13H/STRG BATT SNSR*10 A
14 - -
15FR FOG*(10 A)
16 MG CLUTCH 10 A
17WASHER15 A
18 HORN 15 A
19BACK UP15 A
20 AUDIO (15 A)
21RFC RLY CL+(7.5 A)
22 DBW 15 A
Circuit ProtectedAmps
*1:1.5 L engine models
*2:2.0 L engine models
23--
24 BACKUP FI-ECU 10 A
25IGP15 A
26 TCU*(15 A)
27LCM L15 A
28 INJ (15 A)
29STOP10 A
30 LCM R 15 A
31IG COIL15 A
32 - -
33HAZARD15 A
34 AUDIO SUB VST (7.5 A)
35--
36 AUDIO VST MAIN (30 A)
37BACKUP2(30 A)
38 - -
39IG1 MON2*2(7.5 A)
40 VBACT (10 A)
41IGPS [LAF]10 A
42 IG1 MON2*1(7.5 A)
Circuit ProtectedAmps
* Not available on all models
24 ACURA INTEGRA-313S56100.book 729 ページ ２０２３年２月１３日　月曜日　午後２時４１分

731
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2 P/W AS 20 A
3P/W RR R20 A
4 P/W RR L 20 A
5OPTION10 A
6SRS 10 A
7T/G MTR / TRUNK ACT10 A
8 IDAS / HUD (10 A)
9FR ACC SOCKET20 A
10 DOOR LOCK 20 A
11METER10 A
12 OPTION3 (ST CUT) 10 A
13--
14 OPTION6 (VB SOL) 10 A
15DR DOOR UNLOCK10 A
16 SUNROOF*20 A
17--
18 - -
19--
20 - -
21--
22 SMART 10 A
23DR DOOR LOCK10 A
24 - -
25IMG10 A
26 SRS 10 A
27ST CUT RLY10 A
28 OPTION5 10 A
29FUEL PUMP15 A
30 L SIDE DOOR UNLOCK 10 A
31R SIDE DOOR UNLOCK10 A
32 - -
33--
34 - -
35--
36 - -
37--
38 - -
39R SIDE DOOR LOCK10 A
40 P/SEAT REC / RR HI 20 A
41P/SEAT SLIDE / FR HI20 A
42 BACK LT (7.5 A)
43A/C10 A
44 DRL 10 A
45ACC10 A
46 ACC KEY LOCK 10 A
47L SIDE DOOR LOCK 10 A
48 H/SEAT 20 A
49AS P/SEAT REC*(20 A)
50 P/LUMBAR DR*(10 A)
Circuit ProtectedAmps
51--
52 RR H/SEAT*(20 A)
53AS P/SEAT SLI*(20 A)
54 OPTION1 / FUEL LID 10 A
55AUDIO AMP*(30 A)
56 ADS*(30 A)
Circuit ProtectedAmps
ABACKUP2 MAIN(10 A)
B AUDIO SUB VST (7.5 A)
CACC VST(10 A)
D VST 1 (10 A)
EAUDIO VST(15 A)
FEOP(20 A)
G--
H VST 2 (10 A)
Circuit ProtectedAmps
Sub Fuse Box
1.5 L engine models
* Not available on all models
24 ACURA INTEGRA-313S56100.book 731 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Index
755
Index
Index
Numbers
7-Speed Manual Shift Mode................... 446
Operation ............................................... 447
A
ABS (Anti-lock Brake System) .................. 605
Accelerator Position Meter ..................... 126
Accessories and Modifications ................ 682
Accessory Power Socket ........................... 218
Acura Integrated Dynamics System ............................................. 452, 454
AcuraLink® .............................................. 316
AcuraWatch
TM.................................... 27, 486
Adaptive Cruise Control (ACC) ................ 533
Adaptive Cruise Control (ACC) with Low
Speed Follow .......................................... 512
Adding the Coolant ......................... 648, 651
Additives Coolant .......................................... 648, 651
Engine Oil ............................................... 640
Washer ................................................... 654
Additives, Engine Oil ............................... 640
Adjusting
Armrest .................................................. 208
Clock ...................................................... 150
Front Head Restraints .............................. 206
Front Seats.............................................. 199
Mirrors.................................................... 197
Rear Seats ............................................... 203
Sound ............................................. 243, 285 Steering Wheel ........................................ 196
Agile Handling Assist ............................... 476
Air Conditioning System (Climate Control System) .................................................... 226
Changing the Mode ........................ 226, 227
Defrosting the Windshield and Windows ............................................... 228
Dust and Pollen Filter ............................... 675
Recirculation/Fresh Air Mode ................... 227
Sensor ..................................................... 231
Synchronization Mode ............................. 230
Using Automatic Climate Control ............ 226
Air Pressure ....................................... 661, 741
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
After a Collision ......................................... 52
Airbag Care ............................................... 67
Driver’s Knee Airbag .................................. 57
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 64, 94
Passenger Airbag Off Indicator .................. 65
Sensors ...................................................... 49
Side Airbags .............................................. 60
Side Curtain Airbags .................................. 63
AM/FM Radio .................................... 245, 292
Android Auto
TM................................ 263, 333
Anti-lock Brake System (ABS) .................. 605
Indicator .................................................... 94
Apple CarPlay ................................... 259, 326
Armrest ..................................................... 208 Audio Remote Controls
........................... 238
Audio System ............................ 234, 242, 267
Adjusting the Sound........................ 243, 285
Alexa Built-In ........................................... 291
Android Auto
TM............................... 263, 333
Apple CarPlay.................................. 259, 326
Audio/Information Screen........................ 269
Display Setup .................................. 244, 286
Error Messages ........................................ 339
General Information ................................ 341
Home Screen........................................... 274
How to Update ....................................... 280
How to Update Wirelessly ....................... 283
How to Update with a USB Device........... 284
iPod ................................................ 247, 307
Limitations for Manual Operation .............................. 287, 387, 407
Radio Data System (RDS) ................. 246, 294
Reactivating ............................................ 237
Recommended Devices............................ 342
Remote Controls ..................................... 238
Security Code .......................................... 237
Selecting an Audio Source ....................... 287
Start Up .................................................. 268
Status Area ............................................. 279
System Updates....................................... 280
System Updates Settings ......................... 281
Theft Protection ...................................... 237
USB Flash Drives ...................................... 342
USB Port(s) .............................................. 235
Wallpaper Setup...................................... 272
24 ACURA INTEGRA-313S56100.book 755 ページ ２０２３年２月１３日　月曜日　午後２時４１分

756
Index
Audio/Information Screen........................ 269
Authorized Manuals ................................. 752
Auto Door Locking/Unlocking ................. 169
Auto High-Beam ....................................... 188
Indicator .................................................... 96
Auto Idle Stop ................................... 463, 469
OFF Button ...................................... 464, 470
Automatic Brake Hold .............................. 600
Indicator ............................................ 90, 600
Automatic Brake Hold System Indicator ............................................ 90, 600
Automatic Lighting .................................. 185
Average Fuel Economy ............................. 120
Average Speed .......................................... 122
B
Battery....................................................... 671
Charging System Indicator ................. 91, 723
If the Battery Is Dead ............................... 715
Maintenance (Checking the Battery) ........ 671
Maintenance (Replacing).......................... 673
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 212
Blind Spot Information System ................ 482
Bluetooth ® Audio ............................. 253, 313
Bluetooth ® HandsFreeLink ®........... 385, 405
Booster Seats (For Children) ....................... 82
Brake System ............................................. 594
Anti-lock Brake System (ABS) ................... 605
Automatic Brake Hold.............................. 600 Brake Assist System ................................. 606
Fluid ........................................................ 653
Foot Brake............................................... 599
Indicator (Amber) .............................. 90, 726
Indicator (Red) ..................... 88, 89, 724, 726
Parking Brake .......................................... 594
Braking Pressure Meter ............................ 126
Brightness ................................................. 132
Built-in Key ............................................... 153
Bulb Replacement .................................... 655
Brake, Rear Side Marker, Brake/Chicane
TM
Taillights, Back-Up, and Rear Turn Signal
Lights .................................................. 656
Door Outer Handle Ambient Lights.......... 655
Fog Lights ............................................... 655
Front Turn Signal, Parking/Chicane
TM
Daytime Running, and Front Side Marker
Lights .................................................. 655
Headlights ............................................... 655
High-Mount Brake Light .......................... 656
Rear License Plate Light ........................... 656
Side Turn Signal/Emergency Indicator
Lights .................................................... 655
Bulb Specifications ................................... 740
C
Carbon Monoxide Gas ............................... 83
Cargo Area Cover ..................................... 217
Carrying Cargo ................................. 427, 429
Certification Label .................................... 742 Changing Bulbs
........................................ 655
Charging System Indicator ................ 91, 723
Chicane
TM Daytime Running Lights ......... 187
Child Safety ................................................ 68
Childproof Door Locks ............................ 168
Child Seat ................................................... 68
Booster Seats ............................................ 82
Child Seat for Infants ................................ 70
Child Seat for Small Children .................... 71
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 76
Larger Children ......................................... 81
Rear-facing Child Seat............................... 70
Selecting a Child Seat ............................... 72
Using a Tether .......................................... 78
Childproof Door Locks ............................. 168
Cleaning the Exterior ............................... 679
Cleaning the Interior ............................... 676
Client Service Information ....................... 753
Climate Control System ........................... 226
Changing the Mode........................ 226, 227
Defrosting the Windshield and
Windows .............................................. 228
Dust and Pollen Filter .............................. 675
Recirculation/Fresh Air Mode................... 227
Sensors ................................................... 231
Synchronization Mode ............................ 230
Using Automatic Climate Control............ 226
Clutch Fluid .............................................. 653
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 489
24 ACURA INTEGRA-313S56100.book 756 ページ ２０２３年２月１３日　月曜日　午後２時４１分
