steering ACURA INTEGRA 2024 Workshop Manual

374

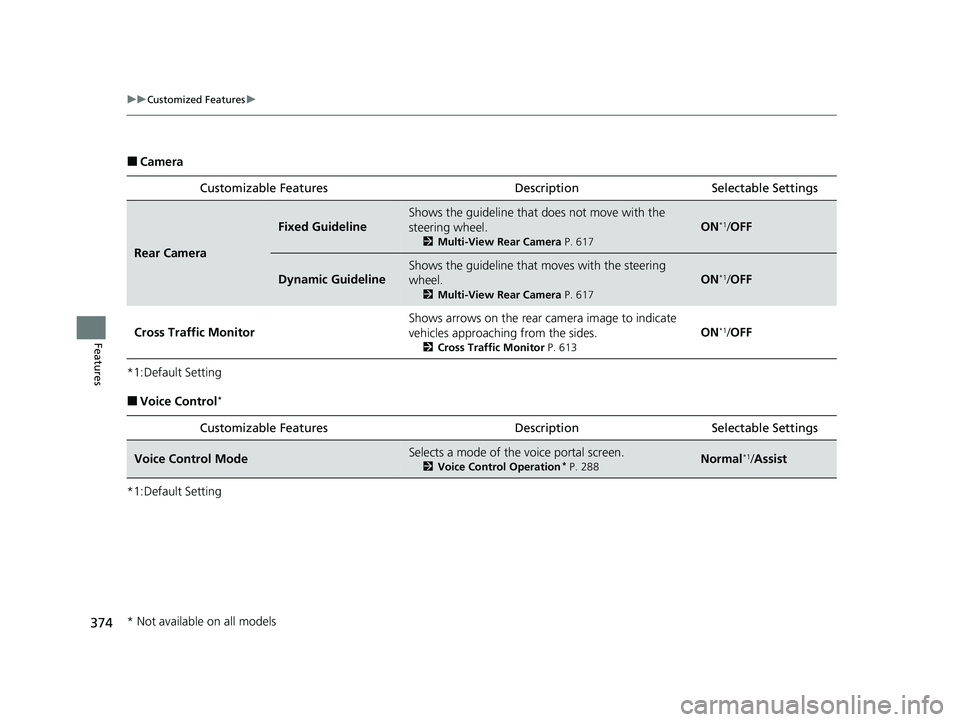

uuCustomized Features u
Features
■Camera
*1:Default Setting
■Voice Control*
*1:Default Setting Customizable Features Desc
riptionSelectable Settings
Rear Camera
Fixed Guideline
Shows the guideline that does not move with the
steering wheel.
2 Multi-View Rear Camera P. 617
ON*1/OFF
Dynamic Guideline
Shows the guideline that moves with the steering
wheel.
2 Multi-View Rear Camera P. 617
ON*1/OFF
Cross Traffic Monitor
Shows arrows on the rear camera image to indicate
vehicles approaching from the sides.
2 Cross Traffic Monitor P. 613
ON*1/OFF
Customizable Features Desc riptionSelectable Settings
Voice Control ModeSelects a mode of the voice portal screen.
2Voice Control Operation* P. 288Normal*1/Assist
* Not available on all models
24 ACURA INTEGRA-313S56100.book 374 ページ ２０２３年２月１３日　月曜日　午後２時４１分

382
uuCustomized Features u
Features
■INDIVIDUAL Settings
*1:Default Setting
Customizable Features DescriptionSelectable Settings
EngineSelects the responsiveness of the engine.
2Customizing the INDIVIDUAL Settings P. 460
COMFORT/NORMAL*1/
SPORT
COMFORT /SPORT
*1/
SPORT+
Steering Selects the level of steering effort.
2
Customizing the INDIVIDUAL Settings P. 460
COMFORT/NORMAL*1/
SPORT
COMFORT /SPORT
*1/
SPORT+
SuspensionSelects the firmness of the suspension.
2 Customizing the INDIVIDUAL Settings P. 460
COMFORT/NORMAL*1/
SPORT
COMFORT /SPORT
*1/
SPORT+
Idle Stop
*Sets Auto Engine Idle Stop to be Enabled or Disabled.
2 Customizing the INDIVIDUAL Settings P. 460Enable*1/Disable
1.5 L engine models
2.0 L engine models
1.5 L engine models
2.0 L engine models
1.5 L engine models
2.0 L engine models
* Not available on all models
24 ACURA INTEGRA-313S56100.book 382 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued427
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 429
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock all doors and the hatch.
2 Locking/Unlocking the Doors from the Inside P. 166
•Adjust your seating position properly.
u Adjust the front h ead restraint, too.
2Seats P. 199
2 Adjusting the Front Head Restraint Positions P. 206
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Mirrors P. 197
2 Adjusting the Steering Wheel P. 196
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.
24 ACURA INTEGRA-313S56100.book 427 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued437
uuWhen Driving uStarting the Engine
Driving
■To stop the engine
Press and hold the button for one second.
Red LED: Comes on for one second to let you
know that the engine has stopped.
Red LED: Blinks when the keyless remote is
out of the keyless system range.
The engine will not stop. u Go within the range, and try again.1Remote Engine Start*
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in
recirculation mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger, heated door mirrors, front seat
heaters, and heated steering wheel* are activated.
2 Rear Defogger/Heated Door Mirror
Button P. 193
2 Front Seat Heaters P. 224
2 Heated Steering Wheel P. 223
Amber LED: Blinks when any
button is pressed.
* Not available on all models
24 ACURA INTEGRA-313S56100.book 437 ページ ２０２３年２月１３日　月曜日　午後２時４１分

441
uuWhen Driving uPrecautions While Driving
Continued
Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not operate the shift lever while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
If the power mode is set to ACCESSORY while
driving, the engine will shut down and all steering
and brake power assist functi ons will stop, making it
difficult to control the vehicle.
Do not select
( N while driving as you will lose engine
braking (and accelera tion) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the engine or powertrain.
Continuously variable transmission models
24 ACURA INTEGRA-313S56100.book 441 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuWhen Driving uShifting
446
Driving
Use the paddle shifters to change betw een 1st and 7th speeds without releasing
your hands from the steering wheel. The transmission switches to the 7-speed
manual shift mode when you pull a paddle shi fter while driving. This mode is useful
when engine braking is needed.
■When the transmi ssion is in (D:
The shift mode goes into the 7-speed ma nual shift mode temporarily, and the
number is displayed in the shift indicator.
The 7-speed manual shift mode is canceled automatically if you drive at constant
speed or accelerate, and the number in the shift indicator goes off.
You can cancel this mode by pulling the
(+ paddle shifter for a few seconds.
The 7-speed manual shift mode is especially useful when reducing the vehicle speed
temporarily before making a turn.
■When the transmi ssion is in (S:
The shift mode goes into the 7- speed manual shift mode. The M indicator and the
speed number are displayed in the shift indicator. As the vehicle speed slows down,
the transmission automatically shifts down accordingly. When the vehicle comes to
a stop, it automatically shifts down into 1st.
If the vehicle speed increases and the engi ne speed reaches near the tachometer red
zone, the transmission au tomatically shifts up.
You can only pull away in 1st speed.
When canceling the 7-speed manual shi ft mode, move the shift position from
(S to
(D or pull the (+ paddle shifter for a few seconds. When the 7-speed manual shift
mode is canceled, the M indicator and shift in dicator will turn off.
■7-Speed Manual Shift Mode17-Speed Manual Shift Mode
In the 7-speed manual shif t mode, the transmission
shifts up or down by operating either paddle shifter
under the following conditions:
Shift Up; The engine sp eed reaches the lowest
threshold of the hi gher speed position.
Shift Down; The engine sp eed reaches the highest
threshold of the lower speed position.
When the engine speed reaches near the tachometer
red zone, the transmission shifts up automatically.
When the engine speed reaches the lowest threshold
of the selected speed positi on, the transmission shifts
down automatically.
Operating the paddle shifters on slippery surfaces
may cause the tires to lock up. In this case, the 7-
speed manual shift mode is canceled and goes back
to the normal
( D driving mode.
24 ACURA INTEGRA-313S56100.book 446 ページ ２０２３年２月１３日　月曜日　午後２時４１分

453
uuWhen Driving uAcura Integrated Dynamics System
Driving
■Mode descriptions
Each mode has been crafted for different driv ing styles according to the following chart.
■Next start-up mode
The mode for the next start-up is saved according to the following chart. Each keyless re mote has its own mode saved.
ModeFunctionGauge Color
COMFORTMaximizes driver comfort through decreased steering effortBlue
NORMALBalanced response for everyday useWhite
SPORTEnhances vehicle response through increased steering effort, heightened
throttle response, and modified active sound control.
When in SPORT, the Auto Idle Stop System w ill stay disabled regardless of
the Auto Idle Stop OFF button.
2Auto Idle Stop P. 463
Red
Last Dynamic ModeNext Dynamic Mode
COMFORTCOMFORT
NORMAL or SPORTNORMAL
24 ACURA INTEGRA-313S56100.book 453 ページ ２０２３年２月１３日　月曜日　午後２時４１分

457
uuWhen Driving uAcura Integrated Dynamics System
Continued
Driving
■Mode descriptions
Each mode has been crafted for different driv ing styles according to the following chart.
ModeFunctionGauge Color
COMFORTMaximizes driver comfort through decrease d steering effort and reduced ride
firmnessBlue
NORMALBalanced response for everyday useWhite
SPORTEnhances vehicle response through increased steering effort, heightened
throttle response, modified active sound control, and more responsive ride
and handling
When in SPORT, the Auto Idle Stop System w ill stay disabled regardless of
the Auto Idle Stop OFF button
2Auto Idle Stop P. 463, 469
Red
INDIVIDUALEach category can be customized separate ly to suit the driver’s preference
2Customizing the INDIVIDUAL Settings P. 460
Blue, white, or red
2Customizing the INDIVIDUAL
Settings P. 460
1.5 L engine models
24 ACURA INTEGRA-313S56100.book 457 ページ ２０２３年２月１３日　月曜日　午後２時４１分

458
uuWhen Driving uAcura Integrated Dynamics System
Driving
■Mode descriptions
Each mode has been crafted for different driving styles according to the following chart.
ModeFunctionGauge Color
COMFORTMaximizes driver comfort through decrea sed steering effort and reduced ride
firmnessBlue
SPORTEnhances vehicle response through in creased steering effort, heightened
throttle response, modified active sou nd control, and more responsive ride
and handlingWhite
SPORT+Further enhances vehicle response for performance driving through
increased steering effort, maximized th rottle response, maximum emotional
exhaust sound, and maximized ride and handlingRed
INDIVIDUALEach category can be customized separately to suit the driver’s preference
2 Customizing the INDIVIDUAL Settings P. 460
Blue, white, or red
2Customizing the INDIVIDUAL
Settings P. 460
2.0 L engine models
24 ACURA INTEGRA-313S56100.book 458 ページ ２０２３年２月１３日　月曜日　午後２時４１分

461
uuWhen Driving uAcura Integrated Dynamics System
Continued
Driving
CategoryDescription
EngineSelect COMFORT , NORMAL , or SPORT for the engine throttle respon se and transmission shift response
SteeringSelect COMFORT , NORMAL , or SPORT for the steering effort
SuspensionSelect COMFORT , NORMAL , or SPORT for the firmness of the suspension
Idle StopSet the Auto Idle Stop system to Enable or Disable . While Idle Stop is Disable in INDIVIDUAL mode, the
Auto Idle Stop System w ill stay disabled regardless of the Auto Idle Stop OFF button
2Auto Idle Stop P. 463, 469
GaugeSet the gauge color. COMFORT for blue, NORMAL for white, and SPORT for red
DefaultEngine , Steering , Suspension and Gauge is set to Normal, and Idle Stop is set to Enable
1.5 L engine models
24 ACURA INTEGRA-313S56100.book 461 ページ ２０２３年２月１３日　月曜日　午後２時４１分
