maintenance ACURA INTEGRA 2024 Repair Manual

666
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure ra ting (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist
TM (VSA ®) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Whenever you have a tire replaced or reset, make sure that the rubber valve stem is
replaced and that the TPMS sensor is trans ferred from the old valve stem to the new
one.
If you replace a wheel, make sure that the wheel’s specifications match those of the
original wheels.
If you replace a wheel, only use TPMS sp ecified wheels approved for your vehicle.
Make sure that the wheel’s specifications match thos e of the original wheels.
1Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
Models without 265/30ZR19 tires
Models with 265/30ZR19 tires
24 ACURA INTEGRA-313S56100.book 666 ページ ２０２３年２月１３日　月曜日　午後２時４１分

667
uuChecking and Maintaining Tires uTire Rotation
Maintenance

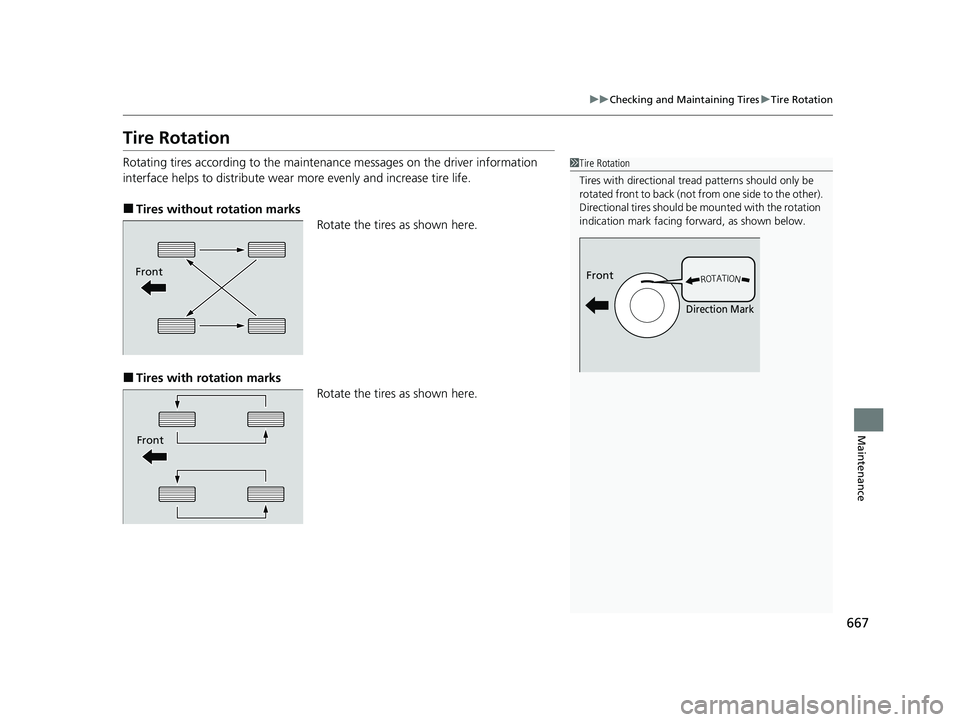

Tire Rotation
Rotating tires according to the maintena nce messages on the driver information
interface helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Front
Direction Mark
Front
Front
24 ACURA INTEGRA-313S56100.book 667 ページ ２０２３年２月１３日　月曜日　午後２時４１分

668
uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires,
or tire chains; reduce speed; and maintain sufficient distance between vehicles when
driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season tires when necessary or according to the
law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.1Winter Tires
NOTICE
Traction devices that are the wrong size or improperly
installed can damage your vehicle

669
uuChecking and Maintaining Tires uWinter Tires
Maintenance
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire clea rance, we strongly recommend using the
chains listed below:
• Follow the chain manufactur er’s instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not touch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC Radial Chain SC1032
Cable-type: SCC Radial Chain SC1034
Not recommended to use any type of chain or cable
1Winter Tires
When tire chains are mounted, follow the chain
manufacturer’s instructi ons regarding vehicle
operational limits.
If your vehicle is equipp ed with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
Models with 215/50R17 tires
Models with 235/40R18 tires
Models with 265/30ZR19 tires
24 ACURA INTEGRA-313S56100.book 669 ページ ２０２３年２月１３日　月曜日　午後２時４１分

670
uuChecking and Maintaining Tires uCold Weather Driving
Maintenance
Cold Weather Driving
Summer Only tires and Ultra High Performan ce (UHP) tires are very sensitive to
ambient temperatures and are designed to be used at temperatures above 45°F
(7°C). If the vehicle is operated with Summer Only tires or UHP tires at temperatures
below 45°F (7°C), the tires will provide decreasing amounts of grip and other
performance attributes. If the vehicle is operated with Summer Only tires or UHP
tires at temperatures below 14°F (–10°C), the tire tread may lose their elasticity and
become brittle, resulting in permanent damage to the tread. A damaged tire may
fail during use. Therefore, if you operate the vehicle when ambient temperatures are
below 45°F (7°C), we recommend that you install other tires (e.g., mud+snow,
winter) that are designed to provide appropriate performance attributes under the
anticipated conditions.1 Cold Weather Driving
3WARNING
Use of Summer Only tires or Ultra High
Performance tires at temperatures below
45°F (7°C) may lead to a loss of
performance and control, which could
result in a crash, se rious injury or death.
24 ACURA INTEGRA-313S56100.book 670 ページ ２０２３年２月１３日　月曜日　午後２時４１分

671
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery term inals for corrosion
monthly.
If your vehicle’s battery is disconnected or
goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 237
•The clock resets.
2 Clock P. 150
•The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 98
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
1.5 L engine models
2.0 L engine models
Canadian models only
24 ACURA INTEGRA-313S56100.book 671 ページ ２０２３年２月１３日　月曜日　午後２時４１分

672
uuBattery uCharging the Battery
Maintenance
Charging the Battery
Disconnect both battery cables to prevent da maging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.1 Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The battery installed in this vehicle is specifically
designed for a model wi th Auto Idle Stop.
Using a battery other than this specified type may
shorten the battery life, a nd prevent Auto Idle Stop
from activating. If you need to replace the battery,
make sure to select the specified type and size. Ask a
dealer for more details.
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC)*, Adaptive Cruise Control
(ACC) with Low Speed Follow (LSF)*, and safety
support indicators may come on in amber along with
a message in the gauge when you set the power
mode to ON after re connecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
Models with Auto Idle Stop
* Not available on all models
24 ACURA INTEGRA-313S56100.book 672 ページ ２０２３年２月１３日　月曜日　午後２時４１分

673Continued
Maintenance
Remote Transmitter Care
Replacing the Remote Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
3. Make sure to replace the battery with the
correct polarity.
1Replacing the Remote Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposalM
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Models without two-way keyless remote
Battery type: CR2032
Battery Cover
24 ACURA INTEGRA-313S56100.book 673 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuRemote Transmitter Care uReplacing the Remote Battery
674
Maintenance
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
3. Make sure to replace the battery with the
correct polarity.
Models with two-way keyless remote1 Replacing the Remote Battery
NOTICE
The Remote transmitter is equipped with two
batteries: A standard replaceable CR2032 coin
button battery and an in tegral non-replaceable
rechargeable battery. To prevent permanent damage
to the rechargeable battery, replace the CR2032
battery every three to four years.
Models with two-way keyless remote
Battery type: CR2032
Battery Cover
24 ACURA INTEGRA-313S56100.book 674 ページ ２０２３年２月１３日　月曜日　午後２時４１分

675
Maintenance
Climate Control System Maintenance
Air Conditioning
To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.
Never repair or replace the air conditio ning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filter
The climate control system is equipped with a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filter.
We recommend that you replace the dust an d pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1 Air Conditioning
NOTICE
Vented refrigerant is harmful to the environmentM
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicleM
Refrigerant in your vehicle
