Page 443 of 766
441
uuWhen Driving uPrecautions While Driving
Continued
Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not operate the shift lever while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
If the power mode is set to ACCESSORY while
driving, the engine will shut down and all steering
and brake power assist functi ons will stop, making it
difficult to control the vehicle.
Do not select
( N while driving as you will lose engine
braking (and accelera tion) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the engine or powertrain.
Continuously variable transmission models
24 ACURA INTEGRA-313S56100.book 441 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 627 of 766
625
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 626
Safety When Performing Maintenance .... 627Parts and Fluids Used in Maintenance Service ........................................... 628
Maintenance Minder
TM..................... 629
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 637Opening the Hood ........................... 639
Recommended Engine Oil ................ 640
Oil Check ......................................... 641
Adding Engine Oil ............................ 643
Changing the Engine Oil and Oil Filter..... 644
Engine Coolant ................................ 648
Transmission Fluid ............................ 652
Brake/Clutch
* Fluid .......................... 653
Refilling Window Washer Fluid......... 654
Replacing Light Bulbs ....................... 655
Checking and Maintaining Wiper Blades.... 657
Checking and Maintaining Tires
Checking Tires ................................. 659
Tire and Loading Information Label ... 661
Tire Labeling .................................... 661
DOT Tire Quality Grading (U.S. Vehicles) .... 663Wear Indicators................................ 665
Tire Service Life ................................ 665 Tire and Wheel Replacement ........... 666
Tire Rotation .................................... 667
Winter Tires ..................................... 668
Battery ............................................... 671
Remote Transmitter Care Replacing the Remote Battery .......... 673
Climate Control System Maintenance .... 675Cleaning
Interior Care .................................... 676
Exterior Care.................................... 679
Accessories and Modifications Accessories ...................................... 682
Modifications................................... 683
* Not available on all models
24 ACURA INTEGRA-313S56100.book 625 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 636 of 766
634
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 749.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date fo r tire repair kit bottle●Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
●Adjust the valves during services A, B, 1, 2, or 3 if they are
noisy.
*2: If you drive in dusty conditions, replace every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel powered vehicles, replace every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder.
If you regularly drive your vehicle under this condition, have the transmission fluid changed every
25,000 miles (40,000 km).
If you regularly drive your vehicle under this condition, have the transmission fluid changed every
37,500 miles (60,000 km).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
$ P O U J O V P V T M Z W B S J B C M F U S B O T N J T T J P O N P E F M T
. B O V B M U S B O T N J T T J P O N P E F M T
24 ACURA INTEGRA-313S56100.book 634 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 637 of 766
635
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel powered vehicles, replace every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder.
If you regularly drive your vehicle under this condition, have the transmission fluid changed every
40,000 km (25,000 miles).
If you regularly drive your vehicle under this condition, have the transmission fluid changed every
60,000 km (37,500 miles).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 751.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
●Adjust the valves during services A, 0, 9, 1, 2, or 3 if they are
noisy.
Continuously variable transmission models
Manual transmission models
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Check expiration date for tire repair kit bottle●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
24 ACURA INTEGRA-313S56100.book 635 ページ ２０２３年２月１３日 月曜日 午後２時４１分

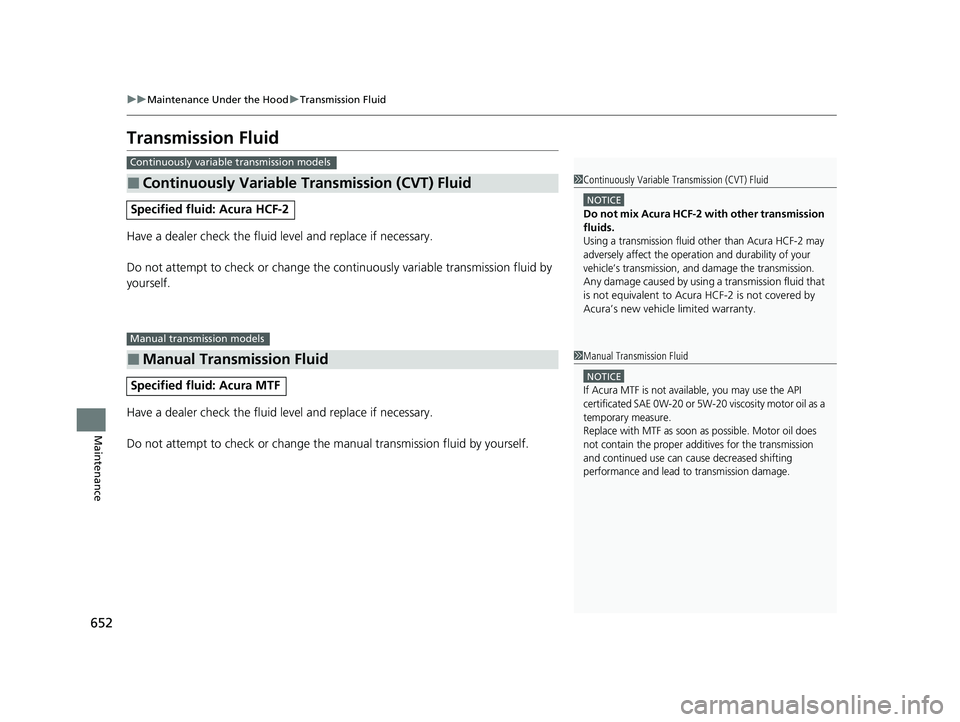

Page 654 of 766
652
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the continuously variable transmission fluid by
yourself.
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the manual transmission fluid by yourself.
■Continuously Variable Transmission (CVT) Fluid
Specified fluid: Acura HCF-2
■Manual Transmission Fluid
Specified fluid: Acura MTF
Continuously variable transmission models
1Continuously Variable Transmission (CVT) Fluid
NOTICE
Do not mix Acura HCF-2 with other transmission
fluidsM
Using a transmission fluid other than Acura HCF-2 may
adversely affect the operation and durability of your
vehicle’s transmission, and damage the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Acura HCF-2 is not covered by
Acura’s new vehicle limited warranty.
Manual transmission models
1 Manual Transmission Fluid
NOTICE
If Acura MTF is not available, you may use the API
certificated SAE 0W-20 or 5W -20 viscosity motor oil as a
temporary measure.
Replace with MTF as soon as possible. Motor oil does
not contain the proper additives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.
24 ACURA INTEGRA-313S56100.book 652 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 655 of 766
653
uuMaintenance Under the Hood uBrake/Clutch* Fluid
Maintenance
Brake/Clutch* Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
The brake fluid reserve tank is also used for
your vehicle’s clutch fluid. As long as you keep
the brake fluid level as instructed above, there
is no need for checking the clutch fluid level.
Specified fluid: Acura Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake/Clutch* Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified br ake fluid is not av ailable, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Acura brake fl uid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Acura Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
Reserve Tank
MIN
MAX
1.5 L engine models
Manual transmission models
2.0 L engine models
Reserve TankMIN
MAX
* Not available on all models
24 ACURA INTEGRA-313S56100.book 653 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 726 of 766
724
uuIndicator Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reasons for the in dicator to blink
There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator (red) and ABS indicator
come on simultaneously , the electronic brake
distribution system is not wo rking. This can result in
vehicle instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately.
2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 726
U.S.
Canada
(Red)
24 ACURA INTEGRA-313S56100.book 724 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 759 of 766
757
Index
Coat Hooks............................................... 214
Cold Weather Driving .............................. 670
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 489
Compact Spare Tire .......................... 704, 741
Console Compartment ............................. 211
Continuously Variable Transmission Creeping................................................. 443
Fluid ....................................................... 652
Kickdown ............................................... 443
Operating the Shift Lever .................. 24, 445
Shift Lever Does Not Move ...................... 718
Shifting ................................................... 444
Controls .................................................... 149
Coolant (Engine) .............................. 648, 650
Adding the Coolant ........................ 648, 651
Overheating ............................................ 719
Creeping (Continuously Variable Transmission) .......................................... 443
Cross Traffic Monitor ............................... 613
Cup Holders .............................................. 212
Customize Display .................................... 114
Customized Features ....................... 362, 367
D
Dead Battery............................................ 715
Defaulting All the Settings .............. 366, 384
Defrosting the Windshield and Windows ................................................. 228
Devices that Emit Radio Waves ............... 743Dimming
Headlights ............................................... 184
Rearview Mirror ....................................... 197
Dipstick (Engine Oil) ................................. 641
Directional Signals (Turn Signal) ............. 183
Display Setup .................................... 244, 286
Door Mirrors ............................................. 198
Doors ......................................................... 152
Auto Door Locking .................................. 169
Auto Door Unlocking ............................... 169
Door Open Message .................................. 39
Keys ........................................................ 152
Locking/Unlocking the Doors from the Inside..................................................... 166
Locking/Unlocking the Doors from the Outside.................................................. 155
DOT Tire Quality Grading ........................ 663
Driver Attention Monitor ........................ 123
Driver Information Interface ........... 111, 117
Switching the Display .............................. 117
Driver’s Knee Airbag .................................. 57
Driving ....................................................... 425
Braking .................................................... 594
Cold Weather Driving .............................. 670
Continuously Variable Transmission ......... 443
Shifting Gear ........................................... 448
Shifting Position ...................................... 444
Starting the Engine .................................. 433
Driving Position Memory System ............. 194
Dust and Pollen Filter ............................... 675
Dynamic Mode Switch .............................. 455
E
Elapsed Time............................................. 122
Electric Power Steering (EPS) System Indicator............................................ 94, 725
Electronic Stability Control (ESC) ............. 474
Emergency ................................................ 734
Emergency Engine Stop ........................... 714
Emergency Hatch Opener ........................ 736
Emissions Testing (Readiness Codes) ....... 746
Engine Coolant ........................................... 648, 650
If the Battery Is Dead ............................... 715
Oil ........................................................... 640
Starting ................................................... 433
Engine Coolant ................................. 648, 650
Adding the Coolant......................... 648, 651
Overheating ............................................ 719
Temperature Gauge ................................ 108
Engine Oil ................................................. 640
Adding .................................................... 643
Checking................................................. 641
Displaying Oil Life .................................... 630
Engine oil pressure low Warning ............. 722
Recommended Engine Oil ....................... 640
Engine oil pressure low Warning ............ 722
ENGINE START/STOP Button .................... 180
Exhaust Gas Hazard (Carbon Monoxide) .. 83
Exterior Care (Cleaning) ........................... 679
Exterior Mirrors ........................................ 198
24 ACURA INTEGRA-313S56100.book 757 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 762 of 766
760
Index
Lights................................................. 184, 655
Auto High-Beam ...................................... 188
Automatic ............................................... 185
Bulb Replacement .................................... 655
Chicane
TM Daytime Running Lights........... 187
Fog Lights ................................................ 187
High Beam Indicator .................................. 96
Interior .................................................... 209
Light Switches ......................................... 184
Lights On Indicator .................................... 96
Turn Signals ............................................. 183
Limited Slip Differential (LSD) ................. 477
Load Limits ................................................ 429
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 169
Childproof Door Locks ............................. 168
From Inside .............................................. 166
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 163
Low Battery Charge .................................. 723
Low Fuel Indicator ...................................... 94
Low Remote Key Signal Strength ............ 154
Low Speed Braking Control ............. 501, 507
Lower Anchors ............................................ 73
Luggage (Maximum Load Limit) .............. 429
Lumbar Support ........................................ 200
M
Maintenance............................................. 625
Adding the Coolant......................... 648, 651
Battery .................................................... 671
Brake Fluid .............................................. 653
Cleaning ......................................... 676, 679
Climate Control System ........................... 675
Coolant ........................................... 648, 650
Maintenance Minder
TM............................ 629
Oil ........................................................... 641
Precautions ............................................. 626
Remote Transmitter ......................... 673, 674
Replacing Light Bulbs .............................. 655
Safety...................................................... 627
Service Items ........................................... 633
Tires ........................................................ 659
Transmission Fluid ................................... 652
Under the Hood ...................................... 637
Malfunction Indicator Lamp .............. 91, 723
Manual Transmission ............................... 448
Map Lights ................................................ 210
Maximum Load Limit ............................... 429
Meters, Gauges ......................................... 107
Mirrors ...................................................... 197
Adjusting ................................................ 197
Door ....................................................... 198
Exterior ................................................... 198
Interior Rearview ..................................... 197
Modifications (and Accessories) .............. 682
Moonroof ................................................. 179
Multi-View Rear Camera .......................... 617
N
Navigation................................................ 122
Numbers (Identification) ......................... 742
O
Odometer................................................. 108
Oil (Engine) .............................................. 640
Adding ................................................... 643
Checking ................................................ 641
Displaying Oil Life ................................... 630
Engine oil pressure low Warning ............. 722
Recommended Engine Oil ....................... 640
Viscosity.................................................. 640
Open Source Licenses ...................... 357, 754
Opening
Hatch...................................................... 736
Hood ...................................................... 639
Opening/Closing Hatch...................................................... 170
Moonroof ............................................... 179
Power Windows...................................... 176
Outside Temperature Display ................. 109
Overheating ............................................. 719
P
Paddle Shifters (7-Speed Manual Shift
Mode) ..................................................... 446
Panic Mode ............................................... 175
Parking ..................................................... 607
24 ACURA INTEGRA-313S56100.book 760 ページ ２０２３年２月１３日 月曜日 午後２時４１分
Page 764 of 766
762
Index
Spare Tire.................................................. 741
Spark Plugs ................................................ 740
Specifications ............................................ 740
Specified Fuel .................................... 619, 740
Speed/Distance Units ................................ 131
Speedometer ............................................. 107
SRS Airbags (Airbags) ................................. 52
Starting Assist Brake Function ................. 468
Starting the Engine .................................. 433
Does Not Start ......................................... 711
If the Battery Is Dead ............................... 715
Steering Wheel Adjusting ................................................. 196
Stopping .................................................... 607
Stopwatch ................................................. 112
Summer Tires ............................................ 669
Sunglasses Holder ..................................... 214
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering
Wheel) ............................................. 6, 7, 180
System Message Indicator .......................... 97
System Updates ......................................... 280
T
Tachometer............................................... 108
Temperature
Gauge ..................................................... 108
Outside Temperature Display ................... 109
Temperature Sensor ......................... 109, 231
Temporary Tire Repair Kit ........................ 689Tie-down Anchors
.................................... 215
Time (Setting) ........................................... 150
Tire Pressure Monitoring System (TPMS) with Tire Fill Assist .................................. 478
Indicator............................................ 95, 727
Tires ........................................................... 659
Air Pressure ..................................... 661, 741
Checking and Maintaining ...................... 659
Flat Tire (Puncture) .................................. 688
Inspection ............................................... 659
Labeling .................................................. 661
Puncture (Flat Tire) .................................. 688
Regulations ............................................. 663
Rotation .................................................. 667
Spare Tire ................................................ 741
Summer .................................................. 669
Temporary Tire Re pair Kit ........................ 689
Tire Chains .............................................. 668
Wear Indicators ....................................... 665
Winter..................................................... 668
Tools .......................................................... 686
Towing Your Vehicle ................................ 432
Emergency .............................................. 734
TPMS (Tire Pressure Monitoring System) with Tire Fill Assist .................................. 478
Indicator............................................ 95, 727
Traffic Jam Assist ...................................... 565
Traffic Sign Recognition System .............. 583
Transmission ..................................... 444, 448
Continuously Variable Transmission ......... 444
Fluid ........................................................ 652 Gear Position ............................................ 92
Manual ................................................... 448
Shift Position Indicator ...................... 91, 445
Trip Computer .......................................... 271
Trip Meter ................................................ 119
Troubleshooting ...................................... 685
Blown Fuse ..................................... 728, 730
Brake Pedal Vibrates ................................. 31
Buzzer Sounds When Opening Door ......... 32
Emergency Towing ................................. 734
Engine Won’t Start ................................. 711
Flat Tire/Puncture .................................... 688
Noise When Braking ................................. 34
Overheating ............................................ 719
Puncture/Flat Tire .................................... 688
Rear Door Won’t Open ..................... 32, 168
Shift Lever Won’t Move .......................... 718
Warning Indicators.................................... 86
Turbo Engine Vehicle .............................. 624
Turn Signals .............................................. 183
Indicators (Instru ment Panel) ..................... 96
Two-way Keyless Remote ........................ 162
U
Under-Floor Storage Area ....................... 216
Unlocking the Doors ................................ 155
Unlocking the Fron t Doors from the
Inside ....................................................... 166
USB Flash Drives ............... 234, 250, 310, 342
USB Port(s) ................................................ 235
24 ACURA INTEGRA-313S56100.book 762 ページ ２０２３年２月１３日 月曜日 午後２時４１分
