bluetooth ACURA INTEGRA 2024 Manual PDF

417
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■To edit a favorite contact
1. Select Phone.
2. Select Favorite Contacts .
3. Select Edit on the favorite contact entry
you want to edit.
4. Select a setting you want.
5. Select Done.
■To delete a favorite contact
1. Select Phone.
2. Select Favorite Contacts .
3. Select Edit on the favorite contact entry
you want to delete.
4. Select Remove .
5. A confirmation message appears on the
screen. Select Yes.
24 ACURA INTEGRA-313S56100.book 417 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuBluetooth ® HandsFreeLink ®u HFL Menus
418
Features

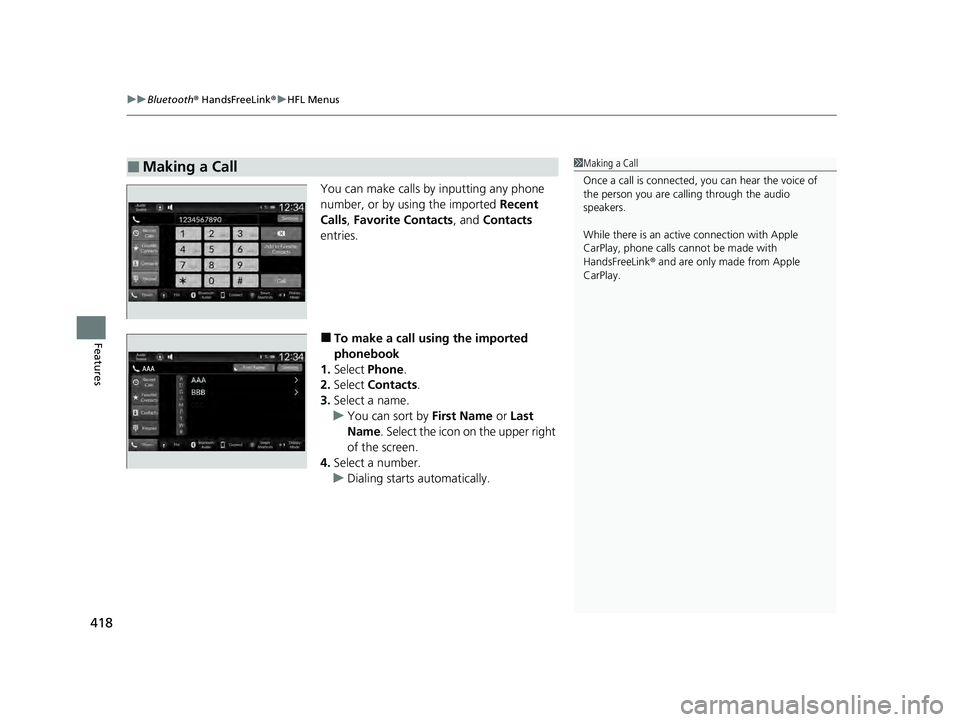

You can make calls by inputting any phone
number, or by using the imported Recent
Calls, Favorite Contacts, and Contacts
entries.
■To make a call using the imported
phonebook
1. Select Phone .
2. Select Contacts .
3. Select a name.
u You can sort by First Name or Last
Name . Select the icon on the upper right
of the screen.
4. Select a number.
u Dialing starts automatically.
■Making a Call1Making a Call
Once a call is connected, you can hear the voice of
the person you are call ing through the audio
speakers.
While there is an active connection with Apple
CarPlay, phone calls ca nnot be made with
HandsFreeLink ® and are only made from Apple
CarPlay.
24 ACURA INTEGRA-313S56100.book 418 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Continued419
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

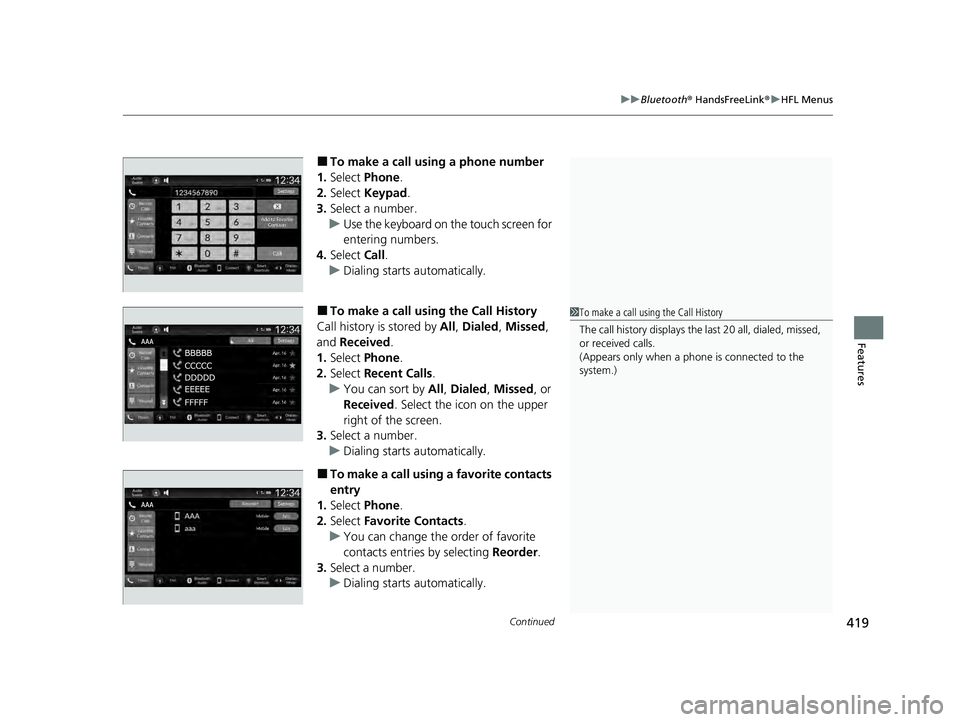

■To make a call using a phone number
1. Select Phone.
2. Select Keypad .
3. Select a number.
u Use the keyboard on the touch screen for
entering numbers.
4. Select Call.
u Dialing starts automatically.
■To make a call using the Call History
Call history is stored by All, Dialed , Missed ,
and Received.
1. Select Phone.
2. Select Recent Calls .
u You can sort by All, Dialed , Missed , or
Received . Select the icon on the upper
right of the screen.
3. Select a number.
u Dialing starts automatically.
■To make a call using a favorite contacts
entry
1. Select Phone.
2. Select Favorite Contacts .
u You can change the order of favorite
contacts entries by selecting Reorder.
3. Select a number.
u Dialing starts automatically.
1To make a call using the Call History
The call history disp lays the last 20 all, dialed, missed,
or received calls.
(Appears only when a phone is connected to the
system.)
24 ACURA INTEGRA-313S56100.book 419 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuBluetooth ® HandsFreeLink ®u HFL Menus
420
Features
When there is an incoming call, an audible
notification sounds (i f activated) and the
Incoming Call... screen appears.
You can answer the call using the left selector
wheel.
To pick up the call, roll up or down to select (answer) on the driver information
interface and then press the left selector
wheel. u If you want to decline or end the call,
select (ignore) on the driver
information interface using the left
selector wheel.
■Receiving a Call1Receiving a Call
Call Waiting
Select (answer) to put the current call on hold to
answer the incoming call.
Select using the left selector wheel to return to
the current call.
Select (ignore) to ignor e the incoming call if you
do not want to answer it.
Select if you want to hang up the current call.
You can select the icons on the audio/information
screen instead of the and on the driver
information interface.
24 ACURA INTEGRA-313S56100.book 420 ページ ２０２３年２月１３日　月曜日　午後２時４１分

421
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
The following options are available during a call.
Mute: Mute your voice.
Use Handheld : Transfer a call from the system to your phone.
Keypad : Send numbers during a call. This is useful when you call a menu-driven
phone system. The available options are shown on the lower
half of the screen.
Select the option. u The mute icon appears when Mute is
selected when the other source screen
other than the phone screen is displayed.
Select Mute again to turn it off.
■Options During a Call1Options During a Call
Keypad : Available on some phones.
You can select the icons on the audio/information
screen.
24 ACURA INTEGRA-313S56100.book 421 ページ ２０２３年２月１３日　月曜日　午後２時４１分

422
uuBluetooth ® HandsFreeLink ®u AcuraLink ® Assist
Features
AcuraLink ® Assist
■Automatic collision notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to an E911 operator through your
connected cellular phone. If connected,
information about your vehicle and its
location can be sent to the operator
*1; you
also can speak to th e operator when
connected.
IMPORTANT: For the vehicle equipped with AcuraLink Assist, owner activation
constitutes authorization for Acura to collect information from your vehicle needed
to provide the service. In a crash, AcuraLink Assist wi ll attempt to notify emergency
services but ACURA CANNOT GUARANTEE THAT SUCH NOTIFICATION WILL
OCCUR.
Acura reserves the right to te rminate AcuraLink Assist servic es at any time or for any
reason, and in the future may not be able to provide services due to changes in, or
obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and it s cellular coverage, your vehicle’s location may not be sent
to the operator.
■In Case of Emergency
Models with 9-in. Color Touchscreen
1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if its, or your cellular phone’s, battery level is
low, the line is disconnected, or you do not have
adequate cellul ar coverage.
You cannot use this emergency service when:
•You travel outside your cell ular provider’s coverage
areas.
•There is a problem with the connecting devices,
such as the microphones or speakers, or your
connected phone itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
24 ACURA INTEGRA-313S56100.book 422 ページ ２０２３年２月１３日　月曜日　午後２時４１分

423
uuBluetooth ® HandsFreeLink ®u AcuraLink ® Assist
Features
■To enable notification
1.Go to the phone settings screen.
2 Phone settings screen P. 408
2.Select AcuraLink Assist .
3. Select Yes or No.
1To enable notification
Setting options:
•Yes : Notification is available.
•No: Disable the feature.
24 ACURA INTEGRA-313S56100.book 423 ページ ２０２３年２月１３日　月曜日　午後２時４１分
