turn signal ACURA INTEGRA 2024 Owners Manual

7
Quick Reference Guide❚ Headlights/ Turn Signals
(P183, 184)
❚ Fog Lights* (P187)
❚Paddle Shifter (Shift down)* (P446)
❚Left Selector Wheel (P238)
❚ Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P512)
❚ Lane Keeping Assist System (LKAS)
Button
(P556)
❚ Interval Button (P525)
❚Steering Wheel Adjustments (P196)
❚ Heated Steering Wheel (P223)
$BOBEJBO
NPEFMT
❚Right Selector Wheel (P118)
❚Bluetooth ® HandsFreeLink ® System
Buttons* (P405)
❚Horn (Press an area around .)
❚ Adaptive Cruise Control (ACC) Buttons*
(P533)
❚Paddle Shifter (Shift up)* (P446)
❚ Wipers/ Washers (P191)
❚Audio Remote Controls (P238)
❚ Voice Control Buttons* (P288)
* Not available on all models
24 ACURA INTEGRA-313S56100.book 7 ページ ２０２３年２月１３日　月曜日　午後２時４１分

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P637)
❚Windshield Wipers (P191, 657)
❚Tires (P659, 688)
❚Fog Lights* (P187, 655)
❚Power Door Mirrors (P198)
❚How to Refuel (P621)
❚Opening/Closing the Hatch (P170)
❚Side Turn Signal Lights* (P183, 655)
❚Headlights (P184, 655)
❚Front Turn Signal Lights (P183, 655)
❚Front Side Marker Lights (P184, 655)
❚Rear Side Marker Lights (P656)
❚Door Lock/Unlock Control (P155)
❚Parking/ChicaneTM Daytime Running Lights (P187, 655)
❚Rear Turn Signal Lights (P656)
❚High-Mount Brake Light (P656)
❚Multi-View Rear Camera (P617)
❚Hatch Release Button (P171)
❚Rear License Plate Light (P656)
❚Brake Lights (P656)
❚Back-Up Lights (P656)
❚ChicaneTM Taillights (P656)
24 ACURA INTEGRA-313S56100.book 10 ページ ２０２３年２月１３日　月曜日　午後２時４１分

16
Quick Reference Guide
Turn Signals (P183)
Lights (P184)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P191)
*1:Models with automatic intermittent wipers
*2:Models with manual intermittent operation
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Wiper/Washer Control Lever
Adjustment Ring
*
( -: Low sensitivity*1
: Lower speed, fewer sweeps*2
(+: High sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P196)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P167)
●Pull either front door inner handle to
unlock and open it at the same time.
To adjust
To lock
24 ACURA INTEGRA-313S56100.book 16 ページ ２０２３年２月１３日　月曜日　午後２時４１分

50
uuAirbags uAirbag System Components
Safe Driving
The front, driver's knee, front passenger's
knee, side, and side curtain airbags are
deployed according to the direction and
severity of impact. Both side curtain airbags
are deployed in a ro llover. The airbag
system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver’s airbag is stored
in the center of the steering wheel; the
front passenger’s airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo knee airbags. Th e driver's knee
airbag is stored under the steering
column; the front passenger's knee
airbag is stored under the glove box.
Both are marked SRS AIRBAG.
cFour side airbags. One for the driver, one
for the front passenger, and two for the
rear outboard seating positions. The front
airbags are stored in the outer edges of
the seat-backs and the rear airbags are
stored next to the outer rear seating
positions. All are marked SIDE AIRBAG.
dTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG .
eAn electronic control unit that, when the
power mode is in ON, continually
monitors information about the various
impact sensors, seat and buckle sensors,
rollover sensor, airbag activators, seat
belt tensioners, and other vehicle
information. During a crash event, the
unit can record such information.
fSeat belt tensioners for the front seats
and outer rear seats. In addition, the
driver’s and front passenger’s seat belt
buckles incorporate sensors that detect
whether or not the belts are fastened.
gDriver’s seat position sensor. This sensor
detects the driver’s seat slide position to
help determine the optimal deployment
of the driver’s airbag.
hWeight sensors in the front passenger’s
seat. The sensors are used for occupant
classification to activa te or deactivate the
front passenger’s airbag.
iImpact sensors that can detect a
moderate-to-severe front or side impact.
jAn indicator on the center console that
alerts you that the front passenger’s front
airbag has been turned off.
kAn indicator on the instrument panel that
alerts you to a possib le problem with your
airbag system or seat belt tensioners.
lA rollover sensor that can detect if your
vehicle is about to roll over and signal the
control unit to deploy both side curtain
airbags.
24 ACURA INTEGRA-313S56100.book 50 ページ ２０２３年２月１３日　月曜日　午後２時４１分

87
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve t he issue, follow the instructions in the
owner's manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator High Beam
Indicator
Fog Light
Indicator*
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)

P. 95
Auto Id
le Stop System
Indicator
(Amber)* P. 99
 P. 96
 P. 96 
P. 101
*1
 P. 96
 P. 96

P. 96 Immobilizer System
Indicator

P. 98
S

ecur
ity System Alarm
Indicator 
P. 98
 P. 97 
P. 102
 P. 106
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(White/Green) P. 101
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) 
P. 102
*1 *1Safety Support
Indicator (Amber)
P. 103
*1
NORMAL Mode
Indicator* P. 97
Auto Idle Stop OFF
Indicator* P. 99
Auto Idle Stop
Suspend Indicato
r* P. 100
SPORT
Mode Indicator 
P. 97
Cruise Mode Indicator
(White/Green) 
P. 102
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Interval
Indicator 
P. 102
Auto Idle Stop
Indicator (Green)* P. 99COMFORT Mode
Indicator 
P. 97 INDIVI DUAL
Mode
Indicator
* P. 97
SPORT+
Mode
Indicator
* P. 97
* Not available on all models
24 ACURA INTEGRA-313S56100.book 87 ページ ２０２３年２月１３日　月曜日　午後２時４１分

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Turn Signal and
Hazard Warning
Indicators•Blinks when you oper ate the turn signal
lever.
• Blinks along with all turn signals when you
press the hazard warning button.●Does not blink or blinks rapidly - Have your
vehicle checked by a dealer.
Lights On Indicator• Comes on when the parking, tail, and
other external lights are on.2 Light Switches P. 184
High Beam
Indicator•Comes on when the high beam headlights
are on.—
Auto High-Beam
Indicator•Comes on when all the operating
conditions of the auto high-beam are met.2 Auto High-Beam P. 188
Fog Light
Indicator*
•Comes on when the fog lights are on.2 Fog Lights* P. 187
* Not available on all models
24 ACURA INTEGRA-313S56100.book 96 ページ ２０２３年２月１３日　月曜日　午後２時４１分

137
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Meter setup
Language selectionChanges the displayed language.English*1/Français /
Español
Adjust outside temp.
displayAdjusts the temperature r eading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” reset timingChanges the setting of how to reset trip meter A,
average fuel economy A, av erage speed A, and elapsed
time A.When fully refueled/
IGN OFF /Manually reset*1
“Trip B” reset timing
Changes the setting of ho w to reset trip meter B,
average fuel economy B, av erage speed B, and elapsed
time B.When fully refueled/
IGN OFF /Manually reset*1
Adjust alarm volumeChanges the alarm volume, su ch as buzzers, warnings,
turn signal sound, and so on.High /Mid*1/Low
Rear seat reminderTurns the Rear Seat Reminder feature on and off.ON*1/ OFF
Speed/distance unitsSelects the speed/distance units.
km/h∙km /mph∙miles*1
(U.S.)
km/h∙km
*1/ mph∙miles
(Canada)
24 ACURA INTEGRA-313S56100.book 137 ページ ２０２３年２月１３日　月曜日　午後２時４１分

149
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 150
Locking and Unlocking the Doors Key .................................................. 152
Low Keyless Remote Signal Strength 154
Locking/Unlocking the Doors from the Outside .......................................... 155
Locking/Unlocking the Doors from the Inside ............................................. 166
Childproof Door Locks ..................... 168
Auto Door Locking/Unlocking .......... 169
Hatch ................................................. 170
Security System
Immobilizer System .......................... 173 Security System Alarm...................... 173
Windows ........................................... 176
Moonroof
*........................................ 179
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 180
Turn Signals ..................................... 183
Light Switches.................................. 184
Fog Lights
*...................................... 187
ChicaneTM Daytime Running Lights ... 187
Auto High-Beam .............................. 188
Wipers and Washers ........................ 191
Rear Defogger/Heated Door Mirror Button ........................................ 193
Driving Position Memory System*.... 194
Adjusting the Steering Wheel .......... 196
Mirrors Interior Rearview Mirror ................... 197
Power Door Mirrors ......................... 198
Seats .................................................. 199
Interior Convenience Items .............. 209
Climate Control System Using Automatic Climate Control .... 226
Automatic Climate Control Sensors......231
* Not available on all models
24 ACURA INTEGRA-313S56100.book 149 ページ ２０２３年２月１３日　月曜日　午後２時４１分

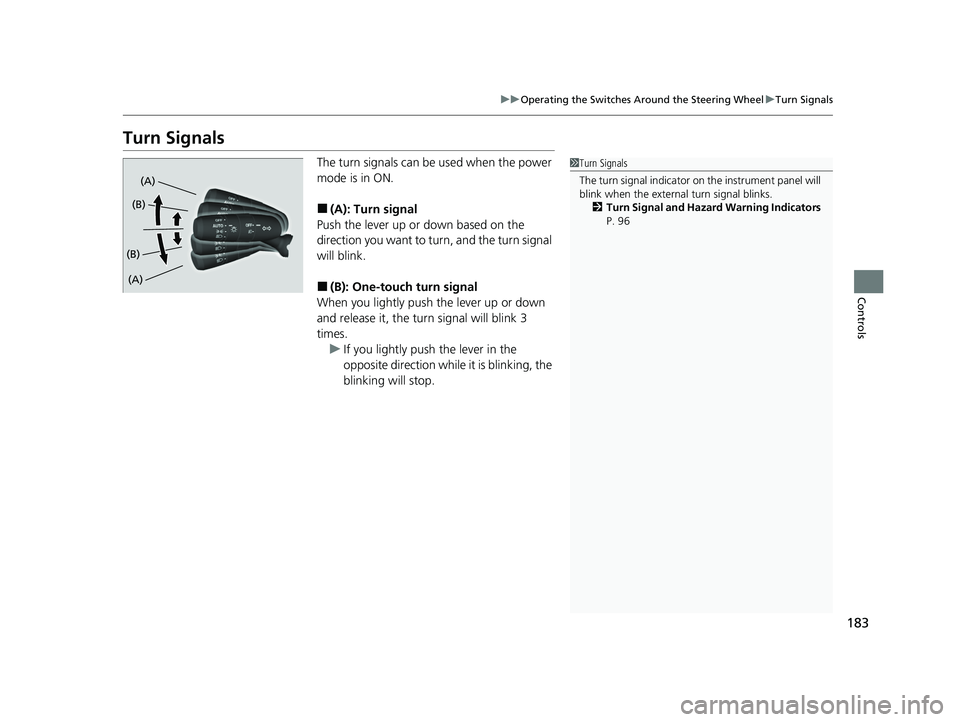

183
uuOperating the Switches Around the Steering Wheel uTurn Signals
Controls
Turn Signals
The turn signals can be used when the power
mode is in ON.
■(A): Turn signal
Push the lever up or down based on the
direction you want to turn, and the turn signal
will blink.
■(B): One-touc h turn signal
When you lightly push the lever up or down
and release it, the turn signal will blink 3
times.
u If you lightly push the lever in the
opposite direction while it is blinking, the
blinking will stop.
1Turn Signals
The turn signal indicator on the instrument panel will
blink when the external turn signal blinks.
2 Turn Signal and Hazard Warning Indicators
P. 96
(A)
(A) (B)
(B)
24 ACURA INTEGRA-313S56100.book 183 ページ ２０２３年２月１３日　月曜日　午後２時４１分

245
uuAudio System Basic Operation uPlaying AM/FM Radio
Continued
Features
Playing AM/FM Radio
RADIO Button
Press to select a band. (Back) Button
Press to go back to the previous display.
Seek Buttons
Press or to search the
selected band up or down for a station
with a strong signal.
VOL/ AUDIO (Volume/Power) Knob
Press to turn the audio system on and
off.
Turn to adjust the volume.Selector Knob
Turn to tune the radio frequency.
Press, and then turn to select an item.
After that, press again to make your
selection.
MENU Button
Press to display the menu items.
Audio/Information Screen
Preset Icons
Tune the radio frequency for preset memory. S

elect and
hold the preset icon to store that station.
Select to display beyond preset 5.
>
24 ACURA INTEGRA-313S56100.book 245 ページ ２０２３年２月１３日　月曜日　午後２時４１分
