Acura MDX 2003 Owner's Manua

CONT INUED
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set it below the
outside temperature. With the A/C
on, use the temperature buttons to
adjust the temperature of the air
flow to a comfortable setting. Pressing the A/C button or touching
the A/C icon turns the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF displayed. You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain auto-
matically controlled. Some of these
f unctions appear in the Trip
Computer/Navigation System
display. With the Navigation System,
press the A/C-Trip button next to
the display to show these functions.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Semi-automatic Operation
A ir Condit ioning (A /C) But t ons
137
RECIRCULATION BUTTONTEMPERATURE BUTTONS
(without Navigation System) (with Navigation System)
AIR CONDITIONING (A/C) BUTTON/ICON

This button controls the source of
the air going into the system. When
the indicator above this button is lit,
air f rom the vehicle’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in f rom outside the
vehicle (Fresh Air mode).
You can, f or example, manually put
the system in recirculation mode
when driving through an area of
smoke or f umes.
You can manually select the f an
speed with the fan speed button/fan
speed icon. Pressing the button or
touching the icon repeatedly makes
the fan run faster. The fan speed is
shownbybarsinthedisplay.If the
f an is at its highest speed, pressing
the button or touching the icon again
takes it to its lowest speed.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Recirculat ion But t onFan Speed Icon/Fan Speed But t on
138
RECIRCULATION BUTTON TEMPERATURE BUTTONS
FAN SPEED BUTTON
MODE BUTTON MODE ICON FAN SPEED ICONS

CONT INUED
Use the MODE Button or MODE
icon to select the vents the air flows
f rom. Some air will f low f rom the
dashboard corner vents in all modes.
Each time you press the MODE
button or touch the icon, the display
shows the mode selected. Press
(touch) f our times to see all the
modes.The main air flow comes
f rom the dashboard vents. The main air f low is divided
between the dashboard vents and
the f loor vents. The main air flow comes
f rom the f loor vents. The main air f low is divided
between the f loor vents and de-
froster vents at the base of the wind-
shield.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Mode Button/Mode Icon
139

The button directs the main
air f low to the windshield f or f aster
def rosting. It also overrides any
MODE selection you may have made.
When you turn of f by
pressing the button again, the
system returns to its former settings. When you select , the A/C
turns on automatically and the
system selects Fresh Air mode. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase air f low to the windshield by
closing the side vents in the
dashboard.
This button turns the rear window
def ogger on and of f (see page ).88
Rear Window Def ogger Button
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures140
DEFROST BUTTON
REAR WINDOW DEFOGGER BUTTON

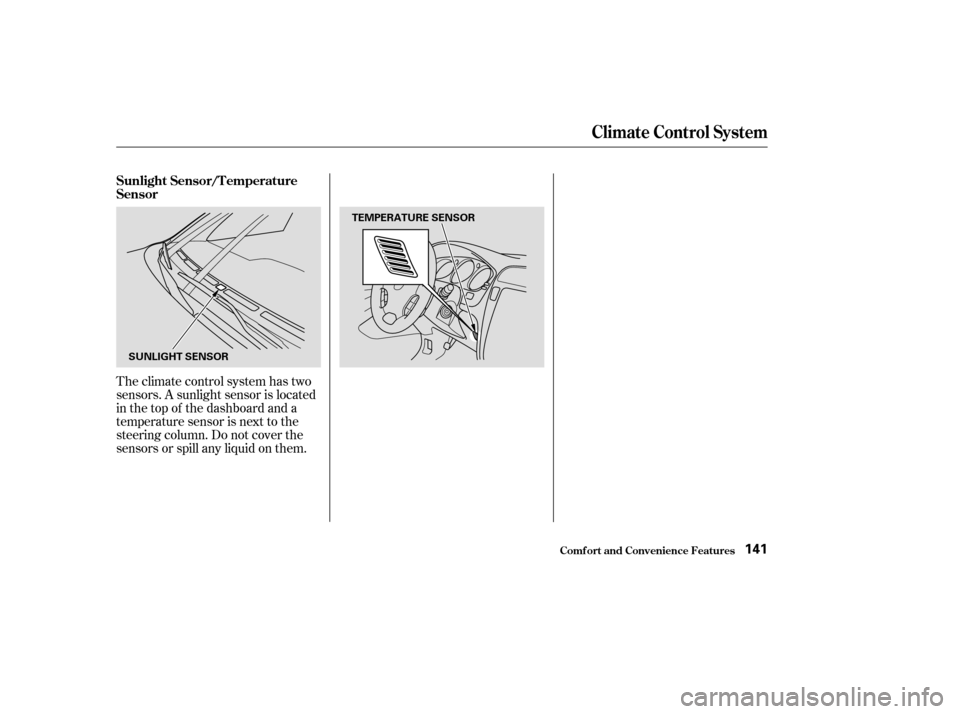

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is located
in the top of the dashboard and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them. Sunlight Sensor/T emperature
Sensor
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures141
SUNLIGHT SENSORTEMPERATURE SENSOR

Your vehicle has two controls f or the
rear A/C unit. The rear A/C control
button is located on the climate
control panel, and the rear A/C
passenger control panel is on the
back of the center console.
You can adjust the heating, cooling,
and air f low of the rear A/C unit with
these control dials. Rear A/C Unit
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
142
REAR A/C
CONTROL BUTTONREAR CENTER VENT
REAR A/C PASSENGER
CONTROL PANEL

CONT INUED
When the system is in FULL AUTO,
the rear A/C passenger control
panel cannot be used. The system
will cycle on and of f automatically to
bring the interior to the set
temperature.To enable the rear A/C passenger
control panel, press the RR A/C
Manual button on the control panel.
The light in the button will come on.
When the rear A/C passenger
control panel is enabled, the
passenger in the second row can use
the rear A/C passenger control
panel to adjust the f an speed and air
flow.
The f an speed control dial changes
the speed of the rear f an; turn it
clockwise to increase fan speed and
air flow.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Rear A/C Passenger Control Panel
Rear A/C Control Button
Fan Speed Cont rol Dial
143
AUTO BUTTON
REAR A/C CONTROL BUTTONTEMPERATURE CONTROL DIAL
MODE BUTTON
FAN SPEED
CONTROL DIAL

Turning this dial clockwise increases
the temperature of the air flow.
Use the MODE buttons to select the
vents the air flows from.
With the button selected,
heated air f lows f rom the rear lower
vents.
With the button selected
cooled air f lows f rom the rear upper
vents.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Mode Button
T emperat ure Cont rol Dial
144

Î
Î
The anti-thef t f eature will disable the
system if it is disconnected f rom the
car’s battery. To get the system
working again, you must enter a
code number (see page ).
Your Acura’s audio system provides
clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your f avorite
stations.
The cassette system f eatures Dolby
noise reduction, automatic sensing of
chromium-dioxide (CrO ) tape, and
auto-reverse f or continuous play.
The in-dash CD changer holds up to
six discs. You operate the CD
changer with the same controls used
f or the radio. See page f or CD
changer operation.
155
182
Touring Model
2
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Audio System
Comf ort and Convenience Feat ures
A M/FM/Cassette/CD Changer
Audio System
145

µ
µ ÓÓ µ
µ´
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the TUNE knob to the right to
tune to a higher f requency, or to the
lef t to tune to a lower f requency.
Turn the knob right or lef t until the
display reaches the desired
f requency.
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pressing the PWR/
VOL knob, or the AM or FM button.
Adjust the volume by turning the
knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available. You can use any of f our methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN or the
Preset buttons.
The SEEK f unction
searches the band for a station with
a strong signal. To activate it, press
either SEEK button ( or ), then
release it. Depending on which
SEEK button you press, the system
scans upward or downward from the
current f requency. It stops when it
finds a station with a strong signal. The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan up
the band for a station with a strong
signal. When it f inds one, it will stop
and play that station for
approximately f ive seconds. If you do
nothing, the system will then scan
f or the next strong station and play
that f or f ive seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again.
TUNE
Operating the Radio
SEEKSCAN
Audio System
Comf ort and Convenience Feat ures146
