Push the button to increase the
temperature of air f low. Push the
button to decrease it. When you set
the temperature to its lower limit or
its upper limit, the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.
This button or icon turns the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display. The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger on and of f (see page ). When the indicator in the button is
on, air f rom the vehicle’s interior is
recirculated throughout the system.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (Fresh Air mode).
Push the button or icon to
increase the f an speed and air f low.
Push the button or icon to
decrease it.
Use the mode control button or icon
to select the vents the air flows from.
Regardless of what mode you
are in, air flows out of the corner
vents unless the system is shut of f or
the vent is manually shut of f .
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Airf lows f rom the f loor vents.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield. Air flows from the center
vents in the dashboard.
77
CONT INUED
Fan Control Button/Icon
Temperature Control Buttons
Air Conditioning (A/C) Button/
Icon Recirculation Button
Rear Window Def ogger Button Mode Control Button/Icon
Airf low Buttons
Features
107
NOTE:

The Automatic Climate Control
system can adjust the f an speed and
airflow levels to maintain the interior
temperature you select.Press the AUTO button.
Set the desired temperature with
the temperature control buttons.
You will see FULL AUTO in the
system’s display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature. In FULL AUTO
the rear A/C control panel cannot be
used. In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air.
You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain
automatically controlled.
Manually selecting a f unction causes
thewordFULLinthedisplaytogo
out.
Press the OFF button. However, a
lack of airf low can cause the
windowstofogup.Youshouldkeep
the fan on at all times so stale air and
moisture do not build up in the
interior and cause fogging.
If you set the temperature to its
lower or its upper limit, the system
runs at f ull cooling or heating only. It
does not regulate the interior
temperature.
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
The A/C indicator will not come
on in U.S. vehicles.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windshield f aster, you
can close the dashboard corner vents
by rotating the wheel below each
vent. This sends more warm air to
the windshield def roster vents. Once
the windshield is clear, select Fresh
Air mode to avoid f ogging the
windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving. 1.
2.
1.
2.
3.
Vents, Heating, and A/C
T o Remove Exterior Frost or Ice
From the Windows
Manual Operation
To Turn Everything Of f
Using A utomatic Climate Control
110

Press the RR A/C MANUAL button
to enable the rear A/C control panel.
The indicator in the button will come
on. A passenger in the second row
can then use the temperature control
dial, f an speed dial, and mode
buttons to adjust the temperature
and airflow to their preference. This
is limited by the system’s minimum
and maximum temperature.Individual rear control
settings are shut off when the
ignition is turned off and return to
the automatic settings. They must be
reset when the ignition is turned on
again.
Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Rear Climate Control, Climate Control Sensors
Using the Rear A /C Unit Climate Control Sensors
Features
111
NOTE:
TEMPERATURE SENSOR
TEMPERATURE CONTROL DIAL
MODE BUTTONS
FAN SPEED CONTROL DIAL

The security system automatically
sets 15 seconds after you lock the
doors, hood, and the tailgate. For the
system to activate, you must lock the
doors f rom the outside with the key,
lock tab, door lock switch, or remote
transmitter. The security system
indicator next to the driver’s door
lock starts blinking immediately to
show you the system is setting itself .The security system will not set if
the hood, tailgate, or any door is not
f ully closed. If the system will not set,
check the Door and Tailgate Open
Monitor on the instrument panel
(see page ) to see if the doors and
tailgate are f ully closed. Since it is
notpartofthemonitordisplay,
manually check the hood.
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights, and taillights f lashes if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues f or 2 minutes, then
the system resets. To reset an
alarming system bef ore the 2
minutes have elapsed, unlock the
driver’s door with the key or the
remote transmitter.
Once the security system is set,
opening any door or the tailgate
without using the key or the remote
transmitter, or the hood, will cause it
to alarm. It also alarms if the radio,
navigation and DVD components are
removed f rom the dashboard or the
wiring is cut. Use the remote transmitter
to quickly check that the hood,
tailgate and all doors are closed.
Push the lock button twice. There
should be an audible conf irmation
beep.
Do not attempt to alter this system
or add other devices to it. 62
Security System
Features
145
NOTE:
SECURITY SYSTEM INDICATOR

Screw the fuel fill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the Malf unction Indicator
Lampmaycomeon(seepage).
Push the f uel f ill door closed until
it latches.
Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.Put your f ingers under the f ront
edge of the hood near the center.
Slide your hand to your lef t until
you f eel the hood latch handle.
Push this handle up until it
releases the hood. Lif t the hood.
If the hood latch handle moves stif f ly,
or if you can open the hood without
lifting the handle, the mechanism
should be cleaned and lubricated.
1.
5.
6.
2.
273
Service Station Procedure
Opening and Closing the Hood
188
HOOD RELEASE HANDLE
LATCH

Theinteriorfuseboxesarelocated
under the dashboard on the driver’s
and passenger’s side. The vehicle’s f uses are contained in
five fuse boxes.To open the passenger’s side f use
box, pull the right edge of the cover.
The primary under-hood f use box is
on the passenger’s side. The
secondary f use box is next to the
battery.
Fuses
T aking Care of t he Unexpect ed
275
PASSENGER’S SIDE INTERIOR
UNDER-HOOD (SECONDARY)
DRIVER’S SIDE
INTERIOR
UNDER-HOOD (PRIMARY)

Your vehicle has several identif ying
numbers located in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Acura dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
Certif ication label.
Identif ication Numbers
282

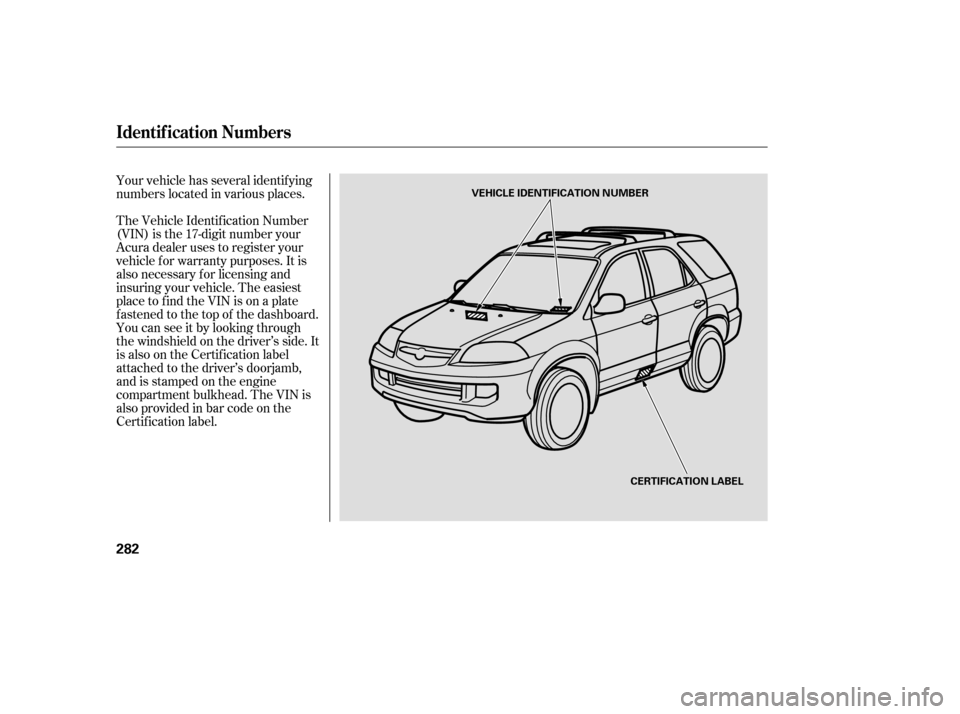

VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
T echnical Inf ormation
285
Battery
Fuses
Engine
Alignment
Tires
Lights
60 W (HB3)
12 V
10.0 : 1
211.8 cu-in (3,471 cm
)
3.50 x 3.66 in (89.0 x 93.0 mm)
12 V 55 W (H11)
3CP
12 V 28/8 W
12 V 51 W (HB4)
12 V 5 W
12 V 21 W
12 V 21 W/5 W
12 V 21 CP (18 W)
12 V 3 CP
12 V 21 W
12 V 5 W
12 V 5 W 5W
5W
1.1 W
3.8 W
12 V
12 V
12 V
12 V
12 V
12 V 52 AH/5 HR
Capacity Interior
Under-hood
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
IZFR5K-11
SKJ16DR-M11
Water cooled 4-stroke SOHC,
V6 gasoline engine
Toe-in
Camber
Caster
Size
Pressure 0.00 in (0.0 mm)
0.00 in (0.0 mm)
0°50’
0°50’
1°53’
P235/65R17 103T
T155/90D16 110M
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
Headlights
Front side marker lights
Front turn signal lights/
Parking lights
Fog light
Front foot lights
Rear turn signal/hazard lights
Brake/Taillights
Backup lights
License plate lights
High-mount brake light
Individual map lights
Cargo area light
Tailgate light
Vanity mirror light
Door light
See page
279or the fuse label
attached to the dashboard.
See page 279or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 278or the fuse box
cover.
12 V 65 AH/20 HR Front/Rear
Spare
Front/Rear
Spare Front
Rear
Front
Rear
Front
Front
Rear Driver’s side
Passenger’s side
High
Low
NGK:
DENSO:

Î
................................
Cancel Button .146
............................
Capacities Chart .284
.............
Carbon Monoxide Hazard . 54
.............................
Carrying Cargo .193
..............
CAUTION, Explanation of . ii
.........................................
CD Care .128
..........................
CD Changer .125, 126
.....
CD Changer Error Messages . 129
.......................................
CD Player .125
........................
Certif ication Label .282
...................................
Chains, .256
Change Oil ........................................
How to .238
......................................
When to .229
....................
Changing a Flat Tire .261
...
Charging System Indicator . 60,272
............
Checklist, Bef ore Driving . 198
..................
Childproof Door Locks . 82
.....................................
Child Saf ety .35
..............................
Booster Seats .51
.............................
Child Seats .43, 44
.....
Important Saf ety Reminders . 38
..........................................
Inf ants .40
..........................
Larger Children .50 .........................................
LATCH .45
......................
Risks with Airbags .36
.............................
Small Children .41
..........................................
Tether .48
.........
Where Should a Child Sit? . 36
.......................................
Child Seats .43
..........
Tether Anchorage Points . 48
...............
Climate Control System . 106
..............................................
Clock .151
.....................
Code, Audio System .131
........................
CO in the Exhaust .289
......................
Compact Spare Tire .260
...............
Consumer Inf ormation . 296
.............
Controls, Instruments and . 57
Coolant ........................................
Adding .240
....................................
Checking .190
.........................
Proper Solution .240
...................
Temperature Gauge . 69
Crankcase Emissions Control ........................................
System .289
................
Cruise Control Indicator . 63
............
Cruise Control Operation . 146
...................................
Cup Holders .102
..........
Customer Relations Of f ice . 296................
DANGER, Explanation of . ii
...................................
Dashboard .4, 58
................
Daytime Running Lights . 76
.................................
Dead Battery .268
............
Def ects, Reporting Saf ety . 298
................
Def ogger, Rear Window . 77
..............
Def rosting the Windows . 109
....................................
Dimensions .284
...............
Dimming the Headlights . 74
Dipstick ..........
Automatic Transmission . 242
..................................
Engine Oil .190
..........................
Directional Signals .74
........
Disc Brake Wear Indicators . 208
.....................
Disposal of Used Oil .239
Doors ..............
Locking and Unlocking . 82
....................
Lockout Prevention . 82
......................
Power Door Locks .82
..........
DOT Tire Quality Grading . 286
...........
Driver and Passenger Safety . 7
...........................................
Driving .197
....................................
Economy .190
tires
Index
C D
II
