The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel from the equator.
CONT INUED
Playing t he XMSatellite Radio (U.S. Models)
Features
121

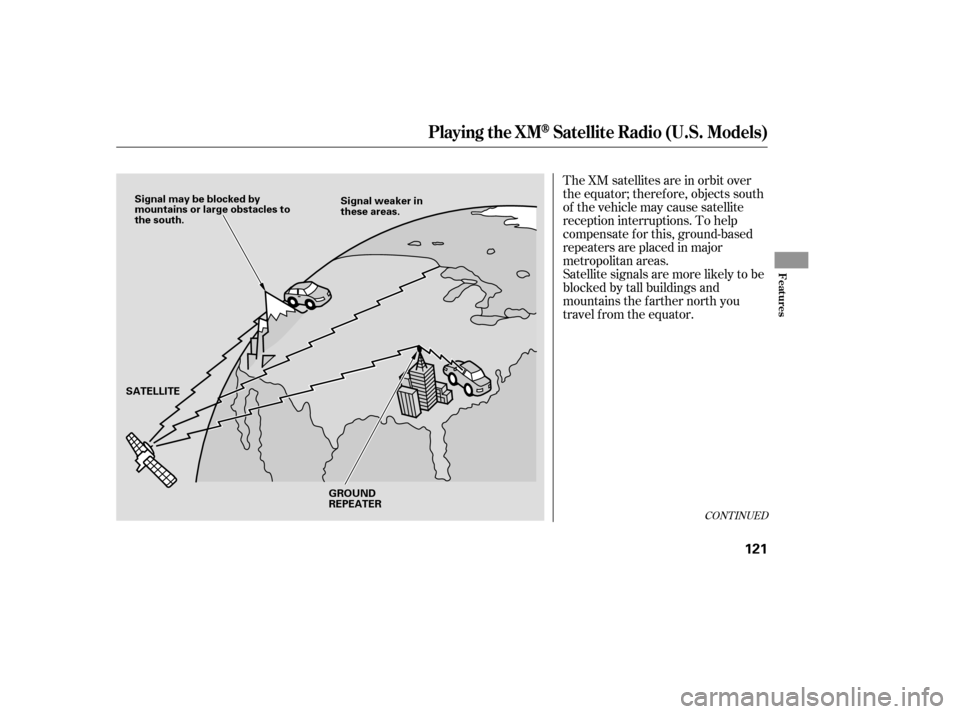

Signal may be blocked by
mountains or large obstacles to
the south.Signal weaker in
these areas.
SATELLITE GROUND
REPEATER

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the south side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in the tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you. If you decide to purchase XM
Satellite Radio service, contact XM
Radio at, or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNE knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.
After you’ve registered with XM
Radio, keep your audio system in the
Satellite Radio mode while you wait
f or activation. This should take about
30 minutes.
If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or ON (II) position, push the
PWR/VOL knob to turn on the audio
system and press the XM button. A
variety of music types and styles will
play. While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CH’’ will appear in
the display, and you’ll be able to
listen to XM Radio broadcasts. XM
Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio.
Cargo may be attached to roof
rack.
There may be other geographic
situations that could af f ect satellite
radio reception.As required by the FCC: Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.com
Playing t he XMSatellite Radio (U.S. Models)
Receiving Satellite Radio Service
122

µµ
´µ
µ
´
µPress the eject button to remove the
CD. If you eject the CD, but do not
remove it from the slot, the system
will automatically reload the CD
af ter 15 seconds and put it in pause
mode. To begin playing, press the
CD button. To continuously replay
a track, press and release the RPT
button. You will see RPT/REPEAT
in the display. Press the RPT button
again to turn it off.
This f eature plays the
tracks in random order. To activate
Random Play, press and release the
RDM button. You will see RDM in
the display. Press the RDM button
again to return to normal play.
Press the AM or FM button (AM/
FM button on the U.S. models) to
switch to the radio while a CD is
playing. If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
To move rapidly within a track, press
andholdthe or skipbutton. Each time you press and
release the skip button the player
skips forward to the beginning of the
next track. Press and release the
skipbuttontoskipbackwardtothe
beginning of the current track. Press
it again to skip to the beginning of
the previous track. You operate the CD player with the
same controls used f or the radio.
The number of the track playing is
shown in the display. The system will
continuously play a CD until you
change modes. With the ignition in the
ACCESSORY (I) or ON (II) position,
insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way and begin to play it.
CONT INUED
Premium model only
To Play a CD
To Stop Playing a CD REPEAT
RANDOM
SK IP
Playing a CD
Features
125

If you do not remove the disc f rom
the slot, the system will reload the
disc af ter 10 seconds and begin
playing it.
To remove a dif f erent CD f rom the
changer,firstselectitwiththe
appropriate preset button. When that
CD begins playing, press the eject
button.In any mode, if you press the eject
button and hold it until you hear a
beep, the system will eject all of the
discs in the changer.
You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst. You
can eject up to six discs, one at a
time.
To remove the disc that is currently
playing, press the eject button. You
will see ‘‘EJECT’’ in the display. The
system automatically begins the
Load sequence so you can load
another CD in that position. If you do
not load another CD, af ter 10
seconds the system begins playing
the next disc in the changer. If the
changer is empty, the system selects
the previous mode (AM, FM, or XM
radio).
If you press the Eject button while
listening to the radio, XM radio, or
with the audio system turned off, the
disc that was last selected is ejected.
Af ter that disc is ejected, pressing
the Eject button again will eject the
next disc in the numerical order. By
doing this six times, you can remove
all the CDs f rom the changer.
If you press the LOAD button while
a disc is playing, the system will stop
playing that disc and start the
loading sequence. It will then play
the disc just loaded.
You can also load a CD into an empty
position while a CD is playing by
pressing the appropriate preset
button. Select an empty position (the
CD Loaded indicator is of f ), and
press the preset button f or that
position (1 to 6). The system will
stop playing the current CD and start
the loading sequence. It will then
play the CD just loaded. Removing CDs f rom the Changer
CD Changer
Features
127

ÛÝ
The middle button adjusts the
volume up ( ) or down ( ). Press
the top or bottom of the button and
hold it until the desired volume is
reached, then release it.
Three controls f or the audio system
are mounted in the steering wheel
hub. These let you control basic
f unctions without removing your
hand f rom the wheel. use the
CH button to change stations. Each
time you press this button, the
system advances to the next preset
station on the band you are listening
to. You will see the number of the
selected preset button in the display.
To change bands, or to change f rom
FM1 to FM2, press the AM/FM
button. the system
skips to the beginning of the next
track each time you push the CH
button. You will see the disc and
track number in the display.
The MODE button changes the
audio mode between FM1, FM2, AM,
CD, and DVD/AUX, and XM (if a
disc is inserted). The CH button has three functions,
depending on whether you are
listening to the radio, or playing a
CD.
If you are listening to the radio,
If you are playing a CD,
Steering Wheel Controls
130
CH BUTTON
VOLUME
BUTTON MODE
BUTTON

Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic f ive-digit code with
the Preset buttons. Because there
are hundreds of number
combinations possible f rom the f ive
digits, making the system work
without knowing the exact code is
nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system code number
and serial number. It is best to store
this card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.If your vehicle’s battery is
disconnected or goes dead, the audio
system will disable itself . If this
happens, you will see ‘‘Code’’ in the
frequencydisplaythenexttimeyou
turn on the system. Use the Preset
buttons to enter the five-digit code.
The code is located on the radio code
card included in your Owner’s
Manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for
one hour bef ore trying again.If thecodecardislost,anAcura
dealer can access your code with
your radio’s serial number. To
access the serial number, turn the
radio on. It must display ‘‘COdE’’,
then turn the radio off. Push the
preset 1, preset 6, and power buttons
at the same time, then quickly
release.
You will have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
If youshouldhappentolosethecard,
you must obtain the code number
f rom your dealer. To do this, you will
need the system’s serial number.
Radio T hef t Prot ect ion
Features
131

The rear system selects the source it
waslastsetto.Ifthatsourcehas
been removed (the DVD has been
ejected f rom the player, f or example),
youwillsee‘‘____’’inthedisplay.
You must select another source.Whenyouturnonthesystem,the
rear speakers are automatically
turned off. You will see the Rear
Speakers Of f icon in the display. The
sound f or the rear system is sent to
the wireless headphones.
If youwanttoturntherearspeakers
on again, press and hold the REAR
PWR button until the Rear Speakers
Of f icon goes of f .
The rear speakers are
connected to the f ront system, so
they will always play the source that
the f ront system is set to.
With this system, the rear
passengers can enjoy a dif f erent
entertainment source (AM/FM
radio, XM radio, CD changer, DVD
player or AUX) than the front seat
occupants. The audio is broadcast
through the supplied wireless
headphones.
Press the REAR PWR button. To
turn on the rear controls (ceiling
panel or remote), press the REAR
CTRL knob. The system’s icon
shows in the right side display. Your
passengers can then operate the rear
system with the control panel in the
ceiling or with the remote control.
Press the REAR CTRL knob again to
turn the rear controls off. You will
seetheRearControlsOff iconinthe
right display.
If equippedRear Speakers
To Turn On the System
Rear Entertainment System
Features
133
NOTE:

Î
Î
The DVD player in your Rear
Entertainment System can play DVD
video discs and CDs. It features
Dolby noise reduction.
To play the radio or XM radio, the
buttons f or the f ront entertainment
system have the same f unctions.
If aCDisloadedinthemainCD
changer, select CD/CHG. If the CD
is loaded in the lower player, select
DVD/AUX. Open the overhead screen by
pushingonthebutton.Thescreen
will swing down part-way. Pivot the
screen the rest of the way (to detent
one or two). If you pivot the screen
too f ar f orward, past detent three,
the display will turn of f . Pivot the
screen back to the detent to turn the
display back on. To close the screen,
pivot it up until it latches.
To operate the rear entertainment
system from the front panel, turn the
REAR CTRL knob clockwise. The
amber RR LED comes on to show
that the control panel is enabled.
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
To Select Rear Entertainment
f rom the Front Control Panel Operating the DVD Player f rom
the Front Control Panel
Rear Entertainment System
134
REAR CONTROL PANEL
BUTTON
OVERHEAD SCREEN

Use these buttons to select the
entertainment source (radio, XM
radio, CD changer, or DVD player/
Auxiliary device). The selected
source will be shown in the display.
Make sure the rear control operation
has not been disabled with the REAR
CTRL knob on the f ront panel.
Use the and buttons to
select from the stations on the radio
preset buttons. Pressing the orbutton will cause the system to
search up or down the band f or a
station with a strong signal. You will
seeSEEKinthedisplay. When the display is open,
use the manual controls to select
icons f rom the menu. Using the Rear Control Panel
To Play the Radio f rom the Rear
Control Panel
Rear Entertainment System
136
NOTE:
SOURCE SELECTION BUTTONS
SEEK/SKIP
BUTTON
CH/DISK
BUTTON
MENU BUTTON
SEEK/SKIP
BUTTON
PLAY/PAUSE/PROG BUTTON ENTER BUTTON CH/DISK BUTTON REAR CONTROLS
OFF INDICATOR

You can use the remote control to
select the entertainment source
(radio, CD player, or DVD player/
Auxiliary device). The selected
source will be shown in the display.
Make sure the rear control operation
has not been disabled with the RR
CTRL knob on the f ront panel.
When using the remote control,
point it at the rear control panel in
the ceiling.
ThePLAY/PROG,PAUSE,SKIP,
and FWD/REW buttons work the
same f unction as the f ront and rear
control panel buttons.
ThePLAY/PROG,PAUSE,SKIP,
and FWD/REW buttons work the
same f unction as the f ront and rear
control panel buttons. Using the Remote Control
To Play a CD or Radio
To Play a DVD
Rear Entertainment System
138
SOURCE SELECTION
BUTTONSSEEK/SKIP BUTTONS
DISP BUTTON
POWER (T/C) BUTTON
REW/FWD BUTTONS
STOP BUTTON
PAUSE BUTTON
TITLE/CAPTER BUTTON
SET-UP BUTTON
MENU BUTTON
RETURN BUTTON PLAY/PROG BUTTON
XM MODE BUTTON
