If the impact is on the passenger’s
side, the passenger’s side curtain
airbag will inflate even if there are no
occupants on that side of the vehicle.
In a moderate to severe side impact,
sensors will detect rapid acceleration
and signal the control unit to
instantly inflate the side curtain
airbag and activate the seat belt
tensioner on the driver’s or the
passenger’s side of the vehicle. If the rollover sensor detects your
vehicle is about to roll over, it signals
the control unit, which immediately
deploys both side curtain airbags and
activates both f ront seat belt
tensioners.
The airbag on the passenger’s side
will deploy, and the seat belt
tensioner will activate, even if there
are no passengers on that side of the
vehicle.
To get the best protection f rom the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats.
How Your Side Curtain A irbags
Work
In a Side Impact
In a Rollover
Additional Inf ormation About Your Airbags
32
\f—\f—\fy\f
y
()-
\fy\f\fy
2008 MDX

This indicator alerts you that the
passenger’s f ront airbag has been
shut of f because weight sensors
detect about 65 lbs (29 kg) or less
(the weight of an inf ant or small
child) on the f ront passenger’s seat.
It does there is a problem
with the airbag.Be aware that objects placed on the
f ront seat can cause the indicator to
come on.
If no weight is detected on the f ront
seat, the airbag will be automatically
shut of f . However, the indicator will
not come on.
The passenger airbag of f indicator
maycomeonandoff repeatedlyif
the total weight on the seat is near
the airbag cutof f threshold.
If an adult or teenage passenger is
riding in f ront, move the seat as f ar
to the rear as possible, and have the
passenger sit upright and wear the
seat belt properly.
If the indicator comes on with no
f ront seat passenger and no objects
on the seat, or with an adult riding
there, something may be interf ering
with the weight sensors. Look f or
and remove:
Any items under the f ront
passenger’s seat.
Any object(s) hanging on the seat
or in the seat-back pocket.
If no obstructions are f ound, have
your vehicle checked by a dealer as
soon as possible. Any object(s), such as a f olded-
down back seat, that are touching
the rear of the seat-back.
How the Passenger Airbag Of f
Indicator Works
not mean
Additional Inf ormation About Your Airbags
34
PASSENGER AIRBAG OFF INDICATOR
U.S. Canada
\f—\f—\fy\fy
()-
\fy\f\fy
2008 MDX

Your airbag systems are virtually
maintenance f ree, and there are no
parts you can saf ely service.
However, you must have your
vehicle serviced if:Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. Any
seat belt tensioner that activates
must also be replaced.
Take your vehicle to an
authorized dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by an authorized dealer or
a knowledgeable body shop. Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
If water or
another liquid soaks into a seat-
back, it can prevent the side airbag
cutof f system f rom working
properly.
Even if your
airbags do not inflate, your dealer
should inspect the driver’s seat
position sensor, the f ront
passenger’s weight sensors, the
f ront seat belt tensioners, and all
seat belts worn during a crash to
make sure they are operating
properly.
CONT INUED
Airbag Service Additional Saf ety Precautions
An airbag ever inf lates.
T he SRS indicat or alert s you t o aproblem. Donotattempttodeactivateyour
airbags.
Do not t amper wit h airbagcomponent s or wiring f or anyreason.
Do not expose the f ront passenger’sseat-back to liquid.
If your vehicle has a moderat e t o
severe impact .
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
35
\f—\f—\fy\fy
()-
\fy\f\f\fy
2008 MDX

This could make the
driver’s seat position sensor or the
f ront passenger’s weight sensors
inef f ective. If it is necessary to
remove or modif y a f ront seat to
accommodate a person with
disabilities, f irst contact Acura
Client Services at 800-382-2238. Improperly replacing
or covering f ront seat-back covers
can prevent your side airbags f rom
inf lating during a side impact.
Additional Inf ormation About Your Airbags
Do not remove or modif y a f ront
seat without consulting yourdealer. Do not cover or replace f ront seat -
back covers wit hout consult ingyour dealer.
36
\f—\f—\fy\fy
()-
\fy\f\f
y
2008 MDX

The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
You can adjust the outside
temperature display (see page ).
This shows the outside Fahrenheit
temperature in U.S. models, and
Centigrade temperature in Canadian
models.
When you reset Trip A, average f uel
economy A is reset at the same time.
When you reset Trip B, average f uel
economy B is reset.
In the customizing mode, you can set
Trip A and average f uel economy A
to reset at the same time when you
ref uel your vehicle (see page ).
92
91
Outside Temperature
Multi-Inf ormation Display
76
OUTSIDE TEMPERATURE
U.S.
CANADA
\f—\f—\fy\f
y
()-
\fy\f\f
y
2008 MDX

Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
You can use the f og lights only when
the headlights are on low beam.
With the light switch in the AUTO
position, you can also use the f og
lights when the headlights turn on
automatically. They will go of f when
the headlights turn of f .
The automatic lighting f eature is
controlledbyasensorlocatedontop
of the dashboard. Do not cover this
sensor or spill liquids on it. With the headlight switch off, the
daytime running lights come on
when you turn the ignition switch to
the ON (II) position and release the
parkingbrake.Theyremainonuntil
you turn the ignition switch of f , even
if you set the parking brake.
When the headlights are on, the
daytime running lights are of f .
Headlights
Daytime Running L ights
Fog Lights
120
LIGHT SENSOR
\f—\f—\fy\fy
()-
\fy\f
y
2008 MDX

The power tailgate has an auto-
reverse f eature. If it meets
resistance while opening or closing,
it will beep three times and reverse
direction. However, the tailgate may
not reverse immediately. Always
make sure passengers and objects
are clear of the tailgate before
opening or closing it.Also check that passengers,
especially children, do not have their
hands on the edge of the tailgate or
on the tailgate sill. The auto reverse
featurestopsworkingwhenthe
tailgate is about to latch so the motor
can pull the tailgate shut.
If your vehicle’s battery is
disconnected, goes dead, or the f use
is removed while the tailgate is f ully
open, the power tailgate needs to be
reset. After connecting the battery
or installing the f use, close the
tailgate f ully by hand.
The power tailgate may not open or
close under the these conditions: Whenthetailgateortheroof is
covered with snow or ice.
Do not install any accessories on the
tailgate. It may cause the tailgate not
to f unction properly. If there is snow
or ice on the tailgate, make sure to
remove it bef ore you operate the
tailgate.
The tailgate has sensors on both
sides. Be caref ul not to damage them.
If the sensors are damaged, the
power tailgate does not f unction
properly.
When the vehicle is swayed in a
strong wind.
The vehicle is parked on a steep
hill. If you push the tailgate release
button inside the handle while the
tailgate is opening or closing, it will
stop moving. You need to open or
close it the rest of the way manually.
CONT INUED
A ut o-Reverse
Tailgate
Inst rument s and Cont rols
133
Closing a power tailgate while
anyone is in the path of the
tailgate can cause serious
injury.
Make sure everyone is clear
before closing the power
tailgate.
\f—\f—\fy\fy
()-
\fy\f
y
2008 MDX

To change the seat-back angle of the
seats in the second row, pull up on
thehandleontheoutsideof theseat-
back, and push the seat-back.
Overall, the seat-back has six
dif f erent positions.The left and right halves can be
f olded separately.
To unlatch the detachable anchor
bef ore f olding the seat-back, insert
the latch plate into the slot on the
side of the anchor buckle (see
page ) and allow the seat belt
to retract. Store the detachable
anchor and seat belt latch plates in
the retractor housing.
Lower the head restraints to their
lowest positions.
Pull up the handle on the outside
of the seat-back.
Fold the seat-back forward.
Reverse this procedure to return the
seat to the upright position. Make
sure the seat is locked securely
bef ore driving. Make sure that the folded seat-back
does not press against the f ront
passenger’s seat, as this could cause
the weight sensors to work
improperly.
2.
3.
1.
4. 146
Seats
A djusting the Second Row Seats Folding the Second Row Seats
144
HANDLE
\f—\f—\fy\f\fy
()-
\fy\f
y
2008 MDX

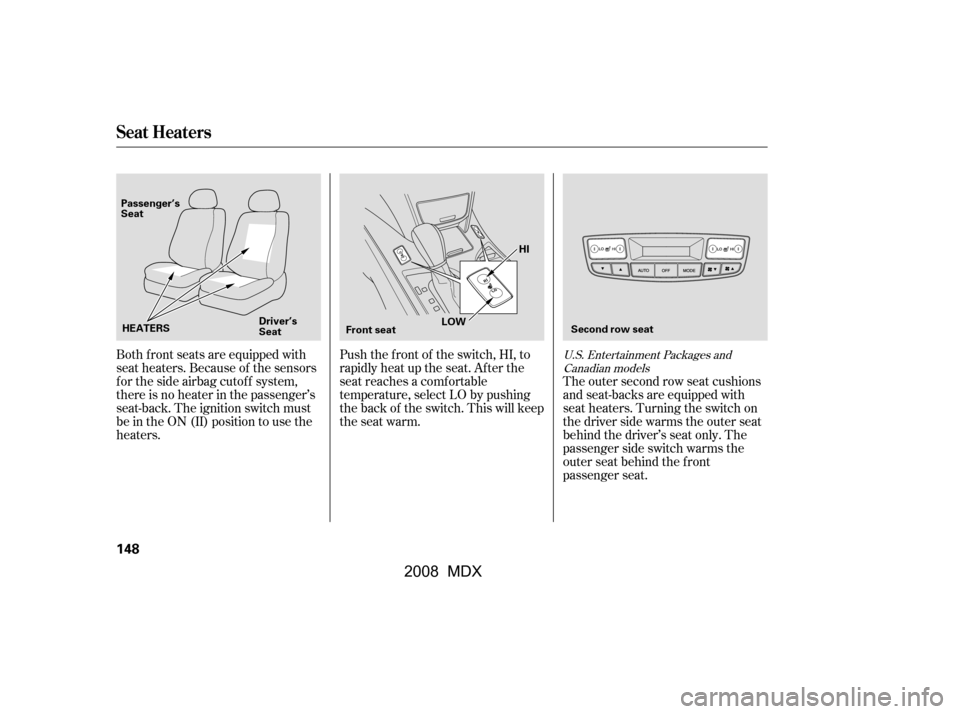

The outer second row seat cushions
and seat-backs are equipped with
seat heaters. Turning the switch on
the driver side warms the outer seat
behind the driver’s seat only. The
passenger side switch warms the
outer seat behind the f ront
passenger seat.
Both f ront seats are equipped with
seat heaters. Because of the sensors
f or the side airbag cutof f system,
there is no heater in the passenger’s
seat-back. The ignition switch must
be in the ON (II) position to use the
heaters.
Push the front of the switch, HI, to
rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushing
the back of the switch. This will keep
the seat warm.
U.S. Entertainment Packages and
Canadian models
Seat Heaters
148
LOW HI
Front seat Second row seat
HEATERS
Passenger’s
Seat
Driver’s
Seat
\f—\f—\fy\f
\fy
()-
\fy\f
y
2008 MDX

Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.Theinsidemirrorcanautomatically
darken to reduce glare. To turn on
this feature, press the button on the
bottom of the mirror. The AUTO
indicator comes on as a reminder.
When it is on, the mirror darkens
when it senses the headlights of a
vehicle behind you, then returns to
normal visibility when the lights are
gone. Press the button again to turn
of f this f eature.
Mirrors
Parking Brake, Mirrors
154
AUTO BUTTON
INDICATOR SENSOR
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles. A beeper will sound
if the vehicle is driven with the parking
brake on.
\f—\f—\fy\fy
()-
\fy\f
y
2008 MDX
