fuse box Acura MDX 2012 Owner's Manual

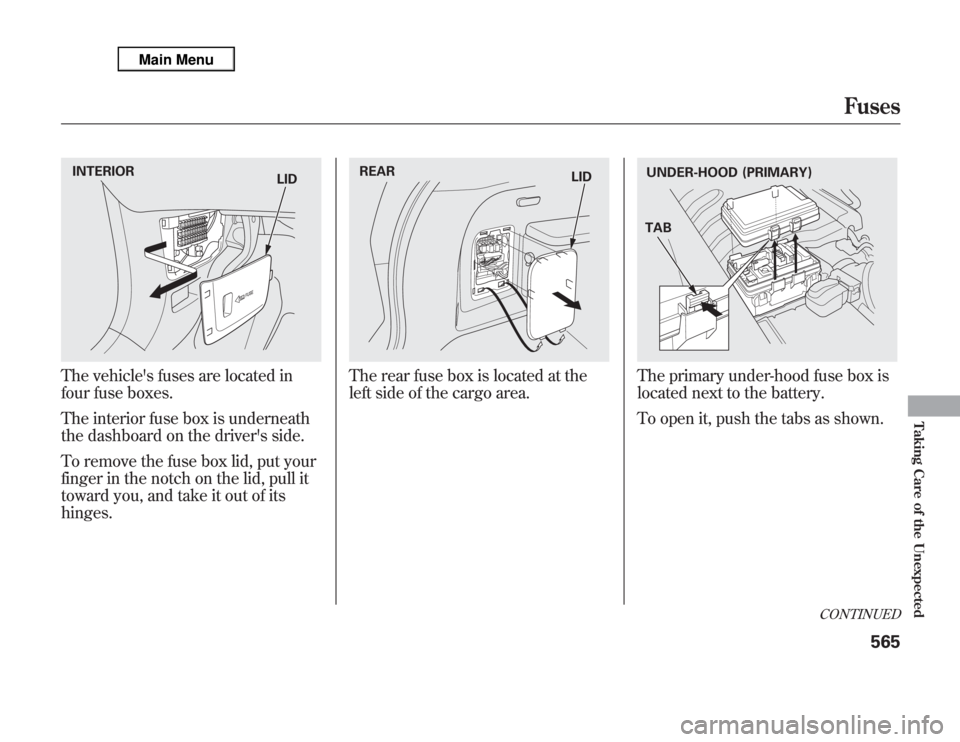

The vehicle's fuses are located in
four fuse boxes.
The interior fuse box is underneath
the dashboard on the driver's side.
To remove the fuse box lid, put your
finger in the notch on the lid, pull it
toward you, and take it out of its
hinges.
The rear fuse box is located at the
left side of the cargo area.
The primary under-hood fuse box is
located next to the battery.
To open it, push the tabs as shown.
INTERIOR
LID
REAR
LID
UNDER-HOOD (PRIMARY)
TAB
CONTINUED
Fuses
565
Taking Care of the Unexpected

The secondary fuse box is on the
passenger's side.
To open it, push the tabs as shown.
If equippedThe sub fuse box is on the
passenger's side.
To open it, push the tabs as shown.Checking and Replacing Fuses
If something electrical in your
vehicle stops working, the first thing
you should check for is a blown fuse.
Determine from the chart on pages
569, 570, and 571, or the diagram on
the fuse box lid, which fuse or fuses
control that device. Check those
fuses first, but check all the fuses
before deciding that a blown fuse is
the cause. Replace any blown fuses,
and check if the device works.
1. Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are off.
2. Remove the cover from the fuse
box.
UNDER-HOOD (SECONDARY)
TAB
UNDER-HOOD (SUB)
TAB
Fuses566

3. Check each of the large fuses in
the under-hood fuse boxes by
looking through the top at the wire
inside. Removing these fuses
requires a Phillips-head
screwdriver.
4. Check the smaller fuses in the
under-hood fuse boxes and rear
fuse box, and all the fuses in the
interior and rear fuse boxes by
pulling out each one with the fuse
puller provided in the primary
under-hood fuse box.
FUSE BLOWN
BLOWN
FUSE PULLER
CONTINUED
Fuses
567
Taking Care of the Unexpected

PRIMARY UNDER-HOOD FUSE BOX
No. Amps. Circuits Protected
1 120 A Main fuse
－Not Used
2－1 30 A ADS
ᤳ2
2－2 30 A SH-AWD
2－3 30 A Rear Blower Motor
2－4 40 A ABS VSA
2－5 40 A Trailer Main
2－6 40 A Power Seats, Driver's Position
Memory System, Subwoofer,
Telescopic Steering Wheel
2－7 40 A Front Heated Seat, TPMS,
Moonroof, Driver's Lumbar
Support
2－8－－
3－1 60 A Fog Lights, Front Blower
Motor, Interior Light
3－2 40 A Headlights, Daytime Running
Lights
3－3 60 A Cooling Fan, Condenser Fan,
MG Clutch, Headlight
Washer
ᤳ1
3－4 50 A Ignition Switch Main
ᤳ1: Canadian model
ᤳ2: If equippedNo. Amps. Circuits Protected
3－5 50 A Power Window
3－6 60 A Power Tailgate Opener/Closer,
Rear ACC Socket, Interior
Light,
Rear Defroster
3－7 30 A ECU (PCM)
3－8 30 A TECH
4 40 A Audio, Door Lock, Interior
Lights, Front ACC Socket
5 30 A EPT-L
ᤳ2
6 30 A EPT-R
ᤳ2
7 30 A FI ECU
8 30 A Audio Amplifier
9 7.5 A Battery Sensor
10 15 A Hazard
11 15 A Horn, Stop
12 20 A ABS VSA
13 20 A Trailer (Brake)
14 20 A Rear Heated Seat
ᤳ2
15 20 A A/C Inverter
CONTINUED
Fuse Locations
569
Taking Care of the Unexpected

SECONDARY UNDER-HOOD FUSE BOXNo. Amps. Circuits Protected
1 10 A Left Daytime Running Light
2 10 A Right Daytime Running
Light
3 10 A Left Headlight High
4 10 A Right Headlight High
5 7.5 A Small Lights (Exterior)
6 30 A Headlight Low Main
7 7.5 A Cooling Fan Timer
8 15 A IGP
9 15 A IG Coil
10 15 A DBW
11 15 A AFHT
12 40 A Front Blower MotorNo. Amps. Circuits Protected
13 20 A Fog Lights
14 30 A Headlight Washer
ᤳ
15 30 A Condenser Fan
16 30 A Cooling Fan
17 7.5 A A/C Clutch
18 15 A Left Headlight Low
19 15 A Right Headlight Low
22 7.5 A Small Lights (Interior)
ᤳ: Canadian modelSUB FUSE BOXIf equippedNo. Amps. Circuits Protected
1 10 A ACC/CMBS, BSI, ADS, EPT,
AVS
REAR FUSE BOXNo. Amps. Circuits Protected
1－Not Used
2－Not Used
3－Not Used
4－Not Used
5 10 A Rear ACC Socket
6 20 A Power Tailgate
7－Not Used
8 7.5 A Interior Light
9－Not Used
10 30 A Rear Defroster
11 40 A Power Tailgate
Fuse Locations570

INTERIOR FUSE BOXNo. Amps. Circuits Protected
1 7.5 A TPMS
2 10 A Driver's Lumbar Support
Motor
3 15 A Moonroof
4 20 A Front Heated Seats
5 10 A Audio
6 7.5 A Interior Light
7 10 A Back Up
8 20 A Door Lock
9 15 A ACC Socket
10 15 A IG Coil
11 30 A Windshield Wiper
12 10 A Subwoofer
13 20 A Passenger's Power ReclineNo. Amps. Circuits Protected
14 20 A Driver's Power Slide
15 20 A Telescopic Steering Wheel
16 20 A Driver's Power Recline
17 20 A Passenger's Power Slide
18 10 A Alternator
19 20 A Fuel Pump
20 10 A SH-AWD, ODS
21 7.5 A Gauges
22 10 A SRS
23－Not Used
24 20 A Left Rear Power Window
25 20 A Right Rear Power Window
26 30 A Passenger's Power Window
27 30 A Driver's Power Window
28 20 A Tilt Steering Wheel
29 10 A ABS VSA
30 10 A A/C
31 15 A Washer
32 10 A ACC
33－Not Used
Auxiliary (Holder1)No. Amps. Circuits Protected
1 7.5 A Starter DIAG
2 7.5 A SH-AWDAuxiliary (Holder2)No. Amps. Circuits Protected
1 7.5 A STS
2 7.5 A ODS
Auxiliary
(Holder1)Auxiliary
(Holder2)
Fuse Locations
571
Taking Care of the Unexpected

Opening the Fuel Fill Door
ManuallyIf the fuel fill door release button
does not work, use the release lever
inside the rear fuse box lid in the
cargo area.
To open the fuel fill door, pull the
release lever rearward.Emergency Towing
If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The only way you can safely tow
your vehicle is with flat-bed
equipment.The operator will load
your vehicle on the back of a truck.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inform
them a flat-bed is required.
Towing with only two tires on the
ground will damage parts of the all-
wheel-drive system. Your vehicle should
be transported on a flat-bed truck or
trailer.
LID
RELEASE LEVER
Opening the Fuel Fill Door Manually, Emergency Towing572

Lights
Headlights High 60 W (HB3)
Low
ᤳ1
35 W (D2S)
Daytime running lights 60 W (HB3)
Front side marker lights 3 CP
Front turn signal lights 21 W (Amber)
Parking lights 3 CP
Stop/Tail lights LED
ᤳ2
Side turn signal lights LED
ᤳ2
Fog lights 55 W (H11)
Rear turn signal lights 21 W
Rear side marker lights 3 CP
Backup lights 18 W
High-mount brake light LED
ᤳ2
License plate lights 3 CP
Tailgate lights 5 W
Vanity mirror lights 2 W
Door lights 3.4 W
Glove box light 1.4 W
Foot light 3.4 W
ᤳ1: The low beam headlights are high voltage discharged type.
Replacement of a low beam headlight bulb should be performed by
your dealer.
ᤳ2: Replacement of a light bulb should be done by your dealer.Battery
Capacity 12 V－65AH/5 HR
12 V－76AH/20 HR
Fuses
Interior See page 571 or the fuse label attached
to the inside of the fuse box lid.
Rear See page 570 or the fuse label attached
to the inside of the fuse box lid.
Under-hood See page 569 and 570 or the fuse box
cover.
Engine
Type Water-cooled, 4-stroke SOHC VTEC V6
gasoline engine
Bore x Stroke 3.54 x 3.78 in (90.0 x 96.0 mm)
Displacement 223.5 cu-in (3,664 cm
3)
Compression ratio 11.2 : 1
Spark plugs DENSO:
NGK:SXU22HCR11S
ILZKR7B11S
Alignment
Toe-in Front 0.00 in (0.0 mm)
Rear 0.08 in (2.0 mm)
Camber Front－0°30’
Rear－0°30’
Caster Front 4 ° 12’
Specifications
579
Technical Information
