Acura MDX 2015 Navigation Manual

30
Interface SettingsClock Adjustment
System Setup
HSETTINGS button  System Settings  Clock  Clock/Wallpaper Type 
Clock
1.Rotate i to select an option to
change the design. Press u.
2. Move r to select OK. Press u.
H SETTINGS button
 System Settings  Clock  Clock Adjustment
1. Rotate i to select an item. Press
u .
2. Rotate i to select a minute. Press
u .
■Setting the Clock Type
■Setting the Clock

31
Interface SettingsWallpaper Settings
System Setup
Wallpaper Settings
Select, delete, and import wallpaper pictures for display on the screen.
HSETTINGS button
 System Settings  Clock  Clock/Wallpaper Type
1. Connect the USB flash drive to the
USB port.
2. Move y to select Wallpaper .
The screen will change to the
wallpaper list.
3. Move r and rotate i to select
Add New Wallpaper. Press u.
4. Rotate i to select a desired
picture. Press u.
The preview is displayed on the
left side on the screen.
5. Move r and rotate i to select
Start Import . Press u.
The confirmation message will
appear. Then the display will
return to the wallpaper list.
■Import wallpaper
1 Wallpaper Settings
•When importing wallpaper files, the image
must be in the USB flash drive’s root directory.
Images in a folder cannot be imported.
•The file name must be fewer than 210 bytes.
•The file format of the image that can be
imported is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 6 MB.
•The maximum image size is 4,800 x 4,800
pixels. If the image size is less than 420 × 234
pixels, the image is displayed in the middle of
the screen with the extra area appearing in
black.
•Up to 10 files can be saved for each driver
(Driver1 and Driver2).
•If the USB flash driv e does not have any
pictures, the No file s detected message
appears.

32
Interface SettingsWallpaper Settings
System Setup
HSETTINGS button  System Settings  Clock  Clock/Wallpaper Type 
Wallpaper
1.Rotate i to select a desired
wallpaper. Press u.
The preview is displayed on the
left side on the screen.
The pop-up menu appears on
the screen.
2. Rotate i to select Set. Press u.
The display will return to the
wallpaper list.
■Select wallpaper1 Select wallpaper
From the pop-up menu, rotate to select Preview
and press to see a preview at full-size screen.
To go back to the previous screen, press to select
OK , or press the BACK button.
When the file size is large, it takes a while to be
previewed.

33
Interface SettingsWallpaper Settings
System Setup
HSETTINGS button  System Settings  Clock  Clock/Wallpaper Type 
Wallpaper
1.Rotate i to select a wallpaper
that you want to delete. Press u.
The preview is displayed on the
left side on the screen.
The pop-up menu appears on
the screen.
2. Rotate i to select Delete. Press
u .
The confirmation message will
appear.
3. Rotate i to select Yes. Press u.
The display will return to the
wallpaper list.
■Delete wallpaper

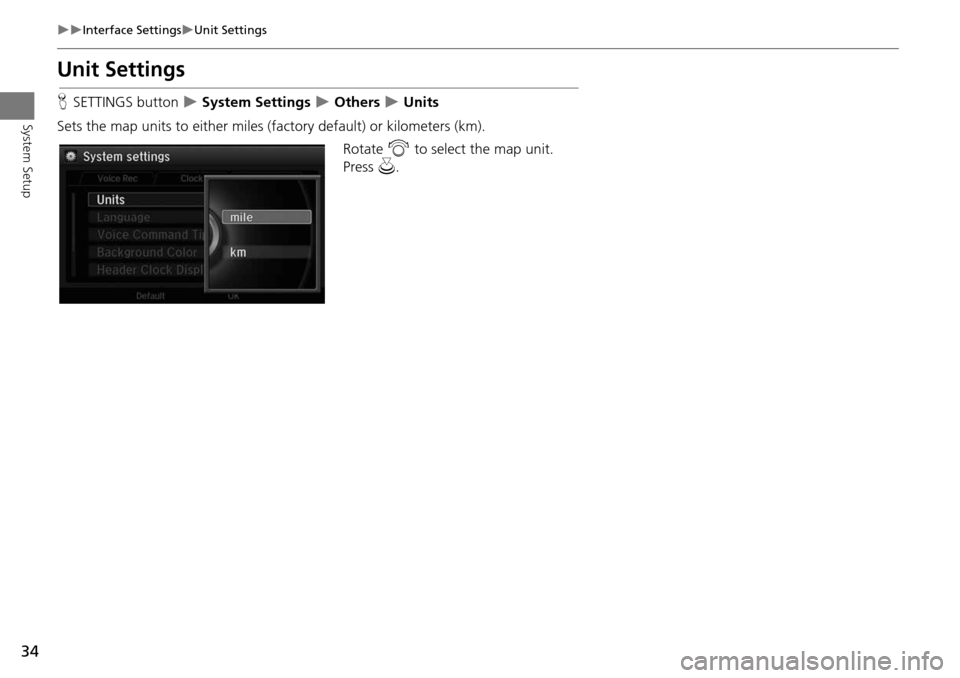

34
Interface SettingsUnit Settings
System Setup
Unit Settings
HSETTINGS button  System Settings  Others  Units
Sets the map units to either miles (fac tory default) or kilometers (km).
Rotate i to select the map unit.
Press u.

35
Interface SettingsLanguage Settings
System Setup
Language Settings
HSETTINGS button  System Settings  Others  Language
Set the system language used on all scr eens. You can choose from three languages:
English , Français (French), Español (Spanish).
Rotate i to select the system
language. Press u.1Language Settings
Voice confirmation of ci ties and streets only
occurs when English is the system language.
When Français or Español is selected, some
messages continue to be displayed in English.

36
Interface SettingsBackground Color
System Setup
Background Color
HSETTINGS button  System Settings  Others  Background Color
Changes the background color of the navigation screen and the On Demand Multi-
Use Display
TM. Rotate i to select a desired color.
Press u.

37
Interface SettingsHeader Clock Display
System Setup
Header Clock Display
HSETTINGS button  System Settings  Others  Header Clock Display
Selects whether the clock display comes on. Rotate i to select an option. Press
u .
The following options are available:
• On (factory default): The system displa ys the clock in the navigation screen.
• Off : Disables the feature.

38
System Setup
Personal Information
HSETTINGS button  Navi Settings  Personal Info
Use the personal information menu to sele ct and set your address books, home
address, and PINs. You can also delete unwanted destinations from the list of
previously routed destinations.
Rotate i to select an item. Press u .
The following item s are available:
• Address Book: Stores new addresses or edits your address book.
2
Address Book P. 39
• Edit Go Home : Sets or edits your home address.
2
Home Address P. 46
• PIN Number : Sets or changes your PIN.
2
PIN Numbers P. 47
• Previous Destination : Deletes the destination history.
2
Previous Destination P. 48
• Category History: Deletes the place categories you recently used.
2
Category History P. 49
• Download POI : Edits and deletes the Imported POI categories.
2
Editing POI Categories P. 51
1 Personal Information
Personal information cannot be backed up or
moved to another navigation system.

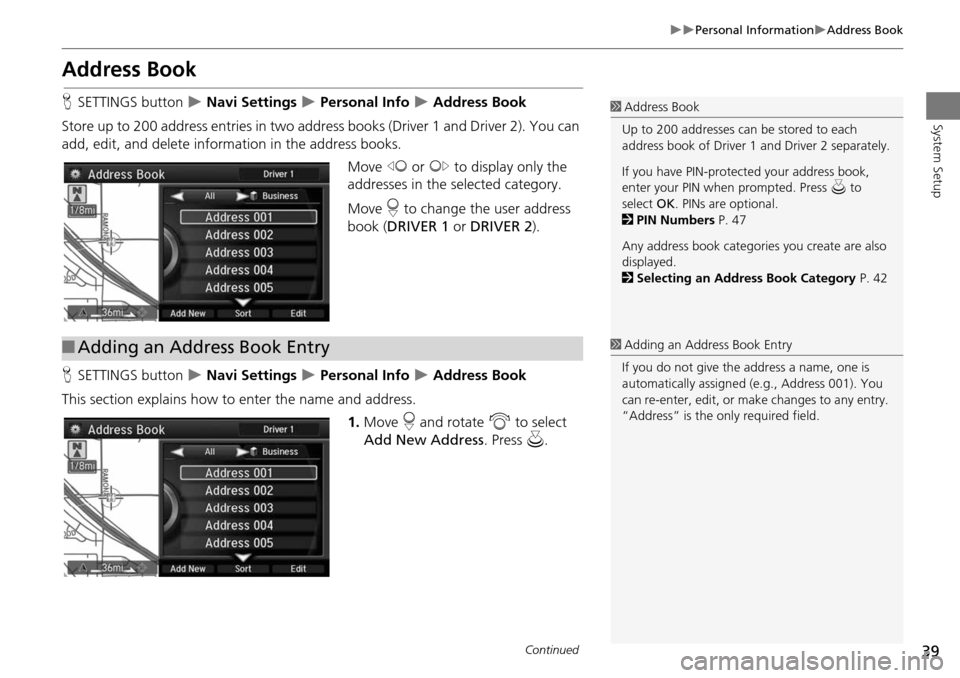

39
Personal InformationAddress Book
System Setup
Address Book
HSETTINGS button  Navi Settings  Personal Info  Address Book
Store up to 200 address entries in two addr ess books (Driver 1 and Driver 2). You can
add, edit, and delete information in the address books.
Move w or y to display only the
addresses in the selected category.
Move r to change the user address
book ( DRIVER 1 or DRIVER 2 ).
H SETTINGS button
 Navi Settings  Personal Info  Address Book
This section explains how to enter the name and address. 1.Move r and rotate i to select
Add New Address . Press u.
1Address Book
Up to 200 addresses can be stored to each
address book of Driver 1 and Driver 2 separately.
If you have PIN-protec ted your address book,
enter your PIN when prompted. Press u to
select OK. PINs are optional.
2 PIN Numbers P. 47
Any address book categories you create are also
displayed.
2 Selecting an Address Book Category P. 42
■Adding an Address Book Entry1 Adding an Address Book Entry
If you do not give the address a name, one is
automatically assigned (e.g., Address 001). You
can re-enter, edit, or make changes to any entry.
“Address” is the only required field.
Continued
