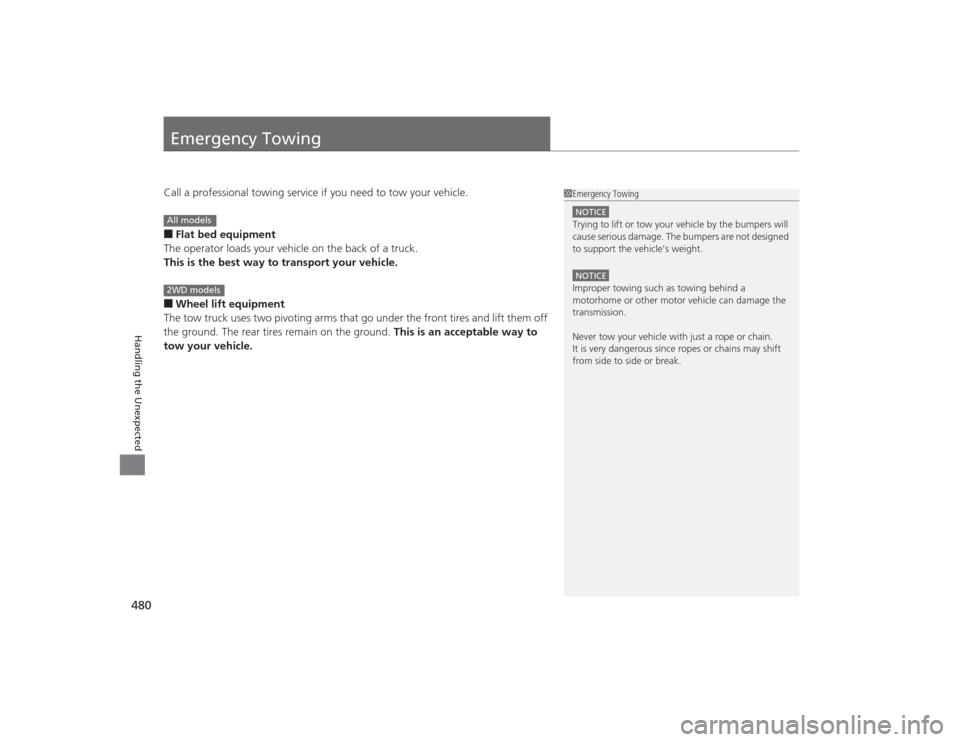

480Handling the Unexpected
Emergency TowingCall a professional towing service if you need to tow your vehicle.■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.■Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency TowingNOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
All models2WD models

484Information
Specifications■Vehicle Specifications*1: 2WD models
*2: AWD modelsModel
Acura MDX
No. of Passengers:
Front 2
Rear 2nd Row 3 3rd Row 2
Total 7
Weights:Gross Vehicle
Weight Rating
U.S.:
5,368 lbs (2,435 kg)
*1
5,677 lbs (2,575 kg)
*2
Canada:
2,575 kg
Gross Axle Weight
Rating (Front)
U.S.:
2,811 lbs (1,275 kg)
*1
2,910 lbs (1,320 kg)
*2
Canada:
1,320 kg
Gross Axle Weight
Rating (Rear)
U.S.:
2,734 lbs (1,240 kg)
*1
2,965 lbs (1,345 kg)
*2
Canada:
1,345 kg
Gross Combined Weight
Rating U.S.: 8,036 lbs (3,645 kg)
*1
9,833 lbs (4,460 kg)
*2
Canada:
4,460 kg
Air Conditioning:Refrigerant Type
HFC-134a (R-134a)
Charge Quantity
23.8 – 25.6 oz (675 – 725 g)
Lubricant Type
RL897PAG
■
Engine Specifications
■ Fuel
■ Washer FluidDisplacement
211.8 cu-in (3,471 cm
3)
Spark Plugs NGK DILZKR7B11G
Type
Unleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 19.5 US gal (74 ℓ)
Tank Capacity
U.S.: 4 US qt (3.8 ℓ)
Canada: 5.6 US qt (5.3 ℓ)
■ Light Bulbs
■ Brake FluidHeadlights (High/Low Beam)
LED
Front Turn Signal/Side Marker/
Parking Lights 28/8W (Amber)
Daytime Running Lights
LED
Side Turn Signal Lights (on Door
Mirrors) LED
Brake Lights
21W
Rear Side Marker Lights LED
Taillights
LED
Back-Up Lights 21W
Rear Turn Signal Lights
21W
High-Mount Brake Light LED
Rear License Plate Light
LED
LED Puddle Lights LED
Interior Lights
Front, Second Row and Third
Row Lights
LED
Front and Rear Ambient Lights
LED
Vanity Mirror Lights
1.4W
Door Courtesy Lights
3.4W
Door Inner Handle Lights
LED
Console Compartment Light
1.4W
Glove Box Light
1.4W
Foot Lights
5W
Cargo Area Lights
5W
Specified
Acura Heavy Duty Brake Fluid DOT 3

496Index
BBack-Up Light............................................ 415
Battery ....................................................... 430
Charging System Indicator ................. 71, 470
Jump Starting .......................................... 465
Maintenance (Checking the Battery) ........ 430
Belts (Seat) .................................................. 31
Beverage Holders ...................................... 177
Blind Spot Information (BSI) System ........ 365
Indicator .................................................... 83
Bluetooth ® Audio ..................................... 238
Bluetooth ® HandsFreeLink ®..................... 269
Booster Seats (For Children) ....................... 65
Brake System ............................................. 371
Anti-lock Brake System (ABS) ................... 373
Brake Assist System ................................. 374
Brake System Indicator............................... 70
Fluid ........................................................ 410
Foot Brake ............................................... 372
Indicator ............................................ 70, 472
Parking Brake .......................................... 371
Brightness Control (Instrument Panel) .... 153
BSI (Blind Spot Information) System ........ 365
Bulb Replacement ..................................... 411
Back-Up Light .......................................... 415
Brake Light and Turn Signal Light............. 413
Daytime Running Light ............................ 148
Front Turn Signal/Front Side Marker/
Parking Light.......................................... 412
Headlights ............................................... 411
High-Mount Brake Light .......................... 416 LED Puddle Light ..................................... 416
Rear License Plate Light ........................... 416
Side Turn Signal/Emergency Indicator
Light...................................................... 412
Taillight and Rear Side Marker Light ........ 414
Bulb Specifications ................................... 484
CCarbon Monoxide Gas ............................... 66
Carrying Cargo ................................. 307, 309
CD Player ................................................... 225
Center Pocket ........................................... 176
Certification Label .................................... 486
Changing Bulbs ........................................ 411
Charging System Indicator ................. 71, 470
Child Safety ................................................. 54
Childproof Door Locks............................. 126
Child Seat .................................................... 54
Booster Seats ............................................ 65
Child Seat for Infants................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 61
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks ............................. 126
Cleaning the Exterior ............................... 438
Cleaning the Interior ................................ 436
Client Service Information ....................... 494Climate Control System
........................... 185
Changing the Mode................................ 188
Defrosting the Windshield and Windows .............................................. 192
Dust and Pollen Filter .............................. 435
Rear Climate Control System................... 193
Recirculation/Fresh Air Mode................... 190
Sensors ................................................... 197
Synchronized Mode ................................ 189
Using Automatic Climate Control............ 185
Clock ......................................................... 114
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 375
Coat Hook ................................................ 180
Collision Mitigation Braking System
TM
(CMBS
TM) ................................................. 375
Indicator ................................................... 83
Compact Spare Tire .......................... 443, 485
Compass .................................................... 302
Console Compartment ............................. 175
Controls .................................................... 113
Coolant (Engine) ...................................... 407
Adding to the Radiator ........................... 408
Adding to the Reserve Tank .................... 407
Overheating ............................................ 468
Creeping (Automatic Transmission) ........ 330
Cruise Control .......................................... 336
Indicator ................................................... 78
Cup Holders .............................................. 177
Customized Features ....................... 104, 249

501Index
Rear Climate Control System................... 193
From the Front Panel............................... 193
From the Rear Panel ................................ 196
Rear Defogger/Heated Door Mirror Button ..................................................... 154
Rear Seats ................................................. 168
Second Row Seat ............................ 168, 169
Third Row Seat ....................................... 170
Rearview Mirror ....................................... 158
Refueling .................................................. 387
Fuel Gauge ............................................... 97
Gasoline ......................................... 387, 484
Low Fuel Indicator..................................... 73
Regulations .............................. 369, 424, 487
Remote Engine Start with Vehicle Feedback ................................................. 326
Checking Door Lock Status ..................... 122
Remote Transmitter ................................. 117
Replacement
Battery ............................ 431, 432, 433, 434
Bulbs ...................................................... 411
Front Wiper Blade Rubber ....................... 417
Fuses .............................. 474, 476, 477, 478
Rear Wiper Blade Rubber ........................ 419
Tires........................................................ 427
Reporting Safety Defects ......................... 488
Resetting a Trip Meter ............................. 100SSafe Driving................................................ 25 Safety Check
............................................... 30
Safety Labels ............................................... 67
Safety Message ............................................. 1
Seat Belts ..................................................... 31
Adjusting the Shoulder Anchor .................. 35
Automatic Seat Belt Tensioners .................. 33
Checking ................................................... 38
Detachable Anchor .................................... 36
e-pretensioners .......................................... 33
Fastening ................................................... 34
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 61
Pregnant Women ...................................... 37
Reminder................................................... 32
Warning Indicator ................................ 32, 73
Seat Heaters ...................................... 182, 183
Seat Ventilation ........................................ 182
Seats .......................................................... 161
Adjusting ................................................. 161
Driver’s Seat Lumbar Support .................. 161
Front Seats .............................................. 161
Rear Seats ............................................... 168
Seat Heaters .................................... 182, 183
Seat Ventilation ....................................... 182
Second Row Seat ............................. 168, 169
Third Row Seat ........................................ 170
Second Row Outer Seats Heaters ............ 183
Second Row Seat (Folding Down) ........... 169
Security System ......................................... 135
Immobilizer System Indicator ..................... 77
Security System Alarm Indicator ................. 78 Select Lever
......................................... 17, 331
Operation.......................................... 17, 332
Releasing................................................. 467
Won’t Move ............................................ 467
Selecting a Child Seat ................................. 58
Sequential Shift Mode ............................. 333
Setting the Clock ...................................... 114
SH-AWD ® (Super Handling-All Wheel
Drive
TM) ................................................... 367
SH-AWD ® Torque Distribution Monitor .. 102
Shift Lever ........................................... 17, 331
Shift Lever Position Indicator ............ 72, 332
Shifting (Transmission) ............................. 331
Shoulder Anchor ........................................ 35
Side Airbags ................................................ 48
Side Curtain Airbags .................................. 50
SiriusXM ® Radio ........................................ 222
Snow Tires ................................................. 429
Spare Tire .......................................... 443, 485
Spark Plugs ............................................... 484
Specifications ............................................ 484
Specified Fuel ................................... 387, 484
Speedometer .............................................. 97
Speed-sensitive Electric Power Steering (EPS) System
Indicator............................................ 76, 472
SRS Airbags (Airbags) ................................. 42
Starting the Engine .................................. 324
Does Not Start......................................... 462
Jump Starting .......................................... 465
Remote Engine Start................................ 326
