474Handling the Unexpected
FusesFuse LocationsIf any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
There are two fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.■
Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit Protected
Amps
1
−
−
2
−
−
3
ACG FR
15 A
4 IG1 Washer 15 A
5
IG1 VBSOL
7.5 A
6IG1 ECU FR 7.5A
7
−
−
8FI SUB 15A
9
DBW
15 A
10 FI Main 15 A
11
IG Coil
15 A
12 DRL R 10 A
13
DRL L
10 A
14 INJ 20 A
15
Radio
20 A
16 Back Up 10 A17
MG Clutch
7.5 A
18 Front Fog
*
(20 A)
19
−
−
20 Right Headlight High Beam 7.5 A
21
−
−
22 Small 10 A
23
−
−
24 Left Headlight High Beam 7.5 A
25
−
−
26 Right Headlight Low Beam 10 A
27
Left Headlight Low Beam
10 A
28 IGPS Oil LVL 7.5 A
29
Cooling Fan
30 A
30 Sub Fan 30 A
31
WIP Main
30 A
Circuit Protected
Amps
* Not available on all models

479
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing FusesNOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 474 to P. 478.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown FuseFuse Puller

483
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 484
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 486
Devices that Emit Radio Waves ....... 487
Reporting Safety Defects ................. 488Emissions Testing
Testing of Readiness Codes.............. 489
Warranty Coverages ........................ 491
Authorized Manuals ......................... 493
Client Service Information ............... 494

484Information
Specifications■Vehicle Specifications*1: 2WD models
*2: AWD modelsModel
Acura MDX
No. of Passengers:
Front 2
Rear 2nd Row 3 3rd Row 2
Total 7
Weights:Gross Vehicle
Weight Rating
U.S.:
5,368 lbs (2,435 kg)
*1
5,677 lbs (2,575 kg)
*2
Canada:
2,575 kg
Gross Axle Weight
Rating (Front)
U.S.:
2,811 lbs (1,275 kg)
*1
2,910 lbs (1,320 kg)
*2
Canada:
1,320 kg
Gross Axle Weight
Rating (Rear)
U.S.:
2,734 lbs (1,240 kg)
*1
2,965 lbs (1,345 kg)
*2
Canada:
1,345 kg
Gross Combined Weight
Rating U.S.: 8,036 lbs (3,645 kg)
*1
9,833 lbs (4,460 kg)
*2
Canada:
4,460 kg
Air Conditioning:Refrigerant Type
HFC-134a (R-134a)
Charge Quantity
23.8 – 25.6 oz (675 – 725 g)
Lubricant Type
RL897PAG
■
Engine Specifications
■ Fuel
■ Washer FluidDisplacement
211.8 cu-in (3,471 cm
3)
Spark Plugs NGK DILZKR7B11G
Type
Unleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 19.5 US gal (74 ℓ)
Tank Capacity
U.S.: 4 US qt (3.8 ℓ)
Canada: 5.6 US qt (5.3 ℓ)
■ Light Bulbs
■ Brake FluidHeadlights (High/Low Beam)
LED
Front Turn Signal/Side Marker/
Parking Lights 28/8W (Amber)
Daytime Running Lights
LED
Side Turn Signal Lights (on Door
Mirrors) LED
Brake Lights
21W
Rear Side Marker Lights LED
Taillights
LED
Back-Up Lights 21W
Rear Turn Signal Lights
21W
High-Mount Brake Light LED
Rear License Plate Light
LED
LED Puddle Lights LED
Interior Lights
Front, Second Row and Third
Row Lights
LED
Front and Rear Ambient Lights
LED
Vanity Mirror Lights
1.4W
Door Courtesy Lights
3.4W
Door Inner Handle Lights
LED
Console Compartment Light
1.4W
Glove Box Light
1.4W
Foot Lights
5W
Cargo Area Lights
5W
Specified
Acura Heavy Duty Brake Fluid DOT 3

485
uuSpecifications u
Information
■Automatic Transmission Fluid
■ Rear Differential Fluid
*
■Transfer Assembly Fluid
*
Specified
Acura Automatic Transmission Fluid ATF DW-1
Capacity Change 3.3 US qt (3.1 ℓ)
Specified
Acura All Wheel Drive Fluid (DPSF)
Capacity Change 2.7 US qt (2.5 ℓ)
Specified
Acura Hypoid Gear Oil HGO-1
Capacity Change 0.45 US qt (0.43 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 5.4 US qt (5.1 ℓ)
Change
including
filter
5.7 US qt (5.4 ℓ)
Specified
Acura Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity
1.93 US gal (7.3 ℓ)
(change including the remaining 0.19 US gal
(0.72 ℓ) in the reserve tank)
■ Tire*1: BASE models
*2: Except BASE modelsRegular
Size
245/60R18 105H
*1
245/55R19 103H
*2
Pressure
psi (kPa [kgf/cm
2])
35 (240 [2.4])
Compact
Spare
*
Size T165/80D17 104M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel Size
Regular
18 x 8J
*1
19 x 8J
*2
Compact Spare
*
17 x 4T
* Not available on all models

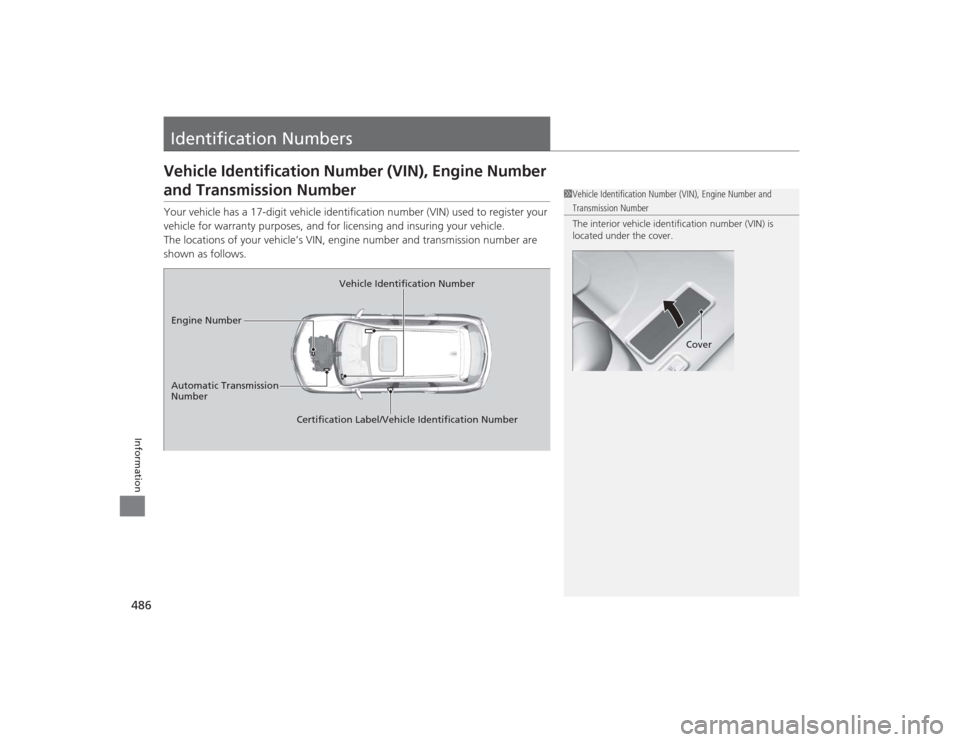

486Information
Identification NumbersVehicle Identification Number (VIN), Engine Number and Transmission NumberYour vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.
1Vehicle Identification Number (VIN), Engine Number and Transmission Number
The interior vehicle iden tification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/Vehicle Identification Number
Automatic Transmission
Number

489
Continued
Information
Emissions TestingTesting of Readiness CodesYour vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle’s emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P
. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing faci lity determines the readiness codes
are still not set, see a dealer.

490
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D
. Do not use cruise control. When traffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

494Information
Client Service InformationAcura dealer personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership’s service manager or general manager. If you are dissatisfied with the
decision made by the dealership’s management, contact Acura Client Relations/
Services.
U.S. Owners:
American Honda Motor Co., Inc.
Acura Client Relations
Mail Stop 500-2N-7E
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 382-2238Canadian Owners:
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-Mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546
1 Client Service Information
When you call or write, please give us the following
information:•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number and Transmission
Number P. 486•Date of purchase•Odometer reading of your vehicle•Your name, address, and telephone number•A detailed description of the problem•Name of the dealer who sold the vehicle to you

Index
495Index
Index
AAAC................................................... 225, 235
ABS (Anti-lock Brake System) .................. 373
AC Power Outlet ...................................... 179
Accessories and Modifications ................ 390
Accessory Power Sockets ......................... 178
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................................. 339
Indicator ................................................... 82
Additives Coolant .................................................. 407
Engine Oil ............................................... 402
Washer ................................................... 410
Additives, Engine Oil ............................... 402
Adjusting Armrest .................................................. 171
Front Seats.............................................. 161
Head Restraints ....................... 164, 165, 166
Headlights .............................................. 411
Mirrors.................................................... 158
Rear Seats ............................................... 168
Second Row Seat .................................... 162
Steering Wheel ....................................... 157
Temperature ........................................... 100
Agile Handling Assist System .................. 364
Aha
TM Menu ............................................. 234
AhaTM Radio .............................................. 244
Air Conditioning System (Climate Control
System) .................................................... 185
Changing the Mode................................ 188 Defrosting the Windshield and
Windows ............................................... 192
Dust and Pollen Filter ............................... 435
Rear Climate Control System ................... 193
Recirculation/Fresh Air Mode ................... 190
Sensors .................................................... 197
Synchronized Mode ................................. 189
Using Automatic Climate Control ............ 185
Air Pressure ....................................... 422, 485
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ......................................... 43
Airbag Care ............................................... 53
Driver’s Knee Airbag .................................. 46
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator .............................................. 51, 74
Passenger Airbag Off Indicator .................. 52
Sensors ...................................................... 39
Side Airbags .............................................. 48
Side Curtain Airbags .................................. 50
AM/FM Radio ............................................ 218
Anti-lock Brake System (ABS) .................. 373
Indicator .................................................... 74
Armrest ..................................................... 171
Audio Remote Controls ............................ 204
Audio System ............................................ 200
Adjusting the Sound ................................ 216
Auxiliary Input Jack .................................. 202
Error Messages ........................................ 240
General Information ................................ 245 Internet Radio ......................................... 232
iPod ........................................................ 228
MP3/WMA/AAC .............................. 225, 235
Reactivating ............................................ 203
Recommended CDs ................................. 246
Recommended Devices............................ 248
Remote Controls ..................................... 204
Security Code .......................................... 203
Shortcuts................................................. 207
Theft Protection ...................................... 203
USB Flash Drives .............................. 235, 248
USB Port.................................................. 201
Authorized Manuals ................................ 493
Auto Door Locking/Unlocking ................. 127
Customize ....................................... 109, 260
Automatic Intermittent Wipers ............... 150
Automatic Lighting .................................. 146
Automatic Transmission ........................... 330
Creeping ................................................. 330
Fluid ........................................................ 409
Kickdown ................................................ 330
Operating the Shift Lever................... 17, 332
Sequential Shift Mode ............................. 333
Shift Lever Does Not Move ...................... 467
Shifting ................................................... 331
Auxiliary Input Jack .................................. 202
Average Fuel Economy ............................ 100
Average Speed ......................................... 101
AWD .......................................................... 367
