ContentsThis owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.
2Safe Driving P. 25For Safe Driving P. 26 Seat Belts P. 31 Airbags P. 392Instrument Panel P. 69Indicators P. 70 Gauges and Multi-Information Display (MID) P. 972Controls P. 113Clock P. 114 Locking and Unlocking the Doors P. 115
Opening and Closing the Moonroof P. 140
Adjusting the Seats P. 1612 Features P. 199Audio System P. 200 Audio System Basic Operation P. 205
Customized Features P. 249 HomeLink® Universal Transceiver P. 2672 Driving P. 305Before Driving P. 306 Towing a Trailer P. 311Parking Your Vehicle P. 381
Multi-View Rear Camera
* P. 386
2Maintenance P. 391Before Performing Maintenance P. 392 Maintenance Minder
TM P. 395
Checking and Maintaining Wiper Blades P. 417
Climate Control System Maintenance P. 435 Cleaning P. 436
2 Handling the Unexpected P. 441Tools P. 442 If a Tire Goes Flat P. 443
Overheating P. 468 Indicator, Coming On/Blinking P. 470When You Cannot Open the Tailgate P. 4822Information P. 483Specifications P. 484 Identification Numbers P. 486
Emissions Testing P. 489 Warranty Coverages P. 491

19Quick Reference Guide
Maintenance
(P391 )
Under the Hood
(P399)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
a
Pull the hood release handle under the corner of the
dashboard.
b
Locate the hood latch lever, pull the lever up, and lift up
the hood.
c
When finished, close the hood and make sure it is firmly
locked in place.
Lights
(P411)
● Inspect all lights regularly.
Wiper Blades
(P417)
● Replace blades if they leave streaks
across the windshield.
Tires
(P421)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.

149
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.■MIST
The wipers run at high speed until you release
the lever.■Wiper switch (OFF, INT
*, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■Adjusting the delay
Turn the adjustment ring to adjust the wiper
delay.■Washer
Sprays while you pull the lever toward you.
When you release the lever, the wipers make
two or three more sweeps before stopping.
■
Windshield Wipers/Washers
1 Wipers and WashersNOTICEDo not use the wipers when the windshield is dry.
The windshield will get scratched, or the rubber
blades will get damaged.NOTICEIn cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in this condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermitte ntly, the length of the wipe
interval shortens.
When the vehicle starts moving, the wipers make a
single sweep.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
Intermittent Time
Adjustment Ring
MISTINT
: Low speed with intermittent
OFFLO: Low speed wipeHI: High speed wipe Pull to
use
washer.
Long delay
Short delay
* Not available on all models

391
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 392
Safety When Performing Maintenance ..393
Parts and Fluids Used in Maintenance Service ........................................... 394
Maintenance Minder
TM..................... 395
Maintenance Under the Hood Maintenance Items Under the Hood .. 399
Opening the Hood ........................... 400
Engine Compartment Cover ............. 401
Recommended Engine Oil ................ 402
Oil Check ......................................... 403
Adding Engine Oil ............................ 404 Changing the Engine Oil and Oil Filter... 405
Engine Coolant ................................ 407
Transmission Fluid ............................ 409
Brake Fluid ....................................... 410
Refilling Window Washer Fluid......... 410
Replacing Light Bulbs ....................... 411
Checking and Maintaining Wiper Blades
... 417
Checking and Maintaining Tires
Checking Tires ................................. 421
Tire and Loading Information Label .. 422
Tire Labeling .................................... 422DOT Tire Quality Grading (U.S. Vehicles).. 424Wear Indicators................................ 426 Tire Service Life ................................ 426
Tire and Wheel Replacement ........... 427
Tire Rotation .................................... 428
Winter Tires ..................................... 429
Battery ............................................... 430
Remote Transmitter Care
Replacing the Button Battery ........... 431
Remote Control and Wireless Headphone Care
*........................... 433
Climate Control System Maintenance
.. 435
Cleaning Interior Care .................................... 436
Exterior Care.................................... 438
* Not available on all models

392Maintenance
Before Performing MaintenanceInspection and MaintenanceFor your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your \
warranties in
effect.) Refer to the separate maintenance booklet for detailed maintenance and
inspection information.■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.■Periodic inspections
• Check the brake fluid level monthly.2 Checking the Brake Fluid P. 410
•Check the tire pressure monthly. Examine the tread for wear and foreign objects.
2 Checking and Maintaining Tires P. 421
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 411
•Check the condition of the wiper blades at least every six months.
2Checking and Maintaining Wiper Blades P. 417
■
Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and federal regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordance with the intervals
indicated by the multi-information display (MID).
2 Maintenance Service Items P. 397
If you want to perform complex maintenance tasks
that require mor e skills and tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 493
If you want to perform maintenance yourself, make
sure that you have the necessa ry tools and skills first.
After performing maintenance, update the records in
the separate maintenance booklet.U.S. models

417
Continued
Maintenance

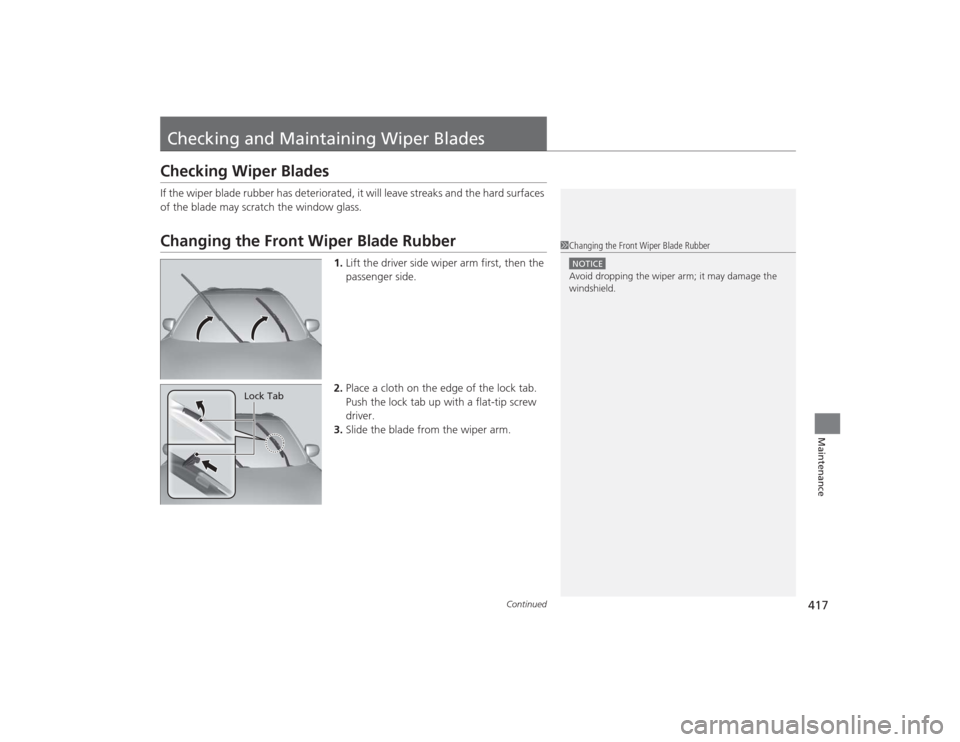

Checking and Maintaining Wiper BladesChecking Wiper BladesIf the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.Changing the Front Wiper Blade Rubber
1.Lift the driver side wiper arm first, then the
passenger side.
2. Place a cloth on the edge of the lock tab.
Push the lock tab up with a flat-tip screw
driver.
3. Slide the blade from the wiper arm.
1Changing the Front Wiper Blade RubberNOTICEAvoid dropping the wiper arm; it may damage the
windshield.
Lock Tab

418
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance

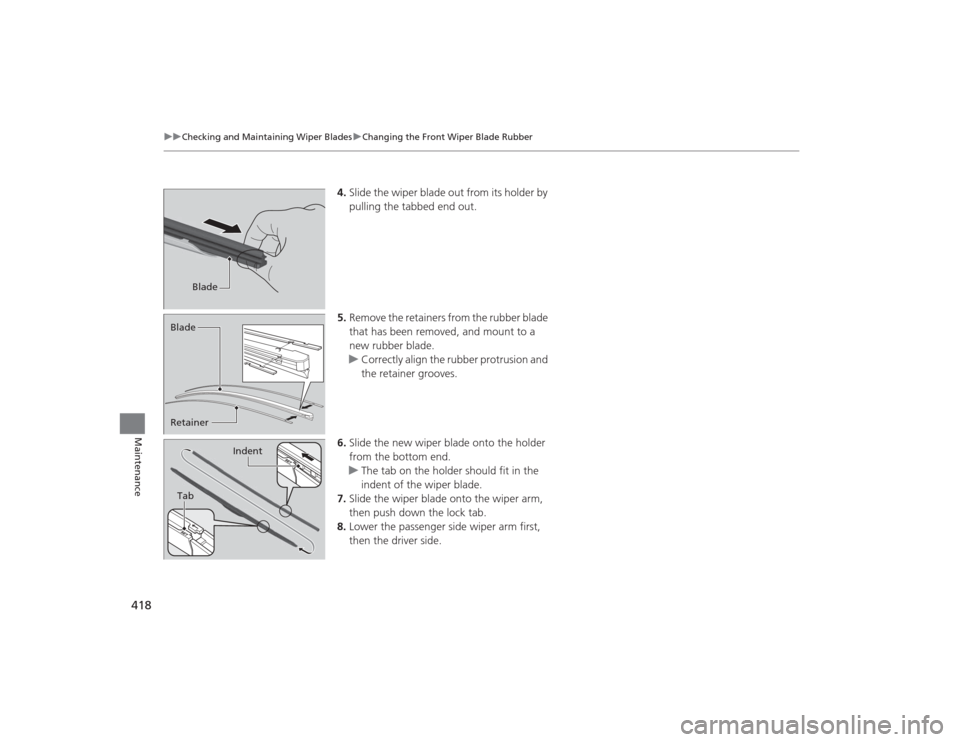

4. Slide the wiper blade out from its holder by
pulling the tabbed end out.
5. Remove the retainers from the rubber blade
that has been removed, and mount to a
new rubber blade.
u Correctly align the rubber protrusion and
the retainer grooves.
6. Slide the new wiper blade onto the holder
from the bottom end.
u The tab on the holder should fit in the
indent of the wiper blade.
7. Slide the wiper blade onto the wiper arm,
then push down the lock tab.
8. Lower the passenger side wiper arm first,
then the driver side.
Blade
Retainer BladeTab
Indent

419
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Continued
Maintenance

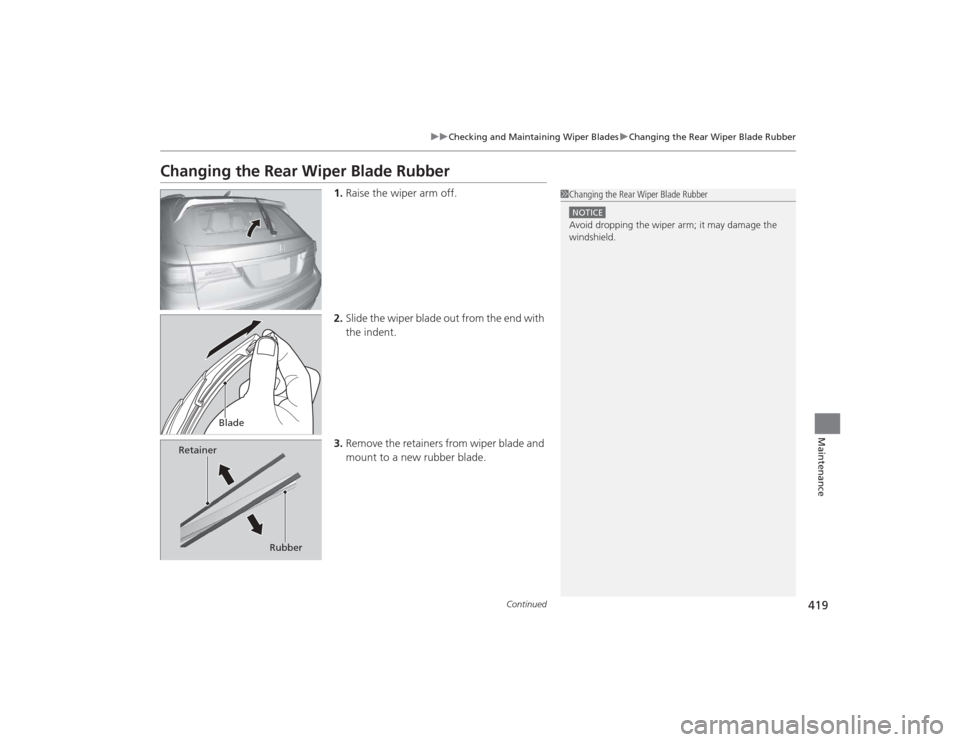

Changing the Rear Wiper Blade Rubber
1. Raise the wiper arm off.
2. Slide the wiper blade out from the end with
the indent.
3. Remove the retainers from wiper blade and
mount to a new rubber blade.
1Changing the Rear Wiper Blade RubberNOTICEAvoid dropping the wiper arm; it may damage the
windshield.
Blade
Retainer
Rubber

420
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance

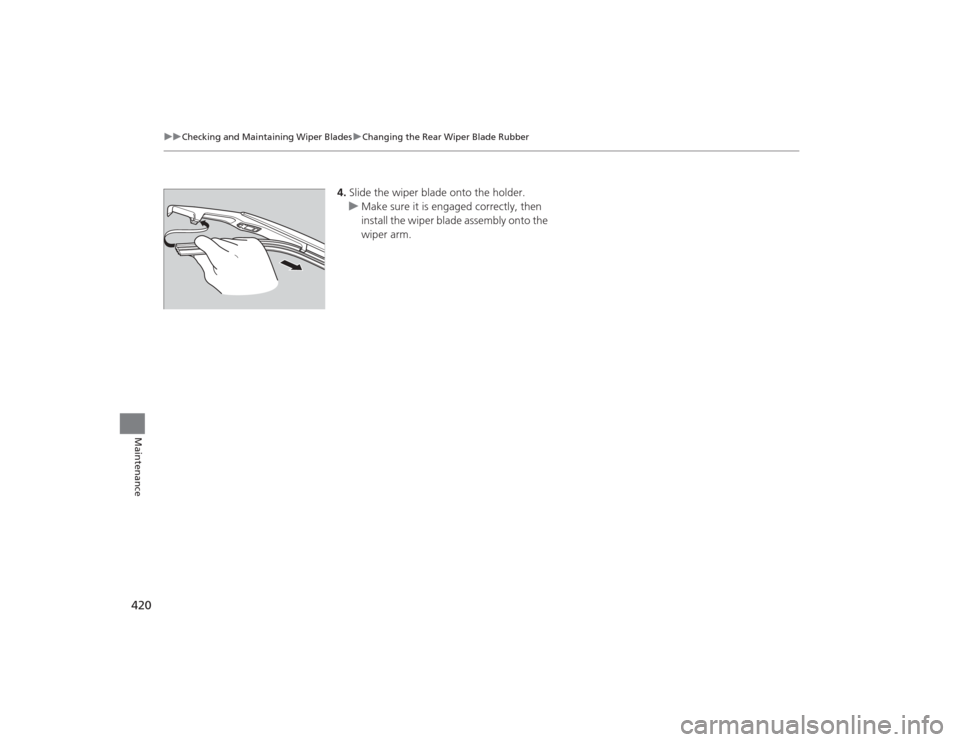

4. Slide the wiper blade onto the holder.
u Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.

503Index
VVanity Mirrors.............................................. 7
Vehicle Identification Number ................ 486
Vehicle Stability Assist (VSA ®) ................. 362
Off Button .............................................. 363
Off Indicator ............................................. 75
System Indicator ............................... 75, 362
Viscosity (Oil) .................................... 402, 485
VSA ® (Vehicle Stability Assist) ................. 362WWarning and Information Messages ........ 84
Warning Indicator On/Blinking ............... 470
Warning Labels .......................................... 67
Warranties (Warranty Manual provided
separately) .............................................. 491
Watts ........................................................ 484
Wear Indicators (Tire) .............................. 426
Wheel Nut Wrench (Jack Handle) ........... 447
Window Washers ..................................... 149
Adding/Refilling Fluid .............................. 410
Switch .................................................... 149
Windows (Opening and Closing) ............ 138
Windshield ............................................... 149
Cleaning ................................................. 439
Defrosting/Defogging ............................. 192
Washer Fluid ........................................... 410
Wiper Blades........................................... 417
Wipers and Washers ............................... 149 Winter Tires
.............................................. 429
Snow Tires ............................................... 429
Tire Chains .............................................. 429
Wipers and Washers ................................. 149
Automatic Intermittent Wipers................. 150
Checking and Replacing Wiper Blades ..... 417
Front ....................................................... 149
Rear ........................................................ 151
WMA ................................................. 225, 235
Worn Tires ................................................. 421
