uuWhen Driving uBlind spot information (BSI) System*
422
Driving
■When the system detects a vehicle1Blind spot inform ation (BSI) System*
You can change the setting for BSI.
2 Customizable Features P. 126, 294
Turn the system off when towing a trailer.
The system may not work properly for the following
reasons:
•The added mass tilts the vehicle and changes the
radar coverage.
•The trailer itself can be detected by the radar
sensors, causing the BSI al ert indicators to come on.
BSI may be adversel y affected when:
•Objects (guard rails, poles, trees, etc,.) are
detected.
•An object that does not re flect radio waves well,
such as a motorcycle, is in the alert zone.
•Driving on a curved road.
•A vehicle is moving from a far lane to the adjacent
lane.
•The system picks up external electrical interference.•The rear bumper or the sens ors have been improperly
repaired or the rear bu mper has been deformed.
•The orientation of the sensors has been changed.•In bad weather (Heavy rain, snow, and fog).
For proper BSI use:
•Always keep the rear bumper corner area clean.
•Do not cover the rear bumper corner area with
labels or sticke rs of any kind.
•Take your vehicle to a dealer if you need the rear
bumper corner area or the radar sensors to be repaired,
or the rear bumper corner area is strongly impacted.
■Comes on when●A vehicle enters the ale rt zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.
●You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).
BSI Alert Indicator: Located near the outside
rearview mirror on both sides.
■Blinks and the beeper sounds when
You move the turn signal lever in the direction
of the detected vehicle. The beeper sounds
three times. Comes On
Blinks
* Not available on all models
17 ACURA MDX-31TZ56300.book 422 ページ ２０１６年５月１３日　金曜日　午後７時４６分

436
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Driving
Collision Mitigati on Braking SystemTM (CMBSTM)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
■How the system works
1 Collision Mitigation Braking SystemTM (CMBSTM)
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It does not prevent collision nor
stop the vehicle automatically. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions:
2 CMBS
TM Conditions and Limitations P. 440
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 388
1How the system works
Rapid vibrations on the steering wheel alert you
when your vehicle speed is between 19 and 62 mph
(30 and 100 km/h) with an oncoming vehicle
detected in front of you.
The system starts monitoring the roadway ah ead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you. The radar sensor is
in the front grille.
The CMBS
TM activates when:●The speed difference between your vehicle and a vehicle or pedestrian
detected in front of you becomes about 3 mph (5 km/h) and over with a chance
of a collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected vehicle or a pedestrian in front of you. The camera is
located behind the
rearview mirror.
When to use
17 ACURA MDX-31TZ56300.book 436 ページ ２０１６年５月１３日　金曜日　午後７時４６分

443
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving

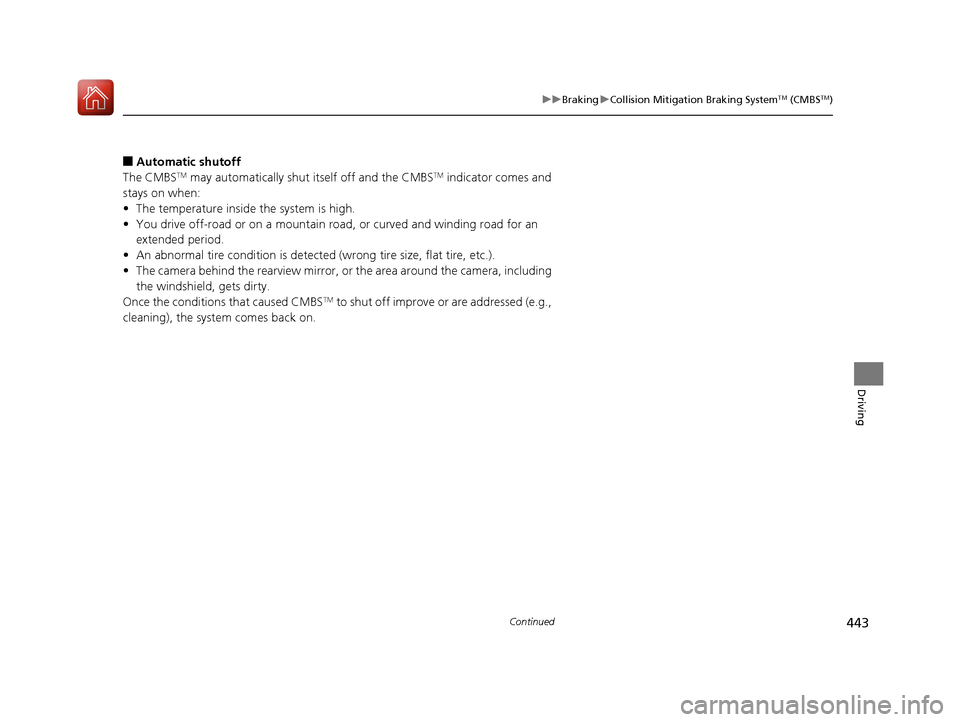

■Automatic shutoff
The CMBSTM may automatically shut itself off and the CMBSTM indicator comes and
stays on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain road, or curved and winding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused CMBS
TM to shut off improve or are addressed (e.g.,
cleaning), the system comes back on.
17 ACURA MDX-31TZ56300.book 443 ページ ２０１６年５月１３日　金曜日　午後７時４６分

574
Index
Compass.................................................... 344
Console Compartment ............................. 203
Controls ..................................................... 133
Coolant (Engine) ....................................... 477
Adding to the Radiator ............................ 478
Adding to the Reserve Tank ..................... 477
Overheating............................................. 539
Creeping (Automatic Transmission) ........ 373
Cross Traffic Monitor ................................ 451
Cup Holders ............................................... 205
Customized Features ........................ 123, 285
D
Daytime Running Lights ........................... 170
Dead Battery ............................................. 537
Defrosting the Windshield and Windows .................................................. 220
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 563
Dimming
Headlights ............................................... 167
Rearview Mirror ....................................... 183
Dipstick (Engine Oil) ................................. 473
Directional Signals (Turn Signal) .............. 166
Door Mirrors ............................................. 184
Doors ......................................................... 135
Auto Door Locking .................................. 149
Auto Door Unlocking ............................... 149
Door Open Message .................................. 32
Keys ........................................................ 135 Locking/Unlocking the Doors from the
Inside .............................................. 13, 146
Locking/Unlocking the Doors from the Outside ................................................. 138
Lockout Prevention System ...................... 144
DOT Tire Quality Grading ........................ 493
Driver’s Knee Airbag .................................. 48
Driving ...................................................... 347
Automatic Transmission .......................... 373
Braking ................................................... 428
Off-Highway Driving Guidelines............... 365
Shifting Gear ........................................... 374
Starting the Engine.................................. 367
Driving Position Memory System ............ 180
Dust and Pollen Filter ............................... 505
Dynamic Mode button ............................. 387
E
Elapsed Time............................................. 120
Electric Parking Brake
Indicator.................................................... 76
Switch ..................................................... 428
Electric Parking Brake System
Indicator.................................................... 76
Electronic Stability Control (ESC) ............. 418
Emergency ................................................ 554
Emissions Testing (Readiness Codes) ....... 565
Engine ....................................................... 562
Coolant ................................................... 477
Jump Starting .......................................... 537 Oil .......................................................... 472
Remote Engine Start ............................... 369
Starting................................................... 367
Engine Compartment Cover .................... 471
Engine Coolant ........................................ 477
Adding to the Radiator ........................... 478
Adding to the Reserve Tank .................... 477
Overheating ............................................ 539
Temperature Gauge ................................ 116
Engine Oil ................................................. 472
Adding ................................................... 474
Checking ................................................ 473
Displaying Oil Life ................................... 465
Low Oil Pressure Indicator ................. 78, 541
Recommended Engine Oil ....................... 472
ENGINE START/STOP Button .................... 163
EPS (Electric Power Steering)
System ............................................... 84, 543
Exhaust Gas Hazard (Carbon Monoxide) .. 71
Exterior Care (Cleaning) .......................... 508
Exterior Mirrors ........................................ 184
F
Features.................................................... 227
Filters Dust and Pollen....................................... 505
Oil .......................................................... 475
Flat Tire ............................................. 515, 522
Floor Mats ................................................ 507
17 ACURA MDX-31TZ56300.book 574 ページ ２０１６年５月１３日　金曜日　午後７時４６分

576
Index
I
Identification Numbers............................ 562
Engine and Transmission.......................... 562
Vehicle Identification ............................... 562
IDS (Integrated Dynamics System) ........... 387
Illumination Control ................................. 178
Button ..................................................... 178
Immobilizer System .................................. 157
Indicator .................................................... 85
Indicators ..................................................... 74
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) .................... 91, 390
Anti-lock Brake System (ABS) ..................... 82
Auto High-Beam ........................................ 82
Auto Idle Stop ........................................... 88
Auto Idle Stop System................................ 88
Automatic Brake Hold........................ 77, 432
Automatic Brake Hold System ............ 77, 432
Blind Spot Information (BSI) ............... 95, 422
Brake System (Amber)................................ 75
Brake System (Red) ............................ 74, 543
Charging System ............................... 78, 541
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 93, 94
Electric Parking Brake................................. 76
Electric Parking Brake System ..................... 76
Fog Lights .................................................. 85
Gear Position ............................................. 79
High Beam................................................. 84
Immobilizer System .................................... 85
Keyless Access System ............................... 87 Lane Keeping Assist System (LKAS) .... 89, 412
Lights On .................................................. 85
Low Fuel ................................................... 81
Low Oil Pressure ................................ 78, 541
Low Tire Pressure/TPMS ............................. 84
Malfunction Indicator Lamp............... 78, 542
Parking Brake and Brake System ........ 74, 543
Road Departure Mitigation (RDM) ............. 90
Seat Belt Reminder .............................. 34, 81
Security System Alarm ............................... 86
Speed-sensitive Electric Power
Steering (EPS) System ...................... 84, 543
Super Handling-All Wheel Drive
TM.............. 87
Supplemental Restraint System ............ 53, 82
System Message ........................................ 86
Turn Signal ................................................ 84
Vehicle Stability Assist (VSA ®)
System ............................................ 83, 418
VSA ® OFF .......................................... 83, 419
Information .............................................. 559
Instrument Panel ........................................ 73
Brightness Control................................... 178
Integrated Dynamics System (IDS) ........... 387
Dynamic Mode button ............................ 387
Interface Dial ............................................ 232
Interior Lights ........................................... 200
Interior Rearview Mirror .......................... 183
iPhone ............................................... 267, 284
iPod ................................................... 263, 284
J
Jack (Wheel Nut Wrench) ........................ 519
Jump Starting ........................................... 537
K
Key Number Tag ...................................... 137
Keyless Access System .............................. 138
Keyless Lockout Prevention ..................... 144
Keys ........................................................... 135
Lockout Prevention ................................. 144
Number Tag............................................ 137
Rear Door Won’t Open ........................... 148
Remote Transmitter ................................ 143
Types and Functions................................ 135
Kickdown (Automatic Transmission) ...... 373
L
Lane Keeping Assist System (LKAS)........ 410
Indicator ................................................... 89
Language (HFL) ........................................ 311
LATCH (Child Seats) ............................. 61, 66
LED Puddle Light ...................................... 142
Lights ................................................ 167, 481
Automatic............................................... 168
Bulb Replacement ................................... 481
Daytime Running Lights .......................... 170
High Beam Indicator ................................. 84
Interior.................................................... 200
Light Switches......................................... 167
17 ACURA MDX-31TZ56300.book 576 ページ ２０１６年５月１３日　金曜日　午後７時４６分

577
Index
Lights On Indicator.................................... 85
Turn Signals ............................................ 166
Load Limits ............................................... 351
Locking/Unlocking ................................... 135
Auto Door Locking/Unlocking ................. 149
Childproof Door Locks ............................ 148
From Inside ............................................. 146
From Outside .......................................... 138
Keys........................................................ 135
Using a Key............................................. 144
Lockout Prevention System ..................... 144
Low Battery Charge ................................. 541
Low Fuel Indicator ..................................... 81
Low Oil Pressure Indicator ................. 78, 541
Lower Anchors ..................................... 61, 66
Lubricant Specifications Chart ................ 561
Luggage (Maximum Load Limit) ............. 351
Lumbar Support ....................................... 186
M
Maintenance............................................ 461
Battery .................................................... 499
Brake Fluid .............................................. 480
Cleaning ................................................. 506
Climate Control System .......................... 505
Coolant .................................................. 477
Maintenance Minder
TM............................ 465
Oil .......................................................... 473
Precautions ............................................. 462
Radiator .................................................. 478 Remote Control ....................................... 503
Remote Transmitter ......................... 501, 502
Replacing Light Bulbs ............................... 481
Safety ...................................................... 463
Service Items ........................................... 467
Tires ........................................................ 490
Transmission Fluid ................................... 479
Under the Hood ...................................... 469
Wireless Headphone ................................ 504
Malfunction Indicator Lamp .............. 78, 542
Map Lights ................................................ 201
Maximum Load Limit ............................... 351
Meters, Gauges ......................................... 116
MID (Multi-information Display) ............. 117
Mirrors ....................................................... 183
Adjusting ................................................. 183
Door........................................................ 184
Exterior .................................................... 184
Interior Rearview ..................................... 183
Modifications (and Accessories) .............. 511
Moonroof .................................................. 162
MP3 ................................................... 260, 270
Multi-function Steering-wheel Controls ................................................... 117
Multi-Information Display (MID) ............. 117
Multi-View Rear Camera .......................... 455N
Numbers (Identification).......................... 562
O
Odometer................................................. 118
Off-Highway Driving Guidelines ............. 365
Oil (Engine) ............................................... 472
Adding .................................................... 474
Checking................................................. 473
Displaying Oil Life .................................... 465
Low Oil Pressure Indicator ................. 78, 541
Recommended Engine Oil ....................... 472
Viscosity .................................................. 472
On Demand Multi-Use Display
TM............. 233
Opening/Closing Hood....................................................... 470
Moonroof ............................................... 162
Power Windows ...................................... 160
Tailgate ................................................... 150
Operating the Switches Around the
Steering Wheel ....................................... 163
Outside Temperature Display .................. 119
Overheating .............................................. 539
P
Paddle Shifters (Sequential Mode) .......... 381
Pandora ®................................................... 268
Panic Mode ............................................... 159
Parking ...................................................... 445
Parking Brake ........................................... 428
Parking Brake and Brake System Indicator ............................................ 74, 543
Parking Sensor System ............................. 447
17 ACURA MDX-31TZ56300.book 577 ページ ２０１６年５月１３日　金曜日　午後７時４６分

578
Index
Passenger Front Airbag Off Indicator....... 54
Passing Indicators ..................................... 167
Power Tailgate .......................................... 152
Power Windows ........................................ 160
Precautions While Driving ........................ 372
Driving Guidelines for Your Utility Vehicle................................................... 372
Rain ......................................................... 372
Pregnant Women ....................................... 39
Puncture (Tire) .................................. 515, 522
R
Radiator..................................................... 478
Radio (AM/FM) .......................................... 245
Radio (SiriusXM ®)...................................... 249
Radio Data System (RDS) .......................... 247
Range ........................................................ 120
RDS (Radio Data System) .......................... 247
Readiness Codes (Emissions Testing) ....... 565
Rear Climate Control System ................... 221
From the Front Panel ............................... 221
From the Rear Panel................................. 224
Rear Defogger/Heated Door Mirror
Button ...................................................... 179
Rear Seats .................................................. 197
Second Row Seat ............................. 190, 191
Third Row Seat ........................................ 197
Rearview Mirror ........................................ 183
Refueling ................................................... 456
Fuel Gauge .............................................. 116 Gasoline .......................................... 456, 560
Low Fuel Indicator ..................................... 81
Regulations ............................... 426, 493, 563
Remote Engine Start with Vehicle Feedback ................................................. 369
Checking Door Lock Status...................... 145
Remote Transmitter ................................. 143
Replacement
Battery ............................ 501, 502, 503, 504
Bulbs ....................................................... 481
Front Wiper Blade Rubber ....................... 486
Fuses ............................... 546, 549, 551, 552
Rear Wiper Blade Rubber......................... 488
Tires ........................................................ 496
Reporting Safety Defects ......................... 564
Resetting a Trip Meter ............................. 119
Reverse Tilt Door Mirror .......................... 184
Right Selector Wheel ....................... 117, 123
Road Departure Mitigation (RDM) ......... 405
On and Off.............................................. 407
S
Safe Driving ................................................ 27
Safety Checklist .......................................... 32
Safety Labels ............................................... 72
Safety Message ............................................. 1
Seat Belts .................................................... 33
Adjusting the Shoulder Anchor.................. 37
Automatic Seat Belt Tensioners ................. 35
Checking................................................... 40 Detachable Anchor ................................... 38
Fastening .................................................. 36
Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 64
Pregnant Women...................................... 39
Reminder .................................................. 34
Warning Indicator ............................... 34, 81
Seat Heaters ..................................... 211, 212
Seat Ventilation ....................................... 211
Seats .......................................................... 186
Adjusting ................................................ 186
Driver’s Seat Lumbar Support .................. 186
Front Seats.............................................. 186
Rear Seats ............................................... 197
Seat Heaters ................................... 211, 212
Seat Ventilation ...................................... 211
Second Row Seat ............................ 190, 191
Third Row Seat ....................................... 197
Second Row Outer Seats Heaters ............ 212
Second Row Seat (Folding Down) ........... 191
Security System ........................................ 157
Immobilizer System Indicator..................... 85
Security System Alarm Indicator ................ 86
Select Button ............................................ 374
Operation ............................................... 376
Select Lever ................................................ 18
Operation ................................................. 18
Selecting a Child Seat ................................ 60
Sequential Mode ...................................... 380
Sequential Mode Operation ................... 381
Setting the Clock ...................................... 134
17 ACURA MDX-31TZ56300.book 578 ページ ２０１６年５月１３日　金曜日　午後７時４６分
