Page 9 of 701
Visual Index
8
Quick Reference Guide
❙How to Refuel (P572)
❙High-Mount Brake Light (P599)
❙Opening/Closing the Tailgate (P162)
❙Back-Up Lights (P598)
❙Multi-View Rear Camera* (P559)
❙Tailgate Outer Handle (P162)
❙Rear Side Marker Lights (P597)
❙Taillights (P597)
❙Brake Light and Rear Turn Signal Lights
(P596)
❙Rear Wiper (P182)
❙Maintenance Under the Hood (P583)
❙Windshield Wipers (P180, 600)
❙Tires (P604, 629)
❙Power Door Mirrors (P190)
❙Headlights (P173, 595)
❙Side Marker Lights (P173, 595)
❙Front Turn Signal/Parking Lights (P172, 595)
❙Fog Lights* (P176, 595)
❙Door Lock/Unlock Control (P142)
❙Side Turn Signal Lights (P172, 595)
19 ACURA MDX-31TZ56510.book 8 ページ 2018年12月11日 火曜日 午後4時47分
Page 14 of 701
13
Quick Reference Guide
Wipers and Washers
(P180)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
(-: Low Sensitivity*1
: Lower speed, fewer sweeps*2
(+: High Sensitivity*1
: Higher speed, more sweeps*2
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Steering Wheel (P188)
● To adjust, push and hold the adjustment
switch to move the steering wheel to the
desired position.
Models with automatic intermittent wipersUnlocking the Front
Doors from the Inside
(P152)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P162, 157)
● Press the tailgate outer handle to unlock
and open the tailgate when you carry the
keyless access remote.
● Press the power tailgate button on the
driver’s door or the remote transmitter to
open and close the power tailgate.
Tailgate Outer Handle
19 ACURA MDX-31TZ56510.book 13 ページ 2018年12月11日 火曜日 午後4時47分
Page 179 of 701
uuOperating the Switches Around the Steering Wheel uAuto High-Beam
178
Controls
To activate the system, turn the headlight
switch to AUTO and then set the headlights
to low beam. The auto high-beam indicator
will come on.
2 Light Switches P. 173
The high beams remain on unless:
•You have been driving below 45 mph (72 km/h) for an extended amount of time.
• The speed of the vehicle drops below 30 mph (48 km/h).
• The windshield wipers have been running at a high speed for more than a few
seconds.
• You enter a well lit location.
The high beams come back on once the condition that caused them to turn off no
longer exists.
If needed, you can temporar ily turn the system off manually. Turn on the high
beams by pushing the lever forward until yo u hear a click, or flash the high beams
once by pulling the lever toward you. To turn the system back on, repeat one of the
procedures.
■Operating the System1 Operating the System
For the auto high-beam to work properly:
•Do not place an object that reflects light on the
dashboard.
•Keep the windshield around the camera clean.•Do not attach an object, sticker or film to the area
around the camera.
If the camera receives a st rong impact, or repairing of
the area near the camera is required, consult a dealer.
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
•Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed toward the camera.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.
Headlight
Switch
19 ACURA MDX-31TZ56510.book 178 ページ 2018年12月11日 火曜日 午後4時47分
Page 181 of 701
180
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ri ng to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wipers/Washers1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defrost er or heated windshield
*
to warm the windshield, then turn the wipers on.
Models without automatic intermittent wipers
Intermittent Time
Adjustment Ring
MIST
INT
*1/AUTO*2
OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
19 ACURA MDX-31TZ56510.book 180 ページ 2018年12月11日 火曜日 午後4時47分
Page 182 of 701
Continued181
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the amount of rainfall the
rainfall sensor detects.
■Auto sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Wipers and Washers
If the wipers st op operating due to an obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF (LOCK), then
remove the obstacle.
1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
NOTICE
AUTO should always be turned OFF before the
following situations in order to prevent severe
damage to the wiper system:
•Cleaning the windshield
•Driving through a car wash•No rain present
Rainfall Sensor
Adjustment Ring
Low sensitivity
High sensitivity
* Not available on all models
19 ACURA MDX-31TZ56510.book 181 ページ 2018年12月11日 火曜日 午後4時47分

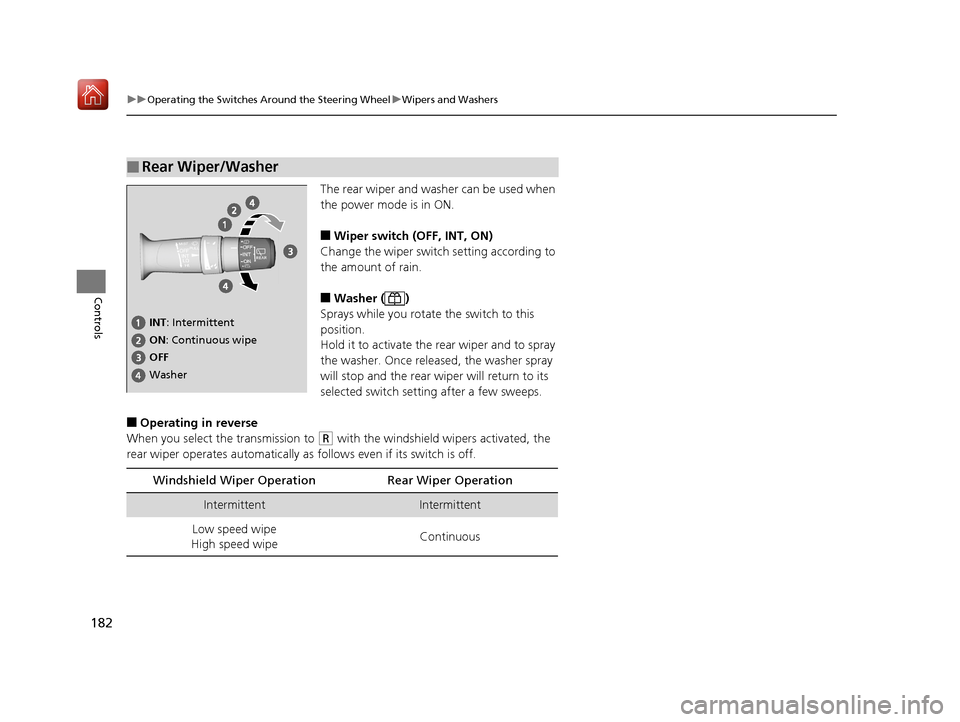

Page 183 of 701
182
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
The rear wiper and washer can be used when
the power mode is in ON.
■Wiper switch (OFF, INT, ON)
Change the wiper switch setting according to
the amount of rain.
■Washer ( )
Sprays while you rotate the switch to this
position.
Hold it to activate the rear wiper and to spray
the washer. Once released, the washer spray
will stop and the rear wi per will return to its
selected switch setting after a few sweeps.
■Operating in reverse
When you select the transmission to
(R with the windshield wipers activated, the
rear wiper operates automatically as follows even if its switch is off.
■Rear Wiper/Washer
INT : Intermittent
OFF ON : Continuous wipe
Washer
Windshield Wiper Operation Rear Wiper Operation
IntermittentIntermittent
Low speed wipe
High speed wipe Continuous
19 ACURA MDX-31TZ56510.book 182 ページ 2018年12月11日 火曜日 午後4時47分
Page 184 of 701
183
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Turn the headlights on and press the
headlight washer button to operate.
The headlight washers also operate when you
turn the windshield washers for the first time
after the power mode is set to ON.
■Headlight Washers*
Canadian models
1Headlight Washers*
The headlight washers use th e same fluid reservoir as
the windshield washers.
* Not available on all models
19 ACURA MDX-31TZ56510.book 183 ページ 2018年12月11日 火曜日 午後4時47分
Page 691 of 701
Index
690
Index
Index
A
AAC.................................................... 270, 295
ABS (Anti-lock Brake System) ................... 537
AC Power Outlet ....................................... 215
Accessories and Modifications ................. 625
Accessory Power Sockets .......................... 214
AcuraLink .................................................. 437
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) .................................. 492
Indicator .................................................... 95
Additives
Coolant ................................................... 591
Washer .................................................... 594
Adjusting
Armrest ................................................... 205
Front Seats .............................................. 192
Head Restraints........................ 199, 201, 202
Headlights ............................................... 595
Mirrors .................................................... 189
Rear Seats................................................ 204
Steering Wheel ........................................ 188
Temperature ............................................ 122
Agile Handling Assist ................................ 522
Air Conditioning System (Climate Control System) .................................................... 220
Changing the Mode ................................ 223
Defrosting the Windshield and Windows ............................................... 226
Dust and Pollen Filter ............................... 619
Rear Climate Control System ................... 227
Sensors .................................................... 231 Synchronized Mode................................. 224
Using Automatic Climate Control ............ 220
Air Pressure ....................................... 605, 677
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
After a Collision ........................................ 45
Airbag Care............................................... 55
Driver’s Knee Airbag.................................. 48
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator.............................................. 53, 86
Passenger Front Airbag Off Indicator ......... 54
Sensors ..................................................... 41
Side Airbags .............................................. 50
Side Curtain Airbags.................................. 52
AM/FM Radio ............................................ 256
Android Auto ........................................... 305
Anti-lock Brake System (ABS) .................. 537
Indicator.................................................... 86
Apple CarPlay ........................................... 301
Armrest ..................................................... 205
Audio Remote Controls ........................... 239
Audio System ............................................ 234
Adjusting the Sound................................ 251
Auxiliary Input Jack.................................. 238
Error Messages ........................................ 310
General Information ................................ 318
HDD ........................................................ 273
Internet Radio ......................................... 293
iPhone............................................. 293, 320
iPod ........................................................ 286 MP3/WMA/AAC ............................. 270, 295
Reactivating ............................................ 238
Recommended CDs ................................ 319
Recommended Devices ........................... 320
Remote Controls ..................................... 239
Security Code ......................................... 238
Theft Protection ...................................... 238
USB Flash Drives...................................... 320
USB Port ................................................. 235
Authorized Manuals ................................ 685
Auto Door Locking/Unlocking ................ 154
Customize ...................................... 132, 376
Auto High-Beam ...................................... 177
Indicator ................................................... 86
Auto Idle Stop .......................................... 483
OFF Button ............................................. 484
Auto Idle Stop Indicator (Green) .............. 92
Auto Idle Stop System Indicator (Amber) ..................................................... 92
Automatic Brake Hold ............................. 535
Indicator ................................................. 535
Automatic Brake Hold System
Indicator ................................................. 535
Automatic Folding Door Mirror .............. 191
Automatic Intermittent Wipers .............. 181
Aut o
matic Lighting .................................. 174
Automatic Transmission .......................... 474
Creeping................................................. 474
Fluid ....................................................... 593
Kickdown ............................................... 474
Operating the Shift Button ...................... 477
19 ACURA MDX-31TZ56510.book 690 ページ 2018年12月11日 火曜日 午後4時47分
Page 699 of 701
698
Index
Tires........................................................... 604
Air Pressure ..................................... 605, 677
Checking and Maintaining ....................... 604
Inspection ................................................ 604
Labeling................................................... 605
Puncture (Flat Tire) ........................... 629, 636
Regulations.............................................. 607
Rotation .................................................. 611
Spare Tire ........................................ 629, 677
Summer................................................... 612
Temporary Tire Repair Kit......................... 637
Tire Chains .............................................. 612
Tire Repair Kit .......................................... 636
Wear Indicators ....................................... 609
Winter ..................................................... 612
Tools .......................................................... 628
Towing a Trailer ........................................ 454
Equipment and Accessories...................... 458
Load Limits .............................................. 454
Towing Your Vehicle ................................ 464
Emergency............................................... 670
TPMS (Tire Pressure Monitoring
System) .................................................... 527
Indicator ............................................ 88, 661
Trailer Stability Assist ............................... 462
Transmission ........................................ 18, 475
Automatic ......................................... 18, 475
Fluid ........................................................ 593
Gear Position Indicator....................... 83, 477
Indicator ............................................ 84, 661
Number ................................................... 678 Sequential Mode ..................................... 481
TRIP Button ............................................... 121
Trip Meter ................................................. 122
Troubleshooting ....................................... 627
Blown Fuse...................... 662, 665, 667, 668
Brake Pedal Vibrates .................................. 24
Buzzer Sounds When Opening Door.......... 25
Emergency Towing .................................. 670
Engine Won’t Start .................................. 650
Noise When Braking .................................. 26
Overheating ............................................ 655
Puncture/Flat Tire ............................ 629, 636
Rear Door Won’t Open...................... 24, 153
Warning Indicators .................................... 78
Turn Signals .............................................. 172
Indicators (Instrument Panel) ..................... 88
Turn-by-Turn Directions ........................... 124
U
Under-floor Storage Area ........................ 211
Unlocking the Doors ................................ 142
Unlocking the Front Doors from the Inside ................................................. 13, 151
USB Flash Drives ....................................... 320
USB Port .................................................... 235
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 678Vehicle Stability Assist
® (VSA ®) ............... 520
Off Button .............................................. 521
Off Indicator ............................................. 87
System Indicator ............................... 87, 520
Viscosity (Oil) ............................................ 677
Voice Control Operation ......................... 253
Voice Portal Screen ................................. 254
Voice Recognition ................................... 253
VSA ® (Vehicle Stability Assist ®) ............... 520
W
Wallpaper ................................................. 249
Warning and Information Messages ...... 100
Warning Indicator On/Blinking ............... 657
Warning Labels .......................................... 75
Warranties (Warranty Manual provided separately) .............................................. 683
Watts ........................................................ 676
Wear Indicators (Tire) .............................. 609
Wheel Nut Wrench (Jack Handle) ........... 633
Window Washers ..................................... 180
Adding/Refilling Fluid .............................. 594
Switch .................................................... 180
Windows (Opening and Closing) ............ 166
Windshield ............................................... 180
Cleaning ................................................. 623
Defrosting/Defogging ............................. 226
Washer Fluid ........................................... 594
Wiper Blades........................................... 600
Wipers and Washers ............................... 180
19 ACURA MDX-31TZ56510.book 698 ページ 2018年12月11日 火曜日 午後4時47分
