uuJump Starting u
Handling the Unexpected
5.Connect the other end of the second
jumper cable to the engine hanger as
shown. Do not connect this jumper cable to
any other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jump er cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jump er cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
20 ACURA MDX-31TZ56600.book 653 ページ ２０１９年４月２４日　水曜日　午後５時４４分

655
uuOverheating uHow to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, re start it and check the temperature gauge.
If the temperature gauge needle has gone dow n, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve TankMAXMIN
20 ACURA MDX-31TZ56600.book 655 ページ ２０１９年４月２４日　水曜日　午後５時４４分

656
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for approximately three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 585
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Immediately stop
the engine and contact a dealer for repairs.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
20 ACURA MDX-31TZ56600.book 656 ページ ２０１９年４月２４日　水曜日　午後５時４４分

658
uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Speed-Sensitive Electric Power Steering (EPS)
System Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
20 ACURA MDX-31TZ56600.book 658 ページ ２０１９年４月２４日　水曜日　午後５時４４分

661

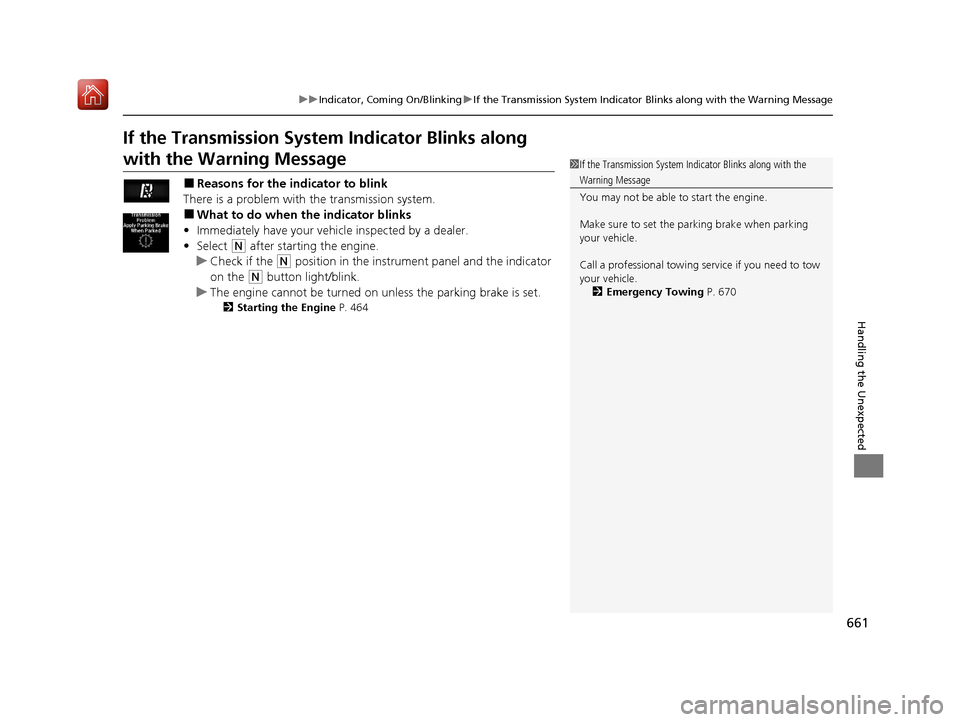

uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
There is a problem with the transmission system.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by a dealer.
• Select
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 464
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 670
20 ACURA MDX-31TZ56600.book 661 ページ ２０１９年４月２４日　水曜日　午後５時４４分

662
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1STRLD7.5 A
2−−
3ACG FR15 A
4 Washer 15 A
5IG1 OP(7.5 A)
6 ECU FR 7.5 A
7Starter7.5 A
8FI Sub 15A
9DBW15 A
10 FI Main 15 A
11IG Coil15 A
12 DRL R 10 A
13DRL L10 A
14 Injector 20 A
15−−
16 Back Up 10 A
17MG Clutch(7.5 A)
18 FR Fog*(7.5 A)
19−−
20 H/L HI R 7.5 A
21−−
22 Small 10 A
23−−
24 H/L HI L 7.5 A
25SBW15 A
26 H/L LO R 10 A
27H/L LO L10 A
28 Oil LVL 7.5 A
29Main Fan30 A
30 Sub Fan 30 A
31Wiper Main30 A
Circuit ProtectedAmps
* Not available on all models
20 ACURA MDX-31TZ56600.book 662 ページ ２０１９年４月２４日　水曜日　午後５時４４分

669
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 662
There is a fuse puller in the engine compartment fuse
box.
If the radio fuse is remove d, the audio system will
disable itself.
Combined
Fuse Blown Fuse
Fuse Puller
Blown Fuse
20 ACURA MDX-31TZ56600.book 669 ページ ２０１９年４月２４日　水曜日　午後５時４４分

681Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 ACURA MDX-31TZ56600.book 681 ページ ２０１９年４月２４日　水曜日　午後５時４４分

692
Index
Compact Spare Tire.......................... 627, 677
Compass .................................................... 443
Console Compartment ............................. 209
Controls ..................................................... 137
Coolant (Engine) ....................................... 589
Adding to the Radiator ............................ 590
Adding to the Reserve Tank ..................... 589
Overheating............................................. 654
Creeping (Automatic Transmission) ........ 471
Cross Traffic Monitor ................................ 552
Cup Holders ............................................... 211
Customized Features ........................ 126, 358
D
Daytime Running Lights ........................... 175
Dead Battery ............................................. 652
Defrosting the Windshield and
Windows .................................................. 225
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 679
Dimming Headlights ............................................... 172
Rearview Mirror ....................................... 188
Dipstick (Engine Oil) ................................. 585
Directional Signals (Turn Signal) .............. 171
Door Mirrors ............................................. 189
Doors ......................................................... 139
Auto Door Locking .................................. 154
Auto Door Unlocking ............................... 154
Door Open Message .................................. 32 Keys ........................................................ 139
Locking/Unlocking the Doors from the
Inside .............................................. 13, 151
Locking/Unlocking the Doors from the Outside ................................................. 142
Lockout Prevention System ...................... 149
DOT Tire Quality Grading ........................ 605
Driver’s Knee Airbag .................................. 48
Driving ...................................................... 445
Automatic Transmission .......................... 471
Braking ................................................... 529
Off-Highway Driving Guidelines............... 462
Shifting Gear ........................................... 472
Starting the Engine.................................. 464
Driving Position Memory System ............ 185
Dust and Pollen Filter ............................... 617
Dynamic Mode button ............................. 486
E
Elapsed Time............................................. 123
Electric Parking Brake Indicator.................................................... 80
Switch ..................................................... 529
Electric Parking Brake System Indicator.................................................... 80
Electronic Stability Control (ESC) ............. 518
Emergency ................................................ 670
Emissions Testing (Readiness Codes) ....... 681
Engine ....................................................... 678
Coolant ................................................... 589 Jump Starting ......................................... 652
Remote Engine Start ............................... 466
Starting................................................... 464
Engine Compartment Cover .................... 583
Engine Coolant ........................................ 589
Adding to the Radiator ........................... 590
Adding to the Reserve Tank .................... 589
Overheating ............................................ 654
Temperature Gauge ................................ 119
Engine Oil Adding ................................................... 586
Checking ................................................ 585
Displaying Oil Life ................................... 577
Low Oil Pressure Indicator ................. 82, 656
ENGINE START/STOP Button .................... 168
EPS (Electric Power Steering) System ............................................... 88, 658
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) .......................... 620
Exterior Mirrors ........................................ 189
F
Features.................................................... 231
Filters Dust and Pollen....................................... 617
Oil .......................................................... 587
Flat Tire ............................................. 627, 635
Floor Mats ................................................ 619
Fluids
Automatic Transmission .......................... 591
20 ACURA MDX-31TZ56600.book 692 ページ ２０１９年４月２４日　水曜日　午後５時４４分

695
Index
Interior.................................................... 206
Light Switches......................................... 172
Lights On Indicator.................................... 89
Turn Signals ............................................ 171
Load Limits ............................................... 449
Locking/Unlocking ................................... 139
Auto Door Locking/Unlocking ................. 154
Childproof Door Locks ............................ 153
From Inside ............................................. 151
From Outside .......................................... 142
Keys........................................................ 139
Using a Key............................................. 148
Lockout Prevention System ..................... 149
Low Battery Charge ................................. 656
Low Fuel Indicator ..................................... 85
Low Oil Pressure Indicator ................. 82, 656
Lower Anchors ..................................... 61, 68
Lubricant Specifications Chart ................ 677
Luggage (Maximum Load Limit) ............. 449
Lumbar Support ....................................... 192
M
Maintenance............................................ 573
Battery .................................................... 611
Brake Fluid .............................................. 592
Cleaning ................................................. 618
Climate Control System .......................... 617
Coolant .................................................. 589
Maintenance Minder
TM............................ 577
Oil .......................................................... 585 Precautions .............................................. 574
Radiator .................................................. 590
Remote Control ....................................... 615
Remote Transmitter ......................... 613, 614
Replacing Light Bulbs ............................... 593
Safety ...................................................... 575
Service Items ........................................... 579
Tires ........................................................ 602
Transmission Fluid ................................... 591
Under the Hood ...................................... 581
Wireless Headphone ................................ 616
Malfunction Indicator Lamp .............. 82, 657
Map Lights ................................................ 207
Maximum Load Limit ............................... 449
Meters, Gauges ......................................... 119
MID (Multi-information Display) ............. 120
Mirrors ....................................................... 188
Adjusting ................................................. 188
Door........................................................ 189
Exterior .................................................... 189
Interior Rearview ..................................... 188
Modifications (and Accessories) .............. 623
Moonroof .................................................. 167
MP3 ................................................... 268, 293
Multi-function Steering-wheel
Controls ................................................... 120
Multi-Information Display (MID) ............. 120
Multi-View Rear Camera .......................... 557
N
Numbers (Identification).......................... 678
O
Odometer................................................. 121
Off-Highway Driving Guidelines ............. 462
Oil (Engine) Adding .................................................... 586
Checking................................................. 585
Displaying Oil Life .................................... 577
Low Oil Pressure Indicator ................. 82, 656
On Demand Multi-Use Display
TM............. 240
Open Source Licenses ............................... 333
Opening/Closing Hood....................................................... 582
Moonroof ............................................... 167
Power Windows ...................................... 165
Tailgate ................................................... 155
Operating the Switches Around the Steering Wheel ....................................... 168
Outside Temperature Display .................. 122
Overhead Screen ...................................... 338
Overheating .............................................. 654
P
Paddle Shifters (Sequential Mode) .......... 479
Pandora ®................................................. 291
Panic Mode ............................................... 164
Parking ...................................................... 546
20 ACURA MDX-31TZ56600.book 695 ページ ２０１９年４月２４日　水曜日　午後５時４４分
