Acura MDX HYBRID 2018 Owner's Guide
Manufacturer: ACURA, Model Year: 2018, Model line: MDX HYBRID, Model: Acura MDX HYBRID 2018Pages: 685, PDF Size: 41.38 MB
Page 21 of 685
20
Quick Reference Guide
Climate Control System (P222)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button or select the Front icon to defrost the windshield.
Driver’s Side
Temperature
Control Switch
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents. Air flows from dashboard vents.
AUTO Button Passenger’s Side
Temperature
Control Switch
(On/Off) Button
Driver’s Side
Temperature Icon Passenger’s Side
Temperature Icon On Demand
Multi-Use
Display
TM
(Windshield Defroster) Button
A/C
(Air
Conditioning) and
SYNC
(Synchronization)
Icon Recirculation/
Fresh Air Mode
Icon
Fan Control Icon
REAR
(Rear Climate
Control) IconVent Mode
Control Icon
Rear Climate Control (P232)
● Press the AUTO button to activate the
rear climate control system.
● Press the button to turn the system
on or off.
Rear Temperature
Control Buttons /
(Fan Control)
Button
AUTO Button
(On/Off)
Button
Mode Control Button
Air flows from the rear floor vents. Air flow from the rear console
vents and floor vents. Air flows from the rear console vents.
18 ACURA MDX E-AWD-31TRX6100.book 20 ページ 2018年3月27日 火曜日 午後8時6分
Page 22 of 685
21
Quick Reference Guide
Features (P235)
Audio System (P243) For navigation system operation () See the Navigation System Manual
*1:Icons that appear on the screen vary by the source selected.
Information Screen
Audio Menu (CD Eject) Button
VOL / (Volume/Power) Knob
BACK Button Interface Dial (
ENTER/MENU
Button)
INFO Button
On Demand Multi-Use Display
TM
PHONE
Button
(Tune Down) Icon
*1
Source
(Day/Night) Button
Tune*1
CD Slot (Information) Icon
Preset Icons*1
(Tune Up) Icon*1
Stations*1
SCAN*1
SMARTPHONE Button
SETTINGS Button
Front /Rear*
NAV Button HD Radio List
*, *1
*
Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 21 ページ 2018年3月27日 火曜日 午後8時6分
Page 23 of 685
22
Quick Reference Guide
Models with rear entertainment system
Disc Slot
REAR (Power)
Button
(Eject) Button
Audio Remote Controls
(P241)
● SOURCE Button
Press to change the audio mode: FM/AM/
SiriusXM ®/CD/Rear DVD
*/HDD/USB/iPod/
Apple CarPlay/Android Auto/ Bluetooth®
Audio/Pandora ®
*/AUX.
● Left Selector Wheel
Roll to adjust the volume up/down.
Radio: Move to a side to change the
preset station.
Move to a side and hold to select
the next or previous strong station.
CD/HDD/USB device: Move to a side to skip to the
beginning of the next song or
return to the beginning of the
current song.
Move to a side and hold to change
a folder.
Left Selector Wheel
SOURCE Button
18 ACURA MDX E-AWD-31TRX6100.book 22 ページ 2018年3月27日 火曜日 午後8時6分
Page 24 of 685
23
Quick Reference Guide

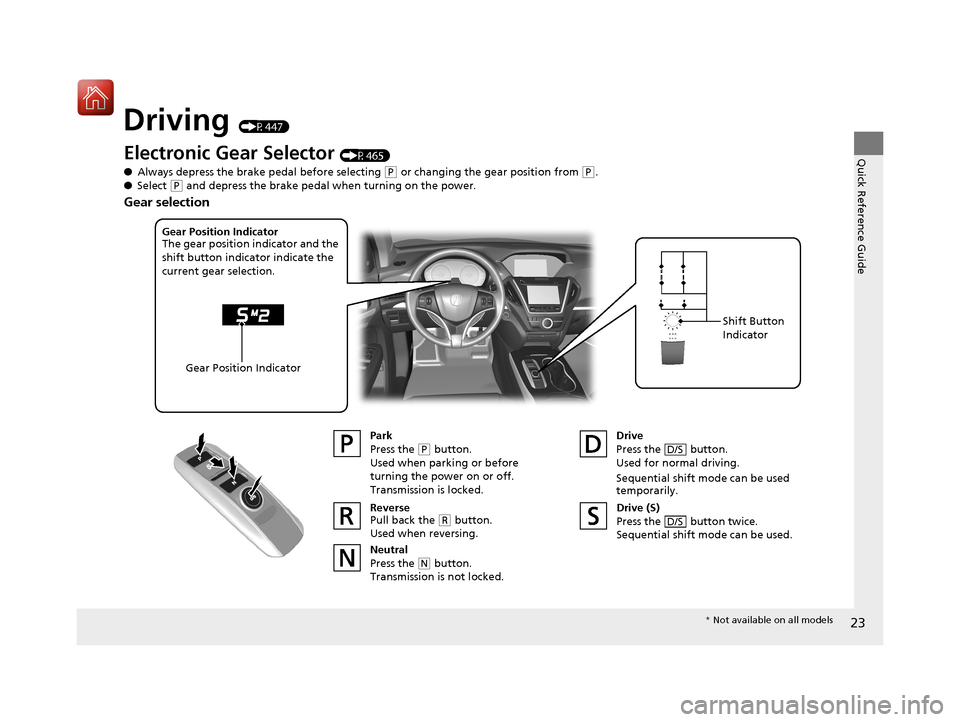

Driving (P447)
Electronic Gear Selector (P465)
● Always depress the brake pedal before selecting
(P or changing the gear position from (P.
● Select
(P and depress the brake pedal when turning on the power.
Park
Press the
(P button.
Used when parking or before
turning the power on or off.
Transmission is locked.
Reverse
Pull back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked. Drive
Press the button.
Used for normal driving.
Sequential shift mode can be used
temporarily.
D/S
Gear Position Indicator
The gear position indicator and the
shift button indicator indicate the
current gear selection.
Gear Position Indicator Shift Button
Indicator
Drive (S)
Press the button twice.
Sequential shift mode can be used.
D/S
Gear selection
*
Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 23 ページ 2018年3月27日 火曜日 午後8時6分
Page 25 of 685
24
Quick Reference Guide

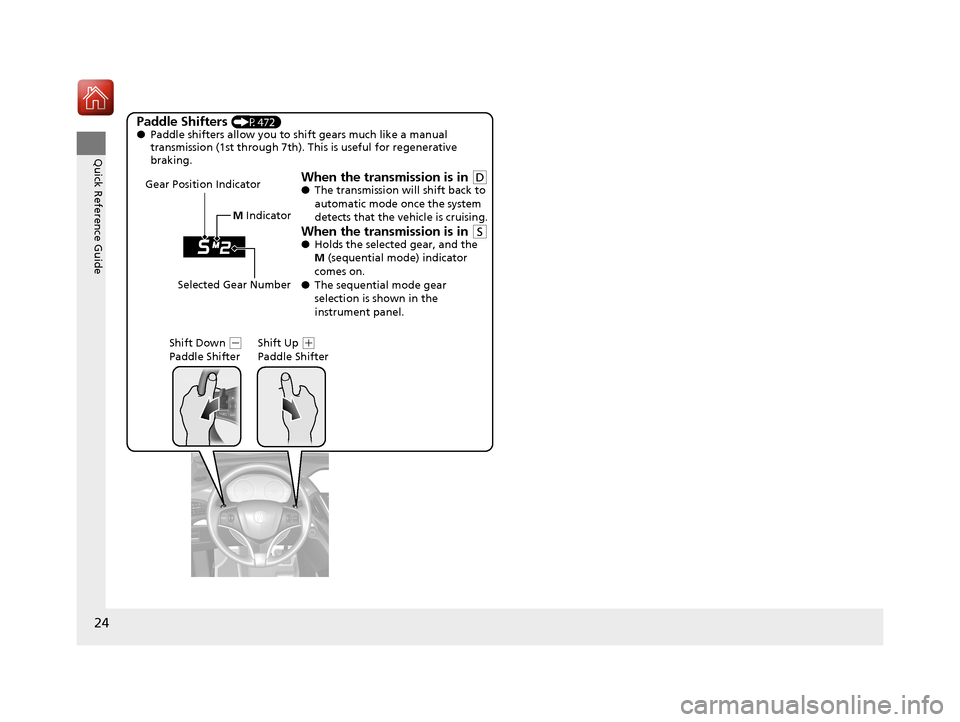

Paddle Shifters (P472)
● Paddle shifters allow you to shift gears much like a manual
transmission (1st through 7th). This is useful for regenerative
braking.
When the transmission is in (D● The transmission will shift back to
automatic mode once the system
detects that the vehicle is cruising.
When the transmission is in (S●Holds the selected gear, and the
M (sequential mode) indicator
comes on.
● The sequential mode gear
selection is shown in the
instrument panel.
Gear Position Indicator
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
Selected Gear Number M
Indicator
18 ACURA MDX E-AWD-31TRX6100.book 24 ページ 2018年3月27日 火曜日 午後8時6分
Page 26 of 685
25
Quick Reference Guide
VSA® On and Off (P506)
● The Vehicle Stability Assist ® (VSA® ) system
helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you turn on the power system.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
CMBSTM On and Off
(P528)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● The CMBS
TM is turned on every time you
start the power system.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
(P512, 645)
● The TPMS monitors tire pressure.
● TPMS is turned on automatically ever y time you turn on the power system.
● TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P556)
aPress the fuel fill door
release button.
bAfter refueling, wait for
about five seconds
before removing the
filler nozzle.
Fuel recommendation: Unleaded premium ga soline, pump octane number 91 or
higher
Fuel tank capacity: 19.4 US gal (73.3 L)
Wait for five seconds
18 ACURA MDX E-AWD-31TRX6100.book 25 ページ 2018年3月27日 火曜日 午後8時6分
Page 27 of 685
26
Quick Reference Guide
AcuraWatchTM
AcuraWatchTM is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located behind the emblem and a front
sensor camera mounted to the interior side
of the windshield, behind the rearview
mirror.
The camera is located
behind the rearview
mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is
behind the emblem.
Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)
(P477)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, wi thout you having to
keep your foot on the brake or the
accelerator.
Road Departure
Mitigation (RDM) System
(P492)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Lane Keeping Assist
System (LKAS)
(P497)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P525)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
18 ACURA MDX E-AWD-31TRX6100.book 26 ページ 2018年3月27日 火曜日 午後8時6分
Page 28 of 685
27
Quick Reference Guide
Maintenance (P561)
Under the Hood (P569)
● Check engine oil, engine coolant, windshield washer fluid
and inverter coolant. Add when necessary.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lever
Lights (P582)
● Inspect all lights regularly.
Wiper Blades (P587)
● Replace blades if they leave streaks
across the windshield.
Tires (P591)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
18 ACURA MDX E-AWD-31TRX6100.book 27 ページ 2018年3月27日 火曜日 午後8時6分
Page 29 of 685
28
Quick Reference Guide
Handling the Unexpected (P613)
Flat Tire (P615)
● Park in a safe location and repair the flat
tire using the tire repair kit.
● Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P641)
● Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with compact spare tire
Power System Won’t
Start
(P634)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P647)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P639)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P656)
● Call a professional towing service if you
need to tow your vehicle.
18 ACURA MDX E-AWD-31TRX6100.book 28 ページ 2018年3月27日 火曜日 午後8時6分
Page 30 of 685
29
Quick Reference Guide
What to Do If
Why do I hear an operating
noise when applying the
brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P523)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear
door with the outside door handle.
To cancel this function, slide the
lever upwards to the unlock
position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
18 ACURA MDX E-AWD-31TRX6100.book 29 ページ 2018年3月27日 火曜日 午後8時6分
