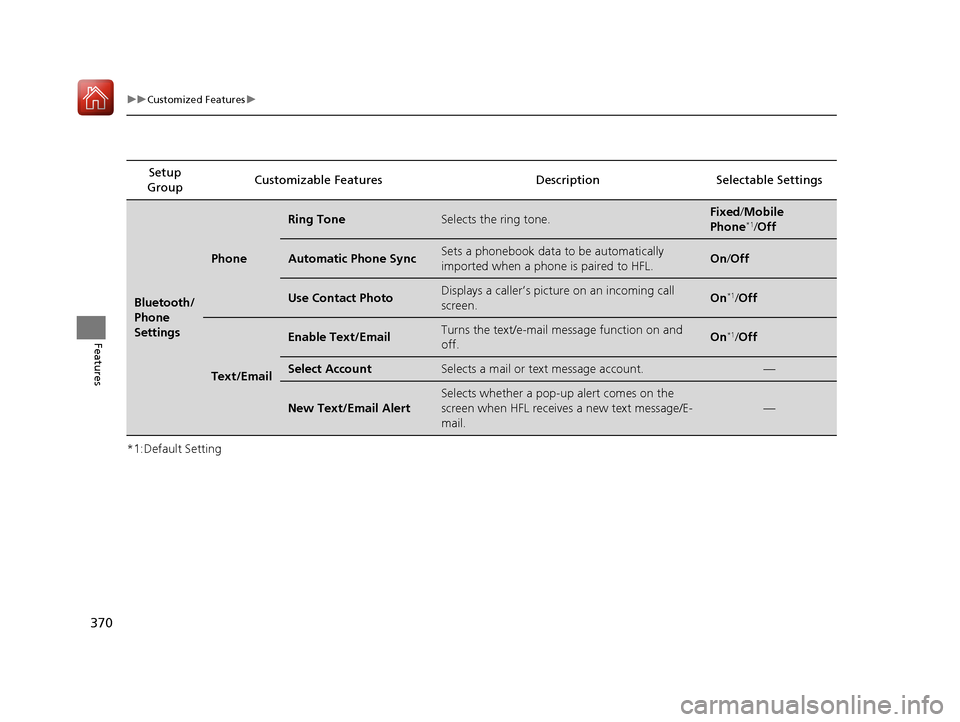

Acura MDX HYBRID 2018 Owner's Manual

370
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Bluetooth/
Phone
Settings
Phone
Ring ToneSelects the ring tone.Fixed/Mobile
Phone*1/ Off
Automatic Phone SyncSets a phonebook data to be automatically
imported when a phone is paired to HFL.On /Off
Use Contact PhotoDisplays a caller’s picture on an incoming call
screen.On*1/Off
Text/Email
Enable Text/EmailTurns the text/e-mail message function on and
off.On*1/ Off
Select AccountSelects a mail or text message account.—
New Text/Email Alert
Selects whether a pop-up alert comes on the
screen when HFL receives a new text message/E-
mail.
—
18 ACURA MDX E-AWD-31TRX6100.book 370 ページ ２０１８年３月２７日　火曜日　午後８時６分

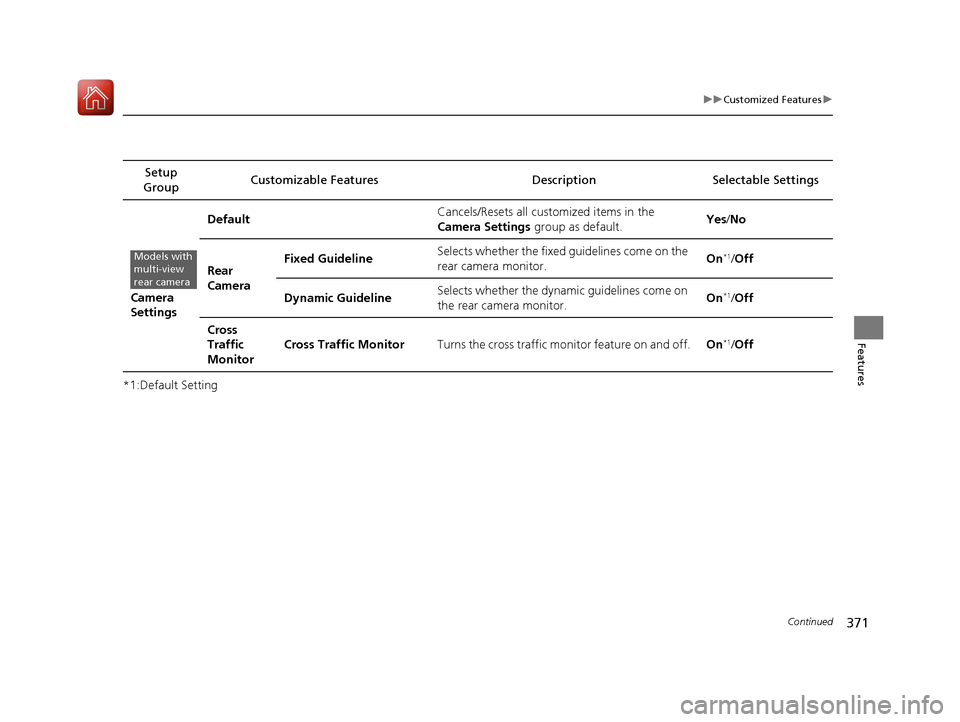

371
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Camera
Settings Default
Cancels/Resets all customized items in the
Camera Settings
group as default. Yes
/No
Rear
Camera Fixed Guideline
Selects whether the fixed guidelines come on the
rear camera monitor.
On
*1/
Off
Dynamic Guideline Selects whether the dynamic guidelines come on
the rear camera monitor. On
*1/
Off
Cross
Traffic
Monitor Cross Traffic Monitor
Turns the cross traffic monitor feature on and off. On
*1/Off
Models with
multi-view
rear camera
18 ACURA MDX E-AWD-31TRX6100.book 371 ページ ２０１８年３月２７日　火曜日　午後８時６分

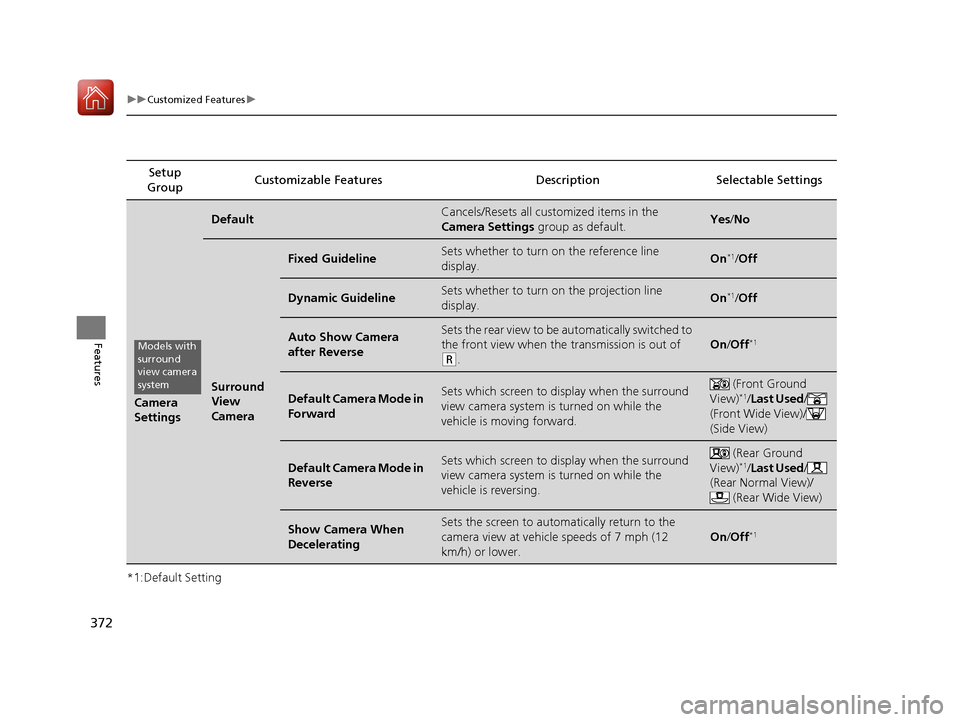

372
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Camera
Settings
DefaultCancels/Resets all customized items in the
Camera Settings group as default.Yes/No
Surround
View
Camera
Fixed GuidelineSets whether to turn on the reference line
display.On*1/Off
Dynamic GuidelineSets whether to turn on the projection line
display.On*1/Off
Auto Show Camera
after ReverseSets the rear view to be automatically switched to
the front view when the transmission is out of
(R.
On /Off*1
Default Camera Mode in
ForwardSets which screen to display when the surround
view camera system is turned on while the
vehicle is moving forward. (Front Ground
View)*1/ Last Used /
(Front Wide View)/
(Side View)
Default Camera Mode in
ReverseSets which screen to display when the surround
view camera system is turned on while the
vehicle is reversing. (Rear Ground
View)*1/ Last Used /
(Rear Normal View)/ (Rear Wide View)
Show Camera When
DeceleratingSets the screen to automa tically return to the
camera view at vehicle speeds of 7 mph (12
km/h) or lower.
On /Off*1
Models with
surround
view camera
system
18 ACURA MDX E-AWD-31TRX6100.book 372 ページ ２０１８年３月２７日　火曜日　午後８時６分

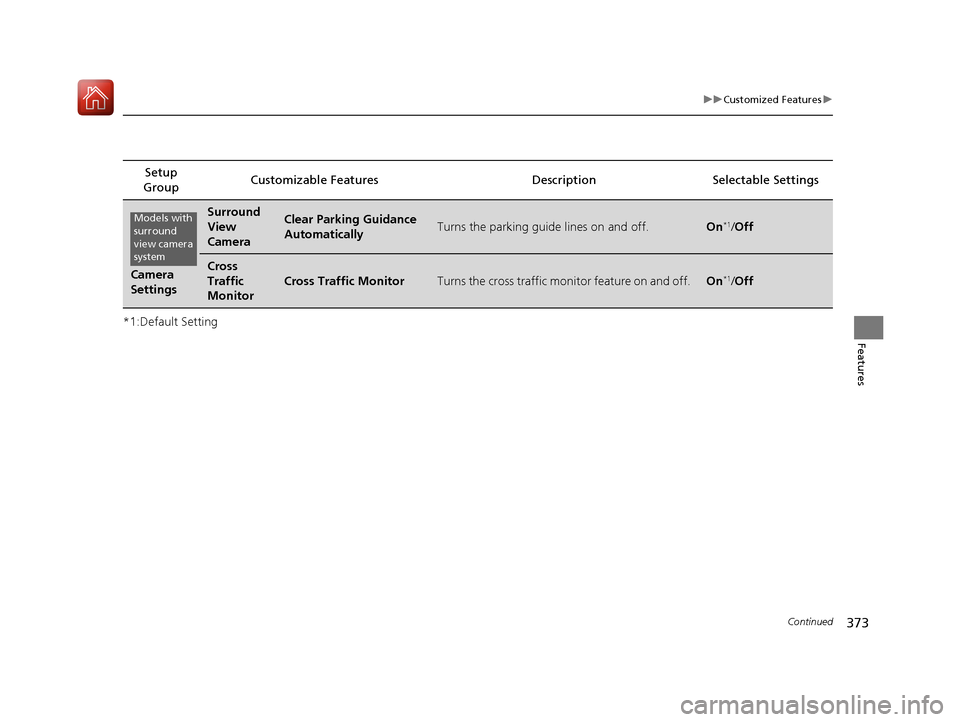

373
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Camera
Settings
Surround
View
CameraClear Parking Guidance
AutomaticallyTurns the parking guide lines on and off.On*1/Off
Cross
Traffic
Monitor
Cross Traffic MonitorTurns the cross traffic m onitor feature on and off.On*1/Off
Models with
surround
view camera
system
18 ACURA MDX E-AWD-31TRX6100.book 373 ページ ２０１８年３月２７日　火曜日　午後８時６分

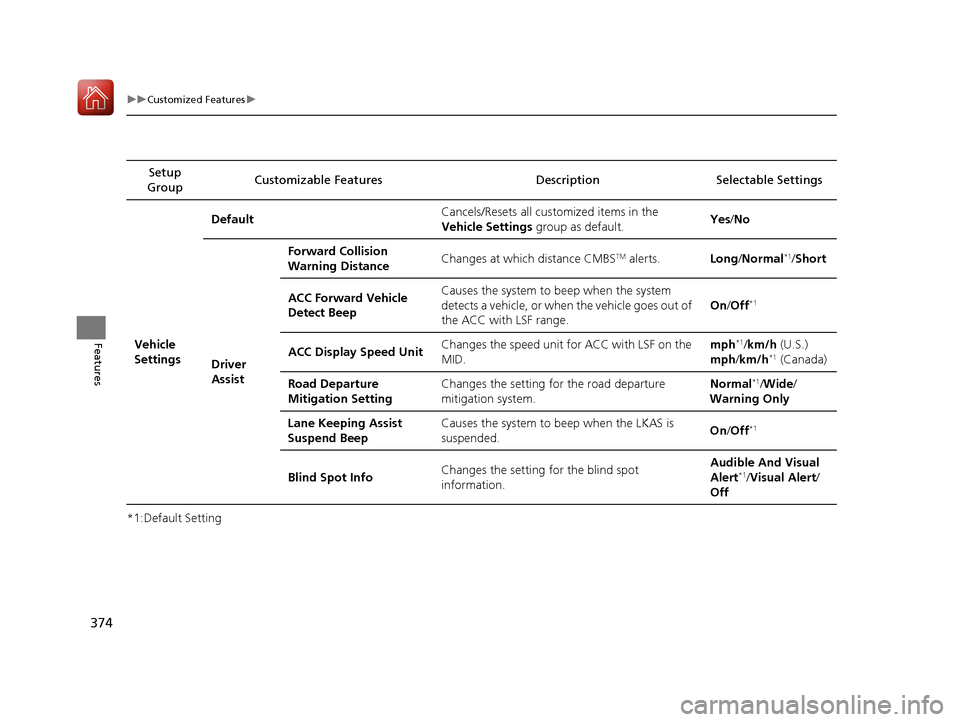

374
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings Default
Cancels/Resets all customized items in the
Vehicle Settings
group as default. Yes
/No
Driver
Assist Forward Collision
Warning Distance
Changes at which distance CMBS
TM alerts.
Long/Normal*1/Short
ACC Forward Vehicle
Detect Beep Causes the system to
beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC with LSF range. On
/Off
*1
ACC Display Speed Unit Changes the speed unit for ACC with LSF on the
MID. mph*1/
km/h (U.S.)
mph /km/h*1 (Canada)
Road Departure
Mitigation Setting Changes the setting for the road departure
mitigation system. Normal
*1/
Wide /
Warning Only
Lane Keeping Assist
Suspend Beep Causes the system to beep when the LKAS is
suspended.
On
/Off
*1
Blind Spot Info Changes the setting fo
r the blind spot
information. Audible And Visual
Alert*1/
Visual Alert /
Off
18 ACURA MDX E-AWD-31TRX6100.book 374 ページ ２０１８年３月２７日　火曜日　午後８時６分

375
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings MeterLanguage Selection
Changes the displayed language on the MID. English
*1/
Français /
Español
Adjust Outside Temp.
Display Adjusts the temperature reading by a few
degrees. -5°F ~ ±0°F
*1
~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A,
average speed A, and
elapsed time A. When Refueled
/IGN
Off /Manually Reset
*1
“Trip B” Reset Timing Changes the setting of how
to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B. When Refueled
/IGN
Off /Manually Reset*1
Reverse Alert Tone Causes the beeper to
sound once when the
transmission is put into (R. On*1/
Off
Turn by Turn Display Selects whether the turn
-by-turn display comes
on during the route guidance. On
*1/
Off
18 ACURA MDX E-AWD-31TRX6100.book 375 ページ ２０１８年３月２７日　火曜日　午後８時６分

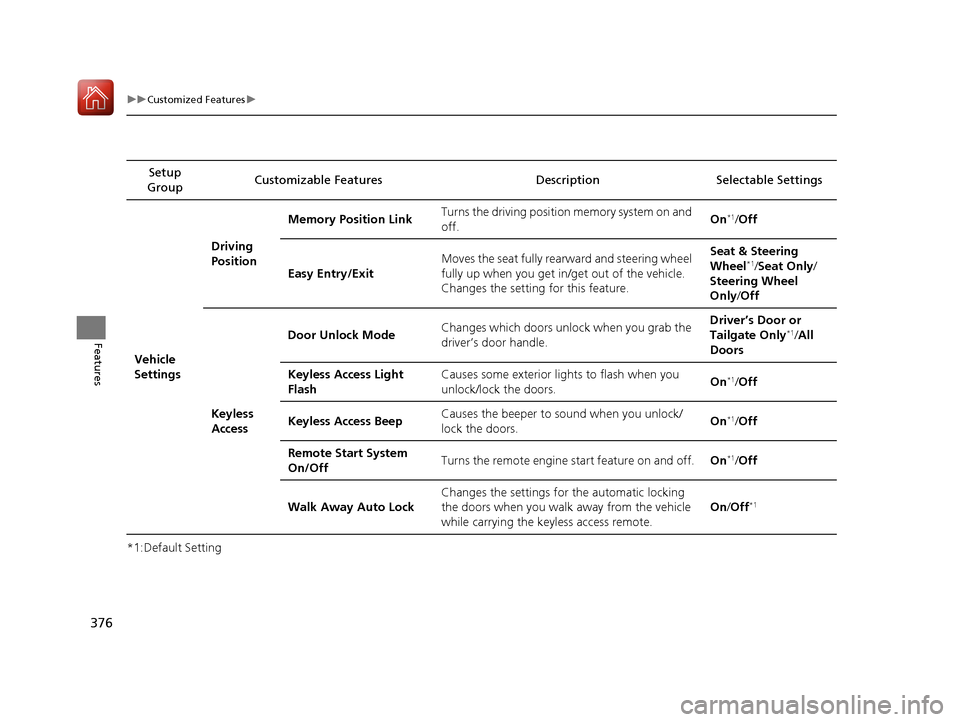

376
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings Driving
Position
Memory Position Link
Turns the driving position memory system on and
off. On
*1/
Off
Easy Entry/Exit Moves the seat fully rearward and steering wheel
fully up when you get in/get out of the vehicle.
Changes the setting for this feature. Seat & Steering
Wheel
*1/
Seat Only /
Steering Wheel
Only /Off
Keyless
Access Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle. Driver’s Door or
Tailgate Only
*1/
All
Doors
Keyless Access Light
Flash Causes some exterior lights to flash when you
unlock/lock the doors.
On
*1/
Off
Keyless Access Beep Causes the beeper to sound when you unlock/
lock the doors.
On
*1/
Off
Remote Start System
On/Off Turns the remote engine start feature on and off.
On
*1/Off
Walk Away Auto Lock Changes the settings for the automatic locking
the doors when you walk
away from the vehicle
while carrying the keyle ss access remote. On
/Off
*1
18 ACURA MDX E-AWD-31TRX6100.book 376 ページ ２０１８年３月２７日　火曜日　午後８時６分

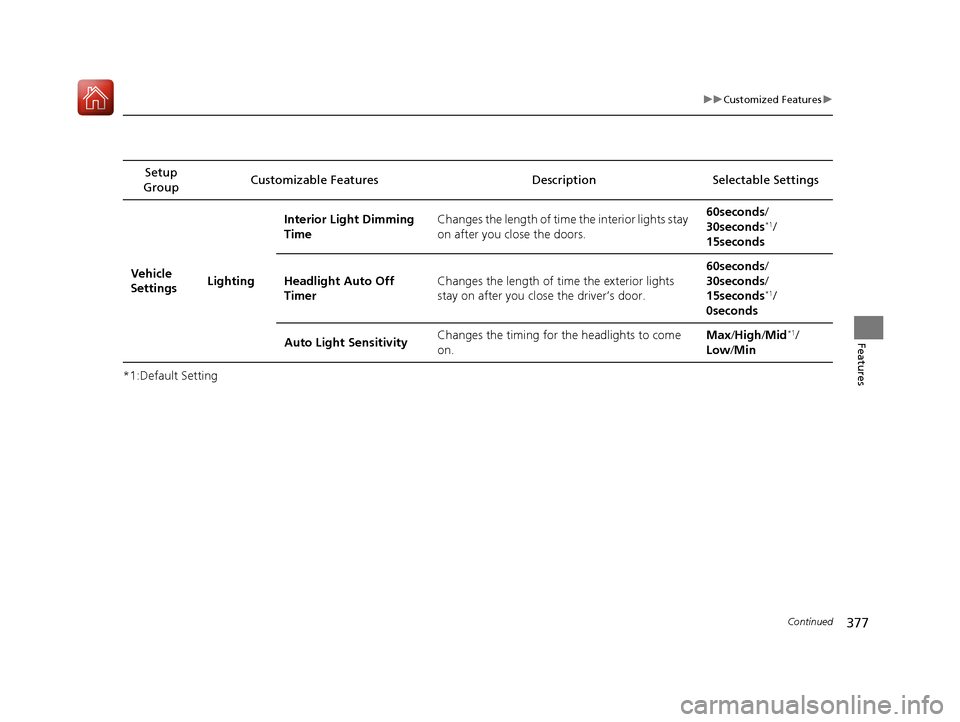

377
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features
Description Selectable Settings
Vehicle
Settings LightingInterior Light Dimming
Time
Changes the length
of time the interior lights stay
on after you close the doors. 60seconds/
30seconds
*1/
15seconds
Headlight Auto Off
Timer Changes the length of time the exterior lights
stay on after you close the driver’s door. 60seconds/
30seconds/
15seconds
*1/
0seconds
Auto Light Sensitivity Changes the timing for the headlights to come
on. Max
/High /Mid
*1/
Low /Min
18 ACURA MDX E-AWD-31TRX6100.book 377 ページ ２０１８年３月２７日　火曜日　午後８時６分

378
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings DoorAuto Door Lock
Changes the setting for when the doors
automatically lock. With Vehicle
Speed
*1/
Shift from P /
Off
Auto Door Unlock Changes the setting for when the doors unlock
automatically. All Doors When
Driver’s Door
Opens
*1/
All Doors
When Shifted to
Park/ All Doors When
Ignition Switched
Off /Off
Key And Remote Unlock
Mode Sets up either the driver’s door or all doors to
unlock on the first push of the remote or built-in
key. Driver Door
*1/
All
Doors
Keyless Lock Answer
Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1/
Off
Security Relock Timer Changes the time it takes for the doors to relock
and the security system
to set after you unlock
the vehicle without opening any door. 90seconds
/
60seconds /
30seconds
*1
Auto Folding Door
Mirror Changes how you can fold the door mirrors. Auto Fold With
Keyless*1/
Manual
Only
18 ACURA MDX E-AWD-31TRX6100.book 378 ページ ２０１８年３月２７日　火曜日　午後８時６分

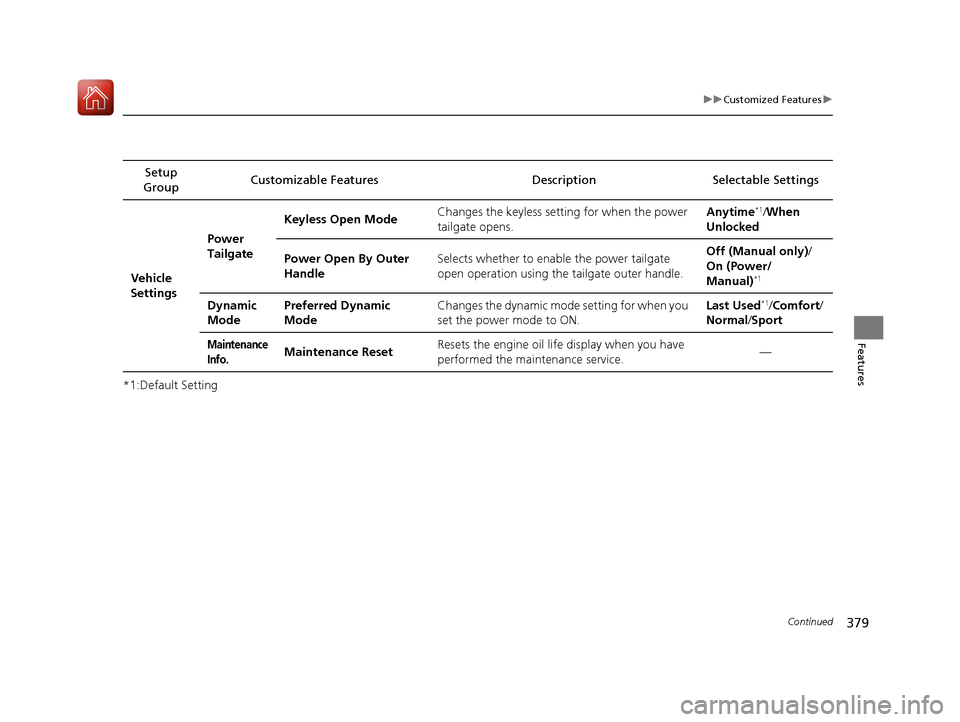

379
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings Power
Tailgate
Keyless Open Mode
Changes the keyless setting for when the power
tailgate opens. Anytime
*1/
When
Unlocked
Power Open By Outer
Handle Selects whether to enable the power tailgate
open operation using the tailgate outer handle. Off (Manual only)
/
On (Power/
Manual)
*1
Dynamic
Mode Preferred Dynamic
Mode Changes the dynamic mode
setting for when you
set the power mode to ON. Last Used*1/
Comfort/
Normal /Sport
Maintenance
Info.Maintenance Reset Resets the engine oil life display when you have
performed the maintenance service.
—
18 ACURA MDX E-AWD-31TRX6100.book 379 ページ ２０１８年３月２７日　火曜日　午後８時６分
