Acura MDX HYBRID 2019 Owner's Manual

210
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the tailgate and doors are open or
closed.
■Door activated
The interior lights come on in the following
situations:
• When the tailgate or any of the doors are
opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the tailgate or any doors are open or
closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 131, 362
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
To avoid draining the 12-vo lt battery, do not leave
the interior light on for an extended length of time
when the power system is off.
If you leave any of the tailgate or doors open in
VEHICLE OFF (LOCK) mode, th e interior lights go off
after about 15 minutes.
Door Activated Position
Off
On
19 ACURA MDX E-AWD-31TRX6200.book 210 ページ ２０１８年６月２２日　金曜日　午後７時４２分

211
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
■Front
The map lights can be turned on and off by
pressing the (map light) button.
■Second and third row
The map lights can be turned on and off by
pressing the (map light) button when the
front interior light sw itch is in the door
activated position.
■ON
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
■Map Lights1 Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the map light will not
go off when you press the button.
Front
Second and third row
■Cargo Area Lights
Off On
19 ACURA MDX E-AWD-31TRX6200.book 211 ページ ２０１８年６月２２日　金曜日　午後７時４２分

212
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Interior Convenience Items
Press the button to open the glove box. You
can lock the glove box with the built-in key.
■Removable shelf
The shelf in the glove box is detachable. To
remove it, disengage the tabs.
The removed shelf can be stored upside down
in the glove box.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
Shelf
Tabs
19 ACURA MDX E-AWD-31TRX6200.book 212 ページ ２０１８年６月２２日　金曜日　午後７時４２分

213
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Pull the passenger’s side handle to open the
console compartment.
Pull the driver’s side handle to open the utility
tray in the console lid.
■Console Tray
Slide or lift the tray when you use the console
compartment. u To lift this tray, sl ide it rearward, then
pull it up.
■Front and Rear* Console Compartment
* Not available on all models
19 ACURA MDX E-AWD-31TRX6200.book 213 ページ ２０１８年６月２２日　金曜日　午後７時４２分

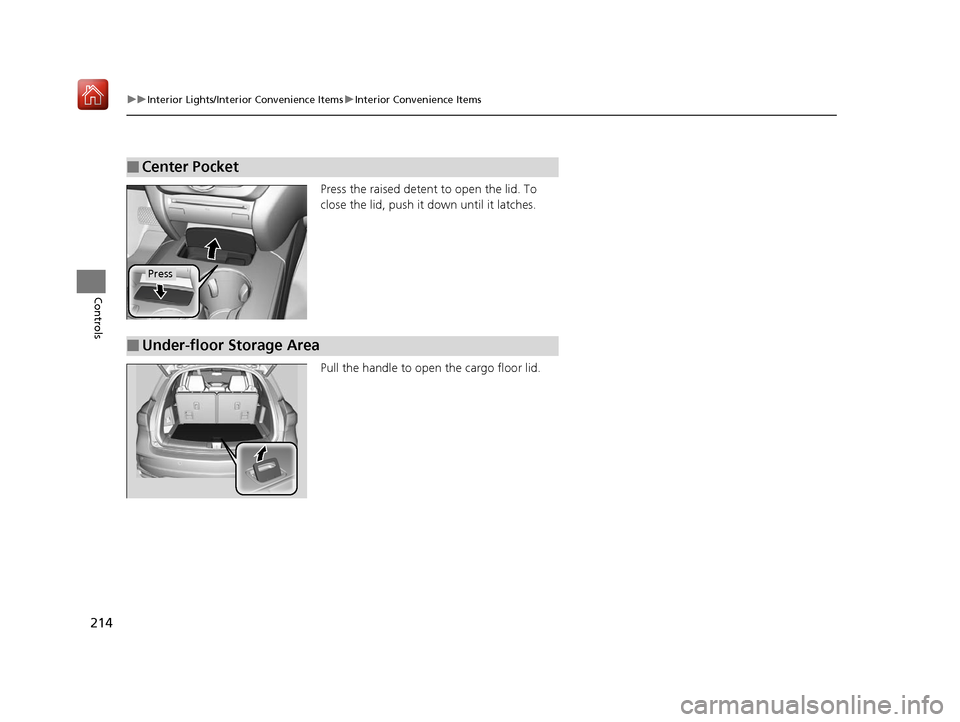

214
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Press the raised detent to open the lid. To
close the lid, push it down until it latches.
Pull the handle to open the cargo floor lid.
■Center Pocket
Press
■Under-floor Storage Area
19 ACURA MDX E-AWD-31TRX6200.book 214 ページ ２０１８年６月２２日　金曜日　午後７時４２分

Continued215
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Front seat beverage holders
Are located in the console between the front
seats.
■Door side beverage holders
Are located on the both of the front and rear
door side pockets.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Front
Rear
19 ACURA MDX E-AWD-31TRX6200.book 215 ページ ２０１８年６月２２日　金曜日　午後７時４２分

216
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Second row seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
Are located in the console between the
second row seats.
■Third row seat beverage holders
Models with bench seat
Models with captain seat
19 ACURA MDX E-AWD-31TRX6200.book 216 ページ ２０１８年６月２２日　金曜日　午後７時４２分

Continued217
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (center pocket)
Open the lid and the cover to use it.
■Accessory power socket (front console
compartment)*
Pull the handle and open the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket s are designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent 12-volt battery drain, only use the power
socket with the power system on.
* Not available on all models
19 ACURA MDX E-AWD-31TRX6200.book 217 ページ ２０１８年６月２２日　金曜日　午後７時４２分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
218
Controls
■Accessory power socket (cargo area)
Open the cover to use it.
The AC power outlet can be used when the power system is on. Open the cover to use it. Plug in the appliance
slightly, turn it 90° clockwise, then push it all
the way.
■AC Power Outlet
Canadian models
1AC Power Outlet
NOTICE
Do not use the AC power outlet for electric
appliances that require high initial peak wattage,
such as cathode-ray tube type televisions,
refrigerators, electric pumps, etc. It is not suitable for
devices that process precis e data, such as medical
equipment, and that require an extremely stable
power supply, such as microcomputer-controlled
electric blankets, touc h sensor lamps, etc.
The AC power outlet is desi gned to supply power for
up to 115 volt appliances that are rated 150 watts or
less.
Continued use of any elec tric appliance/device
exceeding these ratings may result in damage to the
appliance/device.
19 ACURA MDX E-AWD-31TRX6200.book 218 ページ ２０１８年６月２２日　金曜日　午後７時４２分

Continued219
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
There is a coat hook on the rear grab handle
of both sides. Pull it down to use it.
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Coat Hooks1Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
■Tie-down Anchors1 Tie-down Anchors
Do not let anyone access items in the cargo area
while driving. Loose items ca n cause injury if you have
to brake hard.
Anchor
Anchor
19 ACURA MDX E-AWD-31TRX6200.book 219 ページ ２０１８年６月２２日　金曜日　午後７時４２分
