Acura MDX HYBRID 2019 Owner's Manual

290
uuAudio System Basic Operation uPlaying Hard Disk Drive (HDD) Audio
Features
Delete all music data on the HDD.
1.Select Audio Menu .
2. Select Audio Settings .
3. Select CD/HDD .
4. Select Delete All HDD Data.
u The confirmation message will appear.
5. Select Yes.
■Deleting all HDD Data
19 ACURA MDX E-AWD-31TRX6200.book 290 ページ ２０１８年６月２２日　金曜日　午後７時４２分

291
uuAudio System Basic Operation uPlaying an iPod
Continued
Features

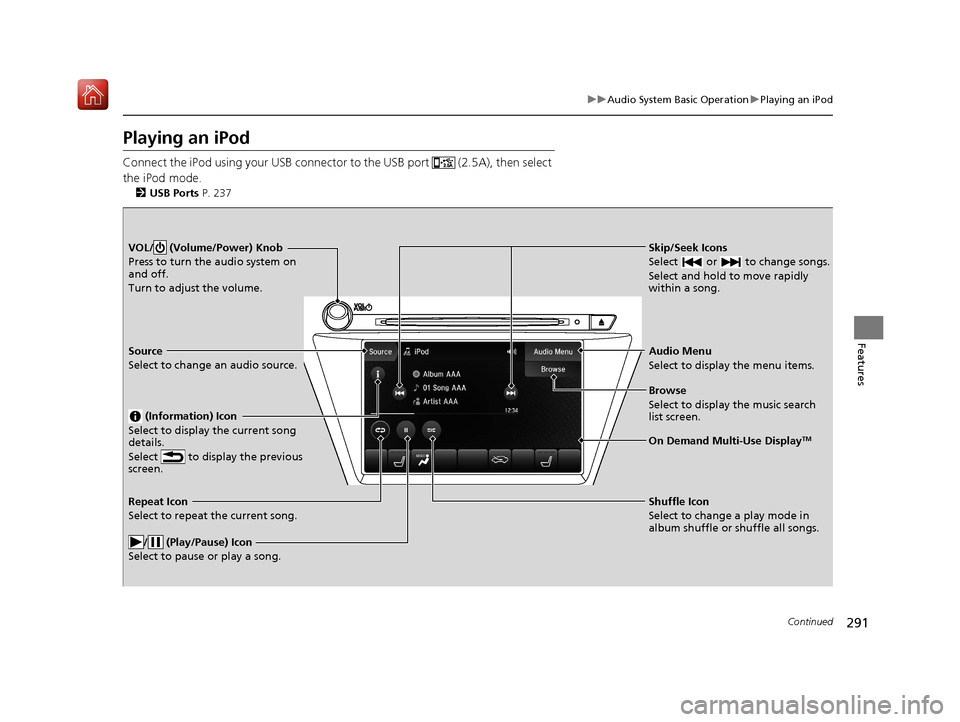

Playing an iPod
Connect the iPod using your USB connector to the USB port (2.5A), then select
the iPod mode.
2 USB Ports P. 237
Skip/Seek Icons
Select or to change songs.
Select and hold to move rapidly
within a song.VOL/ (Volume/Power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.
Audio Menu
Select to display the menu items.
Source
Select to change an audio source.
(Information) Icon
Select to display the current song
details.
Select to display the previous
screen.
Browse
Select to display the music search
list screen.
On Demand Multi-Use DisplayTM
Repeat Icon
Select to repeat the current song.
/ (Play/Pause) Icon
Select to pause or play a song.Shuffle Icon
Select to change a play mode in
album shuffle or shuffle all songs.
19 ACURA MDX E-AWD-31TRX6200.book 291 ページ ２０１８年６月２２日　金曜日　午後７時４２分

uuAudio System Basic Operation uPlaying an iPod
292
Features
1. Select Browse .
2. Select the items on that menu.
■How to Select a Song from the Music Search List1How to Select a Song from the Music Search List
You can control an iPod using voice commands.
2 Voice Control Operation P. 258
2 Song By Voice
TM (SBV) P. 294
Available operating function s vary on models and/or
versions. Some functions ma y not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the On Demand Multi-Use Display
TM.
2 iPod/USB Flash Drive P. 317
19 ACURA MDX E-AWD-31TRX6200.book 292 ページ ２０１８年６月２２日　金曜日　午後７時４２分

293
uuAudio System Basic Operation uPlaying an iPod
Features
You can select repeat and shuffle modes when playing a song.
■Shuffle/Repeat
Select shuffle or repeat icon repeatedly until a
desired mode.
■To turn off a play mode
To turn off the shuffle or repeat, select shuffle or repeat icon repeatedly.
■How to Select a Play Mode1How to Select a Play Mode
Play Mode Menu Items
Repeat
Shuffle
*1: Not available on all iPod. (repeat off)
*1: Repeat mode to off.
(repeat song): Repeats the current song.
(repeat all): Repeats the all songs.
(shuffle off): shuf fle mode to off.
(shuffle all songs): Plays all available songs in
a selected list (playlists, artists, albums,
songs, genres, or composers) in random
order.
(shuffle albums): Plays all available albums in
a selected list (playlists, artists, albums,
songs, genres, or composers) in random
order.
Shuffle Icon
Repeat Icon
19 ACURA MDX E-AWD-31TRX6200.book 293 ページ ２０１８年６月２２日　金曜日　午後７時４２分

294
uuAudio System Basic Operation uSong By VoiceTM (SBV)
Features
Song By VoiceTM (SBV)
Use SBV to search for and play music from your HDD or iPod using voice commands.
■To enable SBV
1.Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Move or to select the Voice Reco.
tab.
4. Rotate to select Song By Voice.
5. Press to select On or Off .
1Song By VoiceTM (SBV)
Setting options:
•On (factory default): Song By VoiceTM commands
are available.
•Off : Disable the feature.
19 ACURA MDX E-AWD-31TRX6200.book 294 ページ ２０１８年６月２２日　金曜日　午後７時４２分

Continued295
uuAudio System Basic Operation uSong By VoiceTM (SBV)
Features
■Searching for music using SBV
1.Set the Song By Voice setting to On.
2. Press the (Talk) button and say “Audio”
to activate the SBV feature for the HDD and
iPod.
3. Press the button and say a command.
u Example 1: Say “(List) ‘Artist A’” to view a
list of songs by that artist. Select the
desired song to start playing.
u Example 2: Say “Play ‘Artist A’” to start
playing songs by that artist.
4. To cancel SBV, press the (hang-up/
back) button on the steering wheel. The
selected song continues playing.
Once you have canceled this mode, you need
to press the button and say “Audio” again
to re-activate this mode.1 Searching for music using SBV
Song By Voice
TM Commands List
2 Voice Control Operation P. 258
NOTE:
Song By Voice
TM commands are available for tracks
stored on the HDD or iPod.
You can add phonetic modi fications of difficult
words so that it is easier for SBV to recognize artists,
songs, albums, and composers in voice commands. 2 Phonetic Modification P. 296
SBV may not be able to recognize languages other
than English for the artist name, song title, album
title, and composers.
19 ACURA MDX E-AWD-31TRX6200.book 295 ページ ２０１８年６月２２日　金曜日　午後７時４２分

uuAudio System Basic Operation uSong By VoiceTM (SBV)
296
Features
Add phonetic modifications of difficult or foreign words so that it is easier for SBV
to recognize artists, songs, albums, and composers in voice commands when
searching for music on the HDD or iPod. 1.Press the SETTINGS button.
2. Rotate to select System Settings,
then press .
3. Move or to select the Voice Reco.
tab.
4. Rotate to select Song By Voice
Phonetic Modification , then press .
5. Rotate to select New Modification,
then press .
6. Rotate to select HDD or iPod, then
press .
■Phonetic Modification1 Phonetic Modification
Song By Voice Phonetic Modification is grayed
out when Song By Voice is set to Off.
You can store up to 2, 000 phonetic modification
items.
19 ACURA MDX E-AWD-31TRX6200.book 296 ページ ２０１８年６月２２日　金曜日　午後７時４２分

297
uuAudio System Basic Operation uSong By VoiceTM (SBV)
Features

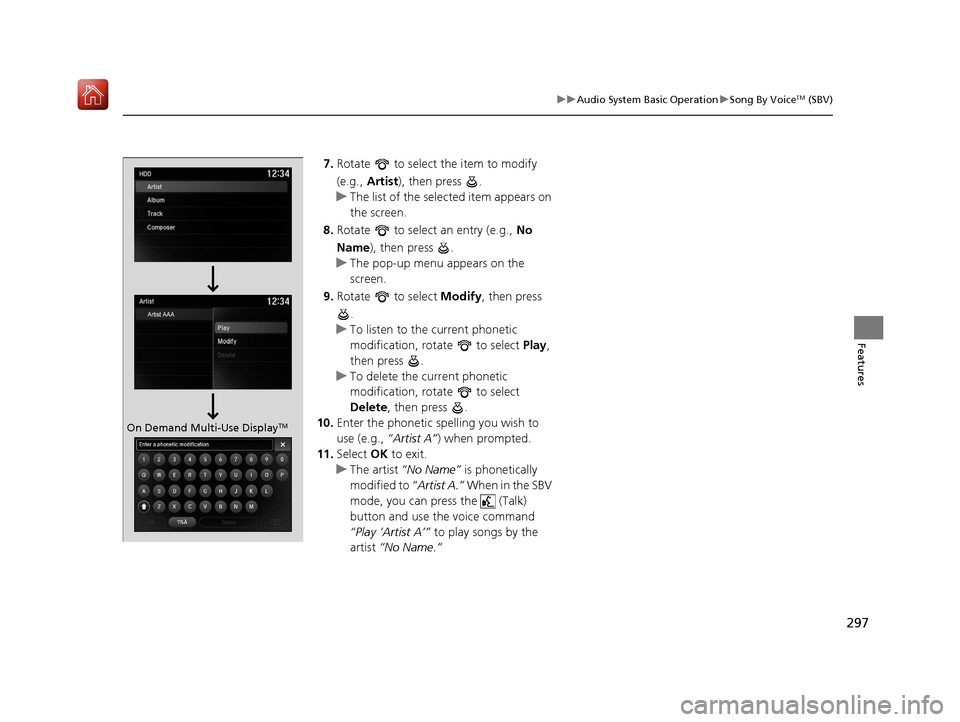

7. Rotate to select the item to modify
(e.g., Artist ), then press .
u The list of the selected item appears on
the screen.
8. Rotate to select an entry (e.g., No
Name), then press .
u The pop-up menu appears on the
screen.
9. Rotate to select Modify, then press
.
u To listen to the current phonetic
modification, rotate to select Play,
then press .
u To delete the current phonetic
modification, rotate to select
Delete , then press .
10. Enter the phonetic spelling you wish to
use (e.g., “Artist A”) when prompted.
11. Select OK to exit.
u The artist “No Name” is phonetically
modified to “Artist A.” When in the SBV
mode, you can press the (Talk)
button and use the voice command
“Play ‘Artist A’” to play songs by the
artist “No Name.”
On Demand Multi-Use DisplayTM
19 ACURA MDX E-AWD-31TRX6200.book 297 ページ ２０１８年６月２２日　金曜日　午後７時４２分

298
uuAudio System Basic Operation uPlaying Pandora ®*1
Features
Playing Pandora ®*1
Your audio system allows you to listen to music from the Pandora ® app on a
compatible smartphone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth ® HandsFreeLink ® (HFL) system, or with an iPhone, you can connect using
your USB cable to the USB port (2.5A).
2 Phone Setup P. 405
2 USB Ports P. 237
*1:Available only on U.S. models.
1Playing Pandora ®*1
Pandora®, the Pandora logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission. Pandora
is currently available exclusively in the United States.
To find out if your phone is compatible with this
feature, visit www.handsfreelink.com/Acura , or call
1-888-528-7876.
VOL/ (Volume/Power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.
Audio Menu
Select to display the menu items.
Source
Select to change an audio source.
(Information) Icon
Select to display the current track
details.
Select to display the previous
screen.
Stations
Select to display the station list
screen.
On Demand Multi-Use DisplayTMLike/Dislike Icons
Select to evaluate a track.
Skip Icon
Select to skip a track.
Play/Pause Icon
Select to pause or play a track.Station Up/Down Icons
Select to change a station.
Bookmark Track Icon
Bookmarks the current track.
Bookmark Artist Icon
Bookmarks the current artist.
19 ACURA MDX E-AWD-31TRX6200.book 298 ページ ２０１８年６月２２日　金曜日　午後７時４２分

299
uuAudio System Basic Operation uPlaying Pandora ®*1
Features
1.Select Stations .
2. Select a item to select a track.
■Create Station
You can create a station by Genre, Current
Track or Current Artist .
1. Select Stations .
2. Select Create Station.
3. Select the item you want to create a station.
You can also create a station by the following
procedure.
1. Select track name or artist name.
2. Select Yes.
■Select the conn ecting method
If the two devices that install Pandora app are c onnected via the USB and Bluetooth®
connection separately, you can select the USB or Bluetooth® connection to use the
Pandora ®.
1. Select the PANDORA on the source list screen.
2. Select USB or Bluetooth .
■How to Select a Track from the Stations List1Playing Pandora ®*1
Pandora® is a personalized Intern et radio service that
selects music based on an arti st, track, or genre a user
enters, and streams what is likely to be of interest.
To use this service in your vehicle, the Pandora ® app
must first be installed on your phone. Visit
www.pandora.com . for more information.
If you cannot operate Pandora ® through the audio
system, it may be streaming through Bluetooth®
Audio. Make sure Pandora ® mode on your audio
system is selected.
Available operating functi ons vary on software
versions. Some functions ma y not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the On Demand Multi-Use Display
TM.
2 Pandora ® P. 319
There are restrictions on the number of tracks you
can skip or dislike in a given hour.
If your phone is connec ted to Android Auto,
Pandora ® is only available through the Android Auto
interface.
Visit the Android Auto website to check
compatibility.
Select track or artist name.
19 ACURA MDX E-AWD-31TRX6200.book 299 ページ ２０１８年６月２２日　金曜日　午後７時４２分
