uuCleaning uInterior Care
606
Maintenance
Wipe using a glass cleaner.
The front and second row passenger’s floor
mats hook over floor anchors, which keep
them from sliding forward. To remove a mat
for cleaning, turn the anchor knobs to the
unlock position. When reinstalling the mat
after cleaning, turn the knobs to the lock
position.
Do not put additional floor mats on top of
the anchored mats.
To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampen ed with a solution comprised of 90%
water and 10% neutral soap.
3. Wipe away any soap residu e with a clean damp cloth.
4. Wipe away residual water and allow leather to air dry in the shade.
■Cleaning the Window
■Floor Mats
1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor.
2 Automatic Operation (automatic lighting
control) P. 177
2 Automatic Intermittent Wipers P. 184
2 Front Sensor Camera P. 475
1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mat properly. If they are
not properly positioned, th e floor mat can interfere
with the front seat functions.
Lock
Unlock
■Maintaining Genuine Leather1
Maintaining Genuine Leather
It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust ca n cause abrasions in the
leather. In addition, pl ease note that some dark
colored clothing can rub onto the leather seats
resulting in discol oration or stains.
19 ACURA MDX E-AWD-31TRX6200.book 606 ページ ２０１８年６月２２日　金曜日　午後７時４２分

615Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire*
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slip pery surface and apply the parking brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Changing a Flat Tire*
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle (if
equipped). If a different agent is used, you may
permanently damage the tire pressure sensor.
* Not available on all models
19 ACURA MDX E-AWD-31TRX6200.book 615 ページ ２０１８年６月２２日　金曜日　午後７時４２分

621
uuIf a Tire Goes Flat uChanging a Flat Tire*
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face up under the hoist.
3. Insert the hoist bracket into the center hole
of the flat tire.
4. Slowly turn the wheel nut wrench clockwise
to take up the hoist cable slack. Make sure
the bracket is seated in the center hole of
the flat tire.
5. Turn the wheel nut wrench with the jack
handle bar (clockwise) until the flat tire rests
against the underbody of the vehicle, and
you hear the hoist click.
6. Securely store the jack, wheel nut wrench,
and jack handle bar back in the tool case.
Store the case in the cargo area.
If you replace a flat tire wi th the spare tire, the low tire pressure/TPMS indicator comes
on while you are driving. After driving for a few miles (kilometers), the indicator will
start blinking for a short time and then stay on. Tire Pressure Monitor Problem
appears on the multi-information display (MID), but this is normal.
If you replace the tire with a specified regular tire, the warning message on the MID
and the low tire pressure/TPMS indicator will go off after a few miles (kilometers).
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the jack and tools securely before
driving.
Center Cap
Wheel Nut Wrench Jack Handle Bar
■TPMS and the Spare Tire1
TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use TPMS specific wheels. Each is equipped with a
tire pressure sensor mounted inside the tire behind
the valve stem.
19 ACURA MDX E-AWD-31TRX6200.book 621 ページ ２０１８年６月２２日　金曜日　午後７時４２分

622
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
Temporarily Repairing a Flat Tire*
If the tire has a large cut or is otherwise se verely damaged, you will need to have the
vehicle towed. If the tire only has a smal l puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and non-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Temporarily Repairing a Flat Tire*
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.
•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tires
extremely under inflated.
•The tire bead is no longer seated.
•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Use Kit
Smaller than 3/16 inch (4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
* Not available on all models
19 ACURA MDX E-AWD-31TRX6200.book 622 ページ ２０１８年６月２２日　金曜日　午後７時４２分

Index
675
Index
Index
A
AAC................................................... 275, 300
ABS (Anti-lock Brake System) .................. 523
AC Power Outlet ...................................... 218
Accessories and Modifications ................ 611
Accessory Power Sockets ......................... 217
Acoustic Vehicle Alerting System ............ 473
AcuraLink ................................................. 438
AcuraWatch
TM............................................ 26
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................................. 477
Indicator ................................................. 100
Additives Coolant .................................................. 577
Engine Oil ............................................... 572
Washer ................................................... 581
Additives, Engine Oil ............................... 572
Adjusting Armrest .................................................. 208
Front Seats.............................................. 195
Head Restraints ....................... 202, 204, 205
Headlights .............................................. 582
Mirrors.................................................... 192
Rear Seats ............................................... 207
Steering Wheel ....................................... 191
Temperature ........................................... 127
Agile Handling Assist ............................... 507
Air Conditioning System (Climate Control
System) .................................................... 223
Changing the Mode................................ 226 Defrosting the Windshield and
Windows ............................................... 229
Dust and Pollen Filter ............................... 604
Rear Climate Control System ................... 230
Sensors .................................................... 234
Synchronized Mode ................................. 227
Using Automatic Climate Control ............ 223
Air Pressure ....................................... 592, 663
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
After a Collision ......................................... 51
Airbag Care ............................................... 61
Driver’s Knee Airbag .................................. 54
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Indicator .............................................. 59, 93
Passenger Front Airbag Off Indicator ......... 60
Sensors ...................................................... 47
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
AM/FM Radio ............................................ 261
Android Auto ............................................ 310
Anti-lock Brake System (ABS) .................. 523
Indicator .................................................... 93
Apple CarPlay ........................................... 306
Armrest ..................................................... 208
Audio Remote Controls ............................ 241
Audio System ............................................ 236
Adjusting the Sound ................................ 256
Auxiliary Input Jack .................................. 240
Error Messages ........................................ 315 General Information ................................ 323
HDD ........................................................ 278
iPhone............................................. 298, 325
iPod ........................................................ 291
MP3/WMA/AAC .............................. 275, 300
Pandora
®................................................. 298
Reactivating ............................................ 240
Recommended CDs ................................. 324
Recommended Devices............................ 325
Remote Controls ..................................... 241
Security Code .......................................... 240
Theft Protection ...................................... 240
USB Flash Drives .............................. 300, 325
USB Port.................................................. 237
Authorized Manuals ................................ 670
Auto Door Locking/Unlocking ................. 157
Customize ....................................... 137, 378
Auto Engine Stop/Start .............................. 13
Auto High-Beam ....................................... 180
Indicator.................................................... 93
Automatic Brake Hold ............................. 521
Indicator.................................................. 521
Automatic Folding Door Mirror .............. 194
Automatic Intermittent Wipers ............... 184
Automatic Lighting .................................. 177
Auxiliary Console Panel ........................... 343
Auxiliary Input Jack .................................. 240
Average Fuel Economy ............................ 127
Average Speed ......................................... 128
19 ACURA MDX E-AWD-31TRX6200.book 675 ページ ２０１８年６月２２日　金曜日　午後７時４２分

676
Index
B
Back-Up Light............................................ 585
Battery ....................................................... 600
12-Volt .................................................... 600
12-Volt Battery Charging System
Indicator .......................................... 88, 641
High Voltage ........................................... 516
Jump Starting .......................................... 637
Maintenance (Checking the 12-Volt Battery) .................................................. 600
Maintenance (Replacing).......................... 601
Battery Types .............................................. 12
Belts (Seat) .................................................. 39
Beverage Holders ...................................... 215
Blind spot information System ................ 509
Indicator .................................................. 104
Bluetooth ® Audio ..................................... 303
Bluetooth ® HandsFreeLink ®..................... 397
Booster Seats (For Children) ....................... 79
Brake System ............................................. 517
Anti-lock Brake System (ABS) ................... 523
Automatic Brake Hold.............................. 521
Brake Assist System ................................. 524
Brake System Indicator............................... 85
Fluid ........................................................ 581
Foot Brake ............................................... 520
Indicator ...................................... 84, 85, 643
Parking Brake .......................................... 517
Brake System (Amber) Indicator .................................................... 85 Brake System (Red)
Indicator............................................ 84, 643
Brightness Control (Instrument Panel) .... 187
Bulb Replacement .................................... 582
Back-Up Light.......................................... 585
Brake Light and Rear Turn Signal Light .... 583
Fog Lights ............................................... 582
Front Turn Signal/Parking, Daytime
Running and Front Side Marker Lights ... 582
Headlights ............................................... 582
High-Mount Brake Light .......................... 586
Puddle Lights........................................... 586
Rear License Plate Lights .......................... 586
Side Turn Signal/Emergency Indicator
Lights .................................................... 582
Taillights.................................................. 585
Taillights/Rear Side Maker Lights.............. 584
Bulb Specifications ................................... 662
C
CAMERA Button....................................... 547
Car Wash Mode ........................................ 469
Carbon Monoxide Gas ............................... 80
Carrying Cargo ................................. 449, 451
CD Player ................................................... 275
Center Pocket ........................................... 214
Certification Label .................................... 664
Changing Bulbs ........................................ 582
Charging System Indicator ................. 88, 641Child Safety
................................................ 62
Childproof Door Locks ............................ 156
Child Seat ................................................... 62
Booster Seats ............................................ 79
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 72
Larger Children ......................................... 78
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 156
Cleaning the Exterior ............................... 607
Cleaning the Interior ............................... 605
Client Service Information ....................... 671
Climate Control System ........................... 223
Changing the Mode................................ 226
Defrosting the Windshield and Windows .............................................. 229
Dust and Pollen Filter .............................. 604
Rear Climate Control System................... 230
Sensors ................................................... 234
Synchronized Mode ................................ 227
Using Automatic Climate Control............ 223
Clock ......................................................... 142
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 525
Coat Hook ................................................ 219
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 525
Compact Spare Tire .......................... 615, 663
19 ACURA MDX E-AWD-31TRX6200.book 676 ページ ２０１８年６月２２日　金曜日　午後７時４２分

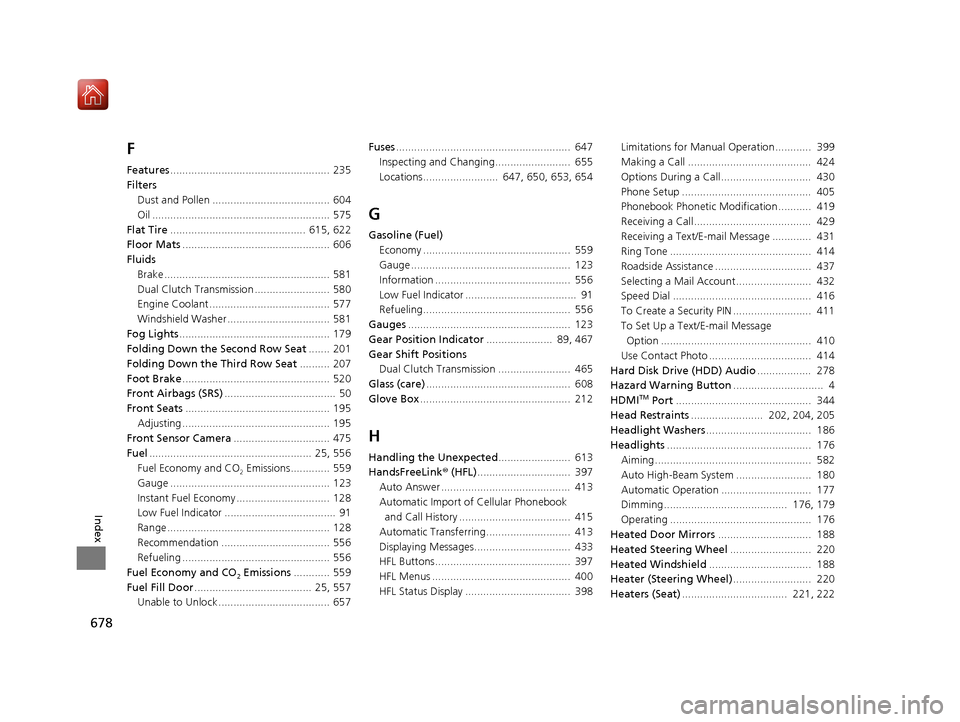

678
Index
F
Features..................................................... 235
Filters Dust and Pollen ....................................... 604
Oil ........................................................... 575
Flat Tire ............................................. 615, 622
Floor Mats ................................................. 606
Fluids
Brake ....................................................... 581
Dual Clutch Transmission ......................... 580
Engine Coolant ........................................ 577
Windshield Washer .................................. 581
Fog Lights .................................................. 179
Folding Down the Second Row Seat ....... 201
Folding Down the Third Row Seat .......... 207
Foot Brake ................................................. 520
Front Airbags (SRS) ..................................... 50
Front Seats ................................................ 195
Adjusting ................................................. 195
Front Sensor Camera ................................ 475
Fuel ...................................................... 25, 556
Fuel Economy and CO
2 Emissions............. 559
Gauge ..................................................... 123
Instant Fuel Economy ............................... 128
Low Fuel Indicator ..................................... 91
Range ...................................................... 128
Recommendation .................................... 556
Refueling ................................................. 556
Fuel Economy and CO
2 Emissions ............ 559
Fuel Fill Door ....................................... 25, 557
Unable to Unlock ..................................... 657 Fuses
.......................................................... 647
Inspecting and Changing......................... 655
Locations......................... 647, 650, 653, 654
G
Gasoline (Fuel)
Economy ................................................. 559
Gauge ..................................................... 123
Information ............................................. 556
Low Fuel Indicator ..................................... 91
Refueling................................................. 556
Gauges ...................................................... 123
Gear Position Indicator ...................... 89, 467
Gear Shift Positions Dual Clutch Transmission ........................ 465
Glass (care) ................................................ 608
Glove Box .................................................. 212
H
Handling the Unexpected ........................ 613
HandsFreeLink ® (HFL) ............................... 397
Auto Answer ........................................... 413
Automatic Import of Cellular Phonebook
and Call History ..................................... 415
Automatic Transferring............................ 413
Displaying Messages................................ 433
HFL Buttons............................................. 397
HFL Menus .............................................. 400
HFL Status Display ................................... 398 Limitations for Manual Operation ............ 399
Making a Call ......................................... 424
Options During a Call.............................. 430
Phone Setup ........................................... 405
Phonebook Phonetic M
odification........... 419
Receiving a Call....................................... 429
Receiving a Text/E-mail Message ............. 431
Ring Tone ............................................... 414
Roadside Assistance ................................ 437
Selecting a Mail Account......................... 432
Speed Dial .............................................. 416
To Create a Security PIN .......................... 411
To Set Up a Text/E-mail Message Option .................................................. 410
Use Contact Photo .................................. 414
Hard Disk Drive (HDD) Audio .................. 278
Hazard Warning Button .............................. 4
HDMI
TM Port ............................................. 344
Head Restraints ........................ 202, 204, 205
Headlight Washers ................................... 186
Headlights ................................................ 176
Aiming.................................................... 582
Auto High-Beam System ......................... 180
Automatic Operation .............................. 177
Dimming......................................... 176, 179
Operating ............................................... 176
Heated Door Mirrors ............................... 188
Heated Steering Wheel ........................... 220
Heated Windshield .................................. 188
Heater (Steering Wheel) .......................... 220
Heaters (Seat) ................................... 221, 222
19 ACURA MDX E-AWD-31TRX6200.book 678 ページ ２０１８年６月２２日　金曜日　午後７時４２分

681
Index
Open Source Licenses.............................. 340
Opening/Closing
Hood ...................................................... 570
Moonroof ............................................... 171
Power Windows...................................... 169
Tailgate................................................... 158
Operating the Switches Around the Steering Wheel ....................................... 172
Outside Temperature Display ................. 127
Overhead Screen ...................................... 345
Overheating ............................................. 639
P
Paddle Shifters (Sequential Mode) ......... 472
Pandora ®.................................................. 298
Panic Mode ............................................... 168
Parking ..................................................... 534
Parking Brake ........................................... 517
Parking Brake and Brake System Indicator ........................................... 84, 643
Parking Sensor System ............................. 536
Passenger Front Airb ag Off Indicator....... 60
Passing Indicators ..................................... 176
POWER Button ......................................... 172
Power Tailgate ......................................... 160
Power Windows ....................................... 169
Precautions While Driving ....................... 463
Driving Guidelines for Your Utility Vehicle .................................................. 463
Rain ........................................................ 463 Pregnant Women
....................................... 45
Puncture (Tire) .................................. 615, 622
R
Radiator.................................................... 578
Radio (AM/FM) .......................................... 261
Radio (SiriusXM ®) ..................................... 264
Radio Data System (RDS) .......................... 262
Range ........................................................ 128
RDS (Radio Data System) .......................... 262
Readiness Codes (Emissions Testing) ....... 667
Rear Climate Control System ................... 230
From the Front Panel ............................... 230
From the Rear Panel ................................ 233
Rear Defogger/Heated Door Mirror
Button ..................................................... 188
Rear Entertainment System (RES) ............ 342
Auxiliary Console Panel ............................ 343
Front Control Panel Operation ................. 356
HDMI
TM Port ............................................ 344
Operating the System .............................. 345
Overhead Screen ..................................... 345
Playable Discs .......................................... 361
Playing a DVD .......................................... 346
Rear Control Panel Operation .................. 346
Wireless Headphones .............................. 342
Rear Seats .................................................. 207
Second Row Seat ............................. 200, 201
Third Row Seat ........................................ 207
Rearview Mirror ........................................ 192 Refueling
.................................................. 556
Fuel Gauge.............................................. 123
Gasoline .......................................... 556, 662
Low Fuel Indicator ..................................... 91
Regenerative Energy and Regenerative
Braking ...................................................... 12
Regulations ............................... 514, 594, 665
Remote Engine Start with Vehicle
Feedback ................................................. 459
Checking Door Lock Status...................... 153
Remote Transmitter ................................. 150
Replacement Battery .................................... 601, 602, 603
Bulbs ....................................................... 582
Front Wiper Blade Rubber ....................... 587
Fuses ............................... 647, 650, 653, 654
Rear Wiper Blade Rubber......................... 589
Tires ........................................................ 597
Reporting Safety Defects ......................... 666
Resetting a Trip Meter ............................. 127
Reverse Tilt Door Mirror .......................... 193
Right Selector Wheel ....................... 125, 131
Road Departure Mitigation (RDM) ......... 492
On and Off.............................................. 494
S
Safe Driving ................................................ 33
Safety Checklist .......................................... 38
Safety Labels ............................................... 81
Safety Message ............................................. 1
19 ACURA MDX E-AWD-31TRX6200.book 681 ページ ２０１８年６月２２日　金曜日　午後７時４２分

682
Index
Seat Belts..................................................... 39
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 46
Detachable Anchor .................................... 44
Fastening ................................................... 42
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 72
Pregnant Women ...................................... 45
Reminder ................................................... 40
Warning Indicator ................................ 40, 91
Seat Heaters ...................................... 221, 222
Seat Ventilation ........................................ 221
Seats .......................................................... 195
Adjusting ................................................. 195
Driver’s Seat Lumbar Support................... 195
Front Seats .............................................. 195
Rear Seats................................................ 207
Seat Heaters .................................... 221, 222
Seat Ventilation ....................................... 221
Second Row Seat ............................. 200, 201
Third Row Seat ........................................ 207
Second Row Outer Seats Heaters ............ 222
Second Row Seat (Folding Down) ........... 201
Security System ......................................... 166
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator ................. 97
Selecting a Child Seat ................................. 66
Sequential Mode ...................................... 471
Sequential Mode Operation .................... 472
Setting the Clock ...................................... 142 SH-AWD®
Torque Distribution Monitor .. 129
Shift Button ........................................ 23, 465
Operation................................................ 467
Shifting (Transmission) ....................... 23, 465
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 56
Side Curtain Airbags .................................. 58
Siri Eyes Free ............................................. 305
SiriusXM ® Radio ........................................ 264
Snow Tires ................................................. 599
Sounds Unique to the SPORT HYBRID
SH-AWD® System...................................... 13
Spare Tire .......................................... 615, 663
Spark Plugs ............................................... 662
Specifications ............................................ 662
Specified Fuel ................................... 556, 662
Speedometer ............................................ 123
Speed-sensitive Electric Power Steering (EPS) System
Indicator............................................ 95, 643
SPORT HYBRID Super Handling-All Wheel Drive
TM (SPORT HYBRID SH-AWD ®) ....... 508
SRS Airbags (Airbags) ................................. 50
Steering Wheel ......................................... 191
Adjusting ................................................ 191
Heater ..................................................... 220
Stopping ................................................... 534
Summer Tires ............................................ 599
Sunglasses Holder ..................................... 220
Supplemental Restraint System (SRS) ........ 50
Surround View Camera System ............... 546Switches (Around the Steering
Wheel) ............................................ 4, 5, 172
Synchronized Mode ................................. 227
System Message Indicator ......................... 97
T
Tachometer.............................................. 123
Tailgate ..................................................... 158
Unable to Open ...................................... 658
Temperature Outside Temperature Display .................. 127
Temperature Sensor ........................ 127, 234
Temporary Tire Repair Kit ....................... 623
Text Message .................................... 431, 433
Third Row Seat (Folding Down) .............. 207
Third Row Seat Access ............................. 200
Tie-down Anchors .................................... 219
Time (Setting) ........................................... 142
Tire Fill Assist .................................... 512, 645
Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist ................................. 512
Indicator ........................................... 95, 645
Tire Repair Kit .......................................... 622
Tires .......................................................... 591
Air Pressure..................................... 592, 663
Checking and Maintaining ...................... 591
Inspection ............................................... 591
Labeling .................................................. 592
Puncture (Flat Tire) .......................... 615, 622
Regulations ............................................. 594
19 ACURA MDX E-AWD-31TRX6200.book 682 ページ ２０１８年６月２２日　金曜日　午後７時４２分
