display Acura MDX HYBRID 2020 Owner's Guide

116
uuIndicators uMulti-Information Display (MID) Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the high voltage battery temperature is
too low to operate (approx. –22°F [–30°C] or below).●You can start the engine and use the climate control
system to warm up the inte rior, which will also warm
the high voltage battery en ough for you to drive the
vehicle.
●The engine speed does not in crease even if you fully
depress the accelerator pedal.
●Appears when the high voltage battery and other
system control temperatures are too low to operate
(approx. –40°F [–40°C] or below).●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
●Consult a dealer.
●Appears when the high voltage battery is running
extremely low due to continuous slow driving.●Driving at low speed for a long time decreases the
amount of electricity generate d, leading to high voltage
battery drain.
●Appears when the high voltage battery is drained even
further and a stop is needed to charge the battery.●Stop in a safe place in (P, then charge the high voltage
battery by idling the engine.
2 If the 12-Volt Battery Charging System Indicator
Comes On P. 642
●Appears while the high voltage battery is being charged
with the engine running after the vehicle is parked with
an extremely low battery level.●Do not drive the vehicle until Ready To Drive appears.
2READY Indicator P. 92
20 ACURA MDX E-AWD-31TRX6302.book 116 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

117
uuIndicators uMulti-Information Display (MID) Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the rear motor fluid temperature is
extremely low.●The vehicle speed is temporarily limited up to 81 mph
(130 km/h).
This is canceled after the fluid temperature rises.
●Appears if the AWD system has a problem due to a
hybrid system or power di stribution control failure.●Set the power mode to OFF, then set it back to ON.
Have your vehicle checked by a dealer if the message
appears again.
20 ACURA MDX E-AWD-31TRX6302.book 117 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

118
uuIndicators uMulti-Information Display (MID) Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Flashes when the system sens es a likely collision with a
vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 526
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
●Appears when ACC with Lo w Speed Follow has been
automatically canceled.●You can resume the set speed after the condition that
caused ACC with Low Speed Fo llow to cancel improves.
Press the RES/+ /SET/– switch up.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
●Appears when the vehicle sp eed slows down to 25 mph
(40 km/h) and the vehicle ahead of you goes out of the
ACC with Low Speed Follow range while ACC with Low
Speed Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
●Appears when pressing the RES/+/SET/– switch down
while the vehicle speed is le ss than 25 mph (40 km/h)
and the vehicle ahead of you goes out of the ACC with
Low Speed Follow range.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
●Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with
Low Speed Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
20 ACURA MDX E-AWD-31TRX6302.book 118 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

119
uuIndicators uMulti-Information Display (MID) Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when pressing the RES/+/SET/– switch down
while the distance between yo ur vehicle and the vehicle
ahead of you is too close.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
●Appears when pressing the RES/+/SET/– switch down
while the driver’s seat belt is unfastened.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
●Appears when pressing the RES/+/SET/– switch down
while the transmission is not in
(D.
●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
20 ACURA MDX E-AWD-31TRX6302.book 119 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

120
uuIndicators uMulti-Information Display (MID) Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is stopped on a very steep
slope while ACC with Low Speed Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
●Appears when pressing the RES/+/SET/– switch down
while the vehicle is stopped on a very steep slope.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
●Appears when pressing the RES/+/SET/– switch down
while the parking brake is applied.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
2 Parking Brake P. 518
20 ACURA MDX E-AWD-31TRX6302.book 120 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

121
uuIndicators uMulti-Information Display (MID) Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if ACC with Low Sp eed Follow is canceled
while your vehicle is automatically stopped by ACC with
Low Speed Follow. The beeper sounds.●Immediately depress the brake pedal.
●Appears when pressing the RES/+/SET/– switch down
while the vehicle is moving and the brake pedal is
depressed.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 477
●Appears when you unlock an d open the driver’s door
while the power system is on by two-way keyless access
remote.
2 Remote Engine Start with Vehicle Feedback P. 459
20 ACURA MDX E-AWD-31TRX6302.book 121 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

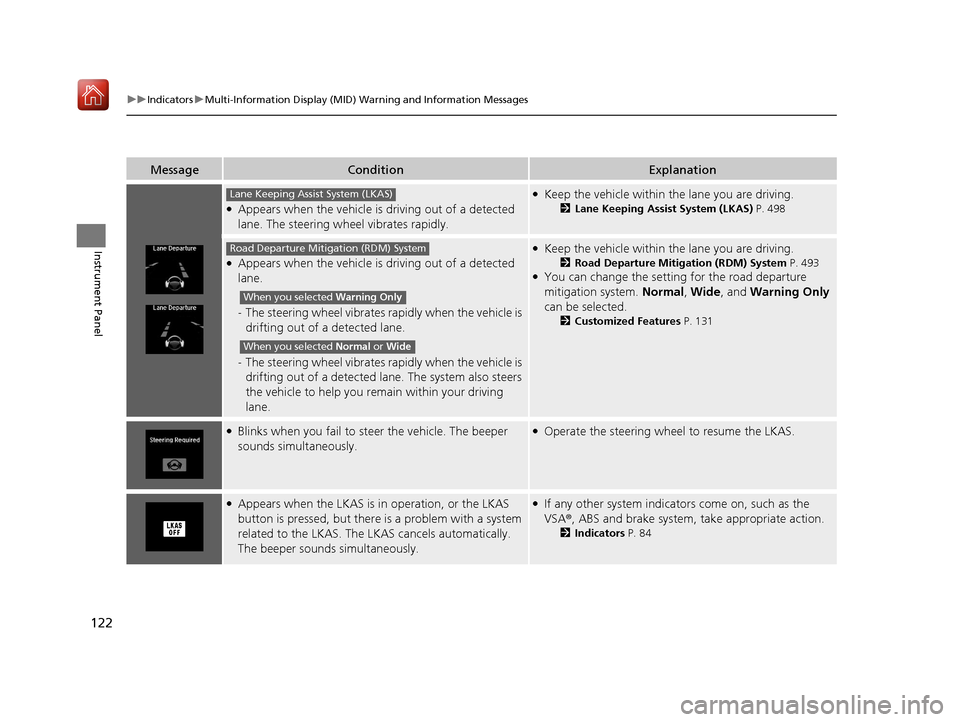

122
uuIndicators uMulti-Information Display (MID) Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2 Lane Keeping Assist System (LKAS) P. 498
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the vehicle is
drifting out of a detected lane.
- The steering wheel vibrates rapidly when the vehicle is
drifting out of a detected lane. The system also steers
the vehicle to help you remain within your driving
lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 493●You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 131
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering wheel to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a system
related to the LKAS. The LK AS cancels automatically.
The beeper sounds simultaneously.●If any other system indicators come on, such as the
VSA ®, ABS and brake system, take appropriate action.
2Indicators P. 84
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
20 ACURA MDX E-AWD-31TRX6302.book 122 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

123Continued
Instrument Panel
Gauges and Multi-Information Display (MID)
Gauges
Gauges include the speedometer, tachometer, fuel gauge, high voltage battery
charge level gauge, and related indicators. They are displayed when the power
mode is in ON.
Displays your driving speed in mph (U.S.) or km/h (Canada).
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
■Speedometer
■Tachometer
■Fuel Gauge1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
20 ACURA MDX E-AWD-31TRX6302.book 123 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

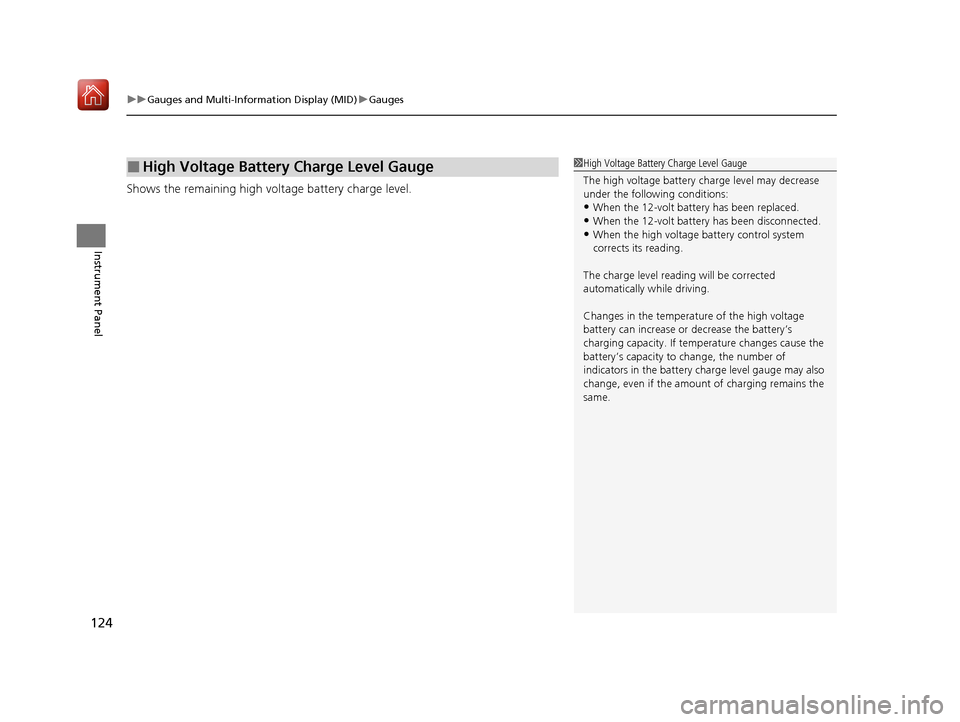

uuGauges and Multi-Information Display (MID) uGauges
124
Instrument Panel
Shows the remaining high voltage battery charge level.
■High Voltage Battery Charge Level Gauge1High Voltage Battery Charge Level Gauge
The high voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.
•When the 12-volt battery has been disconnected.•When the high voltage battery control system
corrects its reading.
The charge level readi ng will be corrected
automatically while driving.
Changes in the temperature of the high voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charging remains the
same.
20 ACURA MDX E-AWD-31TRX6302.book 124 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

125
uuGauges and Multi-Info rmation Display (MID)uMID
Continued
Instrument Panel
MID
The MID shows the odometer, trip meter, ou tside temperature indicator, and other
gauges. It also displays important messag es such as warnings and other helpful
information.
■Main displays
Roll the multi-function steering-wheel controls to change the display.
■Switching the Display
BlankInstant Fuel
Economy/
Average Fuel
Economy Range
Elapsed Time Average Speed
SH-AWD®/
Dynamic Mode
Vehicle
Settings Tire Pressure
for Each Tire Engine Oil Life Turn-by-Turn
Directions
Multi-function Steering-
wheel Controls Compass
20 ACURA MDX E-AWD-31TRX6302.book 125 ページ ２０２０年２月１１日　火曜日　午後１時
