display Acura MDX HYBRID 2020 Owner's Guide

126
uuGauges and Multi-Information Display (MID) uMID
Instrument Panel
■Lower displays
Press the TRIP button to change the display.
Shows the total number of miles (U.S.) or ki lometers (Canada) that your vehicle has
accumulated.
■Odometer
TRIP Button
Outside Temperature
Trip A Trip B
Odometer
TRIPTRIP
TRIP
20 ACURA MDX E-AWD-31TRX6302.book 126 ページ ２０２０年２月１１日　火曜日　午後１時
４５分

Continued127
uuGauges and Multi-Info rmation Display (MID)uMID
Instrument Panel
Shows the total number of miles (U.S.) or k ilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP button until the trip
meter is reset to 0.0.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5 °F or ±3°C if the temperature reading
seems incorrect.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
■Trip Meter
■Outside Temperature
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1Outside Temperature
The temperature sensor is located in the front
bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the MID’s customized features to correct the
temperature.
2 Customized Features P. 131
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 131
20 ACURA MDX E-AWD-31TRX6302.book 127 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

uuGauges and Multi-Information Display (MID) uMID
128
Instrument Panel
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the estimated distance you can travel on the remaining power and fuel. This
estimated distance is based on the vehicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in m ph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.
■Instant Fuel Economy
■Range
■Elapsed Time
■Average Speed
1 Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 131
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 131
20 ACURA MDX E-AWD-31TRX6302.book 128 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

Continued129
uuGauges and Multi-Info rmation Display (MID)uMID
Instrument Panel
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 SPORT HYBRID Super Handling-All Wheel
DriveTM (SPORT HYBRID SH-AWD® ) P. 509
Shows the current mode for Dynamic Mode.
2 Integrated Dynamics System P. 474
■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 310
■SH-AWD® Torque Distribution Monitor
■Current Mode for Dynamic Mode
■Navigation1 Navigation
You can select whether the turn-by-turn display
comes on or not during the route guidance.
2 Customized Features P. 131, 362
20 ACURA MDX E-AWD-31TRX6302.book 129 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

130
uuGauges and Multi-Information Display (MID) uMID
Instrument Panel
Shows the remaining oil life and Maintenance MinderTM.
2 Maintenance MinderTM P. 565
Shows each tire’s pressure.
2Tire Pressure Monitoring System (TPMS) with Tire Fill Assist P. 513
■Engine Oil Life and Maintenance Items
■Tire Pressure Monitor
20 ACURA MDX E-AWD-31TRX6302.book 130 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

Continued131
uuGauges and Multi-Info rmation Display (MID)uMID
Instrument Panel
Use the MID to customize certain features.
■How to customize
Select the Vehicle Settings screen by rolling the mu lti-function steering-wheel
controls while the power mode is in ON, an d the vehicle is at a complete stop. Push
the multi-function steering-wheel controls.
■Customized Features1 Customized Features
To customize other features , roll the multi-function
steering-wheel controls.
2 List of customizable options P. 134
2 Example of customization settings P. 139
Customization is possible when you see the driver’s
ID ( Driver 1 or Driver 2 ) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.
Put the transmission into
( P before you attempt to
change any customized setting.
Customizing is also available from the information
screen.
You cannot have Vehicle Settings displayed on the
multi-information display while the information
screen shows the same menu. 2 Customized Features P. 362
Multi-function Steering-
wheel Controls
Roll: Changes the
customize menus and
items.
Push: Enter the selected
item.
MID: Goes to
Vehicle Settings.
20 ACURA MDX E-AWD-31TRX6302.book 131 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

132
uuGauges and Multi-Information Display (MID) uMID
Instrument Panel
■Customization flow
Roll the multi-function steering-wheel controls to select Vehicle Settings and push the multi-function steering-wheel controls.
Vehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
Memory Position Link
Door Unlock Mode
Keyless Access Beep
Driver Assist System Setup
Meter Setup
Driving Position Setup
Keyless Access Setup
“Trip B” Reset Timing
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
ACC Display Speed Unit
Push
Lane Keeping Assist Suspend Beep
Blind Spot Info
Easy Entry/Exit
Roll
Walk Away Auto Lock
Push
Keyless Access Light Flash
Roll
Turn by Turn Display
Road Departure Mitigation Setting
Reverse Alert Tone
Remote Start System On/Off
RollRoll
Roll
Roll
Push
Push
Push
Push
Roll
Roll
Roll
20 ACURA MDX E-AWD-31TRX6302.book 132 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

133
uuGauges and Multi-Info rmation Display (MID)uMID
Continued
Instrument Panel
Exit
Door Setup
Dynamic Mode Setup
Default All
Lighting Setup
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Auto Folding Door Mirror
Interior Ligh t Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity*
Roll
Push
Push
Roll
Roll
Roll
Roll
Roll
Roll
Power Tailgate SetupPush
Power Open By Outer Handle
Keyless Open Mode
Push
Maintenance Info.
Roll
PushPreferred Dynamic Mode
Roll
Roll
Roll
PushMaintenance Reset
Security Relock Timer
* Not available on all models
20 ACURA MDX E-AWD-31TRX6302.book 133 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

134
uuGauges and Multi-Information Display (MID) uMID
Instrument Panel

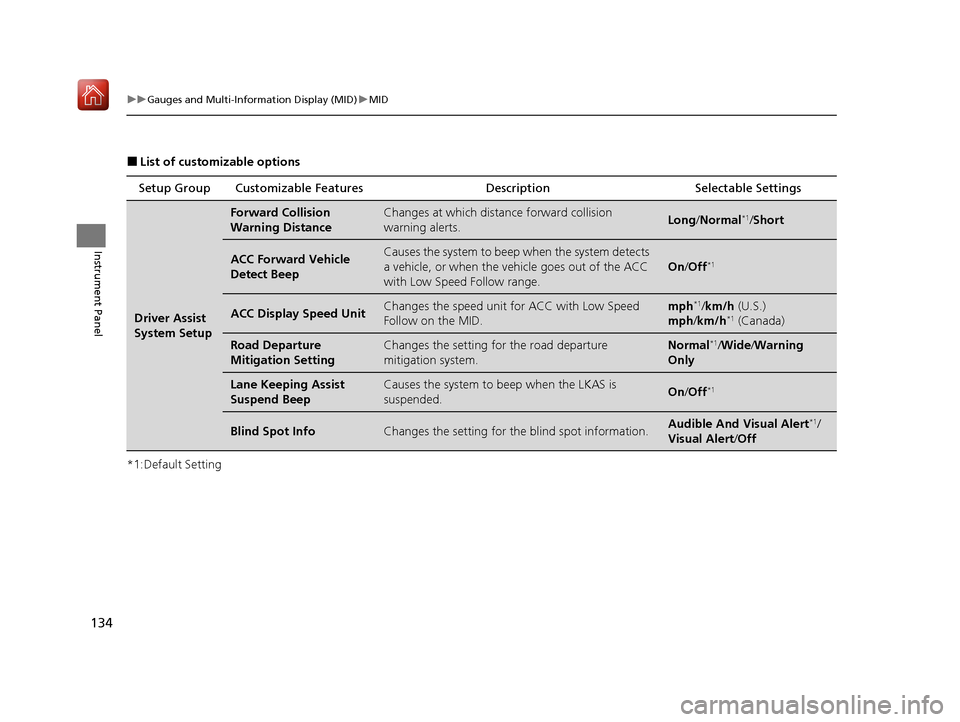

■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Driver Assist
System Setup
Forward Collision
Warning DistanceChanges at which distance forward collision
warning alerts.Long/Normal*1/Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects
a vehicle, or when the vehicle goes out of the ACC
with Low Speed Follow range.
On /Off*1
ACC Display Speed UnitChanges the speed unit for ACC with Low Speed
Follow on the MID.mph*1/km/h (U.S.)
mph /km/h*1 (Canada)
Road Departure
Mitigation SettingChanges the setting for the road departure
mitigation system.Normal*1/Wide /Warning
Only
Lane Keeping Assist
Suspend BeepCauses the system to beep when the LKAS is
suspended.On /Off*1
Blind Spot InfoChanges the setting for th e blind spot information.Audible And Visual Alert*1/
Visual Alert /Off
20 ACURA MDX E-AWD-31TRX6302.book 134 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

135
uuGauges and Multi-Info rmation Display (MID)uMID
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Meter Setup Language Selection
Changes the displayed language. English
*1/Français /Español
Adjust Outside Temp.
Display Adjusts the temperature r
eading by a few degrees. -5°F
~ ±0°F
*1 ~ +5°F (U.S.)
-3°C ~ ±0°C
*1 ~ +3°C (Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A,
average speed A, and
elapsed time A. When Refueled
/IGN Off/
Manually Reset
*1
“Trip B” Reset Timing Changes the setting of ho
w to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B. When Refueled
/IGN Off/
Manually Reset*1
Reverse Alert Tone Causes the beeper to so
und once when the change
the gear position to ( R. On*1/
Off
Turn by Turn Display Select whether the turn-by
-turn display comes on
during the route guidance. On
*1/
Off
