Acura MDX HYBRID 2020 Owner's Manual

650
uuFuses uFuse Locations
Handling the Unexpected
Located near the + terminal on the battery.
Pull up the cover.
Replacement of this fuse should be done by
a dealer.
Fuse location is shown on the back of the
positive battery terminal cover.
■Engine Compartment Fuse
Box Type C
FusePositive Battery
Terminal Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
Fan Main60 A
20 ACURA MDX E-AWD-31TRX6302.book 650 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

651
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1AS Door Lock10 A
2RR DR Door Lock7.5 A
3DR Door Lock7.5 A
4FR AS Door Unlock10 A
5RR DR Door Unlock7.5 A
6DR Door Unlock(7.5 A)
7D/L Main20 A
8−−
9ETS TELE20 A
10 IG1 RR 15 A
11Meter7.5 A
12 IG1 FR 20 A
13ACC7.5 A
14 − −
15DR P/Seat (SLI)20 A
16 S/R 20 A
17RR DR P/W20 A
18 Smart 10 A
19FR DR P/W20 A
20 − −
21Fuel Pump20 A
22 IG1 AS 15 A
23ABS/VSA7.5 A
24 ACG AS 7.5 A
25STRLD7.5 A
26 IG2 HAC 7.5 A
27DRL7.5 A
28 ACC Key Lock 7.5 A
29DR P/Seat (LUM)7.5 A
30 INT Lights 7.5 A
31ETS TILT20 A
32 DR P/Seat (REC) 20 A
33−−
34−−
Circuit ProtectedAmps
20 ACURA MDX E-AWD-31TRX6302.book 651 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

652
uuFuses uFuse Locations
Handling the Unexpected
Located under the type A driver’s side
interior fuse box. Take off the cover to
open.
Fuse locations are shown on the label on
the back side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side In terior Fuse Box
Type B
Fuse Box Side Panel Cover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DCT20 A
2−−
3DCT20 A
4IG Main30 A
5Hybrid System10 A
6Hybrid System15 A
7Hybrid System15 A
8DCT30 A
20 ACURA MDX E-AWD-31TRX6302.book 652 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

653
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the type A driver’s side
interior fuse box. Take off the cover to
open.
Fuse locations are shown on the label on
the back side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Type C
Fuse Box Side Panel Cover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ADS30 A
2−−
3−−
4IG Main30 A
5Smart10 A
6A/C Water Pump10 A
7−−
8Starter Motor30 A
20 ACURA MDX E-AWD-31TRX6302.book 653 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

654
uuFuses uFuse Locations
Handling the Unexpected
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Cover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2RR AS P/W20 A
3ACM20 A
4FR DEF*(15 A)
5AVS Heated Seat20 A
6FR AS P/W20 A
7AS P/Seat (SLI)20 A
8AS P/Seat (REC)20 A
9AS P/Seat (LUM)(7.5 A)
10Spare5 A
11Heated Steering*(10 A)
12−−
13−−
14RR ACC Socket20 A
15FR ACC Socket20 A
16−−
17−−
18AMP30 A
19SRS10 A
20AS ECU7.5 A
21Option7.5 A
22−−
23−−
24OPDS7.5 A
25ILLUMI (INT)5 A
26−−
27CTR ACC Socket20 A
28AC INVTR*(30 A)
Circuit ProtectedAmps
* Not available on all models
20 ACURA MDX E-AWD-31TRX6302.book 654 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

655
uuFuses uFuse Locations
Handling the Unexpected
Located on the left side of cargo area.
Remove the cover by prying on the edge of
the cover using a fl at-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
Fuse locations are shown on the cover.
Locate the fuse in question by the fuse
number and box cover number.
■Rear Fuse Box
Fuse Label
Fuse BoxCover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1PTG Closer20 A
2−−
3USB CHARGE15 A
4Fuel Lid7.5 A
5Seat Slide20 A
6−−
7RR Heat Seat*(20 A)
8−−
9−−
10−−
11−−
12Rear Wiper10 A
13Rear ECU7.5 A
14SH-AWD(20 A)
15EPB-R30 A
16EPB-L30 A
17−−
18PTG MTR40 A
* Not available on all models
20 ACURA MDX E-AWD-31TRX6302.book 655 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

656
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperageM
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM 2 Fuse Locations P. 648
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
Blown Fuse
20 ACURA MDX E-AWD-31TRX6302.book 656 ページ ２０２０年２月１１日　火曜日　午後１時
４５分

657
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will dama ge the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle

658
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate.
2. Lift the cargo floor lid by the handle in the
center.
3. Remove the cargo floor box and set it aside.
4. Wrap a cloth around the flat-tip
screwdriver. Put it in to the cover slot (as
shown in the image) and remove the cover.
5. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Lever
20 ACURA MDX E-AWD-31TRX6302.book 658 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

659
Handling the Unexpected

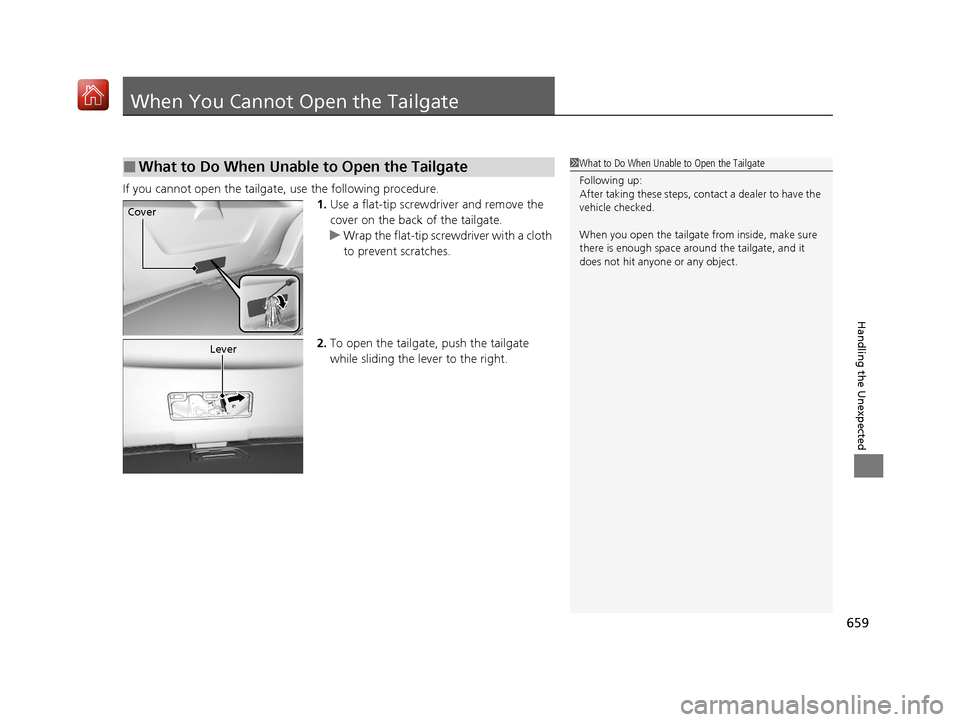

When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while sliding the lever to the right.
■What to Do When Unable to Open the Tailgate1What to Do When Unable to Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
20 ACURA MDX E-AWD-31TRX6302.book 659 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分
