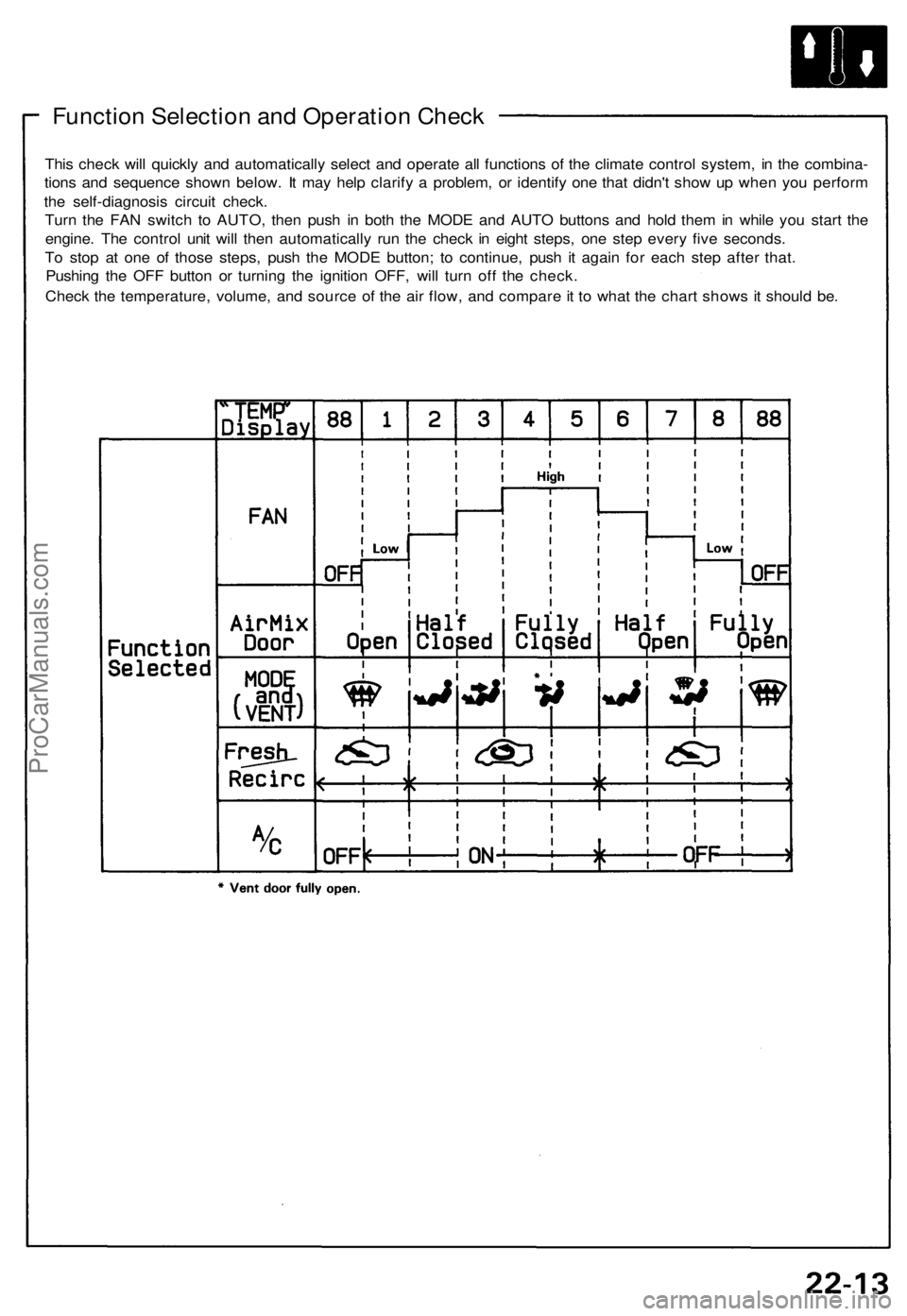

Function Selection and Operation Check

This check will quickly and automatically select and operate all functions of the climate control system, in the combina-

tions and sequence shown below. It may help clarify a problem, or identify one that didn't show up when you perform

the self-diagnosis circuit check.

Turn the FAN switch to AUTO, then push in both the MODE and AUTO buttons and hold them in while you start the

engine. The control unit will then automatically run the check in eight steps, one step every five seconds.

To stop at one of those steps, push the MODE button; to continue, push it again for each step after that.

Pushing the OFF button or turning the ignition OFF, will turn off the check.

Check the temperature, volume, and source of the air flow, and compare it to what the chart shows it should be.ProCarManuals.com

Modulator/Solenoid Unit

Solenoid Leak Test

1. Disconnect the 6-P inspection connector (PNK) from the connector cover located under the glovebox and connect the inspection connector to the
ALB checker.

ANTI-LOCK BRAKE SYSTEM
INDICATOR LIGHT

CONNECTOR

COVER

ALB CHECKER

07HAJ - SG00100 or
07HAJ - SG0010B (US)

07HAJ - SG00200 (Canada)
6-P INSPECTION

CONNECTOR

CAUTION: Place the vehicle on level ground with
the wheels blocked. Put the transmission in neutral
for manual transmission models, and in P for automatic transmission models.
2. Remove the modulator reservoir filter, then fill the modulator reservoir to the MAX level.
NOTE: Do not reuse aerated brake fluid that has
been bled from the power unit.
3. Bleed high pressure fluid from the maintenance bleeder with the special tool.
BLEEDER T-WRENCH

07HAA-SG00100
or

07HAA-SG00101

SOLENOID HEAD
MAINTENANCE
BLEEDER

8 x
1.25
mm
5.5 N·m
(0.55 kg-m,

4.0 Ib-ft)

POWER

UNIT

ACCUMULATOR/
PRESSURE SWITCH
If you can feel back fluid coming from the return
tube, one of the solenoids is leaking. Go to Solenoid Flushing.If you can feel brake fluid coming from the return
tube, one of the solenoids is leaking. Go to step
7.

If you can't feel brake fluid coming from the return tube, the solenoids are OK.
Reinstall the modulator reservoir filter and refill
the reservoir to the MAX level.
7. Bleed high-pressure fluid from the maintenance
bleeder with the special tool, then run through

modes 3 and 6 with the ALB checker. Repeat this

three or four times.

8. Repeat steps 5 and 6. If the solenoid leakage has stopped, reinstall the
modulator reservoir filter and refill the reservoir
to the MAX level. If one of the solenoids is still leaking, replace the
modulator/solenoid
unit.
SOLENOID

RETURN

TUBE
PUMP

SUPPLY

BRAKE

FLUID
SOLENOID RETURN

TUBE
Feel for brake

fluid here.

4. Start the engine and release the parking brake.
5. Turn the Mode Selector to 1 and press the Start Test button.
6. While the pump is running, place your finger over the top of the solenoid return tube in the modulator
reservoir.ProCarManuals.com
