Acura NSX 2017 Owner's Manual

440
uuIndicator, Coming On/Blinking uIf the Electric Parking Brake System Indicator Comes On
Handling the Unexpected

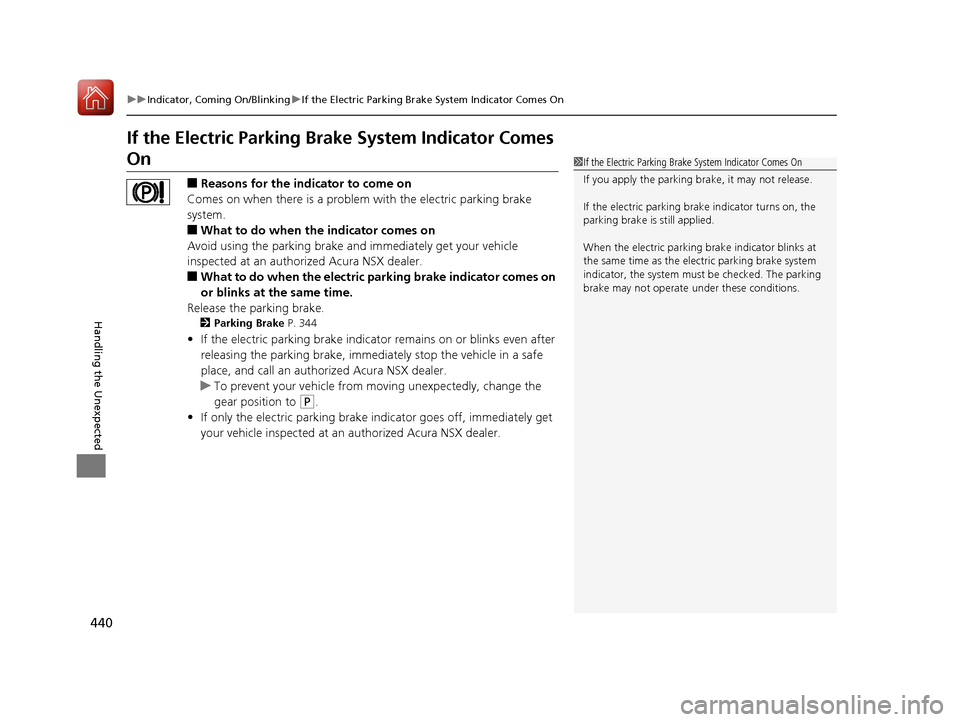

If the Electric Parking Brake System Indicator Comes
On
■Reasons for the indicator to come on
Comes on when there is a proble m with the electric parking brake
system.
■What to do when the indicator comes on
Avoid using the parking brake and immediately get your vehicle
inspected at an author ized Acura NSX dealer.
■What to do when the electric parking brake indicator comes on
or blinks at the same time.
Release the parking brake.
2 Parking Brake P. 344
•If the electric parking brake indicator remains on or blinks even after
releasing the parking brake, immedi ately stop the vehicle in a safe
place, and call an authorized Acura NSX dealer.
u To prevent your vehicle from moving unexpectedly, change the
gear position to
(P.
• If only the electric parking brake indicator goes off, immediately get
your vehicle inspected at an authorized Acura NSX dealer.
1If the Electric Parking Brake System Indicator Comes On
If you apply the parking brake, it may not release.
If the electric parking brake indicator turns on, the
parking brake is still applied.
When the electric parking br ake indicator blinks at
the same time as the electric parking brake system
indicator, the system must be checked. The parking
brake may not operate under these conditions.
17 NSX-31T6N6000.book 440 ページ ２０１６年４月２２日　金曜日　午後３時４４分

441
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
Tire pressure is significantly low in one or more of the tires. If there is a
problem with the TPMS, the indicato r blinks for about one minute, and
then stays on.
■What to do when th e indicator comes on
Drive carefully, avoid abrupt or sharp cornering, and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by an author ized Acura NSX dealer as soon as
possible.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
17 NSX-31T6N6000.book 441 ページ ２０１６年４月２２日　金曜日　午後３時４４分

442
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle insp ected by an authorized Acura NSX
dealer.
• Change the gear position to
(N when you turn the power system on.
u Check to verify the
(N position on the instrument panel is selected
and if the indicator on the
(N button is illuminating or blinking.
u The power system cannot be turned on unless the parking brake is
set.
2 Turning on the Power P. 309
If the Low Oil Level Symbol Appears
■Reasons for the symbol to appear
Appears when the engine oil level is low.
■What to do as soon as the symbol appears
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
Check the oil level.
2 Oil Check P. 377
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 448
1If the Low Oil Level Symbol Appears
NOTICE
Running the engine with a low oil level can cause
serious mechanical damage almost immediately.
This system activates after the engine warms up. If
the outside temperature is extremely low, you may
have to drive for a long time until the system senses
the engine oil level.
If the symbol appears agai n, turn the power system
off, and contact an authorized Acura NSX dealer for
repairs immediately.
17 NSX-31T6N6000.book 442 ページ ２０１６年４月２２日　金曜日　午後３時４４分

443Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK),
and check to see if any applicable fuse is
blown.
There are two fuse boxes under the hood.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Fuse box A
Located near the radiator. Push the tabs to
open the box.
■Hood Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
Cooling Fan50 A
ABS/VSA Motor40 A
ABS/VSA FSR20 A
AS F/B Main30 A
Main Fuse200 A
2
−(50 A)
F/B Main 1 60 A −(60A)
−(50A)
Left Electric Parking Brake Motor 30 A
Right Electric Parking Brake Motor 30 A
−(40A)
Heater Motor 2 30 A
Heater Motor 1 30 A −(40A)
3
E-OP30 A
−(30 A)
ADS30 A
AMP*(30 A)
4 Parking Light 10 A
5IGPS PCS7.5 A
6 Left Headlight High Beam 10 A
7VFP27.5 A
8 Left Headlight Low Beam 10 A
9Right Headlight High Beam10 A
10 Right Headlight Low Beam 10 A
11IGPS Fan7.5 A
12 FI Main 15 A
13FI Sub20 A
14 Back Up 7.5 A
15SBW ECU7.5 A
16 DBW1 15 A
17IG Coil15 A
18 DBW2 15 A
19Parking Light & Headlight Main20 A
20 Rear Defroster 20 A
21Front Washer20 A
22 ISC 15 A
23−−
24 ACC/IG2 Main 10 A
25Daytime Running Lights10 A
26 Horn 10 A
27Interior Lights7.5 A
28 IGP2 15 A
29Audio10 A
Circuit ProtectedAmps
* Not available on all models
17 NSX-31T6N6000.book 443 ページ ２０１６年４月２２日　金曜日　午後３時４４分

444
uuFuses uFuse Locations
Handling the Unexpected
■Fuse box B
Located near the 12-volt battery. Remove
the maintenance cover, then push the tabs
to open the box.
2 Checking the 12-Volt Battery P. 403
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
SBW60 A
−−
F/B Main 260 A
Wiper30 A
Passenger Power Window30 A
IG Main 130 A
Driver Power Window30 A
ESB40 A
2IG Main 230 A
3IMA Motor20 A
4BMS 7.5A
5Stop7.5 A
6 Turbo W/G 20 A
7Hazard7.5 A
8A/C W/P 10A
9−−
10 AEV 7.5 A
11FI-ECU Backup7.5 A
12 − −
13−−
14 − −
15−−
16 − −
17IMA Motor10 A
17 NSX-31T6N6000.book 444 ページ ２０１６年４月２２日　金曜日　午後３時４４分

445
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Passenger’s Door Handle10 A
2Door Lock15 A
3SMART7.5 A
4−−
5Front Accessory Power
Socket20 A
6Fuel Pump20 A
7MISS SOL15 A
8ENG7.5 A
9VSA/ABS7.5 A
10SRS10 A
11Power System 210 A
12−−
13Power System 110 A
14Fuel Lid7.5 A
15Driver’s Power Seat Reclining*(20 A)
16−(7.5 A)
17Seat Heater*(20 A)
18Driver’s Door Handle10 A
19−−
20Passenger’s Side Door Unlock7.5 A
21Daytime Running Lights7.5 A
22Key Lock7.5 A
23Air Conditioning7.5 A
24Feed Back IG1a7.5 A
25Instrument Panel Lights7.5 A
26Power Lumbar Support*(7.5 A)
27Parking Lights7.5 A
28Sub Main15 A
29Meter10 A
30DR27.5 A
31Sub Fuel Pump15 A
32SRS10 A
33Passenger’s Side Door Lock7.5 A
34Driver’s Door Lock7.5 A
35Driver’s Door Unlock7.5 A
36Driver’s Power Seat Sliding*(20 A)
37Right Daytime Running
Light7.5 A
38Left Daytime Running Light7.5 A
39Feed Back IG1b7.5 A
40ACC7.5 A
41−−
42−−
Circuit ProtectedAmps
* Not available on all models
17 NSX-31T6N6000.book 445 ページ ２０１６年４月２２日　金曜日　午後３時４４分

446
uuFuses uFuse Locations
Handling the Unexpected
Located inside the passenger’s side under
cover. Remove the clips using a Phillips-
head screwdriver, then open the under
cover.
Fuse locations are shown on the label on
the under cover.
Locate the fuse in question by the fuse
number and label number.
■Passenger’s Side Interior Fuse
Box
Fuse Box
Fuse Label
Under Cover
Clip
■Circuit protected and fuse rating
Circuit ProtectedAmps
aPassenger’s Power Seat
Sliding*(20 A)
bPassenger’s Power Seat Reclining*(20 A)
c−(10 A)
d−−
eWiper7.5 A
fEPS7.5 A
gDR17.5 A
hPower System 37.5 A
Located near the rear center speaker.
Fuse locations are shown on the hood fuse
box A cover.
Have an authorized Acura NSX dealer
inspect and replace the fuse.
■Circuit protected and fuse rating
■Rear Side Interior Fuse Box
Fuse Box
Circuit ProtectedAmps
1HCA-220 A
2−−
3−−
4−−
5HCA-120 A
6DI-INJ20 A
7−−
8TCU30 A
* Not available on all models
17 NSX-31T6N6000.book 446 ページ ２０１６年４月２２日　金曜日　午後３時４４分

447
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the hood.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the hood and the
vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 443
There is a fuse puller on the back of the hood fuse
box A cover.
Combined
Fuse Blown Fuse
Fuse Puller
17 NSX-31T6N6000.book 447 ページ ２０１６年４月２２日　金曜日　午後３時４４分

448
Handling the Unexpected

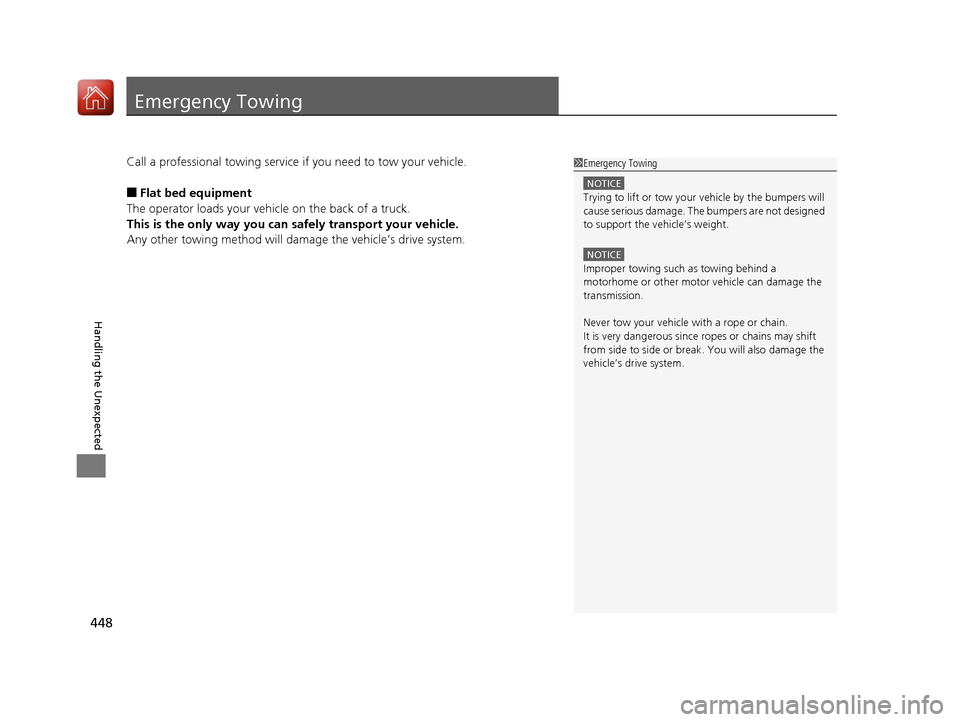

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break. You will also damage the
vehicle’s drive system.
17 NSX-31T6N6000.book 448 ページ ２０１６年４月２２日　金曜日　午後３時４４分

449
Handling the Unexpected

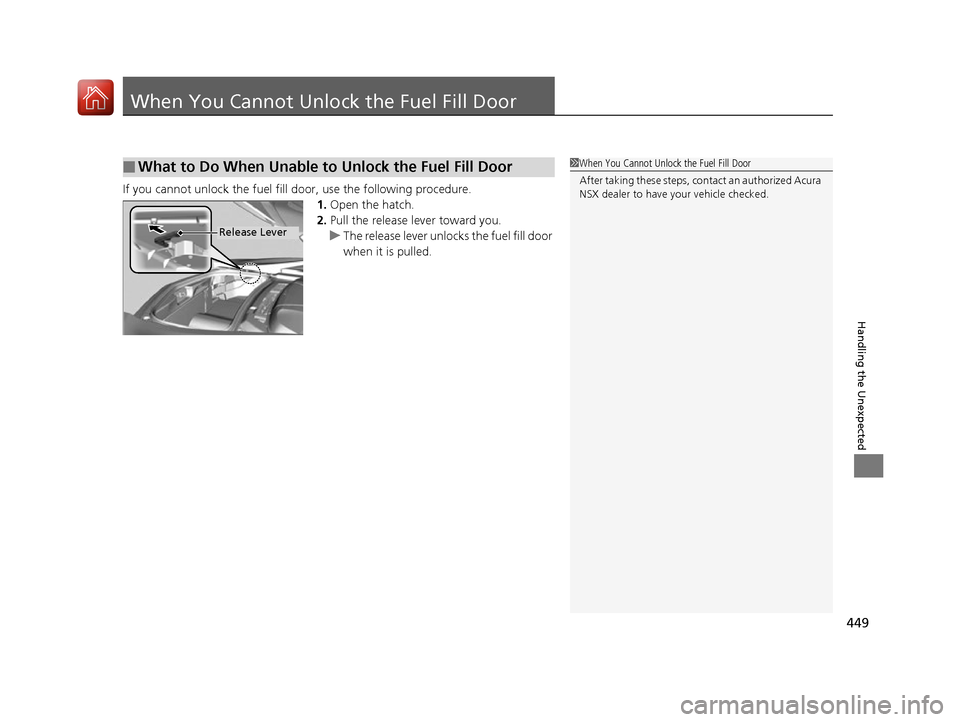

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the hatch.
2. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlock the Fuel Fill Door
After taking these steps, contact an authorized Acura
NSX dealer to have your vehicle checked.
Release Lever
17 NSX-31T6N6000.book 449 ページ ２０１６年４月２２日　金曜日　午後３時４４分
