clock setting Acura NSX 2017 Owner's Manual

17
Quick Reference Guide
Controls (P 103)
Clock (P 104)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
You can also adjust the time manually.
aSelect the (HOME) icon, then select
Settings.
bSelect Clock/Info , then Clock
Adjustment .
cTouch the / icon to adjust the
numbers up or down.
dSelect OK.
Models with navigation system
34
ENGINE START/STOP
Button
(P 127)
Press the button to ch anges the vehicle’s
power mode.
Turn Signals (P 130)
Lights (P 131)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
17 NSX-31T6N6000.book 17 ページ ２０１６年４月２２日　金曜日　午後３時４４分

104
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the power mode in ON.
■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select Clock/Info .
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
■Adjusting the Time
1Adjusting the Clock
The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
You cannot adjust the time while the vehicle is
moving.
Models with navigation system
Models with Display Audio
Models without navigation system
1 Using the Settings menu on the audio/information screen
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 232
The clock display is set to on by factory default.
You can turn the clock display on and off. 2 Customized Features P. 232
The clock is automatica lly updated when your
smartphone is connected to the audio system.
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Clock Adjustment.
3. Select or to change hour.
4. Select or to change minute, then select OK.
Models with Display Audio
34
34
34
34
17 NSX-31T6N6000.book 104 ページ ２０１６年４月２２日　金曜日　午後３時４４分

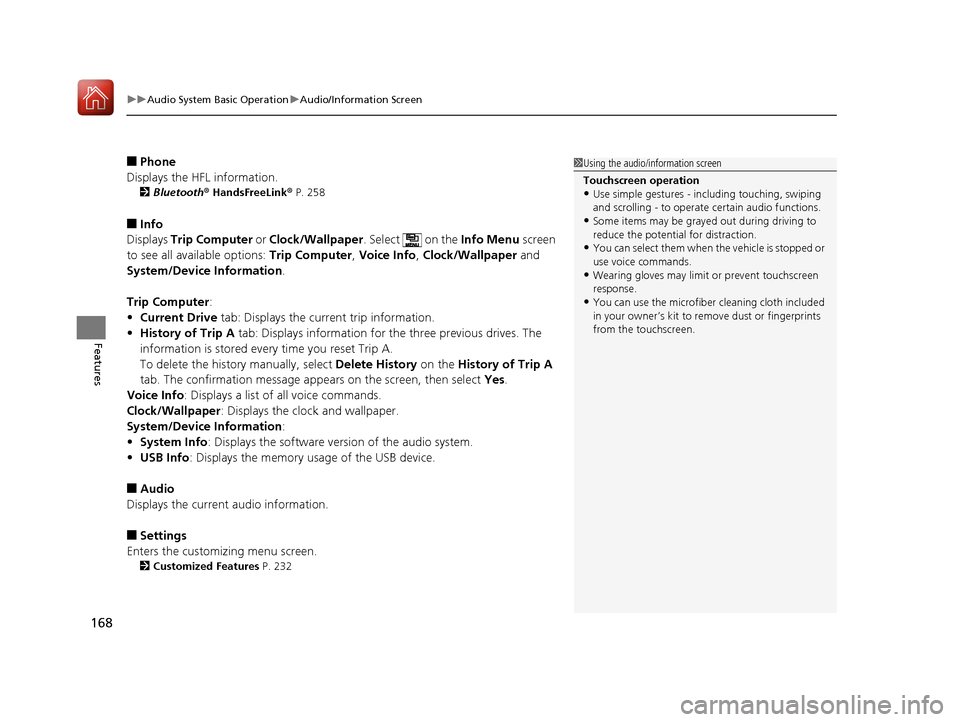

uuAudio System Basic Operation uAudio/Information Screen
168
Features
■Phone
Displays the HFL information.
2 Bluetooth® HandsFreeLink ® P. 258
■Info
Displays Trip Computer or Clock/Wallpaper . Select on the Info Menu screen
to see all available options: Trip Computer, Voice Info, Clock/Wallpaper and
System/Device Information .
Trip Computer :
• Current Drive tab: Displays the current trip information.
• History of Trip A tab: Displays information for the three previous drives. The
information is stored every time you reset Trip A.
To delete the history manually, select Delete History on the History of Trip A
tab. The confirmation message ap pears on the screen, then select Yes.
Voice Info: Displays a list of all voice commands.
Clock/Wallpaper : Displays the clock and wallpaper.
System/Device Information :
• System Info: Displays the software version of the audio system.
• USB Info : Displays the memory usage of the USB device.
■Audio
Displays the current audio information.
■Settings
Enters the customiz ing menu screen.
2Customized Features P. 232
1Using the audio/in formation screen
Touchscreen operation
•Use simple gestures - in cluding touching, swiping
and scrolling - to operate certain audio functions.
•Some items may be grayed out during driving to
reduce the potential for distraction.
•You can select them when the vehicle is stopped or
use voice commands.
•Wearing gloves may limit or prevent touchscreen
response.
•You can use the microfiber cleaning cloth included
in your owner’s kit to remo ve dust or fingerprints
from the touchscreen.
17 NSX-31T6N6000.book 168 ページ ２０１６年４月２２日　金曜日　午後３時４４分

Continued171
uuAudio System Basic Operation uAudio/Information Screen
Features
You can change, store, and delete the wallpaper on the audio/ information screen.
■Import wallpaper
You can import up to five images, one at a time, for wallpaper from a USB flash
drive. 1.Connect the USB flash drive to the USB
port.
2 USB Ports P. 163
2.Select Settings .
3. Select Clock/Info .
4. Select Clock/Wallpaper Type , then open
the Wallpaper tab.
5. Select Add New .
u The picture name is displayed on the list.
6. Select a desired picture.
u The preview is displayed on the left side
on the screen.
7. Select Start Import to save the data.
u The display will return to the wallpaper
list.
■Wallpaper Setup1Wallpaper Setup
The wallpaper you set up on Clock/Wallpaper Type
cannot be displayed on th e driver information
interface.
•When importing wallpaper files, the image must be
in the USB flash driv e’s root directory.
Images in a folder cannot be imported.
•The file name must be fewer than 64 characters.•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 5 MB.•The maximum image size is 4,096 × 4,096 pixels. If
the image size is less than 800 × 480 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•If the USB flash drive doe s not have any pictures,
the No files detected message appears.
17 NSX-31T6N6000.book 171 ページ ２０１６年４月２２日　金曜日　午後３時４４分

uuAudio System Basic Operation uAudio/Information Screen
172
Features
■Select wallpaper
1. Select Settings .
2. Select Clock/Info .
3. Select Clock/Wallpaper Type , then open the Wallpaper tab.
u The screen changes to the wallpaper list.
4. Select a desired wallpaper.
u The preview is displayed on the left side on the screen.
u The pop-up menu appears on the screen.
5. Select Set.
u The display will return to the wallpaper list.
■To view wallpaper once it is set
1. Select .
2. Select Info.
3. Select .
4. Select Clock/Wallpaper .
■Delete wallpaper
1. Select Settings .
2. Select Clock/Info .
3. Select Clock/Wallpaper Type , then open the Wallpaper tab.
u The screen changes to the wallpaper list.
4. Select a wallpaper that you want to delete.
u The preview is displayed on the left side on the screen.
u The pop-up menu appears on the screen.
5. Select Delete.
u A confirmation message appears on the screen.
6. Select Yes to delete completely.
u The display will return to the wallpaper list.
1Wallpaper Setup
From the pop-up menu, select Preview to see a
preview at full-size screen.
To go back to the previous screen, select OK, or
select .
When the file size is large, it takes a while to be
previewed.
To delete all wallpapers you add, select Delete All,
then Yes.
17 NSX-31T6N6000.book 172 ページ ２０１６年４月２２日　金曜日　午後３時４４分

233
uuCustomized Features u
Continued
Features
■Customization flow
Select Settings .
Clock
Wallpaper
Other
Clock/Wallpaper Type
Clock Adjustment
Clock Format
ClockClock/Info
Auto Time Zone*
Manual Time Zone*
Auto Daylight
Clock Display
Clock Reset
Info Screen Preference
AcuraLink*AcuraLink Subscr iption Status
Date Format
Default
Bluetooth On/Off Status
Bluetooth Device List
Edit Pairing Code
Wi-Fi On/Off Status
Wi-Fi Network List
Wi-Fi
BluetoothBluetooth/Wi-Fi
Wi-Fi Information
Fixed Guideline
Dynamic Guideline
Rear CameraCamera
Default
Default
* Not available on all models
17 NSX-31T6N6000.book 233 ページ ２０１６年４月２２日　金曜日　午後３時４４分

240
uuCustomized Features u
Features
■List of customizable options
*1:Default Setting Setup
Group Customizable Features Desc
ription Selectable Settings
Clock/
InfoClock
Clock/
Wallpaper
TypeClockChanges the clock display type.Analog/Digital*1/
Small Digital /Off
Wallpaper
●Changes the wallpaper type.●Imports an image file for a new wallpaper.●Deletes an image file for a wallpaper.
Blank /Galaxy*1/
Metallic /Time Zone
Clock AdjustmentAdjusts Clock.—
Clock FormatSelects the digital clock display from 12H to 24H.12H*1/24H
Date FormatChanges the date display type.
YYYY/MM/DD, MM/
DD/YYYY*1, DD/
MM/YYYY
Auto Time Zone*Automatically adjusts th e clock when driving
through different time zones.On*1/ Off
Manual Time Zone*Changes the time zone manually.—
Auto Daylight
Select On to have the GPS automatically adjust
the clock to daylight savings time. Select Off to
cancel this function.
On*1/ Off
Clock DisplaySelects whether the clock display comes on.On*1/Off
Clock ResetResets the clock settings to the factory default.Yes /No
* Not available on all models
17 NSX-31T6N6000.book 240 ページ ２０１６年４月２２日　金曜日　午後３時４４分

241
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Clock/
Info
AcuraLink*AcuraLink Subscription
StatusDisplays your current AcuraLink subscription
status.—
OtherInfo Screen Preference
Changes the information screen type.●Info Top- A brief menu pops up.●Info Menu- A full menu pops up.●Off- A menu does not pop up.
Info Top /Info
Menu*1/ Off
DefaultCancels/Resets all cust omized items in the Clock/
Info group as default.Yes/No
Camera Rear
Camera Fixed Guideline
Selects whether the fixed guidelines come on the
rear camera monitor.
2
Multi-View Rear Camera P. 356
On*1/Off
Dynamic Guideline Selects whether the guidelines adjust to the
movement of the steering wheel.
2
Multi-View Rear Camera P. 356
On*1/Off
Default Cancels/Resets all cust
omized items in the Rear
Camera setting group as default. Yes
/No
* Not available on all models
17 NSX-31T6N6000.book 241 ページ ２０１６年４月２２日　金曜日　午後３時４４分

248
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System Clock Clock/
Wallpaper
Type
Clock
See
Clock/Info on P. 240
Wallpaper
Clock Adjustment
Clock Format
Date Format
Auto Time Zone*
Manual Time Zone*
Auto Daylight
Clock Display
Clock Reset
Others Language
Change the display language. English
*1/
Français /
Español
Touch Panel Sensitivity Sets the sensitivity of the touch panel screen. High
*1/Low
* Not available on all models
17 NSX-31T6N6000.book 248 ページ ２０１６年４月２２日　金曜日　午後３時４４分

471
Index
S
Safe Driving................................................ 31
Safety Check ............................................... 35
Safety Labels .............................................. 68
Safety Message ............................................ 1
Seat Belts .................................................... 36
Automatic Seat Belt Tensioners ................. 38
Checking .................................................. 42
Fastening .................................................. 39
Installing a Child Seat................................ 63
Pregnant Women...................................... 41
Reminder ............................................ 37, 77
Warning Indicator ............................... 37, 77
Seat Heaters ............................................. 155
Seats .......................................................... 144
Adjusting ................................................ 144
Seat Heaters ........................................... 155
Security System ........................................ 122
Immobilizer System Indicator..................... 81
Security System Alarm Indicator ................ 82
Selecting a Forward-facing Child Seat ...... 62
Sequential Mode ...................................... 319
Sequential Mode Operation ................... 322
Setting the Clock ...................................... 104
Shift Button ........................................ 23, 314
Operation ............................................... 316
Shifting (Transmission) ...................... 23, 314
Side Airbags ............................................... 52
Side Curtain Airbags .................................. 54
Siri Eyes Free ............................................. 215
SiriusXM ® Radio ....................................... 192 Snow Tires
................................................. 401
Sounds Unique to the SPORT HYBRID SH-
AWD® System ............................................ 13
Spark Plugs ................................................ 454
Specifications ............................................ 454
Specified Fuel .................................... 357, 454
SPORT HYBRID Super Handling-All Wheel Drive
TM (SPORT HYBRID SH-AWD ®)........ 338
SRS Airbags (Airbags) ................................. 46
Steering Wheel Adjusting ................................................. 140
Stopping .................................................... 351
Storage ...................................................... 414
Summer Tires ............................................ 401
Supplemental Restraint System (SRS) ........ 46
Switches (Around the Steering Wheel) ............................................. 4, 5, 127
System Message Indicator .......................... 80
T
Temperature
Gauge ....................................................... 96
Temperature Sensor ................................. 160
Temporary Tire Repair Kit ........................ 419
Time (Setting) ........................................... 104
Tire Pressure Monitoring System
(TPMS) ..................................................... 339
Indicator ............................................ 80, 441
Tires ........................................................... 393
Air Pressure ..................................... 394, 455 Chains..................................................... 401
Checking and Maintaining ...................... 393
Flat Tire (Puncture) .................................. 419
Inspection ............................................... 393
Labeling .................................................. 394
Regulations ............................................. 396
Rotation .................................................. 400
Summer .................................................. 401
Temporary Tire Repair Kit ........................ 419
Wear Indicators ....................................... 398
Winter..................................................... 401
Tools .......................................................... 418
Towing a Trailer ....................................... 308
Towing Your Vehicle ................................ 308
Emergency .............................................. 448
TPMS (Tire Pressure Monitoring System) .................................................... 339
Transmission ....................................... 23, 314
Dual Clutch ............................... 23, 313, 314
Fluids .............................................. 385, 455
Gear Position Indicator ...................... 76, 316
Number................................................... 456
Sequential Mode ..................................... 319
TRIP Button ................................................. 99
Trip Meter ................................................. 100
Troubleshooting ....................................... 417
Blown Fuse.............................. 443, 445, 446
Buzzer Sounds When Opening Door.......... 29
Emergency Towing .................................. 448
Flat Tire/Puncture .................................... 419
Noise When Braking .................................. 29
17 NSX-31T6N6000.book 471 ページ ２０１６年４月２２日　金曜日　午後３時４４分
