Acura NSX 2018 Owner's Manual

110
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

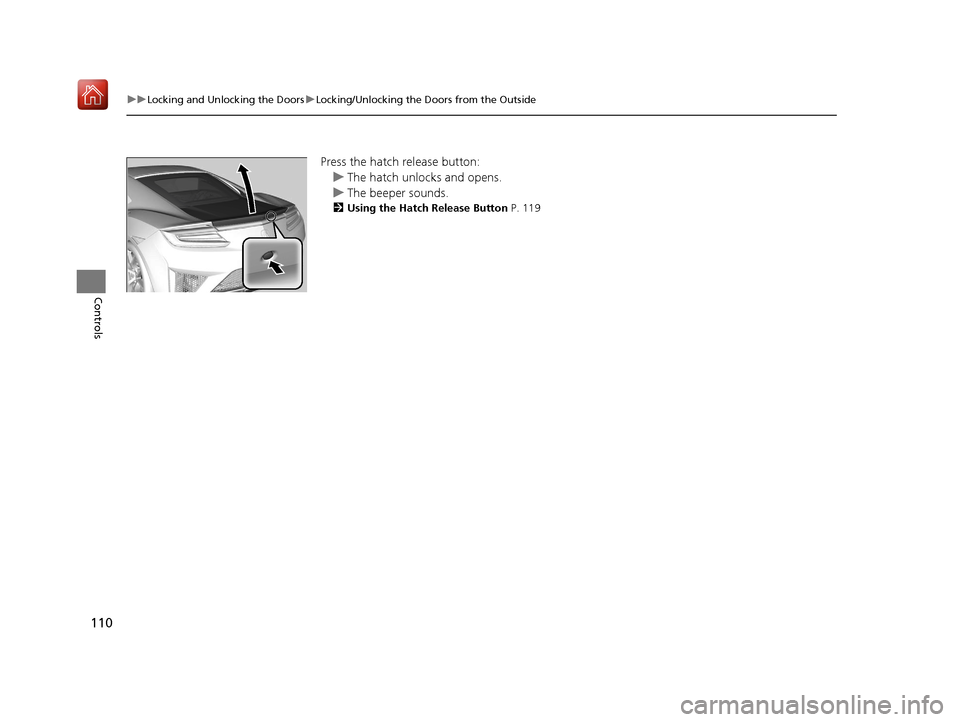

Press the hatch release button:
u The hatch unlocks and opens.
u The beeper sounds.
2 Using the Hatch Release Button P. 119
18 NSX-31T6N6100.book 110 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

Continued111
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
By switching the auto pop-out main switch to OFF, you can disable the auto pop-out
function. For the purpose of safety and to prevent damaging the vehicle, disable this
function and manually operate the handle, especially when the vehicle is:
• being shipped by train, truck, or boat.
• going through a car wash.
• having maintenance performed on it.
■To temporarily deactivate th e auto pop-out function:
Turn off the auto pop-out main switch in the
glove box.
■Auto Pop-Out Main Switch1Auto Pop-Out Main Switch
The auto pop-out function is deactivated in the
following situations:
•The auto pop-out main sw itch is turned off.
•The keyless access remote is not within a 6-foot
(2m) radius of the outside door handle.
•The keyless access remote is in the vehicle.
•The power mode is in ACCESSORY or ON.
Main Switch
ON
OFF
18 NSX-31T6N6100.book 111 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
112
Controls

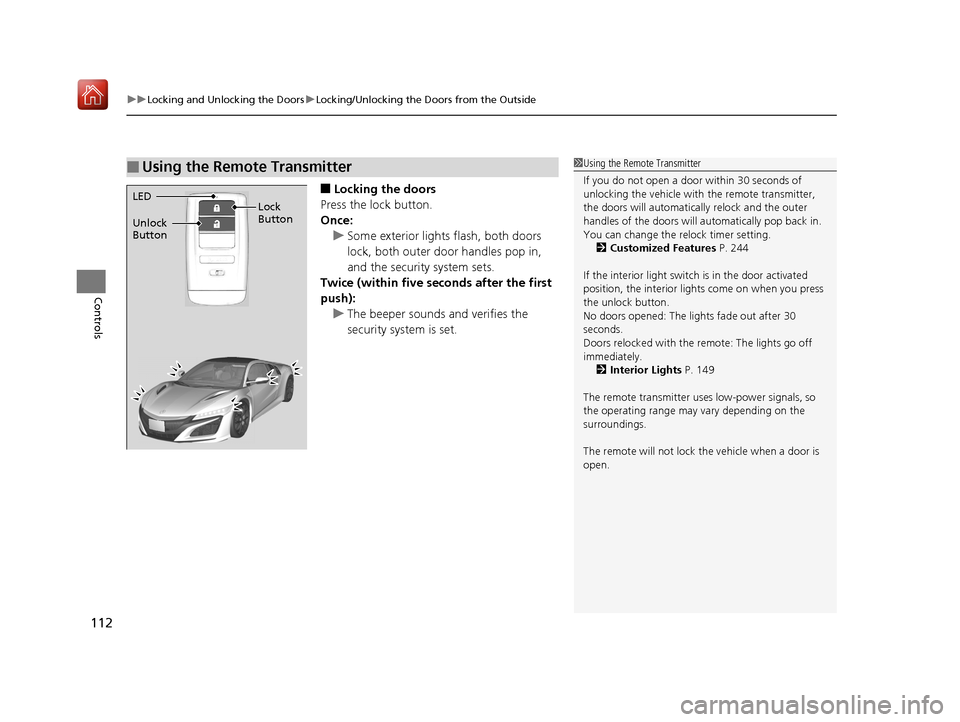

■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, both doors
lock, both outer door handles pop in,
and the security system sets.
Twice (within five se conds after the first
push):
u The beeper sounds and verifies the
security system is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automaticall y relock and the outer
handles of the doors will au tomatically pop back in.
You can change the relock timer setting.
2 Customized Features P. 244
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 149
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
LED
Unlock
Button Lock
Button
18 NSX-31T6N6100.book 112 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

Continued113
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

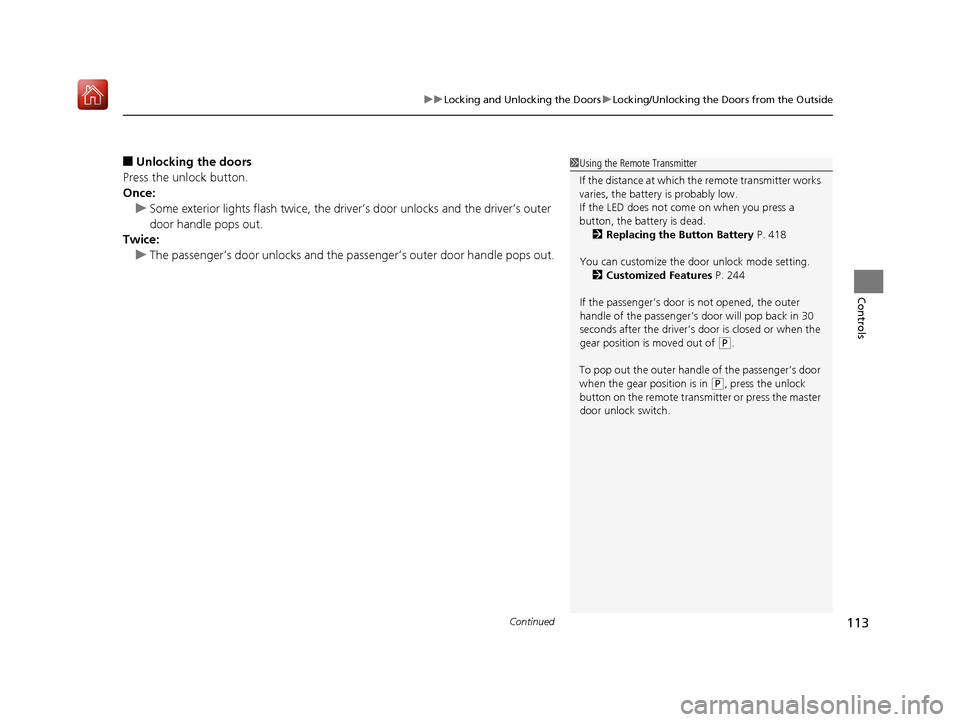

■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, the driver’s door unlocks and the driver’s outer
door handle pops out.
Twice:
u The passenger’s door unlocks and the passenger’s outer door handle pops out.1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 418
You can customize the door unlock mode setting. 2 Customized Features P. 244
If the passenger’s door is not opened, the outer
handle of the passenger’s door will pop back in 30
seconds after the dr iver’s door is closed or when the
gear position is moved out of
( P.
To pop out the outer handle of the passenger’s door
when the gear position is in
( P, press the unlock
button on the remote transmit ter or press the master
door unlock switch.
18 NSX-31T6N6100.book 113 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
114
Controls
If the lock or unlock button of the re mote does not work, use the key instead.
Fully insert the key and turn it.
If you do not have the key on you, or if for
some reason you cannot lock a door using the
key, you can lock the door without it.
■Locking the doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Lockout prevention system
The doors cannot be locked when the keyless access remote is inside the vehicle.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, the
passenger’s door locks at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
passenger’s door.
If you unlock the doors with the key, the alarm goes
off when you open the hood or select other than
(P
before the power mode is set to ON.
You can customize the door unlock mode setting. 2 Customized Features P. 244
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driv er’s door, the passenger’s
door locks at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
18 NSX-31T6N6100.book 114 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

115
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Continued
Controls

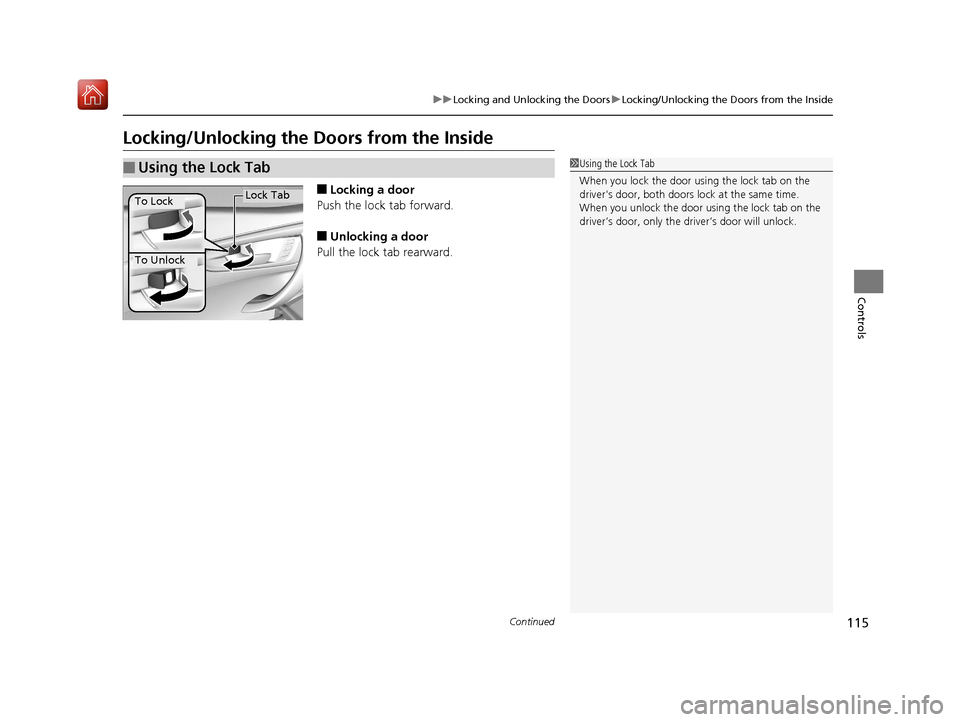

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, both doors lo ck at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock
Lock TabTo Lock
18 NSX-31T6N6100.book 115 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
116
Controls

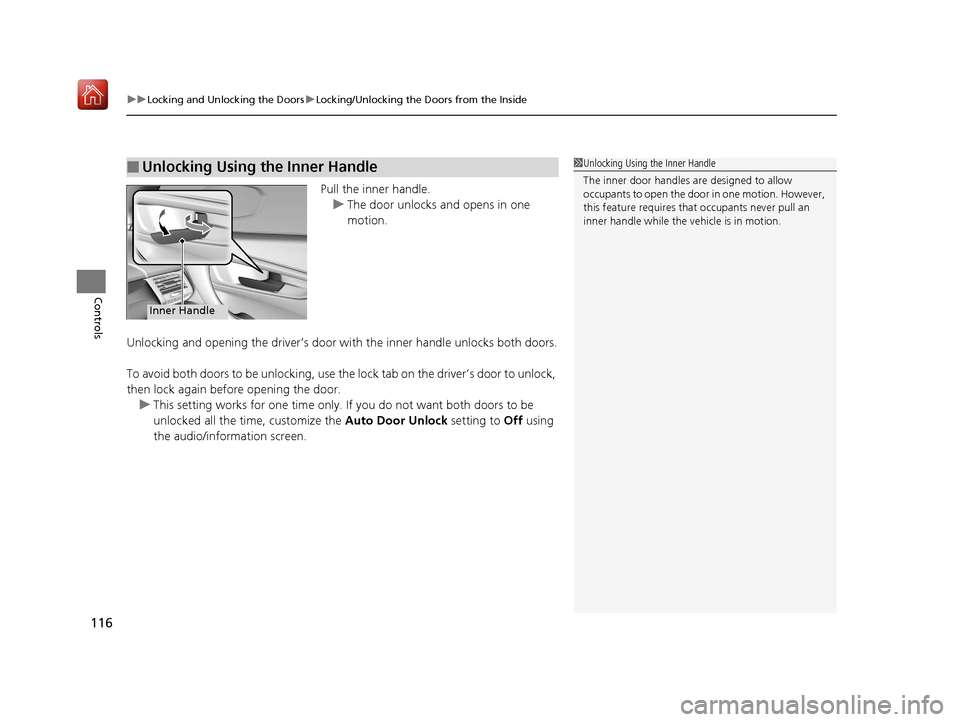

Pull the inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door with the inner handle unlocks both doors.
To avoid both doors to be unlocking, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only. If you do not want both doors to be
unlocked all the time, customize the Auto Door Unlock setting to Off using
the audio/information screen.
■Unlocking Using the Inner Handle1 Unlocking Using the Inner Handle
The inner door handles are designed to allow
occupants to open the door in one motion. However,
this feature requires that occupants never pull an
inner handle while the vehicle is in motion.
Inner Handle
18 NSX-31T6N6100.book 116 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

117
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

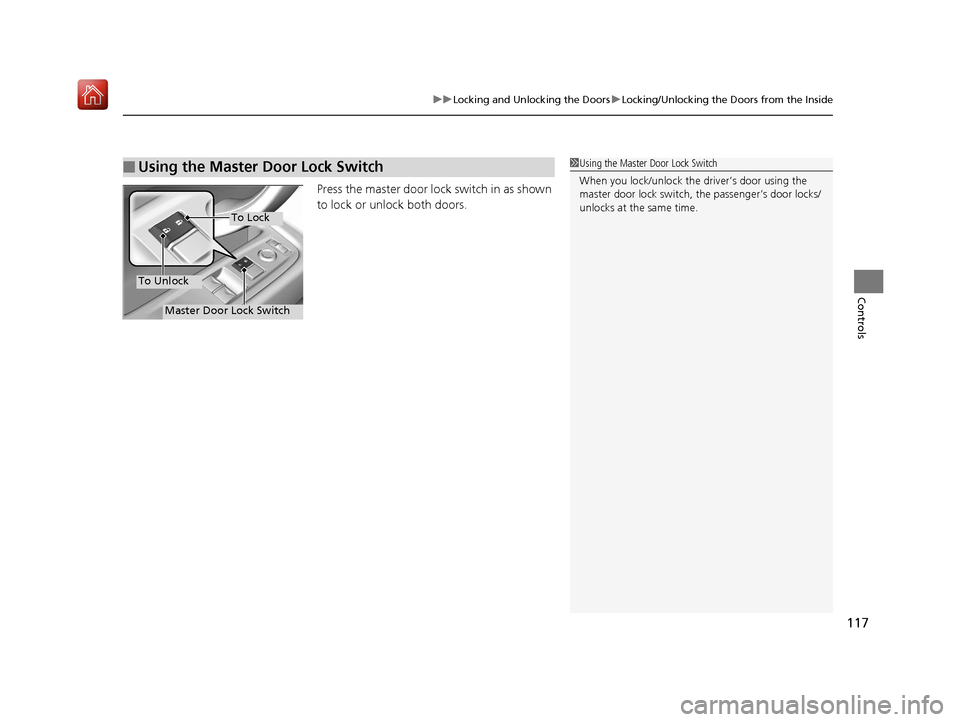

Press the master door lo ck switch in as shown
to lock or unlock both doors.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock the driver’s door using the
master door lock switch, the passenger’s door locks/
unlocks at the same time.
To Unlock
To Lock
Master Door Lock Switch
18 NSX-31T6N6100.book 117 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

118
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls

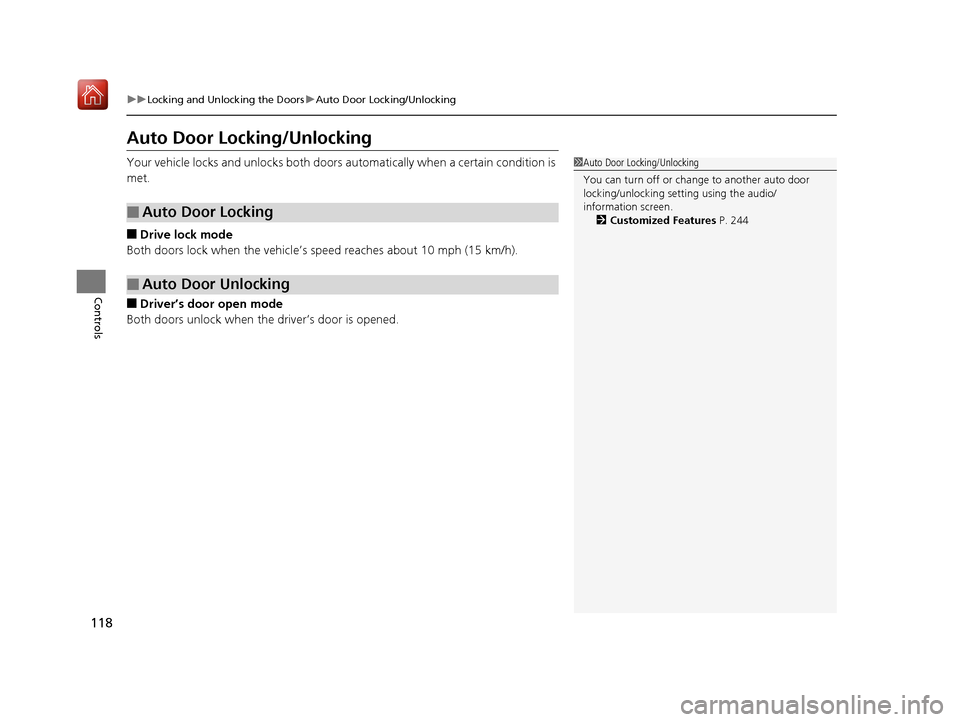

Auto Door Locking/Unlocking
Your vehicle locks and unlocks both doors automatically when a certain condition is
met.
■Drive lock mode
Both doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
Both doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen. 2 Customized Features P. 244
18 NSX-31T6N6100.book 118 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

119Continued
Controls

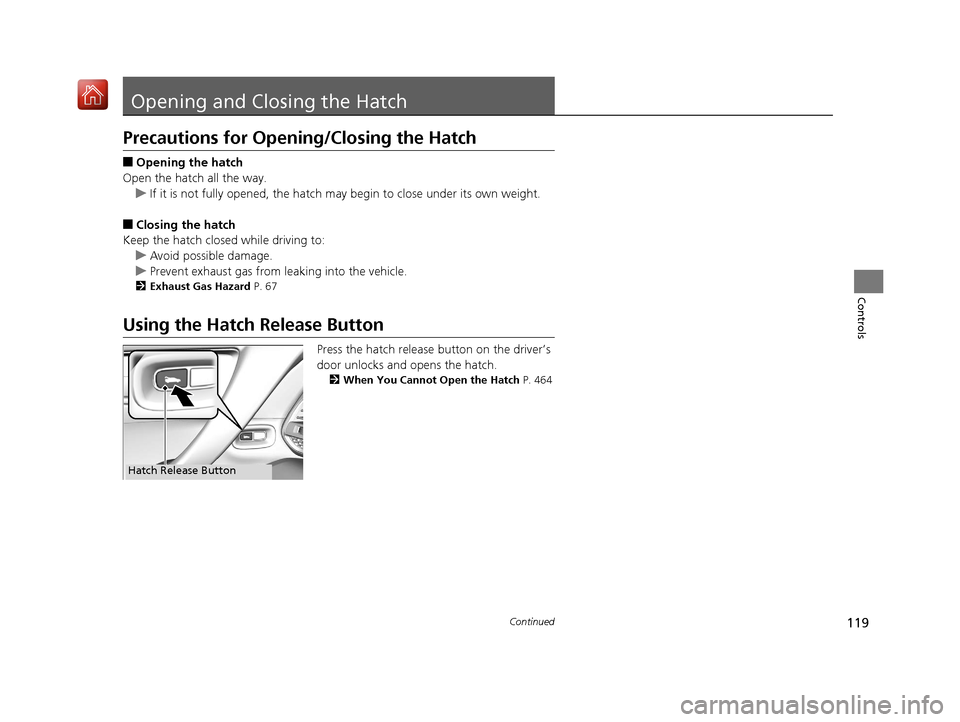

Opening and Closing the Hatch
Precautions for Opening/Closing the Hatch
■Opening the hatch
Open the hatch all the way. u If it is not fully opened, the hatch may begin to close under its own weight.
■Closing the hatch
Keep the hatch closed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 67
Using the Hatch Release Button
Press the hatch release button on the driver’s
door unlocks and opens the hatch.
2 When You Cannot Open the Hatch P. 464
Hatch Release Button
18 NSX-31T6N6100.book 119 ページ ２０１７年１０月２７日　金曜日　午後１時３９分
