Acura NSX 2018 Owner's Guide

20
Quick Reference Guide
Climate Control System (P 156)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
Passenger side Temperature Control
Buttons (Windshield Defroster) ButtonDriver side
Temperature Control
Buttons
(Recirculation) Button
(CLIMATE ) Button
(ON/OFF ) Button
AUTO Button
Audio/Information Touch Screen
SYNC (Synchronization) Button Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard vents.
MID vents provide supplemental
air to the lower body of the
occupant(s). MID vents can be
used together with any other
vent mode.
18 NSX-31T6N6100.book 20 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

21
Quick Reference Guide

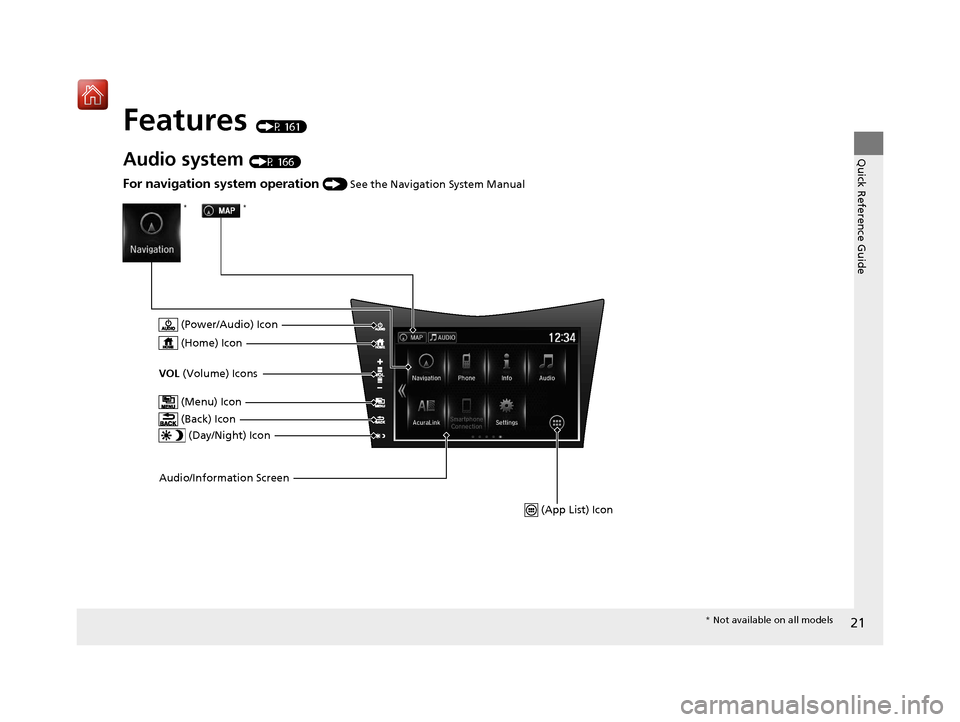

Features (P 161)
Audio system (P 166)
Audio/Information Screen (Power/Audio) Icon
VOL
(Volume) Icons
(Day/Night) Icon
For navigation system operation () See the Navigation System Manual
(Home) Icon
(Menu) Icon
(Back) Icon
(App List) Icon
**
* Not available on all models
18 NSX-31T6N6100.book 21 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

22
Quick Reference Guide
Audio Remote Controls
(P 165)
●SOURCE Button
Press to change the audio mode: FM/
SiriusXM ®
*/USB/iPod/Pandora ®*/Apps*/
Bluetooth ® Audio/Audio Apps*.
● Left Selector Wheel
Roll to adjust the volume up/down.
Radio: Move right or left to change the
preset station.
Move and hold to select the next
or previous strong station.
USB device: Move right or left to skip to the
beginning of the next song or
return to the beginning of the
current song.
Move and hold to change a folder.
Left Selector Wheel
SOURCE Button
18 NSX-31T6N6100.book 22 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

23
Quick Reference Guide
Driving (P 309)
Electronic Gear Selector (P 326)
● Select
(P and depress the brake pedal when turning on the power.
Park
Press the
(P button.
Used when parking or before turning the power on or off.
Transmission is locked.
Reverse
Press back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Used to keep the transmission disengaged from the engine and motor.
Drive/Manual
Each time you press the button, the mode sw itches between D (drive) and M (manual) mode.
●Normal driving (gears change between 1st and 9th automatically)●Temporarily driving in the sequential mode
●Driving in the sequential mode
D/MD (Drive)
M (Manual)
Gear Position Indicator/Gear
Selection Indicator
The gear position indicator, the
gear selection indicator and the
shift button indicator indicate
the current gear selection.
Gear Position Indicator Shift Button
Indicator
●
Gear selection
Gear Selection Indicator
* Not available on all models
18 NSX-31T6N6100.book 23 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

24
Quick Reference Guide
Paddle Shifters (P334)
Paddle shifters allow you to shif t gears much like a manual transmission (1st throu gh 9th). This is useful for regenerative braking.
You cannot shift up or down while in EV mode.
When the transmission is in (D (D-paddle shift mode)The vehicle will go into the sequential mode momentarily, and the gear selection
indicator becomes more prominent.
The sequential mode is automatically canceled and the gear selection indicator
returns to ordinary display un der the following conditions.
•Hold the (+ paddle shifter for a few seconds.
•Once you start traveling at a constant speed.•The vehicle comes to a complete stop.
•When you change to another Integrated Dynamics System mode.
The sequential mode automatically shifts under following condition
•Accelerator pedal depressed beyond the click.•Engine speed reaches near the tachometer’s red zone.
•Engine speed reaches idle speed while deceleration.
When the transmission is in M (Manual) modeThe vehicle will go into the sequential mode, and the gear position indicator goes
off and only the gear selection indicator is displayed.
You can cancel this mode by pressing the button, pulling the
(+ paddle
shifter for a few seconds or changing Integrated Dynamics System mode to
QUIET . When the sequential mode is canceled, the display is changed from only
the gear selection indicator to both of the gear position indicator and the gear
selection indicator.
The transmission automatically shifts up from 1st to 2nd and does not
automatically shift up between 2nd and 9th gear.D/M
Gear Position Indicator
Shift Down
( -
Paddle Shifter Shift Up (
+
Paddle Shifter
Gear Selection Indicator
Gear Selection Indicator
Gear Selection Indicator Gear Position IndicatorD (Drive)
D-Paddle
M (Manual)
18 NSX-31T6N6100.book 24 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

25
Quick Reference Guide
VSA® On and Off (P 346)
● The Vehicle Stability Assist ® (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you turn on the power system.
Tire Pressure Monitoring
System (TPMS)
(P 351)
● The TPMS monitors tire pressure.
● The TPMS is turned on automatically
every time you turn on the power system.
Refueling (P 370)
aPress the fuel fill
door release button.
bAfter refueling,
wait for about five
seconds before
removing the filler
nozzle.
Fuel requirement: Unleaded premium gasoline with a pump octane
number 91 or higher
Fuel tank capacity: 15.6 US gal (59.0 liters)
Wait for five seconds
18 NSX-31T6N6100.book 25 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

26
Quick Reference Guide
Maintenance (P 375)
Press the hatch release button on the
driver’s door.
Lights (P401)
● Inspect all lights regularly.
Under the Hatch (P386)
● Check engine oil and engine coolant.
Add when necessary.
Tires (P407)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install winter tires for winter driving.
Handling Summer Only tires and Ultra High Performance
(UHP) tires in low ambient temperatures.
2 Cold Weather Driving (P416)
18 NSX-31T6N6100.book 26 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

27
Quick Reference Guide
Under the Hood (P385)
● Check inverter coolant.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
Lights (P401)
● Inspect all lights regularly.
Wiper Blades (P404)
● Replace blades if they leave
streaks across the windshield.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise
the hood. Once you have raised the hood slightly,
you can release the lever.
cWhen finished, close the hood and make sure both
right and left latches are firmly locked in place.
18 NSX-31T6N6100.book 27 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

28
Quick Reference Guide
Handling the Unexpected (P 431)
Flat Tire (P 433)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Indicators Come On
(P 452)
●Identify the indicator and consult the
owner’s manual.
Power System Won’t Start
(P 445)
● If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse

(P 457)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 450)
● Park in a safe location. If you do not see
steam under the hatch, open the hatch,
and let the power sy stem and the engine
cool down.
Emergency Towing
(P 462)
● Call a professional towing service if you
need to tow your vehicle.
18 NSX-31T6N6100.book 28 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

29
Quick Reference Guide
What to Do If
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or passenger are not
wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?
The brake pads may need to be replaced. Have your vehicle
inspected by an authorized Acura NSX dealer.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
Models with iron brake discs
