Acura NSX 2018 Repair Manual

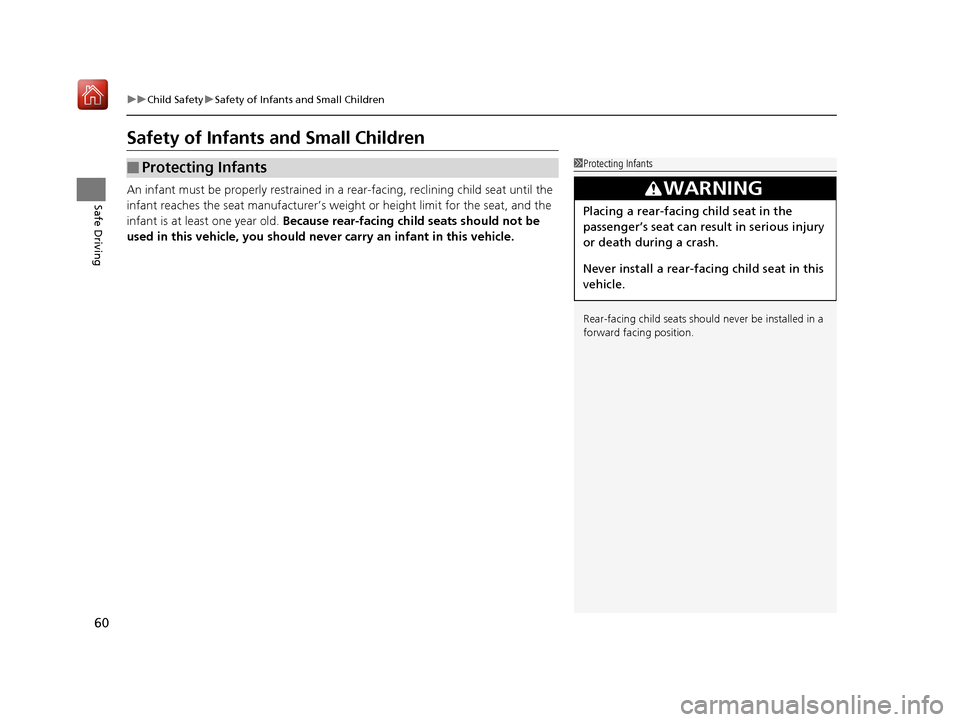

60
uuChild Safety uSafety of Infants and Small Children
Safe Driving
Safety of Infants and Small Children
An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat manufacturer’s weig ht or height limit for the seat, and the
infant is at least one year old. Because rear-facing child seats should not be
used in this vehicle, you should neve r carry an infant in this vehicle.
■Protecting Infants1Protecting Infants
Rear-facing child seats should never be installed in a
forward facing position.
3WARNING
Placing a rear-facing child seat in the
passenger’s seat can result in serious injury
or death during a crash.
Never install a rear-facin g child seat in this
vehicle.
18 NSX-31T6N6100.book 60 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

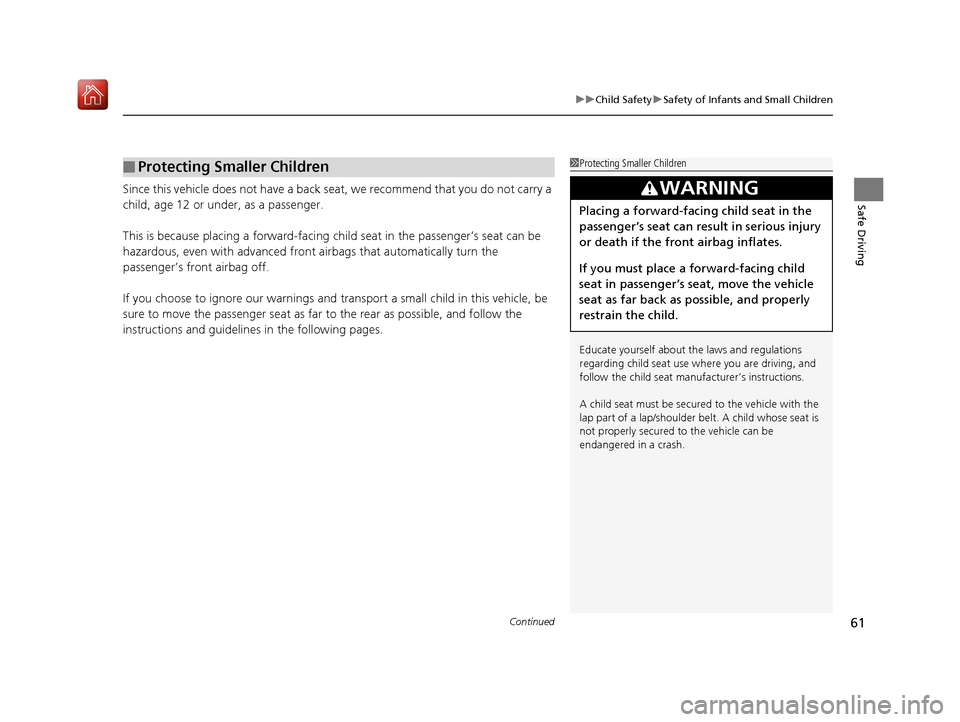

Continued61
uuChild Safety uSafety of Infants and Small Children
Safe DrivingSince this vehicle does not have a back seat, we recommend that you do not carry a
child, age 12 or under, as a passenger.
This is because placing a fo rward-facing child seat in the passenger’s seat can be
hazardous, even with advanced front airbags that automatically turn the
passenger’s front airbag off.
If you choose to ignore our warnings and transport a small child in this vehicle, be
sure to move the passenger seat as far to the rear as possi ble, and follow the
instructions and guidelines in the following pages.
■Protecting Smaller Children1 Protecting Smaller Children
Educate yourself about th e laws and regulations
regarding child seat use wh ere you are driving, and
follow the child seat manufacturer’s instructions.
A child seat must be secure d to the vehicle with the
lap part of a lap/shoulder be lt. A child whose seat is
not properly secured to the vehicle can be
endangered in a crash.
3WARNING
Placing a forward-facing child seat in the
passenger’s seat can result in serious injury
or death if the front airbag inflates.
If you must place a forward-facing child
seat in passenger’s seat, move the vehicle
seat as far back as possible, and properly
restrain the child.
18 NSX-31T6N6100.book 61 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

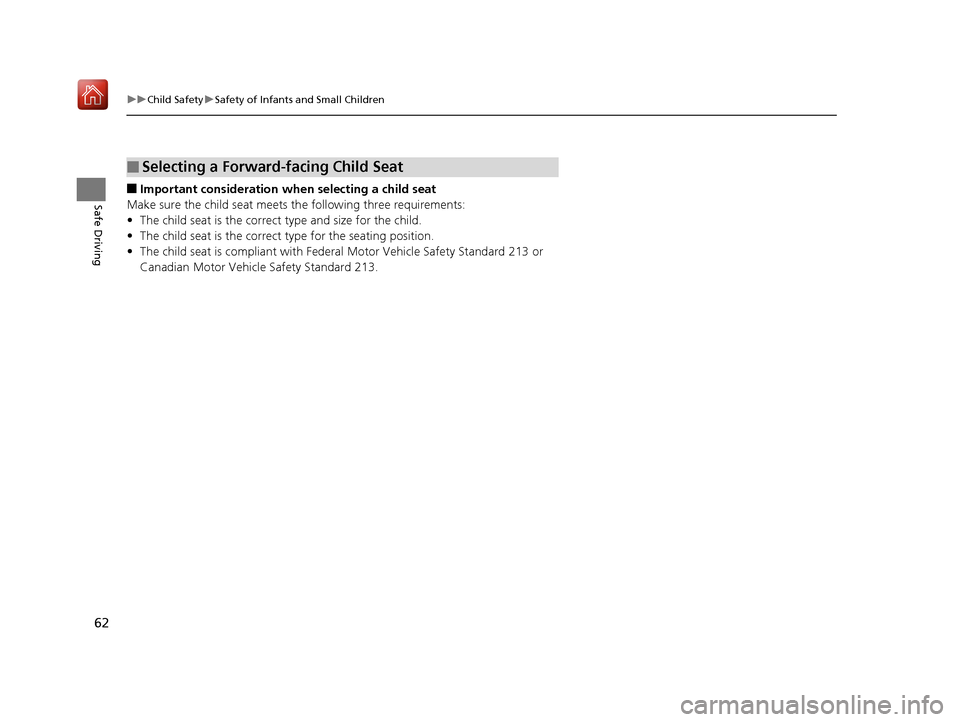

62
uuChild Safety uSafety of Infants and Small Children
Safe Driving■Important consideration when selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Forward-facing Child Seat
18 NSX-31T6N6100.book 62 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

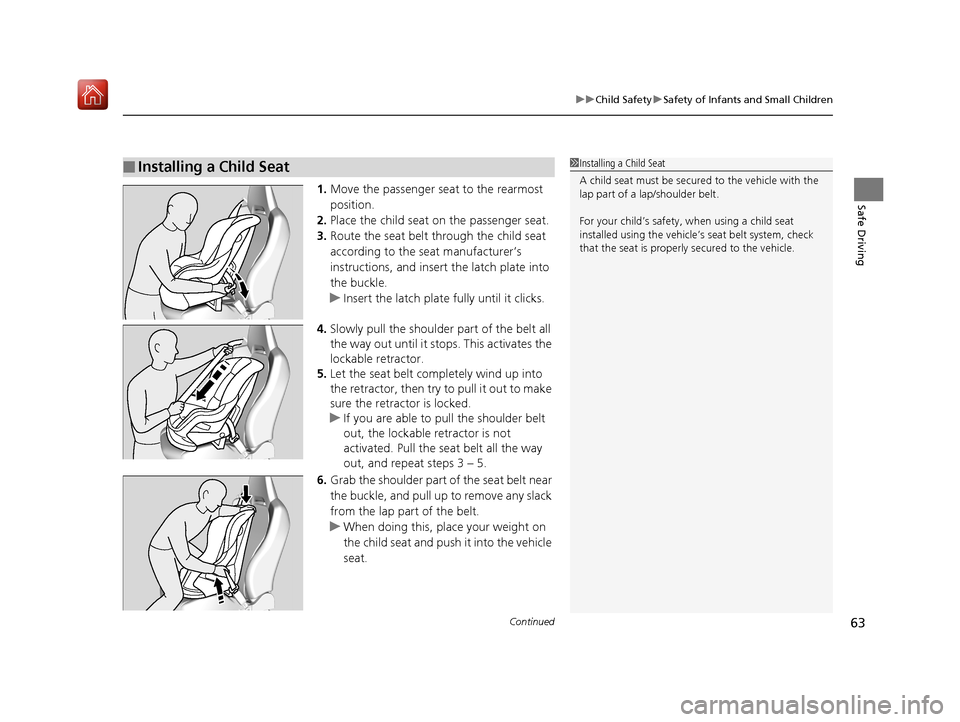

Continued63
uuChild Safety uSafety of Infants and Small Children
Safe Driving1. Move the passenger seat to the rearmost
position.
2. Place the child seat on the passenger seat.
3. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
4. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
5. Let the seat belt completely wind up into
the retractor, then try to pull it out to make
sure the retractor is locked.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Pull the seat belt all the way
out, and repeat steps 3 – 5.
6. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the vehicle
seat.
■Installing a Child Seat1Installing a Child Seat
A child seat must be secure d to the vehicle with the
lap part of a la p/shoulder belt.
For your child’s safety, when using a child seat
installed using the vehicle’ s seat belt system, check
that the seat is properly secured to the vehicle.
18 NSX-31T6N6100.book 63 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

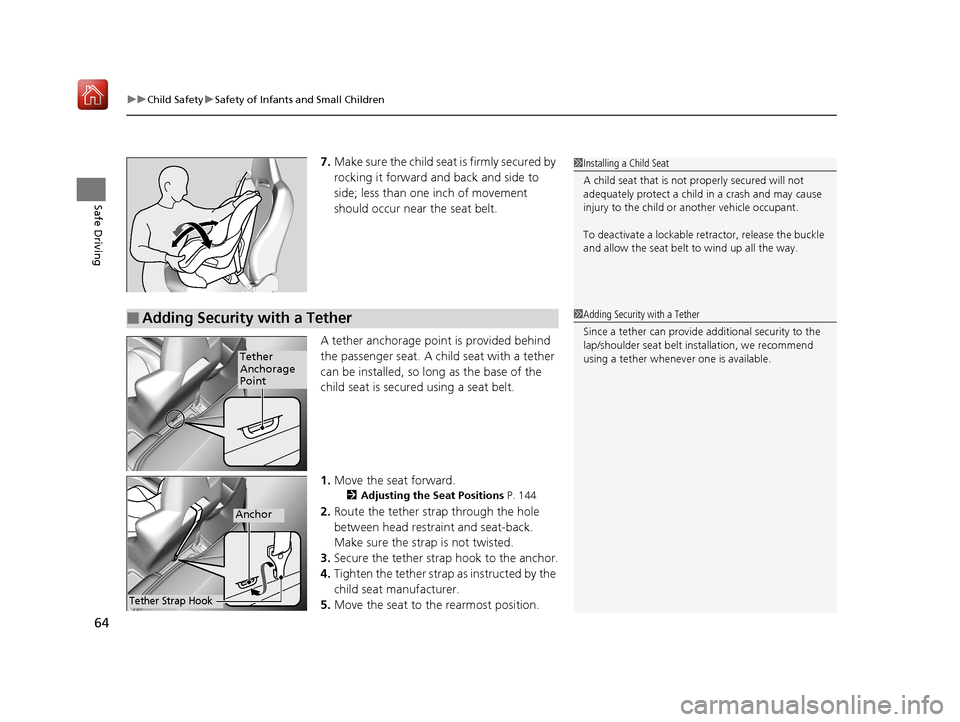

uuChild Safety uSafety of Infants and Small Children
64
Safe Driving
7. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.
A tether anchorage point is provided behind
the passenger seat. A child seat with a tether
can be installed, so long as the base of the
child seat is secured using a seat belt.
1. Move the seat forward.
2 Adjusting the Seat Positions P. 144
2.Route the tether strap through the hole
between head restraint and seat-back.
Make sure the strap is not twisted.
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Move the seat to the rearmost position.
1Installing a Child Seat
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or another vehicle occupant.
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
■Adding Security with a Tether1 Adding Security with a Tether
Since a tether can provide additional security to the
lap/shoulder seat belt in stallation, we recommend
using a tether whenever one is available.
Tether
Anchorage
Point
Tether Strap Hook
Anchor
18 NSX-31T6N6100.book 64 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

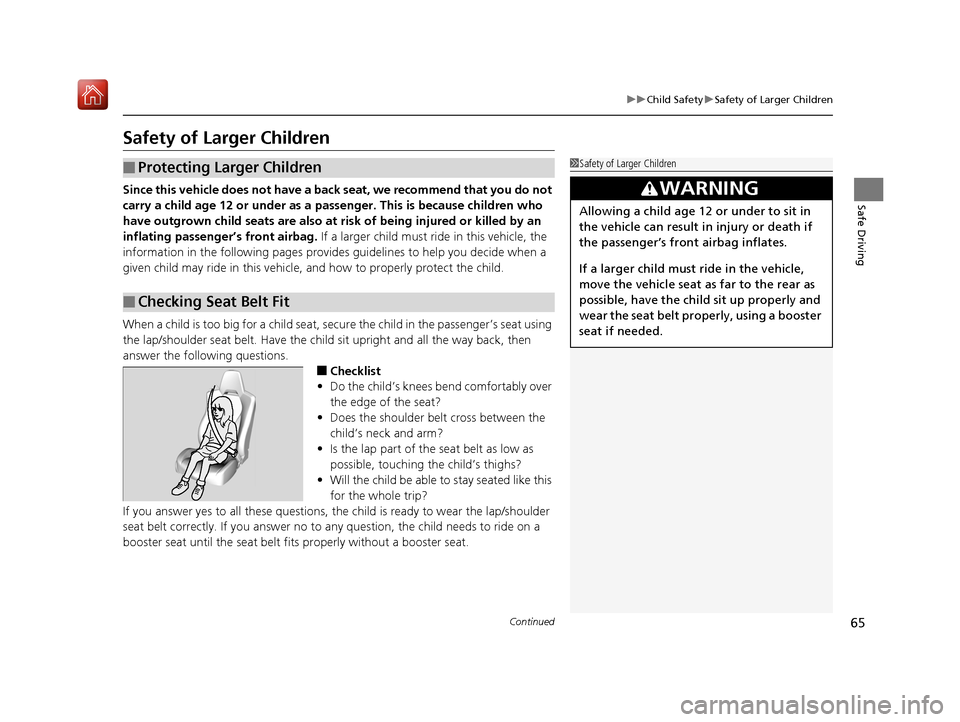

65
uuChild Safety uSafety of Larger Children
Continued
Safe Driving
Safety of Larger Children
Since this vehicle does no t have a back seat, we recommend that you do not
carry a child age 12 or under as a pass enger. This is because children who
have outgrown child seats are also at risk of being injured or killed by an
inflating passenger’s front airbag. If a larger child must ride in this vehicle, the
information in the following pages provides guidelines to help you decide when a
given child may ride in this vehicle, and how to properly protect the child.
When a child is too big for a child seat, secu re the child in the passenger’s seat using
the lap/shoulder seat belt. Have the child sit upright and all the way back, then
answer the foll owing questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
the vehicle can result in injury or death if
the passenger’s fron t airbag inflates.
If a larger child must ride in the vehicle,
move the vehicle seat as far to the rear as
possible, have the child sit up properly and
wear the seat belt properly, using a booster
seat if needed.
18 NSX-31T6N6100.book 65 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

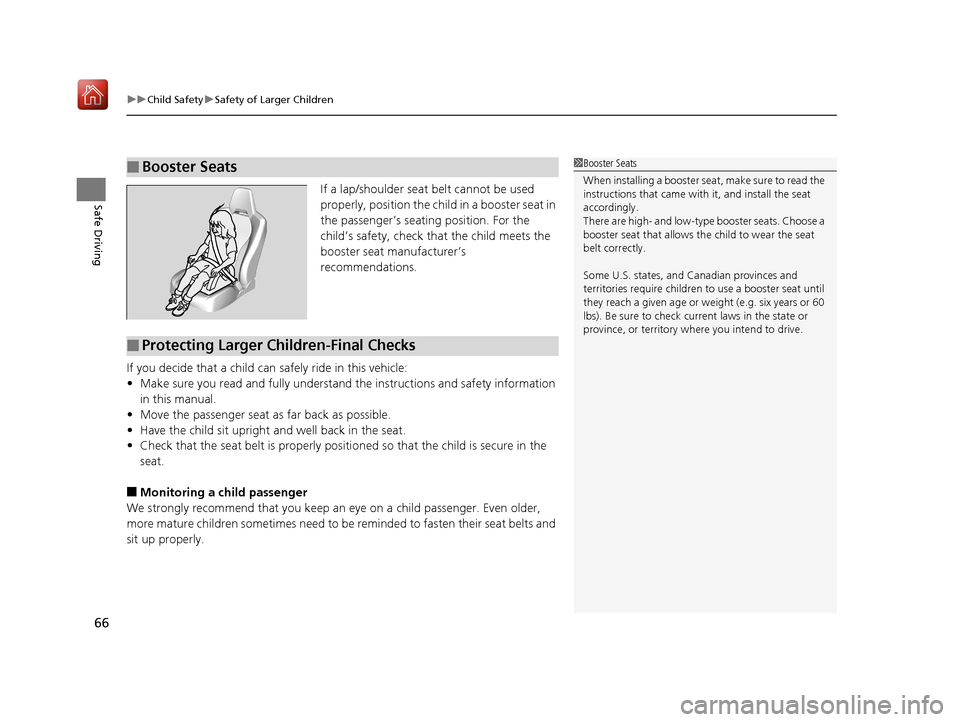

uuChild Safety uSafety of Larger Children
66
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the chil d in a booster seat in
the passenger’s seating position. For the
child’s safety, check th at the child meets the
booster seat manufacturer’s
recommendations.
If you decide that a child can safely ride in this vehicle:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring a child passenger
We strongly recommend that you keep an eye on a child passenger. Even older,
more mature children sometimes need to be reminded to fasten their seat belts and
sit up properly.
■Booster Seats1 Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or we ight (e.g. six years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children-Final Checks
18 NSX-31T6N6100.book 66 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

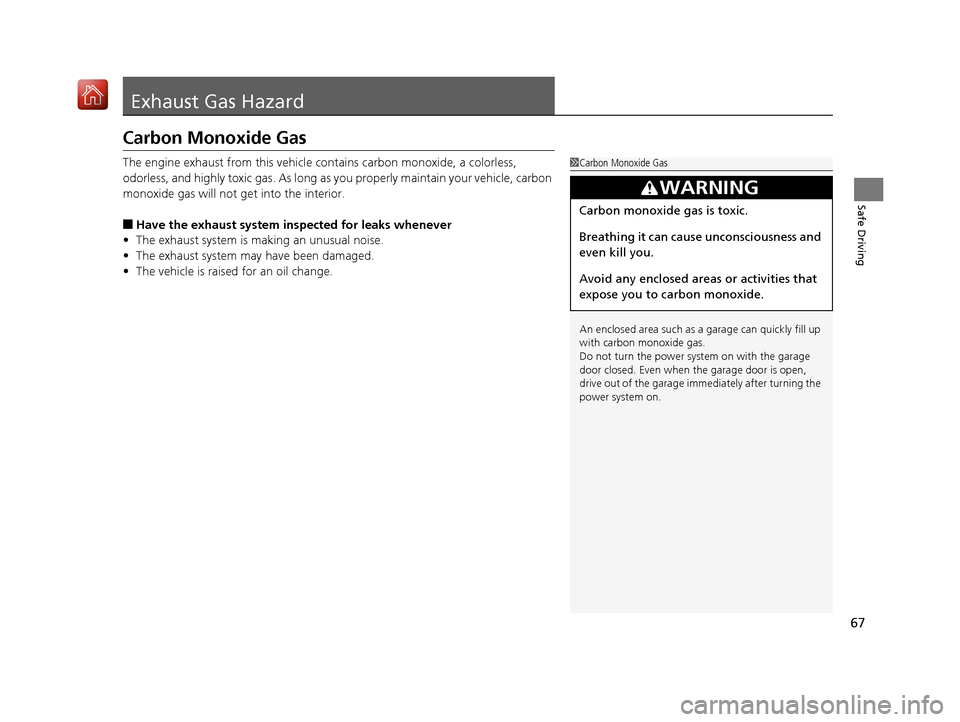

67
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is ma king an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
1Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not turn the power system on with the garage
door closed. Even when th e garage door is open,
drive out of the garage i mmediately after turning the
power system on.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
18 NSX-31T6N6100.book 67 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

68
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a n
authorized Acura NSX d ealer for a replacement.
Inverter Coolant Filler
Tank Cap
Sun Visors
U.S. models Canadian models
Engine Coolant Reserve Tank CapHigh Voltage System Components
U.S. models Canadian models
Dashboard
U.S. models only
18 NSX-31T6N6100.book 68 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

69
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 70
Driver Information Interface Warning and Information Messages ...................... 83
Gauges and Displays .......................... 95
Gauges .............................................. 95
Driver Information Interface ............... 98
