Acura NSX 2018 Owner's Manual

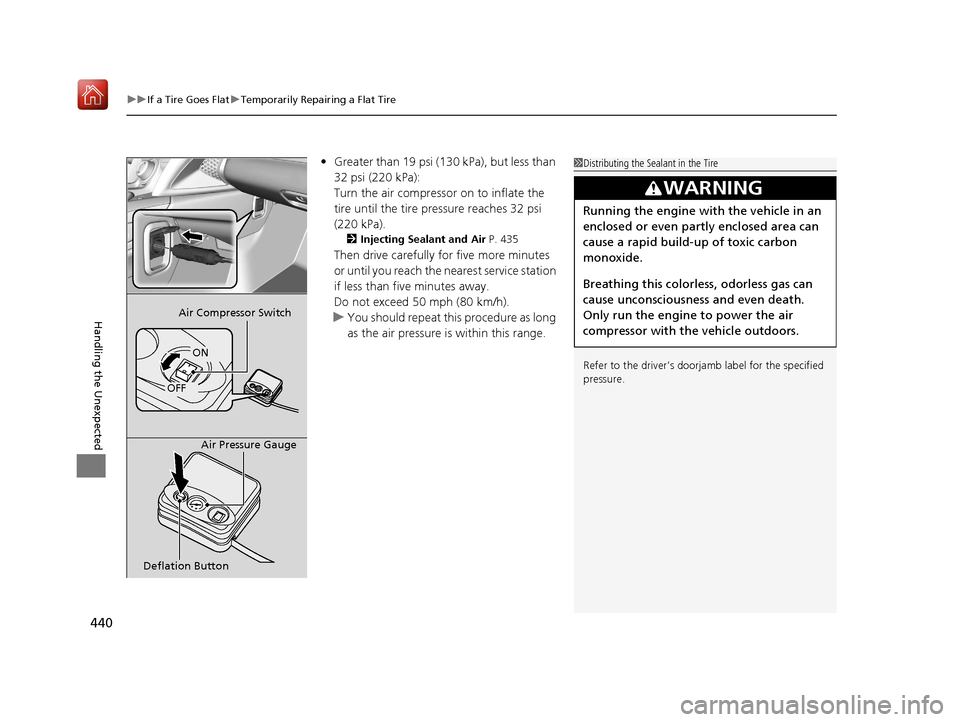

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
440
Handling the Unexpected
• Greater than 19 psi (130 kPa), but less than
32 psi (220 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches 32 psi
(220 kPa).
2 Injecting Sealant and Air P. 435
Then drive carefully for five more minutes
or until you reach the nearest service station
if less than five minutes away.
Do not exceed 50 mph (80 km/h).
u You should repeat this procedure as long
as the air pressure is within this range.
1Distributing the Sealant in the Tire
Refer to the driver’s doorja mb label for the specified
pressure.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Deflation ButtonAir Pressure Gauge
Air Compressor Switch
OFF
ON
18 NSX-31T6N6100.book 440 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

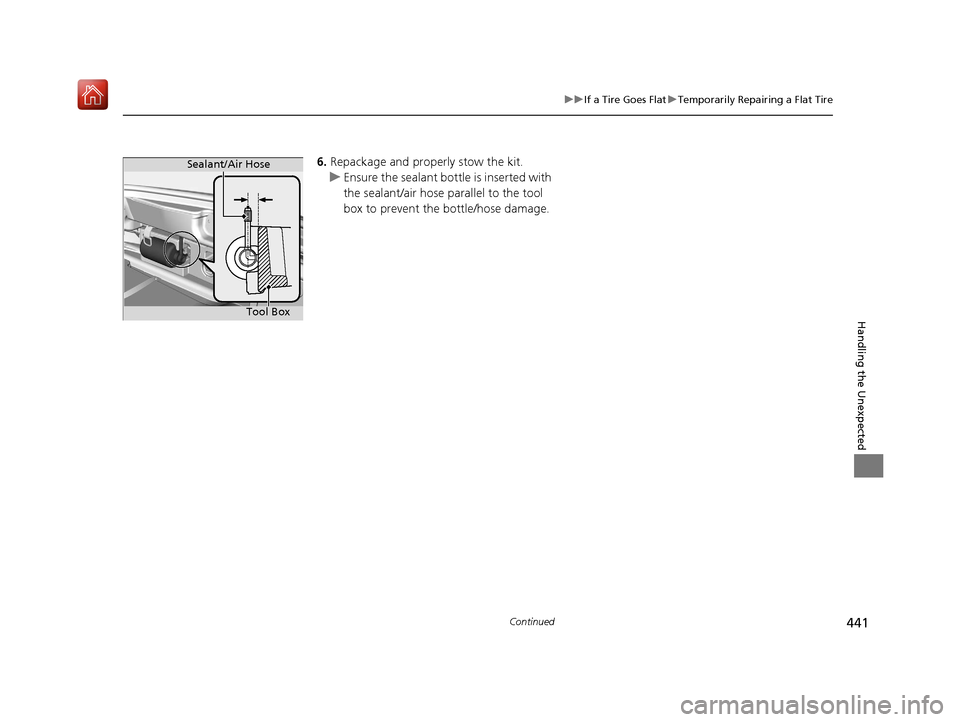

441
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
6. Repackage and properly stow the kit.
u Ensure the sealant bottl e is inserted with
the sealant/air hose pa rallel to the tool
box to prevent the bottle/hose damage.Sealant/Air Hose
Tool Box
18 NSX-31T6N6100.book 441 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

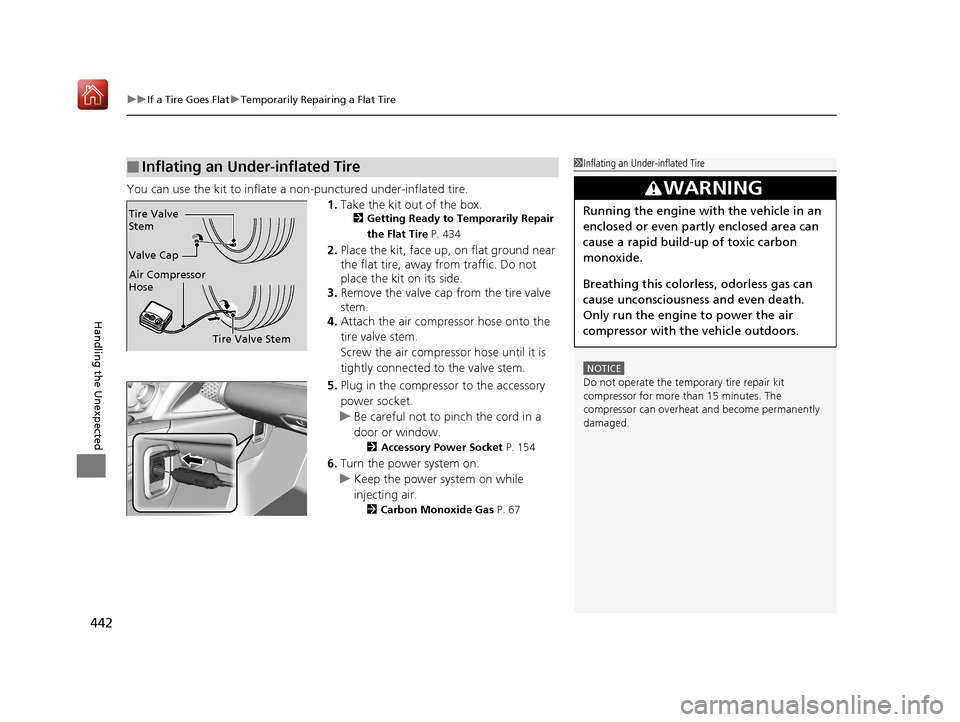

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
442
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Take the kit out of the box.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 434
2.Place the kit, face up, on flat ground near
the flat tire, away from traffic. Do not
place the kit on its side.
3. Remove the valve cap from the tire valve
stem.
4. Attach the air compressor hose onto the
tire valve stem.
Screw the air compressor hose until it is
tightly connected to the valve stem.
5. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 154
6.Turn the power system on.
u Keep the power system on while
injecting air.
2 Carbon Monoxide Gas P. 67
■Inflating an Under-inflated Tire1Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.Tire Valve
Stem
Valve Cap
Tire Valve Stem
Air Compressor
Hose
18 NSX-31T6N6100.book 442 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

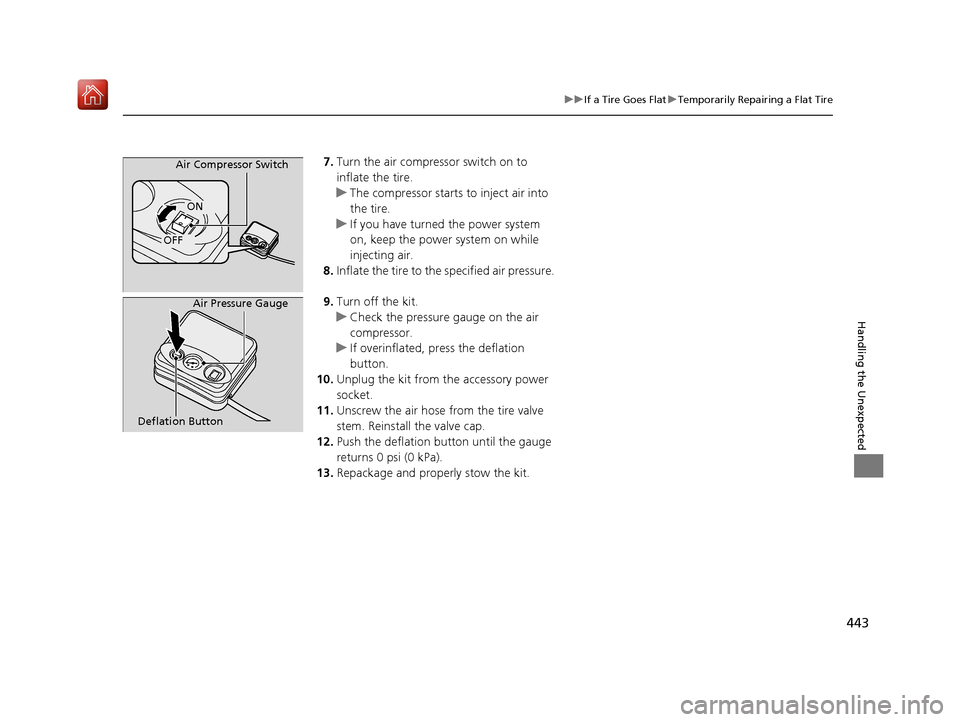

443
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
7. Turn the air compressor switch on to
inflate the tire.
u The compressor starts to inject air into
the tire.
u If you have turned the power system
on, keep the power system on while
injecting air.
8. Inflate the tire to the specified air pressure.
9. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the deflation
button.
10. Unplug the kit from the accessory power
socket.
11. Unscrew the air hose from the tire valve
stem. Reinstall the valve cap.
12. Push the deflation button until the gauge
returns 0 psi (0 kPa).
13. Repackage and properly stow the kit.Air Compressor Switch
OFF
ON
Deflation Button Air Pressure Gauge
18 NSX-31T6N6100.book 443 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

444
uuIf a Tire Goes Flat uHandling of the Jack
Handling the Unexpected
Handling of the Jack
Your vehicle has jacking points as shown.
When replacing your tires, consult an
authorized Acura NSX dealer.1 Handling of the Jack
Many types of jacks and jack stands, as well as
improper lifting procedures , may cause side sill and
underbody damage. Please consult an authorized
Acura NSX dealer about pr oper lifting equipment and
methods.Jacking Points
Jacking Points
18 NSX-31T6N6100.book 444 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

445
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the driver information interface, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature Is Too Cold For Vehicle To Operate
message appears.2 Driver Information Interface Warning and
Information Messages P. 83
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless access remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 127
2If the Keyless Access Remote Battery is
Weak P. 446
The POWER SYSTEM indicator comes on.Have your vehicle checked by an authorized
Acura NSX dealer.
The transmission system indicator blinks and Transmission
Problem Apply Parking Brake When Parked message
appears.The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator Blinks
along with the Warning Message P. 456
Check the brightness
of the interior lights. The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by an
authorized Acura NSX dealer.
The interior lights come on normally. Check all fuses, or have your vehicle checked by
an authorized Acura NSX dealer.
2 Inspecting and Changing Fuses P. 461
Check the gear
position.The transmission is not in (P.Put the transmission into (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 81
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 448
18 NSX-31T6N6100.book 445 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

446
uuPower System Won’t Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the ENGINE START/STOP button flashes, and the READY
indicator does not come on.
The To Start, Hold Remote Near Start Button message appears on the driver
information interface.
Turn on the power system as follows. 1.Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the ENGINE START/
STOP button is flashing. The buttons on
the keyless access remo te should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
18 NSX-31T6N6100.book 446 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

447
uuPower System Won’t Start uEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The ENGINE START/STOP button may be used to turn the power system off due to
an emergency situation even while driving. If you must turn the power system off,
do either of the following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The gear position auto matically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the button while driving unless it is
absolutely necessary for the power system to be
turned off.
18 NSX-31T6N6100.book 447 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

448
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the hood.1.Remove the maintenance cover.
2 Checking the 12-Volt Battery P. 417
2.Slide the terminal cover on your vehicle’s
12-volt battery positive + terminal as
shown.
3. Connect the first jump er cable to your
vehicle’s 12-volt battery + terminal.
4. Connect the other end of the first jumper
cable to the booster battery + terminal.
u If you use a booster battery, only use a
12-volt booster battery.
u When using an automotive battery
charger, select a charging voltage lower
than 15-volts. Check the charger manual
for the proper setting.
5. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cable clips so that they do
not come off when the engine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
12-volt battery performa nce degrades in cold
conditions and may prevent the engine from starting.
3WARNING
A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.Terminal Cover
Booster Battery
18 NSX-31T6N6100.book 448 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

449
uuJump Starting u
Handling the Unexpected
6.Connect the other end of the second
jumper cable to the front frame as shown.
Do not connect this jumper cable to any
other part.
7. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
8. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jump er cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s 12-volt battery + terminal.
4. Disconnect the other end of the jump er cable from the booster battery +
terminal.
Have your vehicle inspected by a nearby service station or an authorized Acura NSX
dealer.
■What to Do After the Engine Starts
18 NSX-31T6N6100.book 449 ページ ２０１７年１０月２７日　金曜日　午後１時３９分
