Page 353 of 485

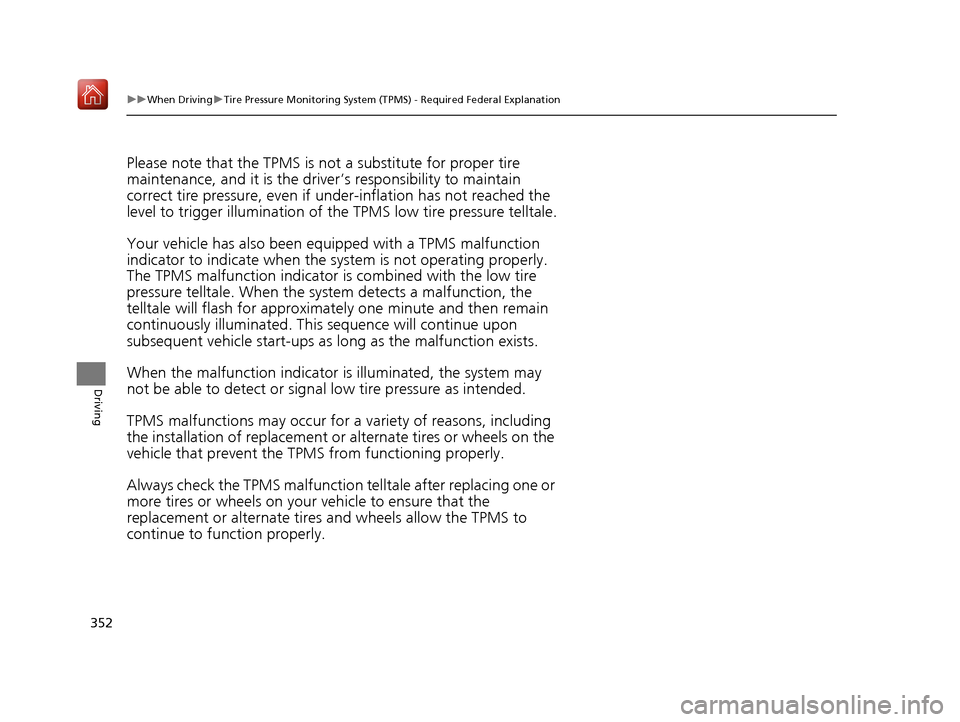

352
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumina tion of the TPMS low ti re pressure telltale.
Your vehicle has also been eq uipped with a TPMS malfunction
indicator to indicate when the sy stem is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the system detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
19 NSX-31T6N6200.book 352 ページ 2018年8月9日 木曜日 午前11時12分
Page 412 of 485
411
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the same size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist ® (VSA ®) system to work incorrectly.
It is best to replace all four tires at the same time.
If you replace a wheel, only use TPMS spec ified wheels approved for your vehicle.
Make sure that the wheel’s specifications match those of the original wheels.1 Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
19 NSX-31T6N6200.book 411 ページ 2018年8月9日 木曜日 午前11時12分
Page 430 of 485
429
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 430
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 431
Handling of the Jack ........................ 442
Power System Won’t Start Checking the Procedure ................... 443
If the Keyless Access Remote Battery is Weak ............................................. 444
Emergency Power System Off........... 445
Jump Starting .................................... 446
Overheating How to Handle Overheating ............. 448 Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 450
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 450
If the Brake System Indicator (Red) Comes On ................................................. 451
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 451
If the Electric Parking Brake System Indicator Comes On ....................... 452 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 453
If the Transmission System Indicator Blinks along with the Warning Message... 454
If the Low Oil Level Symbol Appears.....454Fuses Fuse Locations ................................. 455
Inspecting and Changing Fuses ........ 459
Emergency Towing ........................... 460
When You Cannot Unlock the Fuel Fill Door ................................................. 461
When You Cannot Open the Hatch.....462RefuelingRefueling from a Portable Fuel Container .... 463
19 NSX-31T6N6200.book 429 ページ 2018年8月9日 木曜日 午前11時12分
Page 454 of 485

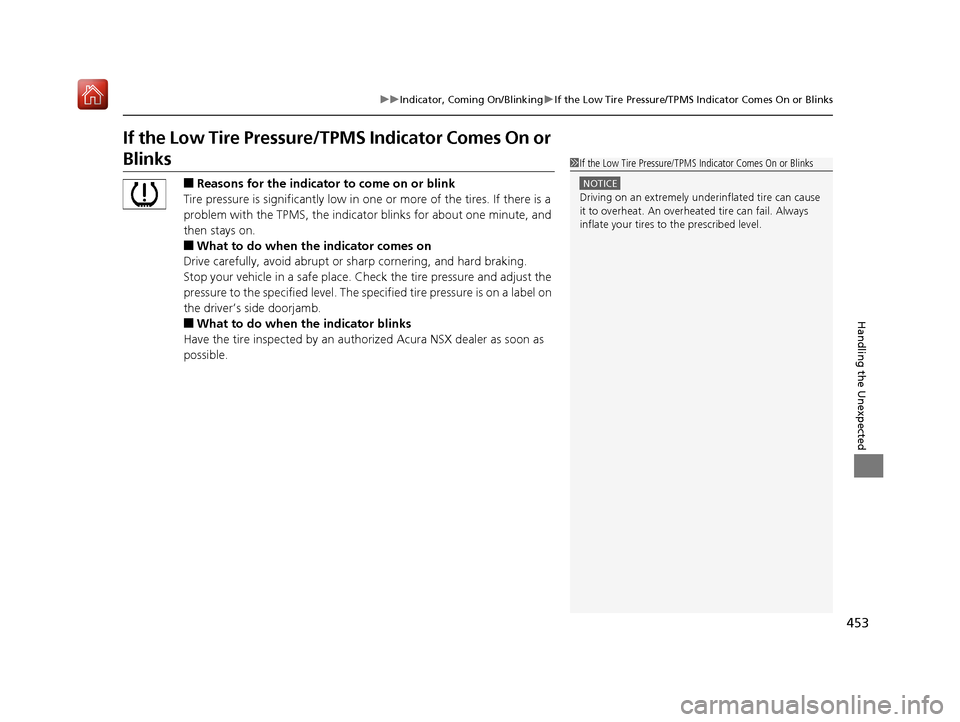

453
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
Tire pressure is significantly low in one or more of the tires. If there is a
problem with the TPMS, the indicato r blinks for about one minute, and
then stays on.
■What to do when th e indicator comes on
Drive carefully, avoid abrupt or sharp cornering, and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by an author ized Acura NSX dealer as soon as
possible.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
19 NSX-31T6N6200.book 453 ページ 2018年8月9日 木曜日 午前11時12分
Page 481 of 485

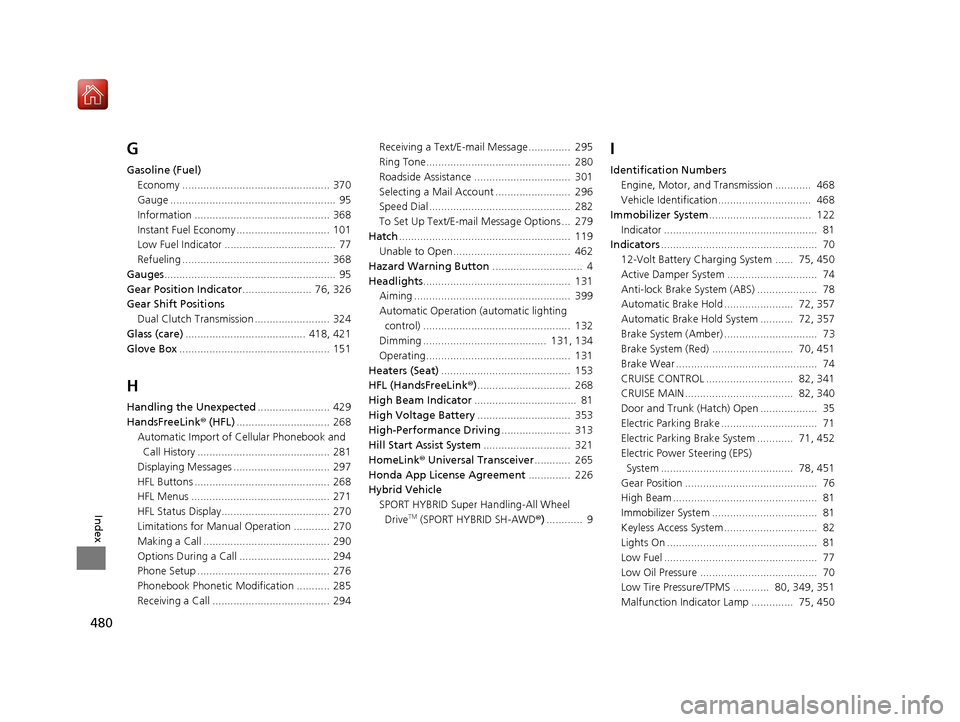

480
Index
G
Gasoline (Fuel)Economy ................................................. 370
Gauge ....................................................... 95
Information ............................................. 368
Instant Fuel Economy ............................... 101
Low Fuel Indicator ..................................... 77
Refueling ................................................. 368
Gauges ......................................................... 95
Gear Position Indicator ....................... 76, 326
Gear Shift Positions
Dual Clutch Transmission ......................... 324
Glass (care) ........................................ 418, 421
Glove Box .................................................. 151
H
Handling the Unexpected ........................ 429
HandsFreeLink® (HFL)............................... 268
Automatic Import of Ce llular Phonebook and
Call History ............................................ 281
Displaying Messages ................................ 297
HFL Buttons ............................................. 268
HFL Menus .............................................. 271
HFL Status Display.................................... 270
Limitations for Manua l Operation ............ 270
Making a Call .......................................... 290
Options During a Call .............................. 294
Phone Setup ............................................ 276
Phonebook Phonetic M odification ........... 285
Receiving a Call ....................................... 294 Receiving a Text/E-mail Message.............. 295
Ring Tone................................................ 280
Roadside Assistance ................................ 301
Selecting a Mail Account ......................... 296
Speed Dial ............................................... 282
To Set Up Text/E-mail Message Options ... 279
Hatch ......................................................... 119
Unable to Open....................................... 462
Hazard Warning Button .............................. 4
Headlights ................................................. 131
Aiming .................................................... 399
Automatic Operation (automatic lighting control) ................................................. 132
Dimming ......................................... 131, 134
Operating................................................ 131
Heaters (Seat) ........................................... 153
HFL (HandsFreeLink ®)............................... 268
High Beam Indicator .................................. 81
High Voltage Battery ............................... 353
High-Performance Driving ....................... 313
Hill Start Assist System ............................. 321
HomeLink ® Universal Transceiver ............ 265
Honda App License Agreement .............. 226
Hybrid Vehicle SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD® )............ 9
I
Identification Numbers
Engine, Motor, and Transmission ............ 468
Vehicle Identification............................... 468
Immobilizer System .................................. 122
Indicator ................................................... 81
Indicators .................................................... 70
12-Volt Battery Charging System ...... 75, 450
Active Damper System .............................. 74
Anti-lock Brake System (ABS) .................... 78
Automatic Brake Hold ....................... 72, 357
Automatic Brake Hold System ........... 72, 357
Brake System (Amber) ............................... 73
Brake System (Red) ........................... 70, 451
Brake Wear ............................................... 74
CRUISE CONTROL ............................. 82, 341
CRUISE MAIN.................................... 82, 340
Door and Trunk (Hatch) Open ................... 35
Electric Parking Brake ................................ 71
Electric Parking Brake System ............ 71, 452
Electric Power Steering (EPS) System ............................................ 78, 451
Gear Position ............................................ 76
High Beam ................................................ 81
Immobilizer System ................................... 81
Keyless Access System............................... 82
Lights On .................................................. 81
Low Fuel ................................................... 77
Low Oil Pressure ....................................... 70
Low Tire Pressure/TPMS ............ 80, 349, 351
Malfunction Indicator Lamp .............. 75, 450
19 NSX-31T6N6200.book 480 ページ 2018年8月9日 木曜日 午前11時12分
Page 484 of 485
483
Index
S
Safe Driving................................................ 31
Safety Check ............................................... 35
Safety Labels .............................................. 68
Safety Message ............................................ 1
Seat Belts .................................................... 36
Automatic Seat Belt Tensioners ................. 38
Checking .................................................. 42
Fastening .................................................. 39
Installing a Child Seat................................ 63
Pregnant Women...................................... 41
Reminder ............................................ 37, 77
Warning Indicator ............................... 37, 77
Seat Heaters ............................................. 153
Seats .......................................................... 144
Adjusting ................................................ 144
Seat Heaters ........................................... 153
Security System ........................................ 122
Immobilizer System Indicator..................... 81
Security System Alarm Indicator ................ 82
Selecting a Forward-facing Child Seat ...... 62
Sequential Mode ...................................... 329
Sequential Mode Operation ................... 332
Setting the Clock ...................................... 104
Shift Button ........................................ 23, 324
Operation ............................................... 326
Shifting (Transmission) ...................... 23, 324
Side Airbags ............................................... 52
Side Curtain Airbags .................................. 54
Siri Eyes Free ............................................. 213
SiriusXM ® Radio ....................................... 190 Snow Tires
................................................. 413
Sounds Unique to the SPORT HYBRID
SH-AWD ® System ...................................... 13
Spark Plugs ................................................ 466
Specifications ............................................ 466
Specified Fuel .................................... 368, 466
SPORT HYBRID Super Handling-All Wheel Drive
TM (SPORT HYBRID SH-AWD ®)........ 348
SRS Airbags (Airbags) ................................. 46
Steering Wheel Adjusting ................................................. 140
Stopping .................................................... 361
Storage ...................................................... 426
Summer Tires ............................................ 413
Supplemental Restraint System (SRS) ........ 46
Switches (Around the Steering Wheel) ............................................. 4, 5, 127
System Message Indicator .......................... 80
T
Temperature
Gauge ....................................................... 96
Temperature Sensor ................................. 158
Temporary Tire Repair Kit ........................ 431
Time (Setting) ........................................... 104
Tire Pressure Monitoring System
(TPMS) ..................................................... 349
Indicator ............................................ 80, 453
Tires ........................................................... 405
Air Pressure ..................................... 406, 467 Chains..................................................... 413
Checking and Maintaining ...................... 405
Flat Tire (Puncture) .................................. 431
Inspection ............................................... 405
Labeling .................................................. 406
Regulations ............................................. 408
Rotation .................................................. 412
Summer .................................................. 413
Temporary Tire Repair Kit ........................ 431
Wear Indicators ....................................... 410
Winter..................................................... 413
Tools .......................................................... 430
Towing a Trailer ....................................... 318
Towing Your Vehicle ................................ 318
Emergency .............................................. 460
TPMS (Tire Pressure Monitoring System) .................................................... 349
Transmission ....................................... 23, 324
Dual Clutch ............................... 23, 323, 324
Fluids .............................................. 397, 467
Gear Position Indicator ...................... 76, 326
Number................................................... 468
Sequential Mode ..................................... 329
TRIP Button ................................................. 99
Trip Meter ................................................. 100
Troubleshooting ....................................... 429
Blown Fuse.............................. 455, 457, 458
Buzzer Sounds When Opening Door.......... 29
Emergency Towing .................................. 460
Flat Tire/Puncture .................................... 431
Noise When Braking .................................. 29
19 NSX-31T6N6200.book 483 ページ 2018年8月9日 木曜日 午前11時12分
