TPMS Acura NSX 2019 Owner's Manual

Acura NSX 2019 Owner's Manual NSX 2019 Acura Acura https://www.carmanualsonline.info/img/32/9758/w960_9758-0.png Acura NSX 2019 Owner's Manual

Page 17 of 485

Acura NSX 2019  Owners Manual 16
Quick Reference Guide
Instrument Panel (P 69)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
12-Volt Battery Charging
System Indicator
Anti-lock Brake System
(ABS ) Ind

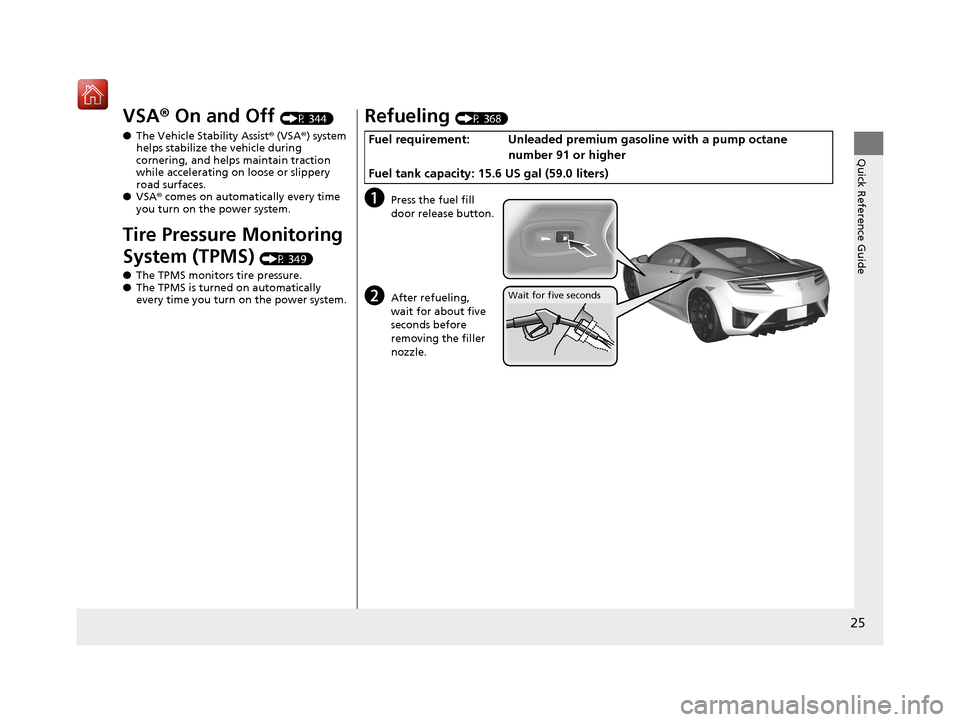

Page 26 of 485

Acura NSX 2019  Owners Manual 25
Quick Reference Guide
VSA® On and Off (P 344)
● The Vehicle Stability Assist ® (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on

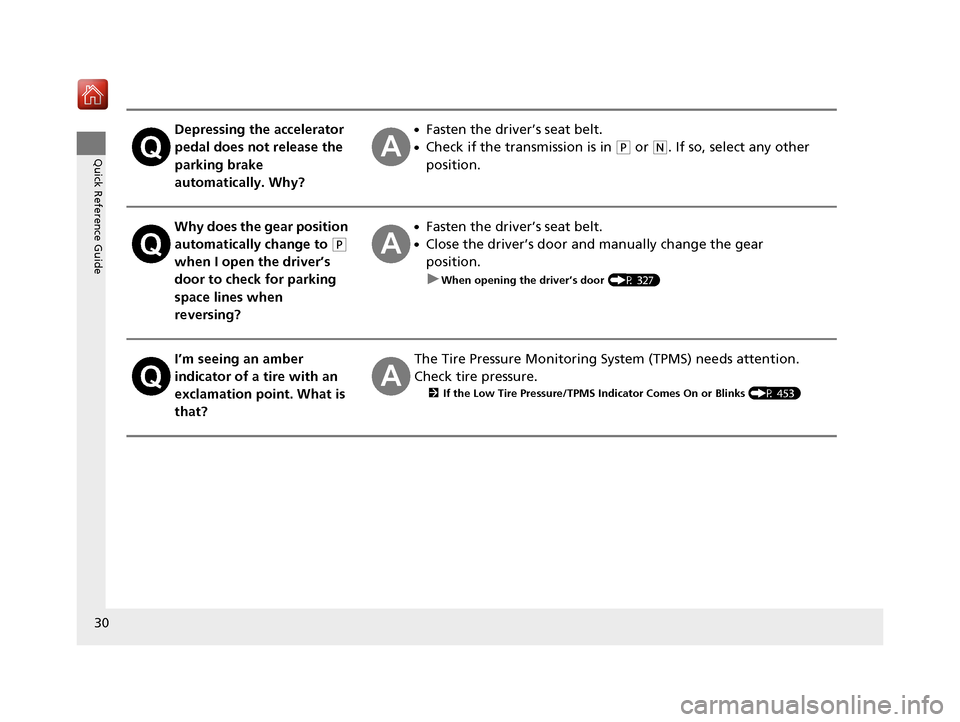

Page 31 of 485

Acura NSX 2019  Owners Manual 30
Quick Reference Guide
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If s

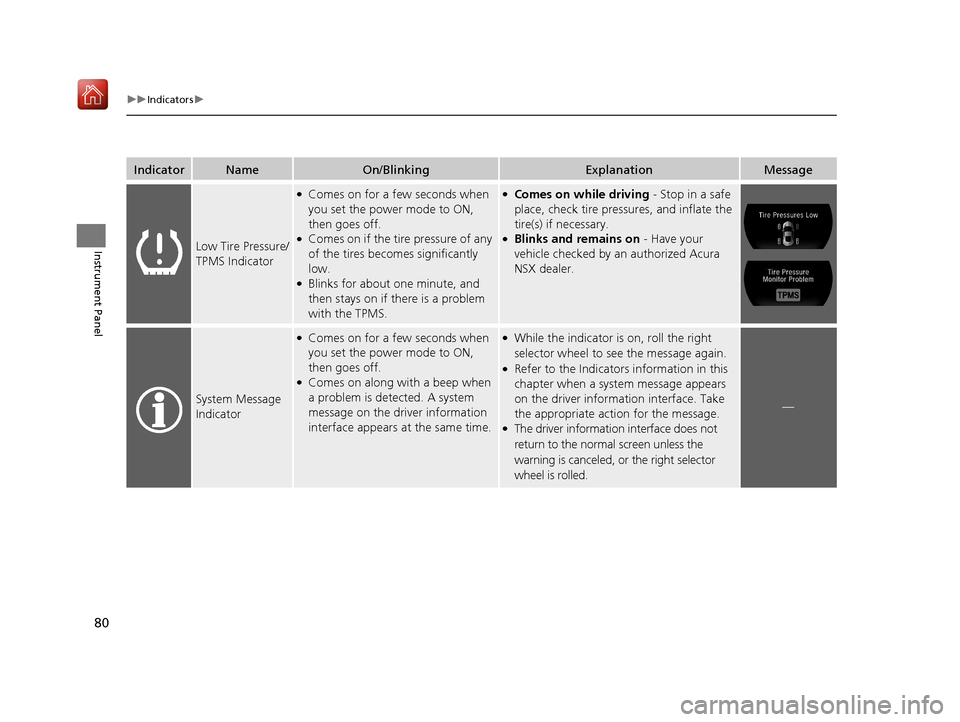

Page 81 of 485

Acura NSX 2019  Owners Manual 80
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Com

Page 103 of 485

Acura NSX 2019  Owners Manual uuGauges and Displays uDriver Information Interface
102
Instrument Panel
Shows you turn-by-turn driving directions to your destination linked with the
navigation system.
2 Refer to the Navigation Sys

Page 308 of 485

Acura NSX 2019  Owners Manual 307
Driving
This chapter discusses driving and refueling.
Before DrivingDriving Preparation .......................... 308
Maximum Load Limit........................ 311
High-Performance Driving .....

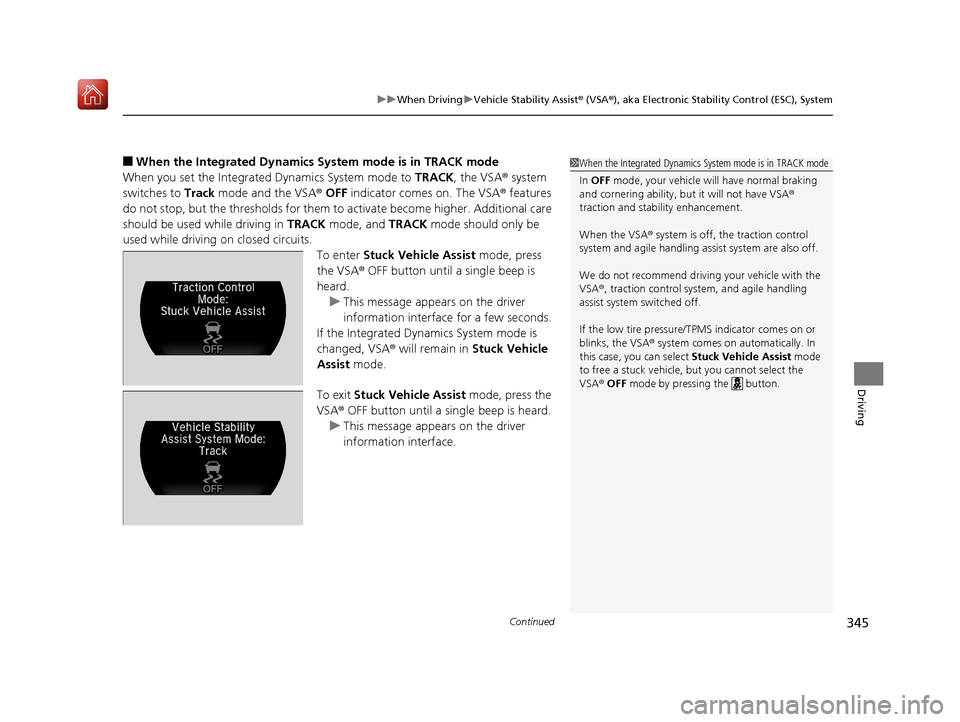

Page 346 of 485

Acura NSX 2019  Owners Manual Continued345
uuWhen Driving uVehicle Stability Assist ® (VSA ®), aka Electronic Stability Control (ESC), System
Driving
■When the Integrated Dynamics System mode is in TRACK mode
When you set the

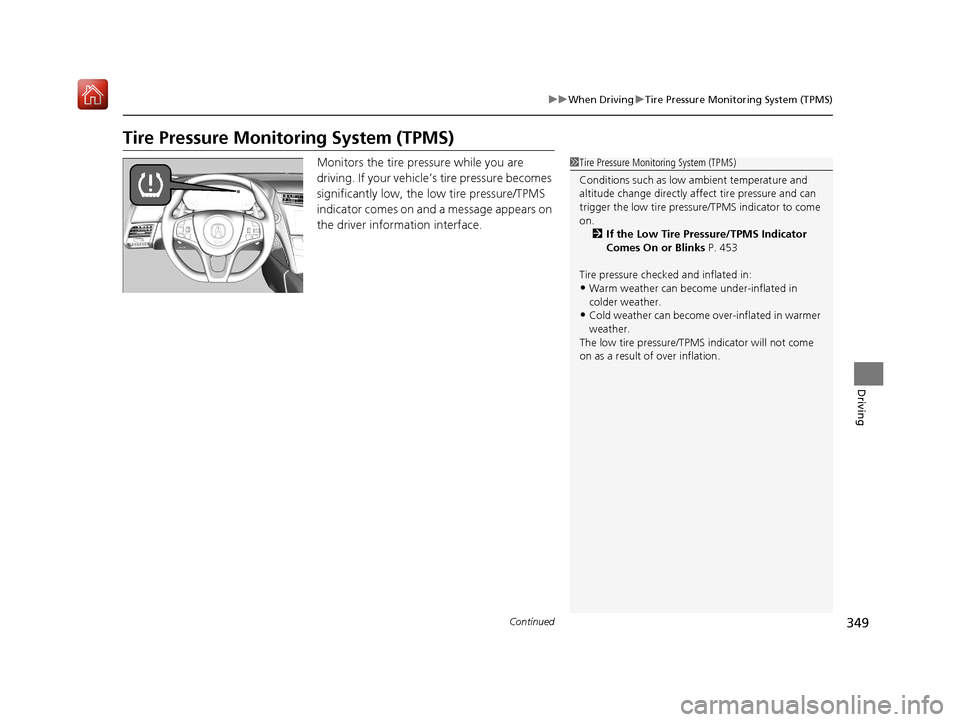

Page 350 of 485

Acura NSX 2019  Owners Manual 349
uuWhen Driving uTire Pressure Monitoring System (TPMS)
Continued
Driving
Tire Pressure Monitoring System (TPMS)
Monitors the tire pr essure while you are
driving. If your vehicle’s tire pressur

Page 351 of 485

Acura NSX 2019  Owners Manual uuWhen Driving uTire Pressure Monitoring System (TPMS)
350
Driving
To select the tire pressure monitor, set the power
mode to ON, and roll the right selector wheel
until you see the tire pressure sc

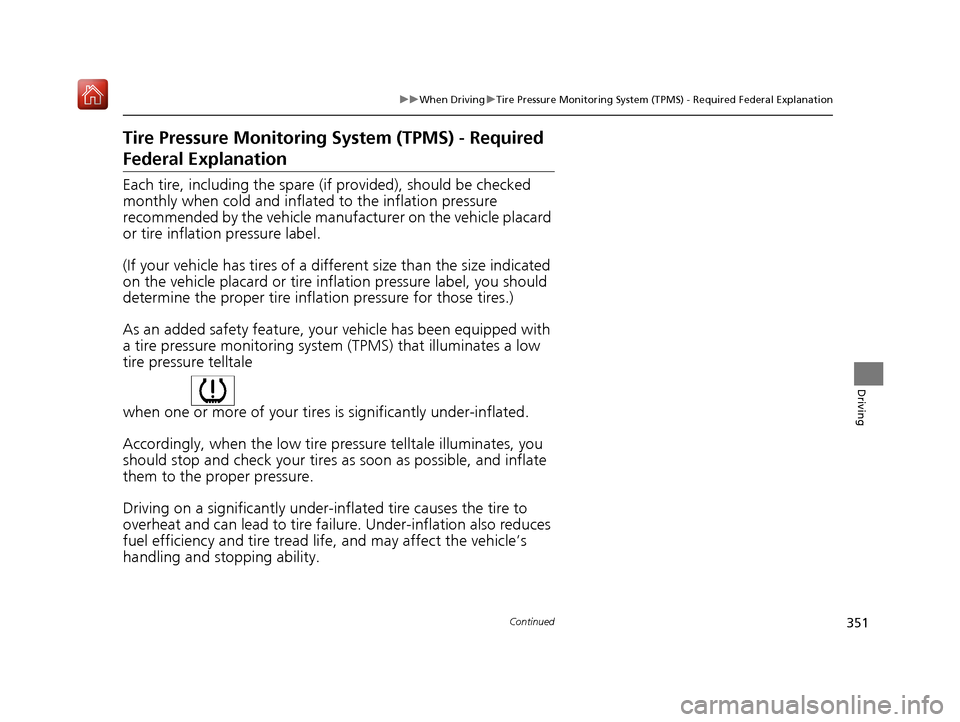

Page 352 of 485

Acura NSX 2019  Owners Manual 351
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Continued
Driving
Tire Pressure Monitoring  System (TPMS) - Required
Federal Explanation
Each tire, including
Page:   1-10 11-20 next >
