Acura NSX 2019 Owner's Manual
Manufacturer: ACURA, Model Year: 2019, Model line: NSX, Model: Acura NSX 2019Pages: 485, PDF Size: 27.6 MB
Page 471 of 485
470
Information

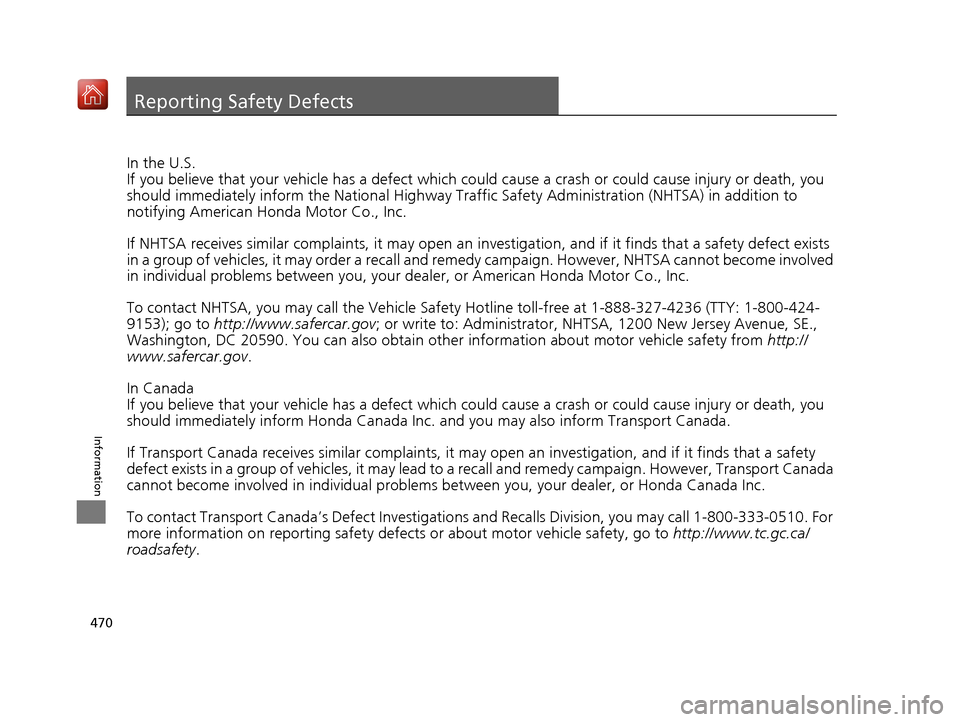

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
19 NSX-31T6N6200.book 470 ページ 2018年8月9日 木曜日 午前11時12分
Page 472 of 485
471Continued
Information

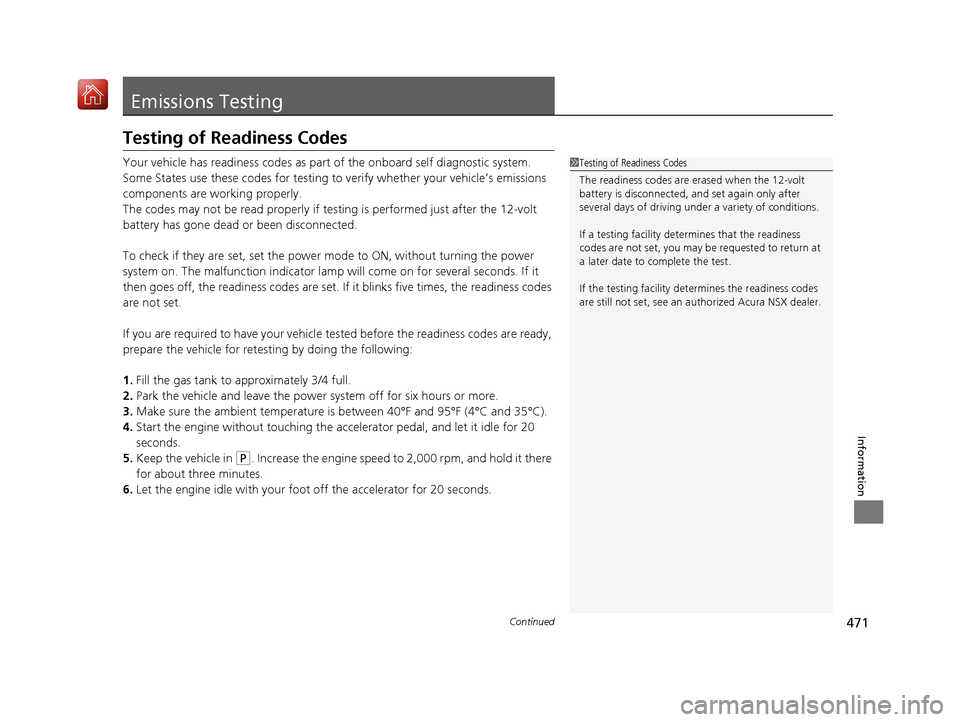

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the powe r mode to ON, without turning the power
system on. The malfunction indicator lamp will come on for several seconds. If it
then goes off, the readiness co des are set. If it blinks five times, the readiness codes
are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see an authorized Acura NSX dealer.
19 NSX-31T6N6200.book 471 ページ 2018年8月9日 木曜日 午前11時12分
Page 473 of 485
472

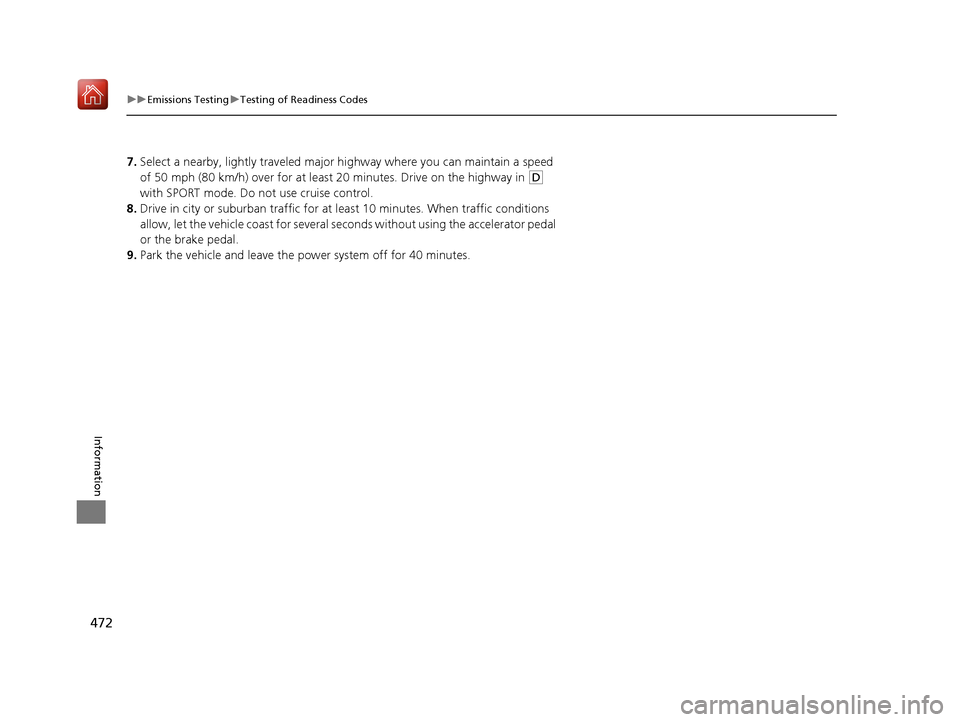

uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 mph (80 km/h) over for at leas t 20 minutes. Drive on the highway in
(D
with SPORT mode. Do not use cruise control.
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the power system off for 40 minutes.
19 NSX-31T6N6200.book 472 ページ 2018年8月9日 木曜日 午前11時12分
Page 474 of 485
473Continued
Information

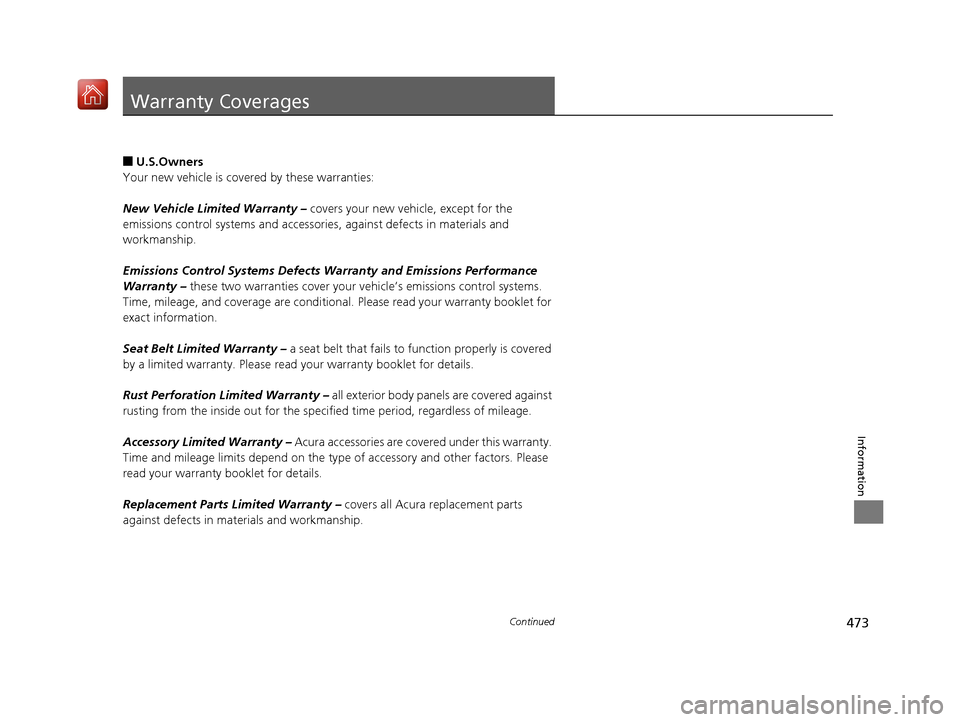

Warranty Coverages
■U.S.Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Acura accessories are covered under this warranty.
Time and mileage limits depend on the type of accessory and other factors. Please
read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Acura replacement parts
against defects in mate rials and workmanship.
19 NSX-31T6N6200.book 473 ページ 2018年8月9日 木曜日 午前11時12分
Page 475 of 485
474

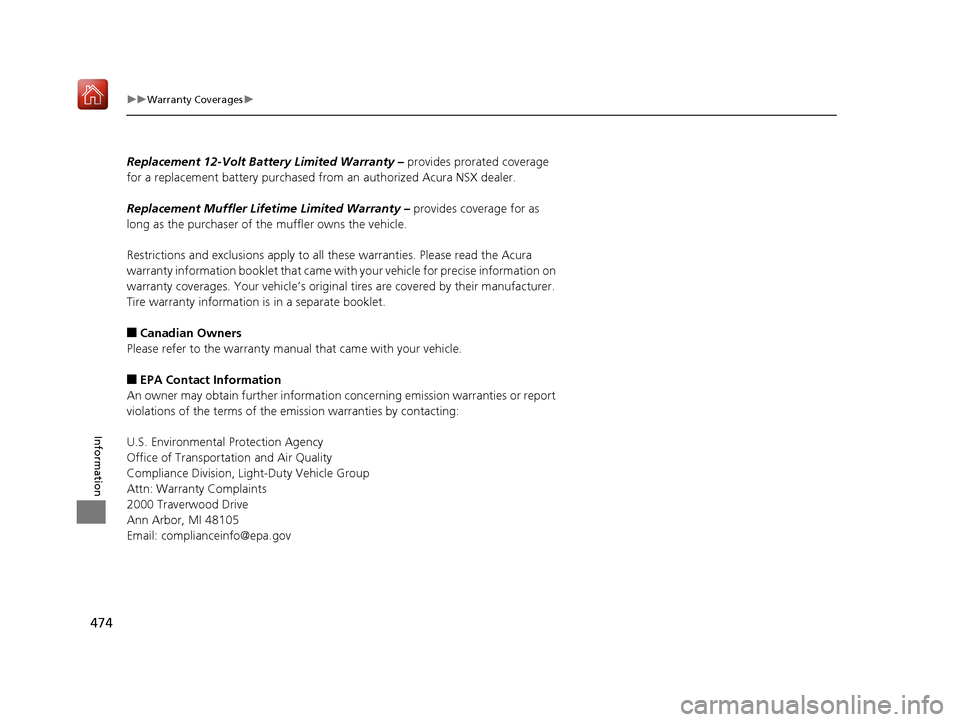

uuWarranty Coverages u
Information
Replacement 12-Volt Batte ry Limited Warranty – provides prorated coverage
for a replacement battery purchased from an authorized Acura NSX dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Acura
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the em ission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Li ght-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: [email protected]
19 NSX-31T6N6200.book 474 ページ 2018年8月9日 木曜日 午前11時12分
Page 476 of 485
475
Information

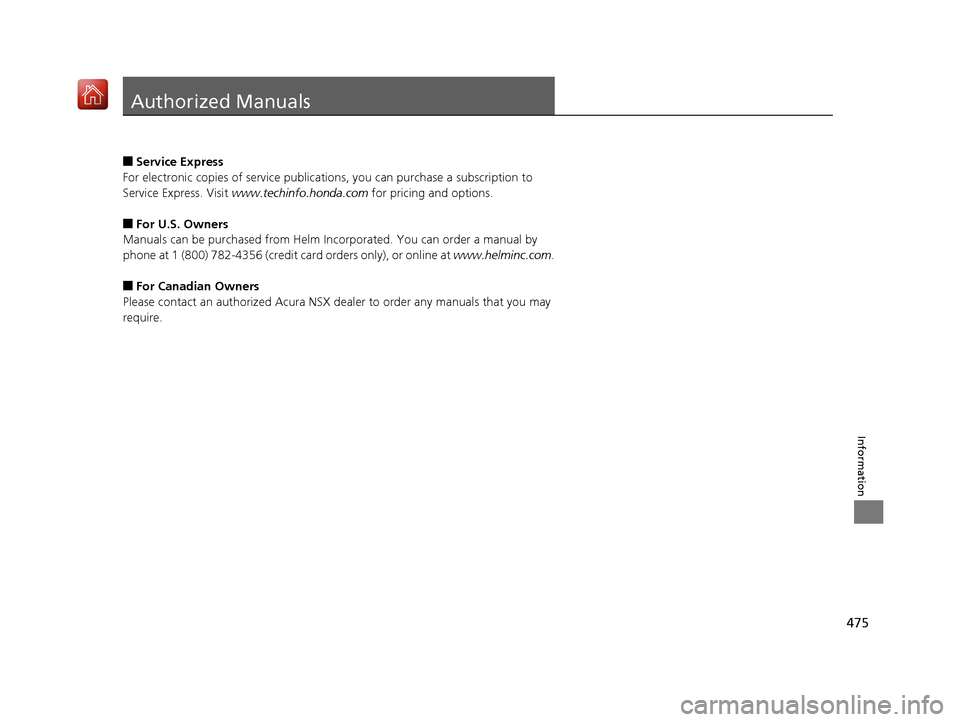

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact an authorized Acura NSX d ealer to order any manuals that you may
require.
19 NSX-31T6N6200.book 475 ページ 2018年8月9日 木曜日 午前11時12分
Page 477 of 485
476
Information
Client Service Information
Authorized Acura NSX dealership personnel are trained professionals who should be
able to deal with any problems you may encounter with your vehicle. If, however,
you are faced with a problem that they cannot resolve to your satisfaction, contact
Acura Client Relations/Services.
U.S. Owners Canadian Owners
American Honda Motor Co., Inc. Honda Canada Inc.
Acura Client Relations Acura Client Services
Mail Stop 100-5E-8F 180 Honda Boulevard
1919 Torrance Blvd. Markham, ON
Torrance, CA 90501-2746 L6C 0H9
Tel: 1-844-68-ACURA Tel: 1-888-9-ACURA-9
(1-844-682-2872) 1-844-9-MYNSX-9 (NSX-
specific)
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Client Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, Motor Number, and
Transmission Number P. 468
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the authorized Acura NSX dealer who sold
the vehicle to you
19 NSX-31T6N6200.book 476 ページ 2018年8月9日 木曜日 午前11時12分
Page 478 of 485
Index
477
Index
Index
Numbers
12-Volt Battery Charging System Indicator ................................................... 75
A
AAC........................................................... 206
ABS (Anti-lock Brake System) .................. 359
Accessories and Modifications ................ 424
Accessory Power Socket ........................... 152
Active Damper System Indicator ............... 74
AcuraLink ................................................. 302
Adding the Coolant ................................. 395
Additives Coolant .......................................... 394, 396
Washer ................................................... 398
Adjusting Mirrors.................................................... 141
Seats....................................................... 144
Steering Wheel ....................................... 140
Temperature ........................................... 100
Agile Handling Assist System .................. 347
Air Conditioning System (Climate Control System) .................................................... 154
Changing the Mode................................ 155
Defrosting the Windshield and Windows ...................................... 156, 157
Dust and Pollen Filters ............................. 417
Recirculation/Fresh Air Mode................... 155
Sensors ................................................... 158
Using Automatic Climate Control............ 154 Air Pressure
....................................... 406, 467
Airbags ........................................................ 43
Advanced Airbags ..................................... 49
Airbag Care ............................................... 57
Driver’s Knee Airbag .................................. 50
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 46
Indicator .............................................. 55, 78
Passenger Airbag Off Indicator .................. 56
Sensors ...................................................... 43
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
Android Auto ............................................ 217
Anti-lock Brake System (ABS) .................. 359
Indicator .................................................... 78
Apple CarPlay ........................................... 214
Audio Remote Controls ............................ 163
Audio System ............................................ 160
Adjusting the Sound ................................ 179
Changing the Home Screen Icon Layout .. 168
Closing Apps ........................................... 178
Error Messages ........................................ 221
General Information ................................ 224
Home Screen ........................................... 171
iPod ......................................................... 197
Limitations for Manua l Operation ............ 181
MP3/WMA/AAC ...................................... 206
Reactivating ............................................. 162
Recommended Devices ............................ 225
Remote Controls ..................................... 163
Security Code .......................................... 162 Selecting an Audio Source ....................... 181
Status Area ............................................. 177
Theft Protection ...................................... 162
USB Flash Drives ...................................... 225
USB Ports ................................................ 161
Wallpaper Setup...................................... 169
Audio/Information Screen ....................... 165
Authorized Manuals ................................ 475
Auto Door Locking/Unlocking ................. 118
Auto Engine Stop/Start .............................. 13
Automatic Brake Hold ............................. 357
Indicator............................................ 72, 357
Automatic Brake Hold System Indicator............................................ 72, 357
Automatic Operation (automatic lighting control) .................................................... 132
Average Fuel Economy ............................ 101
Average Speed ......................................... 101
B
Battery
12-Volt.................................................... 415
12-Volt Battery Charging System
Indicator .......................................... 75, 450
Charging (AGM Battery) .......................... 415
High Voltage ........................................... 353
Jump Starting .......................................... 446
Maintenance (Checking the 12-Volt Battery) ................................................. 415
Maintenance (Replacing) ......................... 416
19 NSX-31T6N6200.book 477 ページ 2018年8月9日 木曜日 午前11時12分
Page 479 of 485
478
Index
Battery Types.............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ...................................... 152
Bluetooth ® Audio ..................................... 209
Bluetooth ® HandsFreeLink ®..................... 268
Booster Seats (For Children) ....................... 66
Brake System ............................................. 354
Anti-lock Brake System (ABS) ................... 359
Automatic Brake Hold.............................. 357
Brake Assist System ................................. 360
Fluid ........................................................ 398
Foot Brake ............................................... 356
Parking Brake .......................................... 354
Brake System (Amber)
Indicator .................................................... 73
Brake System (Red) Indicator ............................................ 70, 451
Brake Wear Indicator .................................................... 74
Bulb Replacement ..................................... 399
Back-Up Lights......................................... 400
Daytime Running Lights ........................... 399
Front Side Marker Lights .......................... 399
Front Turn Signal/Parking Lights ............... 399
Headlights ............................................... 399
High-Mount Brake Light .......................... 401
Rear License Plate Lights .......................... 401
Rear Side Marker Lights ........................... 400
Rear Turn Signal Lights ............................ 400
Side Turn Signal/Emergency Indicator Lights..................................................... 399 Taillights.................................................. 400
Bulb Specifications ................................... 466
C
Carbon Monoxide Gas ............................... 67
Carrying Cargo ................................. 309, 311
Certification Label .................................... 468
Changing Bulbs ........................................ 399
Charging System Indicator ................. 75, 450
Child Safety ................................................. 58
Emergency Hatch Opener ........................ 121
Child Seat .................................................... 58
Booster Seats ............................................ 66
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat ................................ 63
Larger Children ......................................... 65
Selecting a Forward-facing Child Seat........ 62
Using a Tether ........................................... 64
Cleaning the Exterior ............................... 420
Cleaning the Interior ................................ 418
Client Service Information ....................... 476
Climate Control System ............................ 154
Defrosting the Windshield and Windows ....................................... 156, 157
Dust and Pollen Filters ............................. 417
Recirculation/Fresh Air Mode ................... 155
Sensors ................................................... 158
Using Automatic Climate Control ............ 154
Clock .......................................................... 104 Cold Weather
........................................... 414
Console Compartment ............................. 151
Controls .................................................... 103
Coolant (Engine) ...................................... 394
Adding the Coolant ................................ 395
Checking the Coolant ............................. 394
Overheating ............................................ 448
Coolant (Inverter) .................................... 396
Creeping (Dual Clutch Transmission) ...... 323
Cruise Control .......................................... 340
CRUISE CONTROL Indicator ....................... 82
CRUISE MAIN Indicator .............................. 82
Cup Holders .............................................. 152
Customized Features ............................... 242
D
Daytime Running Lights .......................... 134
Dead Battery (12-Volt) ............................. 446
Defrosting the Windshield and Windows ......................................... 156, 157
Devices that Emit Radio Waves ............... 469
Dimming Headlights .............................................. 131
Rearview Mirror ...................................... 141
Dipstick (Engine Oil) ........................ 384, 391
Directional Signals (Turn Signal) ............. 130
Door Mirrors ............................................. 142
Doors ........................................................ 105
Auto Door Locking.................................. 118
Auto Door Unlocking .............................. 118
19 NSX-31T6N6200.book 478 ページ 2018年8月9日 木曜日 午前11時12分
Page 480 of 485
479
Index
Door Open Message ................................. 35
Keys........................................................ 105
Locking/Unlocking the Doors from the Inside .............................................. 18, 115
Locking/Unlocking the Doors from the
Outside ................................................. 107
Lockout Prevention System ..................... 114
DOT Tire Quality Grading ........................ 408
Driver Information Interface ..................... 98
Driver’s Knee Airbag .................................. 50
Driving ...................................................... 307
Braking ................................................... 354
Cold Weather ......................................... 414
Cruise Control ........................................ 340
Dual Clutch Transmission ........................ 323
Shifting Gear .......................................... 324
Turning on the Power ............................. 319
Driving Position Memory System ............ 138
Dual Clutch Transmission ........................ 323
Creeping................................................. 323
Fluids .............................................. 397, 467
Kickdown ............................................... 323
Operating the Shift Button ................ 23, 326
Shifting ................................................... 324
Dust and Pollen Filters ............................. 417
E
Elapsed Time............................................ 101
Electric Parking Brake .............................. 354
Indicator ................................................... 71 Electric Parking Brake System
Indicator ............................................ 71, 452
Electric Power Steering (EPS) System Indicator ............................................ 78, 451
Electronic Stability Control (ESC) ............. 343
Emergency ................................................ 460
Emergency Hatch Opener ........................ 121
Emissions Testing (Readiness Codes) ....... 471
Energy Efficiency ........................................ 12
Engine ....................................................... 468
Coolant ........................................... 394, 467
Jump Starting .......................................... 446
Oil ................................................... 388, 467
Engine Compartment Cover .................... 387
Engine Coolant ......................................... 394
Adding the Coolant ................................. 395
Checking the Coolant .............................. 394
Overheating ............................................ 448
Engine Oil
Adding .................................................... 392
Changing ................................................ 393
Checking ................................................. 389
Displaying Oil Life .................................... 378
Low Oil Level Symbol ............................... 454
Low Oil Pressure Indicator .......................... 70
Recommended Engine Oil ........................ 388
Temperature Gauge .................................. 97
EPS (Electric Power Steering) System ........ 78
Exhaust Gas Hazard (Carbon Monoxide) .. 67
Exterior Care (Cleaning) ........................... 420
Exterior Mirrors ........................................ 142
F
Features.................................................... 159
Filters Dust and Pollen ....................................... 417
Oil ........................................................... 393
Flat Tire ..................................................... 431
Floor Mats ................................................. 419
Fluids
Brake .............................................. 398, 467
Dual Clutch Transmission ................ 397, 467
Engine Coolant ............................... 394, 467
Inverter Coolant .............................. 396, 467
Twin Motor Unit.............................. 397, 467
Windshield Washer ......................... 398, 466
FM Radio ................................................... 186
Foot Brake ................................................ 356
Front Airbags (SRS) ..................................... 46
Fuel ...................................................... 25, 368
Economy ................................................. 370
Gauge ....................................................... 95
Instant Fuel Economy .............................. 101
Low Fuel Indicator ..................................... 77
Range ..................................................... 101
Refueling................................................. 368
Requirement ................................... 368, 466
Fuel Economy ........................................... 370
Fuel Fill Door ...................................... 25, 369
Fuses .......................................................... 455
Inspecting and Changing......................... 459
Locations................................. 455, 457, 458
19 NSX-31T6N6200.book 479 ページ 2018年8月9日 木曜日 午前11時12分
