display ACURA NSX 2020 Workshop Manual

249
uuCustomized Featuresu
Continued
Features
ClockClock/Wallpaper Type
Clock Adjustment
Clock Format
Auto Time Zone*
Manual Time Zone *
Auto Daylight*
Clock Display
Clock Reset
Clock
Wallpaper
Language
Touch Panel Sensitivity
Factory Data Reset
Climate Screen Timeout
Detail Information
Others
Date Format
Default
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 249 ページ ２０１９年９月１１日　水曜日　午後４時５１分

250
uuCustomized Featuresu
Features
Adjust Outside Temp Display
“Trip A” Reset Timing
“Trip B” Reset Timing
VehicleMeter Setup
Display km/Miles
Language Selection
Turn by Turn Display*
Easy Entry/ExitDriving Position Setup *
Memory Position Link
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 250 ページ ２０１９年９月１１日　水曜日　午後４時５１分

252
uuCustomized Featuresu
Features
■List of customizable options
*1:Default Setting Setup
Group Customizable Features Desc
ription Selectable Settings
Clock/ InfoClock
Clock/
Wallpaper
TypeClockChanges the clock display type.Analog/Digital *1
/
Small Digital /Off
Wallpaper
• Changes the wallpaper type.
• Imports an image file for a new wallpaper.
• Deletes an image file for a wallpaper.Blank /Galaxy *1
/
Metallic /Time Zone
Clock AdjustmentAdjusts Clock.—
Clock FormatSelects the digital clock display from 12H to 24H.12H *1
/24H
Date FormatChanges the date display type.
YYYY/MM/DD , MM/
DD/YYYY *1
, DD/
MM/YYYY
Auto Time Zone *Automatically adjusts th
e clock when driving
through different time zones.On *1
/Off
Manual Time Zone *Changes the time zone manually.—
Auto Daylight*
Select
On to have the GPS automatically adjust
the clock to daylight savings time. Select Off to
cancel this function.
On *1
/Off
Clock DisplaySelects whether the clock display comes on.On *1
/Off
Clock ResetResets the clock settings to the factory default.Yes /No
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 252 ページ ２０１９年９月１１日　水曜日　午後４時５１分

253
uuCustomized Featuresu
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Clock/
Info
AcuraLink*AcuraLink Subscription
StatusDisplays your current AcuraLink subscription
status.—
OtherInfo Screen Preference
Changes the information screen type. •
Info Top - A brief menu pops up.
• Info Menu - A full menu pops up.
• Off - A menu does not pop up.
Info Top /Info
Menu *1
/Off
DefaultCancels/Resets all cust omized items in the Clock/
Info group as default.Yes/No
Camera Rear
Camera Fixed Guideline
Selects whether the fixed guidelines come on the
rear camera monitor.
2Multi-View Rear Camera P. 369On
*1
/Off
Dynamic Guideline Selects whether the guidelines adjust to the
movement of the steering wheel.
2Multi-View Rear Camera P. 369On
*1
/Off
Default Cancels/Resets all cust
omized items in the Rear
Camera setting group as default. Yes
/No
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 253 ページ ２０１９年９月１１日　水曜日　午後４時５１分

256
uuCustomized Featuresu
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Audio
Common
Sound
Adjusts the settings of the audio
speakers’ sound.
2Adjusting the Sound P. 181
-6~0*1
~+6 (BASS and TREBLE ),
RR9 ~0*1
~FR9 (FADER ),
L9 ~0*1
~R9 (BALANCE ),
-6 ~0*1
~+6 (Center *
and Subwoofer ),
Off /Low /Mid *1
/High
( Speed Volume Compensation ),
Off *1
/On (Neural *
)
Audio Source Pop-Up
Selects whether the list of
selectable audio sources comes on
when Audio is selected on the
home screen.
On /Off *1
[Your selected media]
Cover ArtTurns the cover art display on and off.On*1
/Off
Bluetooth Device List
Pairs a new phone to HFL, edits or
deletes a paired phone.
2Phone Setup P. 278
—
FM
HD Radio Mode
Selects whether the audio system
automatically switches to the
digital radio waves or receives the
analog waves only.
Auto*1
/Analog
RDS INFOTurns on and off the RDS information.On *1
/Off
FM mode
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 256 ページ ２０１９年９月１１日　水曜日　午後４時５１分

258
uuCustomized Featuresu
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System Display Display
Settings
Brightness
Changes the brightness of the audio/information
screen. 0
~ 5~ 10 *1

(Daytime mode)0 ~ 5*1
~10
(Nighttime mode)
Contrast Changes the contrast of the audio/information
screen. -5
~0*1
~+5
Black Level Changes the black level of the audio/information
screen.
-5
~0*1
~+5
Background Color Changes the background color of the audio/ information screen. Blue
*1
/Amber /Red /
Violet
Track Mode Display Turns the limitation screen for the
TRACK mode
on and off. 2Limitations for Manual Operation P. 183On
*1
/Off
Sound/
Beep Guidance Volume
*Changes the sound volume.
Adjusts the guidance volume of the navigation system. 1
~ 6*1
~11
Text Message Volume Changes the text/e-mail message reading
volume. 1
~ 6*1
~11
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 258 ページ ２０１９年９月１１日　水曜日　午後４時５１分

260
uuCustomized Featuresu
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System Clock Clock/
Wallpaper Type
Clock
See Clock/Info
on P. 252
Wallpaper
Clock Adjustment
Clock Format
Date FormatAuto Time Zone *
Manual Time Zone *
Auto Daylight *
Clock Display
Clock Reset
Others Language
Change the display language. English
*1
/Français /
Español
Touch Panel Sensitivity Sets the sensitivity of the touch panel screen. High*1
/Low
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 260 ページ ２０１９年９月１１日　水曜日　午後４時５１分

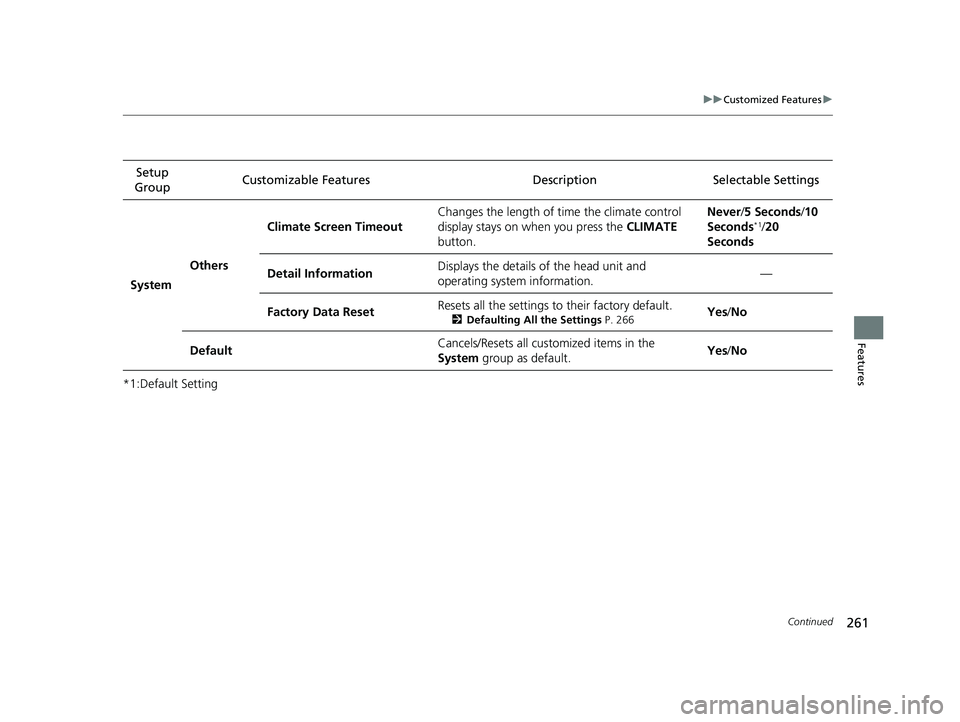

261
uuCustomized Featuresu
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System Others Climate Screen Timeout
Changes the length of time the climate control
display stays on when you press the
CLIMATE
button. Never
/5 Seconds /10
Seconds *1
/20
Seconds
Detail Information Displays the details of the head unit and
operating system information. —
Factory Data Reset Resets all the settings to their factory default.
2Defaulting All the Settings P. 266Yes
/No
Default Cancels/Resets all cust
omized items in the
System group as default. Yes
/No
20 ACURA NSX PMC-31T6N6300.book 261 ページ ２０１９年９月１１日　水曜日　午後４時５１分

262
uuCustomized Featuresu
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
VehicleMeter
Setup
Language SelectionChanges the displayed language on the driver
information interface.English*1
/Français /
Español
Adjust Outside Temp DisplayAdjusts the temperature reading by a few
degrees.
-5°F ~ ±0°F *1
~ +5°F
(U.S.) -3°C ~ ±0°C *1
~ +3°C
(Canada)
“Trip A” Reset TimingChanges the setting of how to reset trip meter A
and average fuel economy A.With Refuel /IGN Off /
Manually Reset *1
“Trip B” Reset TimingChanges the setting of how to reset trip meter B
and average fuel economy B.With Refuel
/IGN Off /
Manually Reset *1
Turn by Turn Display
*Selects whether the turn-by-turn display comes
on during the route guidance.On*1
/Off
Display km/MilesSelects the trip computer units.Auto *1
/km/Miles
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 262 ページ ２０１９年９月１１日　水曜日　午後４時５１分

265
uuCustomized Featuresu
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Dynamic
Mode
Setup
Scheduler
Changes the Integrated Dynamics System mode
schedule. The vehicle starts in the
QUIET or
SPORT mode according to the selected item or
time schedule.OFF /Always Sport *1
/
Always Quiet /Last
Start /Quiet: 12am-
6am /Quiet: 12am-
8am
Maintenance
InfoResetUsed to reset the engine oil life display when the
maintenance service has been performed.—
DefaultCancels/Resets all customized items in the Vehicle group as default.Yes/No
Smart-
phone Apple CarPlay
Sets up the Apple CarPlay connection. —
Android Auto Sets up the Android Auto connection. —
Default Cancels/Resets all customized items in the
Smartphone
group as default. Yes
/No
20 ACURA NSX PMC-31T6N6300.book 265 ページ ２０１９年９月１１日　水曜日　午後４時５１分
