display ACURA NSX 2020 Repair Manual

270
Features
Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
• U.S.: Visit www.acura.com/handsfreelink , or call 1-
888-528-7876.
• Canada: For more info rmation on smartphone
compatibility, call 1-888-528-7876.
To use the system, the Bluetooth On/Off Status
setting must be On. If there is an active connection to
Apple CarPlay, H FL is unavailable.
2 How to customize P. 244
Voice control tips • Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.
• Press the button when you want to call a
number using a stored voice tag, a phonebook
name, or a number. Spe ak clearly and naturally
after a beep.
• If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
• To change the volume level, select the audio system’s VOL (Volume) or use the remote audio
controls on the steering wheel.
Up to five speed dial en tries can be displayed among
a total of 20 that can be entered. 2 Speed Dial P. 284
Up to five previous calls can be displayed at a time
among a total of 20 that can be entered. If there is no
call history, Call History is disabled.
Talk Button Microphone
Hang-up/Back Button
Pick-up Button
Volume up
Volume down
Left Selector Wheel
20 ACURA NSX PMC-31T6N6300.book 270 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued271
uuBluetooth® HandsFreeLink ®uUsing HFL
Features
(Pick-up) button: Press to go to the Speed Dial/Call History on the driver
information interface, or to answer an incoming call.
(Hang-up/back) button: Press to end a call, go back to the previous
command, cancel a command, or clear th e phone information on the driver
information interface.
(Talk) button: Press to access Voice Portal.
Left selector wheel:
Move to the right or left to select the Speed Dial or Call History on the driver
information interface.
Roll up or down to select an item displayed on the Speed Dial/Call History display.
Push to call a number listed in the selected item on the Speed Dial/Call History
display.
To go to the Phone menu screen:
1. Select .
2. Select Phone to switch the displa y to the phone screen.
3. Select .1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call is ended.
20 ACURA NSX PMC-31T6N6300.book 271 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuBluetooth® HandsFreeLink ®uUsing HFL
272
Features
The audio/information screen notifies you when there is an incoming call.
Certain manual functions are disabled or i noperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phonebook names, or
numbers can be called using voice commands while the vehicle is in motion. 2 Speed Dial P. 284
■HFL Status Display1HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language. 2 How to customize P. 244
■Limitations for Manual Operation
Bluetooth Indicator
Appears when your phone is
connected to HFL.
Signal Strength
HFL Mode Battery Level Status
Caller’s Name
Caller’s Number
20 ACURA NSX PMC-31T6N6300.book 272 ページ ２０１９年９月１１日　水曜日　午後４時５１分

277
uuBluetooth® HandsFreeLink ®uHFL Menus
Continued
Features
See the previous message.
Text/Email
Read
/Stop(Existing message list)
See the next message.
System reads received message aloud, or
stop message from being read.
Select Account
Select a mail or text message account.
Reply to a received message using one of six fixed phrases.
Call
Make a call to the sender.
Reply
Display the last outgoing, incoming and missed calls.
Call HistoryAll
Dialed
Received
Display the last outgoing calls.
Display the last incoming calls.
Missed
Display the last missed calls.
Dial
Redial
Enter a phone number to dial.
Redial the last number dialed.
Phonebook
Display the paired phone’s phonebook.
Roadside
Assistance *Makes a call to the number for the Roadside Assistance service.
* Not available on all models
20 ACURA NSX PMC-31T6N6300.book 277 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuBluetooth® HandsFreeLink ®uHFL Menus
278
Features

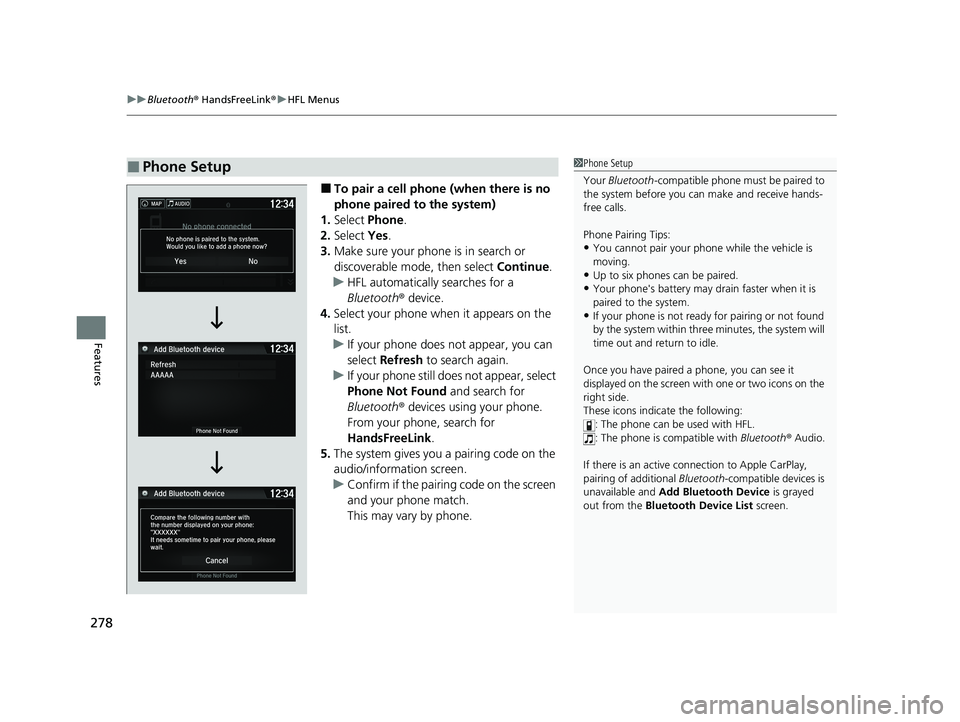

■ To pair a cell phone (when there is no
phone paired to the system)
1. Select Phone .
2. Select Yes.
3. Make sure your phone is in search or
discoverable mode, then select Continue.
uHFL automatically searches for a
Bluetooth® device.
4. Select your phone when it appears on the
list.
uIf your phone does not appear, you can select Refresh to search again.
uIf your phone still does not appear, select
Phone Not Found and search for
Bluetooth ® devices using your phone.
From your phone, search for
HandsFreeLink .
5. The system gives you a pairing code on the
audio/information screen.
uConfirm if the pairing code on the screen
and your phone match.
This may vary by phone.
■Phone Setup1Phone Setup Your Bluetooth -compatible phone must be paired to
the system before you ca n make and receive hands-
free calls.
Phone Pairing Tips: • You cannot pair your phone while the vehicle is
moving.
• Up to six phones can be paired.
• Your phone's battery may dr ain faster when it is
paired to the system.
• If your phone is not ready for pairing or not found
by the system within three minutes, the system will time out and return to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the right side.
These icons indicate the following: : The phone can be used with HFL.: The phone is compatible with Bluetooth® Audio.
If there is an active c onnection to Apple CarPlay,
pairing of additional Bluetooth-compatible devices is
unavailable and Add Bluetooth Device is grayed
out from the Bluetooth Device List screen.
20 ACURA NSX PMC-31T6N6300.book 278 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuBluetooth® HandsFreeLink ®uHFL Menus
294
Features

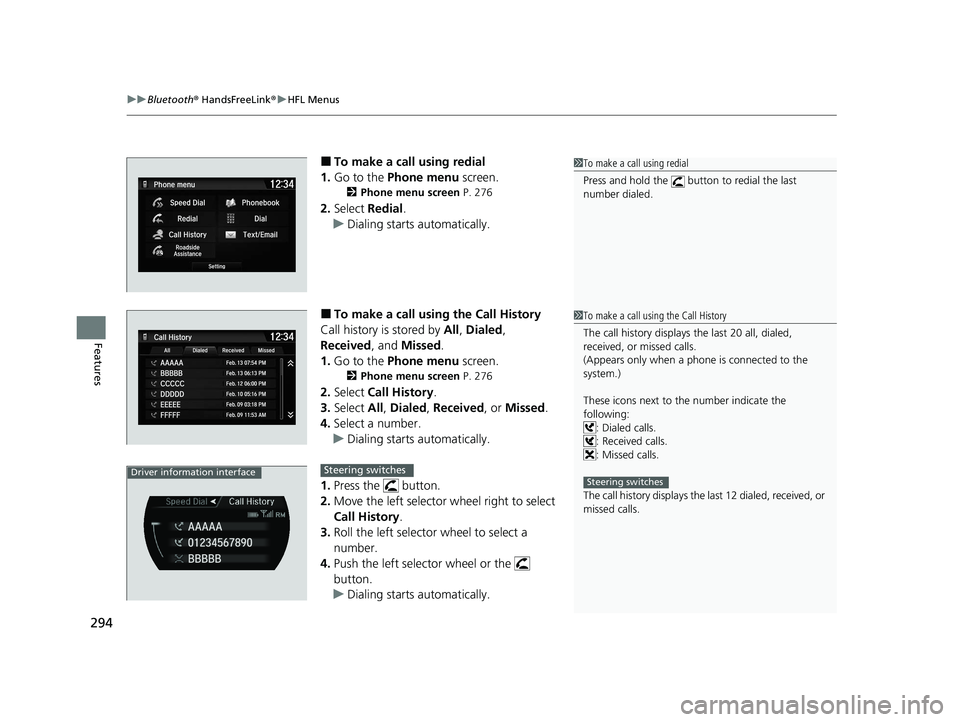

■ To make a call using redial
1. Go to the Phone menu screen.
2 Phone menu screen P. 276
2. Select Redial .
uDialing starts automatically.
■ To make a call using the Call History
Call history is stored by All, Dialed ,
Received , and Missed .
1. Go to the Phone menu screen.
2 Phone menu screen P. 276
2. Select Call History .
3. Select All, Dialed , Received , or Missed .
4. Select a number.
uDialing starts automatically.
1. Press the button.
2. Move the left selector wheel right to select
Call History .
3. Roll the left selector wheel to select a number.
4. Push the left selector wheel or the
button.
uDialing starts automatically.
1To make a call using redial
Press and hold the button to redial the last number dialed.
1To make a call using the Call History
The call history displays the last 20 all, dialed,
received, or missed calls.
(Appears only when a phone is connected to the system.)
These icons next to th e number indicate the
following: : Dialed calls. : Received calls.
: Missed calls.
The call history displays the last 12 dialed, received, or
missed calls.
Steering switchesDriver information interfaceSteering switches
20 ACURA NSX PMC-31T6N6300.book 294 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued295
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
■
To make a call using a Speed Dial entry
1. Go to the Phone menu screen.
2 Phone menu screen P. 276
2. Select Speed Dial .
3. Select a number.
uDialing starts automatically.
1. Press the button.
2. Move the left selector wheel left to select
Speed Dial .
3. Roll the left selector wheel to select a
number.
4. Push the left selector wheel or the
button.
uDialing starts automatically.
1To make a call using a Speed Dial entry
When a voice tag is stored, press the button to
call the number using the voice tag.
2 Speed Dial P. 284
Any voice-tagged speed dial entry can be dialed by
voice from any screen.
Press the button and follow the prompts.
The speed dial displays the 20 speed dial entries.
Steering switchesDriver information interfaceSteering switches
20 ACURA NSX PMC-31T6N6300.book 295 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued297
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
HFL can display newly received text or e-mail messages as well as 20 of the most
recently received messages on a linked cell phone. Each received message can be
read aloud and replied to using a fixed common phrase.
1.A pop-up appears and notifies you of a new
text or e-mail message.
2. Select Read to listen to the message.
uThe text or e-mail me ssage is displayed.
The system automatica lly starts reading
out the message.
3. To discontinue the message read-out, select
Stop .
■Receiving a Text/E-mail Message1Receiving a Text/E-mail Message
The system does not display any received messages
while you are driving. You can only hear them read aloud.
The system can only receive messages that are sent as
text (SMS) messages. Messages sent using data
services will not be displayed in the list.
With some phones, you may be able to display up to
20 most recent text and e-mail messages.
State or local laws may limit your use of the HFL text
/e-mail message feature. Only use the text /e-mail
message feature when conditions allow you to do so
safely.
When you receive a text or e-mail message for the first time since the phone is paired to HFL, you are
asked to turn the New Message Notification
setting to On.
2 To turn on or off the text/e-mail notice
P. 281
20 ACURA NSX PMC-31T6N6300.book 297 ページ ２０１９年９月１１日　水曜日　午後４時５１分

Continued299
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
■
Displaying t ext messages
1. Go to the Phone menu screen.
2 Phone menu screen P. 276
2. Select Text/Email .
uSelect account if necessary.
3. Select a message.
uThe text message is displayed. The
system automatically starts reading the
message aloud.
■Displaying Messages1Displaying Messages
The icon appears next to an unread message.
If you delete a message on the phone, the message is
also deleted in the system. If you send a message
from the system, the message goes to your phone’s
outbox.
To see the previous or next message, select
(previous) or (next) on the message screen.
Message List
Text Message
20 ACURA NSX PMC-31T6N6300.book 299 ページ ２０１９年９月１１日　水曜日　午後４時５１分

300
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
■
Displaying e-mail messages
1. Go to the Phone menu screen.
2 Phone menu screen P. 276
2. Select Text/Email .
uSelect Select Account if necessary.
3. Select a folder.
4. Select a message.
uThe e-mail message is displayed. The
system automatically starts reading the
message aloud.
Folder List
Message List
E-mail Message
