ACURA NSX 2021 User Guide

9
Quick Reference Guide❚Side Airbags (P 54)
❚Side Curtain Airbags (P 56)
❚Seat Belts (P 38)
❚Seat (P 148)
❚Sun Visors
❚Map Lights (P 154)
❚Seat Belt (Installing a Child Seat) (P 66)
* Not available on all models
21 ACURA NSX PMC-31T6N6400.book 9 ページ ２０２０年１０月８日　木曜日　午後３時７分

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P 389)
❚Windshield Wipers (P 139, 408)
❚Power Door Mirrors (P 146)
❚Headlights (P 135, 405)
❚How to Refuel (P 376)
❚High-Mount Brake Light (P 407)
❚Opening/Closing the Hatch (P 123)
❚Brake/Taillights (P 406)
❚Front Turn Signal/Parking Lights (P 134, 135, 405)
❚Back-Up Lights (P 406)
❚Rear License Plate Lights (P 407)
❚Hatch Release Button (P 123)
❚Door Lock/Unlock Control (P 111)
❚Front Side Marker Lights (P 135, 405)
❚Daytime Running Lights (P 138, 405)
❚Tires (P 411, 437)
❚Taillights (P 406)
❚Rear Turn Signal Lights (P 406)
❚Rear Side Marker Lights (P 406)
❚Multi-View Rear Camera (P 373)
21 ACURA NSX PMC-31T6N6400.book 10 ページ ２０２０年１０月８日　木曜日　午後３時７分

11
Quick Reference Guide
SPORT HYBRID Super Handling All-Wheel-
Drive
TM (SPORT HYBRID SH-AWD®)
Your SPORT HYBRID SH-AWD ® vehicle uses a Twin Motor Unit, Direct Drive Motor, and a gasoline engine as propulsion sources, with electric
motors receiving electricity from an internal High Voltage battery.
21 ACURA NSX PMC-31T6N6400.book 11 ページ ２０２０年１０月８日　木曜日　午後３時７分

12
Quick Reference Guide
*: When Integrated Dynamics System is in SPORT+ mode or TRACK mode, EV Launch and EV Cruising cannot be operated.
*: Operating paddle shifters wh en the gear position is in (D cancels EV Launch and EV Cruising.
Operating
modeEV Launch*Engine DriveEV Cruising*Power Acceleration
Vehicle
SpeedLaunch Acceleration:●Front Motor DriveGentle Acceleration:●Engine DriveLow Speed Cruise:●Front Motor DriveAggressive Acceleration:●Engine Drive●Motor Assist
Twin Motor UnitDrive-DriveDrive
Direct Drive
MotorStoppedGenerate / -StoppedGenerate / Drive
EngineStoppedRunningStoppedRunning
High Voltage batteryDischargesCharges/DischargesDischargesDischarges
21 ACURA NSX PMC-31T6N6400.book 12 ページ ２０２０年１０月８日　木曜日　午後３時７分

13
Quick Reference Guide
Operating modeEngine CruisingRegenerationAWD Mode
Vehicle
SpeedHigh Speed Cruise:●Engine DriveDeceleration:●Front & Rear RegenerationSlippery Condition:●Engine Drive●Front Motor Drive
Twin Motor Unit-RegenerateDrive
Direct Drive
MotorGenerate/DriveStoppedGenerate/Drive
EngineRunningRunning/StoppedRunning
High Voltage batteryCharges/DischargesChargesCharges/Discharges
21 ACURA NSX PMC-31T6N6400.book 13 ページ ２０２０年１０月８日　木曜日　午後３時７分

14
Quick Reference Guide

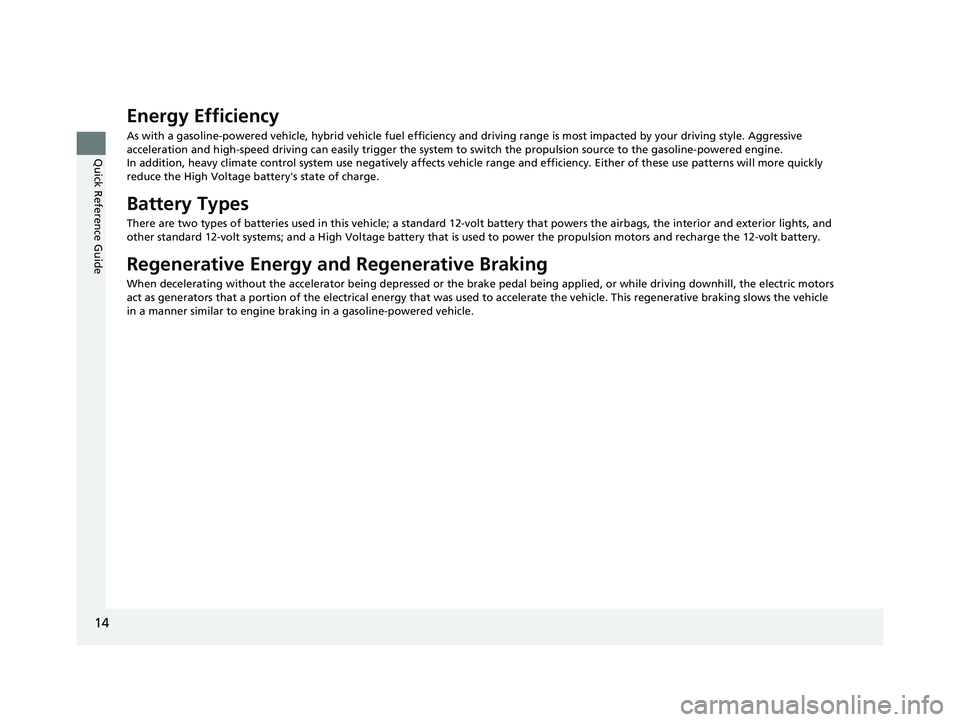

Energy Efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system us e negatively affects vehicle range and efficiency. Either of these use patterns wil l more quickly
reduce the High Voltage battery's state of charge.
Battery Types
There are two types of batteries used in this vehicle; a standa rd 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a High Voltage battery that is used to power the propulsion motors and recharge the 12-volt battery.
Regenerative Energy and Regenerative Braking
When decelerating without the accelerator being depressed or the brake pedal being applied, or while driving downhill, the electric motors
act as generators that a portion of the elec trical energy that was used to accelerate the vehicle. This regenerative braking slows the vehicle
in a manner similar to engine braking in a gasoline-powered vehicle.
21 ACURA NSX PMC-31T6N6400.book 14 ページ ２０２０年１０月８日　木曜日　午後３時７分

15
Quick Reference Guide
Auto Engine Stop/Start
Your vehicle’s gasoline engine will automatically stop and start during vehicle operation as needed to meet driving and battery conditions.
These are some examples that could cause the gasoline engine to automatically start.
In the following cases, however, Auto Engine Stop may not activate.
●When the Integrated Dynamics System is in SPORT+ mode or TRACK mode.●The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.●The climate control system is in heavy use.●The High Voltage battery temperature is high or low.●The High Voltage battery state of charge is low.●The engine coolant temperature is low.●When the door is opened after releasing seatbelt.●When the shift position is in M (Manual) mode.
About Your Vehicle’s Limited Operating Temperature
If the outside temperature is about -4°F (-20°C), some operation might be limited.
The limited operation is listed below:
2 High Voltage Battery (P94)
2 Dual Clutch Transmission (P329)
2 Shifting (P330)
Sounds Unique to th e SPORT HYBRID SH-AWD ® System
When you first start driving this vehicle, you likely will hear some unfamiliar sounds, particular ly when you first turn on the power system,
while driving, and just after parking. Some of these sounds are unique to this ve hicle‘s powertrain, fuel, and climate control systems; others
are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unus ual noise
should one develop.
About a system to cool the High Voltage battery using the climate control system.●The system will not be activated when the defroster is ON.●When the outside temperature is in extreme hot or cold condit ion, the system may not provide sufficient cooling performance to the
High Voltage battery due to the protection of the electric A/C compressor.
●When the system is active, the climate control system may not work sufficiently.
21 ACURA NSX PMC-31T6N6400.book 15 ページ ２０２０年１０月８日　木曜日　午後３時７分

16
Quick Reference Guide
Safety Precautions
Do not touch the High Voltage systemAttempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. If the High Voltage system needs maintenance or repair, it
should be performed at an authorized Acura NSX dealer.
If a crash occurs●Be careful of electric shock hazard.
uIf a severe crash damages your vehicle’s High Voltage system, there is a possibility of electrical shock
due to exposed High Voltage components or wires. If this happens, do not touch any of the High
Voltage system components or any of its orange wires.
●Avoid contact with High Voltage battery fluid.
uThe High Voltage battery contains a flammable electrolyte that could leak as a result of a severe
crash. Avoid any skin or ey e contact with the electrolyte as it is corrosive. If you accidentally touch it,
flush your eyes or skin with a large quantity of water for at le ast five minutes, and seek medical
attention immediately.
●Use a fire extinguisher for an electrical fire.
uAttempting to extinguish an electrical fire with even a small quantity of water, from a garden hose
for instance, can be dangerous.
●Anytime the vehicle is damaged in a crash, have it repaired by an authorized Acura NSX
dealer.
Emergency Shutdown System for the High Voltage SystemThe emergency shutdown system may activate when the vehicle is impacted by some
incident such as a crash. When this system activates, the High Voltage system automatically
shuts down, and your vehicle no longer will move under its own power. To return the High
Voltage system back to normal operation, consult an authorized Acura NSX dealer.
Acura collects and recycles High Voltage batteries used in its vehicles – consult an
authorized Acura NSX dealer for more information.
21 ACURA NSX PMC-31T6N6400.book 16 ページ ２０２０年１０月８日　木曜日　午後３時７分

17
Quick Reference Guide
Safe Driving (P 33)
Airbags (P 45)
●Your vehicle is fitted with airbags to help protect you and
your passenger during a moderate-to-severe collision.
Child Safety (P 61)
●Your vehicle is not recommended for child passengers. If you decide to
disregard our recommendations and tra nsport a child passenger, the child
should be properly restrained.
Never put a rear-facing child seat in the passenger’s seat.
Exhaust Gas Hazard (P 70)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 37)
●Before driving, check that the seats, steering wheel,
and mirrors have been properly adjusted.
Seat Belts (P 38)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passenger is wearing their
seat belt correctly.
Fasten your lap belt as
low as possible.
21 ACURA NSX PMC-31T6N6400.book 17 ページ ２０２０年１０月８日　木曜日　午後３時７分

18
Quick Reference Guide
Instrument Panel (P 73)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
12-Volt Battery Charging
System Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
Assist
TM (VSA® ) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red) Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P 99)/Driver Information Interface (P 102)/System Indicators (P 74)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
High Voltage Battery
Charge Level Gauge
Security System
Alarm Indicator
Fuel Gauge
Tachometer
Driver Information Interface Speedometer
Gear Position Indicator Gear Selection Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator
Brake System
Indicator (Amber)
System Indicators
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
READY Indicator
POWER SYSTEM
Indicator
Temperature Gauge ASSIST/CHARGE
Gauge
U.S.
Canada Active Damper System
Indicator
Brake Wear Indicator
*
CRUISE MAIN

Indicator
CRUISE CONTROL
Indicator
Engine Oil Temperature
Gauge
Integrated Dynamics System
Mode
SH-AWD ® Temperature
Gauge
