ACURA NSX 2021 Owner's Guide

29
Quick Reference Guide
Under the Hood (P389)
●Check inverter coolant.●Check brake fluid.●Check the 12-volt battery condition monthly.
Lights (P405)
●Inspect all lights regularly.
Wiper Blades (P408)
●Replace blades if they leave
streaks across the windshield or
become noisy.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise
the hood. Once you have raised the hood slightly,
you can release the lever.
cWhen finished, close the hood and make sure both
right and left latches are firmly locked in place.
21 ACURA NSX PMC-31T6N6400.book 29 ページ ２０２０年１０月８日　木曜日　午後３時７分

30
Quick Reference Guide
Handling the Unexpected (P 435)
Flat Tire (P 437)
●Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Indicators Come On
(P 456)
●Identify the indicator and consult the
owner’s manual.
Power System Won’t Start
(P 449)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse

(P 461)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P 454)
●Park in a safe location. If you do not see
steam under the hatch, open the hatch,
and let the power system and the engine
cool down.
Emergency Towing
(P 466)
●Call a professional towing service if you
need to tow your vehicle.
21 ACURA NSX PMC-31T6N6400.book 30 ページ ２０２０年１０月８日　木曜日　午後３時７分

31
Quick Reference Guide
What to Do If
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or passenger are not
wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?
The brake pads may need to be replaced. Have your vehicle
inspected by an authorized Acura NSX dealer.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
Models with iron brake discs
21 ACURA NSX PMC-31T6N6400.book 31 ページ ２０２０年１０月８日　木曜日　午後３時７分

32
Quick Reference Guide
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
Why does the gear position
automatically change to
(P
when I open the driver’s
door to check for parking
space lines when
reversing?
●Fasten the driver’s seat belt.
●Close the driver’s door and manually change the gear
position. u
When opening the driver’s door (P 333)
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring Sy stem (TPMS) needs attention.
Check tire pressure.
2 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks (P 459)
21 ACURA NSX PMC-31T6N6400.book 32 ページ ２０２０年１０月８日　木曜日　午後３時７分

33
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions.............. 34
Your Vehicle’s Safety Features ............ 36
Safety Checklist ................................. 37
Seat Belts About Your Seat Belts ........................ 38
Fastening a Seat Belt .......................... 41
Seat Belt Inspection ............................ 44
Airbags Airbag System Components ............... 45
Types of Airbags ................................ 48
Front Airbags (SRS) ............................ 48 Driver’s Knee Airbag .......................... 52
Side Airbags....................................... 54
Side Curtain Airbags .......................... 56
Airbag System Indicators .................... 57
Airbag Care ....................................... 60
Child Safety Protecting Child Passengers ............... 61
Safety of Infants a nd Small Children... 63
Safety of Larger Children ................... 68
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 70 Safety Labels
Label Locations .................................. 71
21 ACURA NSX PMC-31T6N6400.book 33 ページ ２０２０年１０月８日　木曜日　午後３時７分

34
Safe Driving
For Safe Driving
The following pages explain your vehicle’s safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your pass enger always wear your seat belts, and
wear them properly.
■Your vehicle is not recommended for child passengers
The National Highway Traffic Safety Ad ministration and Transport Canada
recommend that all children ages 12 and under be properly restrained in a back
seat. Since this vehi cle does not have a back seat, we strongly recommend that you
do not carry any child who is not large enough and mature enough to ride in front.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don’t drink and drive
Alcohol and driving don’t mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and te rritories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
Never carry an infant in a rear-facing child seat in this
vehicle.
If an older child must ride in this vehicle, follow all
child safety instructions a nd warnings in this manual.
2 Child Safety P. 61
21 ACURA NSX PMC-31T6N6400.book 34 ページ ２０２０年１０月８日　木曜日　午後３時７分

35
uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles , and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all re gularly scheduled maintenance.
■Do not leave children unattended in the vehicle
Children, pets and people needing assistan ce left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in wh ich they and/or another person(s) can be
injured or killed. Also, depending on the am bient temperature, the temperature of
the interior may reach extreme levels, which can result in harm or death.
Even if the climate control system is on, never leave them in the vehicle unattended
as the climate control system can shut off at any time.
21 ACURA NSX PMC-31T6N6400.book 35 ページ ２０２０年１０月８日　木曜日　午後３時７分

36
uuFor Safe Driving uYour Vehicle’s Safety Features
Safe Driving

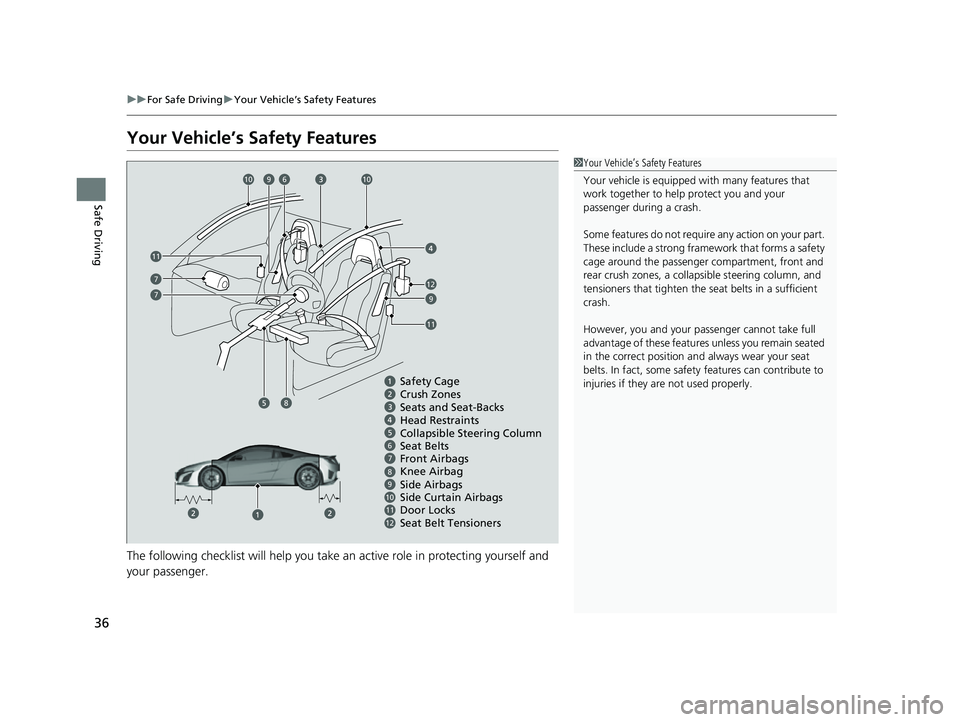

Your Vehicle’s Safety Features
The following checklist will help you take an active role in protecting yourself and
your passenger.
1 Your Vehicle’s Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passenger dur ing a crash.
Some features do not require any action on your part.
These include a strong framework that forms a safety
cage around the passenger compartment, front and
rear crush zones, a collaps ible steering column, and
tensioners that tighten the seat belts in a sufficient
crash.
However, you and your passenger cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
67
9101112
Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Door Locks Side Airbags
Seat Belt Tensioners
7
7
1010
9
9
11
11
6
12
8Knee Airbag
8
21 ACURA NSX PMC-31T6N6400.book 36 ページ ２０２０年１０月８日　木曜日　午後３時７分

37
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passenger, make a habit of checking these items each
time before you drive.
• After everyone has entered the vehicle, be sure both doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door.
2 Locking/Unlocking the Doors from the Inside P. 119
•Adjust your seat to a position suitable fo r driving. Be sure the seats are adjusted
as far to the rear as possible while allo wing the driver to control the vehicle.
Sitting too close to a front airbag can resu lt in serious or fatal injury in a crash.
2Adjusting the Seats P. 148
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passenger is properly belted as well.
2 Fastening a Seat Belt P. 41
•If you choose to ignore our warnings and carry a child in this vehicle, make every
effort to protect them by properly using a se at belt or a child seat according to the
child’s age, height, and weight.
2 Child Safety P. 61
1Safety Checklist
If the Door Open or Door And Trunk Open
message appears on the driver information interface,
a door and/or the trunk (h atch) is not completely
closed. Close both doors and the trunk (hatch) tightly
until the message disappears.
2 Driver Information Interface Warning and
Information Messages P. 92
21 ACURA NSX PMC-31T6N6400.book 37 ページ ２０２０年１０月８日　木曜日　午後３時７分

38
Safe Driving
Seat Belts
About Your Seat Belts
Seat belts are the single most effective safety device because they keep you
connected to the vehicle so that you can take advantage of many built-in safety
features. They also help keep you from being thrown against the inside of the
vehicle, against any passenger, or out of the vehicle. When worn properly, seat belts
also keep your body properly positioned in a crash so that you can take full
advantage of the additional prot ection provided by the airbags.
In addition, seat belts help protect you in almost every type of crash, including:
- frontal impacts
- side impacts
- rear impacts
- rollovers
■Lap/shoulder seat belts
Both seating positions are equipped with lap/shoulder seat belts with emergency
locking retractors. In normal driving the retractor lets you move freely while keeping
some tension on the belt. During a collis ion or sudden stop the retractor locks to
restrain your body. The passenger’s seat be lt has a lockable retractor that must be
properly activated when using a forward-facing child seat, should you choose to
disregard our recommendations and install one.
2 Installing a Child Seat P. 66
1About Your Seat Belts
Seat belts cannot complete ly protect you in every
crash. But in most cases, seat belts can reduce your
risk of serious injury.
Most states and all Canadian provinces and territories
require you to wear seat belts.
If you extend the seat belt t oo quickly, it will lock in
place. If this happens, sli ghtly retract the seat belt,
then extend it slowly.
3WARNING
Not wearing a seat belt properly increases
the chance of serious injury or death in a
crash, even though your vehicle has
airbags.
Be sure you and your passenger always
wear seat belts and wear them properly.
21 ACURA NSX PMC-31T6N6400.book 38 ページ ２０２０年１０月８日　木曜日　午後３時７分
