308
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 407
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
• Check the front bumper ducts and side intercooler ducts for mud, leaves, and
road debris that could build up and prevent proper cooling performance.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable materials left und er the hatch, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal.
Also, check under the hatch for leftover flammable
materials after you or so meone else has performed
maintenance on your vehicle.
22 ACURA NSX PMC-31T6N6500.book 308 ページ ２０２１年９月２８日　火曜日　午後４時７分

375
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 376
Safety When Performing Maintenance .... 377Parts and Fluids Used in Maintenance Service ........................................... 378
Maintenance Minder
TM..................... 379
Maintenance Under the Hood and Hatch Maintenance Items Under the Hood and Hatch ............................................. 385
Opening the Hatch .......................... 387
Opening the Hood ........................... 388
Engine Compartment Cover ............. 389
Recommended Engine Oil ................ 390
Oil Check ......................................... 391 Adding Engine Oil ............................ 394
Cooling System ................................ 396
Inverter Coolant ............................... 398
Transmission Fluids .......................... 399
Brake Fluid ....................................... 400
Refilling Window Wa
sher Fluid......... 400
Replacing Light Bulbs ....................... 401
Checking and Maintaining Wiper Blades.... 404Checking and Maintaining Tires
Checking Tires ................................. 407
Tire and Loading Information Label ..... 408Tire Labeling .................................... 408DOT Tire Quality Grading (U.S. Vehicles) ...... 410Wear Indicators................................ 412
Tire Service Life ................................ 412 Tire and Wheel Replacement ........... 413
Tire Rotation .................................... 414
Winter Tires ..................................... 415
Cold Weather Driving ...................... 416
12-Volt Battery ................................. 417
Remote Transmitter Care Replacing the Remote Battery .......... 418
Climate Control System Maintenance.... 419CleaningInterior Care .................................... 420
Exterior Care.................................... 422
Accessories and Modifications
Accessories ...................................... 428
Modifications................................... 429
Storage .............................................. 430
22 ACURA NSX PMC-31T6N6500.book 375 ページ ２０２１年９月２８日　火曜日　午後４時７分

400
uuMaintenance Under the Hood and Hatch uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
Refilling Window Washer Fluid
If the washer fluid is low, a message ap pears on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Acura Heavy Duty Brake Fluid DOT 4
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified br ake fluid is not av ailable, you should
use only DOT 4 fluid from a sealed container as a
temporary replacement.
Using any non-Acura brake fl uid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Acura Heavy
Duty Brake Fluid DOT 4 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have an authorized Acura NSX dealer inspect the
vehicle for leaks or worn brake pads as soon as
possible.
MINReserve Tank
MAX
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale buildup.
22 ACURA NSX PMC-31T6N6500.book 400 ページ ２０２１年９月２８日　火曜日　午後４時７分

404
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks, become noisy, and
the hard surfaces of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. While holding the wiper switch in the
MIST position, change the power mode to
VEHICLE OFF.
2. Wiper arms will move into service position.
3. Lift both wiper arms.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
22 ACURA NSX PMC-31T6N6500.book 404 ページ ２０２１年９月２８日　火曜日　午後４時７分

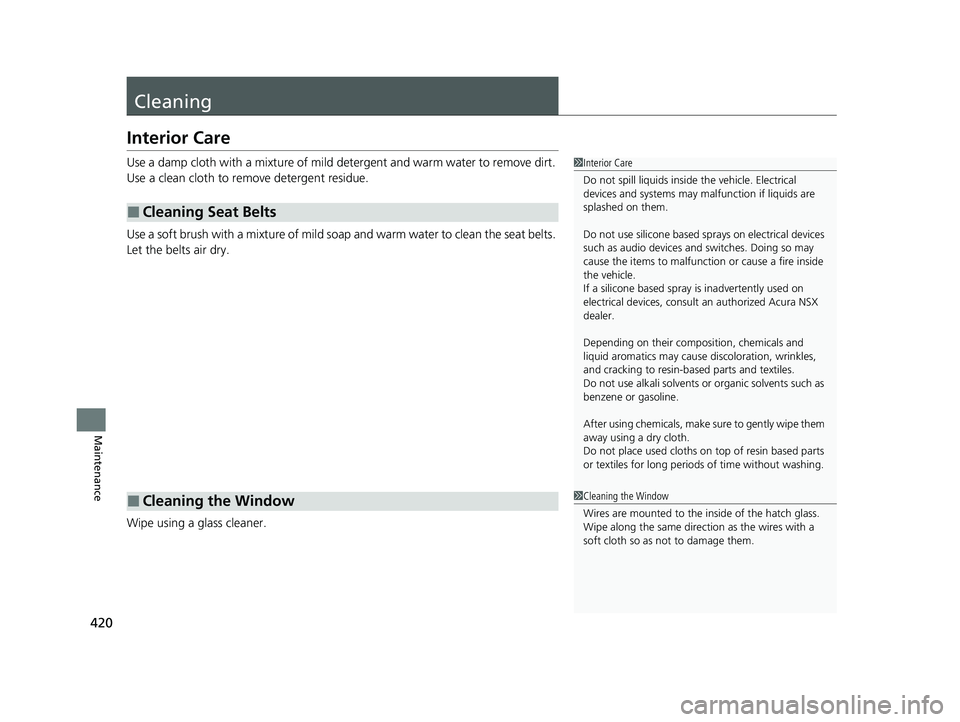

420
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry.
Wipe using a glass cleaner.
■Cleaning Seat Belts
■Cleaning the Window
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consul t an authorized Acura NSX
dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemicals, make su re to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
1Cleaning the Window
Wires are mounted to the in side of the hatch glass.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
22 ACURA NSX PMC-31T6N6500.book 420 ページ ２０２１年９月２８日　火曜日　午後４時７分

Continued423
uuCleaning uExterior Care
Maintenance
Do not use an automated car wash.
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water direct ly into the engine compartment. Instead,
use low pressure water and a mild detergent.
■Using an Automated Car Wash
■Using High Pressure Cleaners
1 Washing the Vehicle
NOTICE
Never run the vehicle through a conveyor-style car
wash or use any type of motorized cleaning device.
Doing so could damage the vehicle and the paint.
Always wash the vehicle by hand with a mild car
wash detergent and plenty of water.
22 ACURA NSX PMC-31T6N6500.book 423 ページ ２０２１年９月２８日　火曜日　午後４時７分

Continued425
uuCleaning uExterior Care
Maintenance
If you get gasoline, oil, engine coolant, or battery fluid on resi n coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask an authorized Acur a NSX dealer about the
correct coating material when you want to repair the
painted surface of the parts made of resin.
22 ACURA NSX PMC-31T6N6500.book 425 ページ ２０２１年９月２８日　火曜日　午後４時７分

uuCleaning uExterior Care
426
Maintenance
The inside lenses of exterior lights (headli ghts, brake lights, etc.) may fog temporarily
if you have driven in the rain. Dew condensation also may build up inside the lenses
when there is a significant enough differe nce between the ambient and inside lens
temperatures (similar to vehicle windows fogging up in rainy conditions). These
conditions are natural processes, not stru ctural design problems in the exterior
lights.
Lens design characteristics may result in mo isture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by an authorized Acura
NSX dealer.
Keep brake pads and rotors free of substances that are either abrasive or oil based,
as these substances can re duce brake system performance.
NSX brake pads and disks have a high meta llic content. Under certain conditions
these pad and disks may rust to varying degrees, which may cause a clunk noise or
rubbing sound if parked when brakes become wet. This is normal for brakes with
high friction pads and it does not affect operation of the brakes.
To prevent the iron contained in the brake pa ds and rotors from rusting and sticking,
brakes should be dried before parking the ve hicle after driving on wet roads or after
washing the vehicle (especially before long-term storage). To dry the brake pads and
rotors, drive the vehicle at a low sp eed and apply the brakes several times.
By regularly applying strong pressure to the brakes, you can reduce corrosion
buildup on the brake pads and rotors.
■Fogged Exterior Light Lenses
■Cast Iron Brakes*
1 Brake Maintenance
Brake maintenance require s specialized knowledge.
We recommend maintenance to be carried out by an
authorized Acura NSX dealer.
1 Maintenance of Brake Surfaces
Brakes can be dried by driv ing on a dry road for few
miles/kilometers, and a pplying the brake pedal
normally, based on traffic and road conditions. These
steps help maintain br ake system performance.
* Not available on all models
22 ACURA NSX PMC-31T6N6500.book 426 ページ ２０２１年９月２８日　火曜日　午後４時７分

428
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any access ories over areas marked SRS AIRBAG, on the sides or
backs of the seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 460
•Before installing any electronic accessory, have the installer contact an authorized
Acura NSX dealer for assistance. If possibl e, have an authorized Acura NSX dealer
inspect the final installation.
1 Accessories and Modifications
Acura Genuine accessori es are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Acura high-voltage
battery assembly, or it s equivalent, in your
vehicle.
22 ACURA NSX PMC-31T6N6500.book 428 ページ ２０２１年９月２８日　火曜日　午後４時７分

430
Maintenance
Storage
Vehicle Storage
If you need to park your vehicle for an extended period (more than one month),
there are several things you should do to prepare it for storage. This helps reduce
possible deterioration of vehicle components and overall condition, which allows
you to get the vehicle back on the road with minimal delay. These are:
• If possible, store your NSX in a garage or enclosed area.
• Fill the fuel tank completely.
• Change the engine oil and filter.
• Wash and dry the exterior completely.
• Clean the interior. Make sure the carpeti ng, floor mats, etc., are completely dry.
• Put the transmission in
(P.
Release the parking brake.
• Leave one window open slightly (if th e vehicle is being stored indoors).
• To maintain the low-voltage 12-volt battery, connect it to an accessory battery
charger. For more information on how to maintain your 12-volt battery, consult
an authorized Acura NSX dealer.
2 Checking the 12-Volt Battery P. 417
•If the vehicle is to be stored for a longer period of time, it should be supported on
jack stands to raise the tires off th e ground to prevent tire flat spotting.
2Handling of the Jack P. 446
•Support the front wiper blade arms with a folded towel or rag so they do not
touch the windshield.
• Cover the vehicle with a “breathable” co ver, one made from a porous material
such as cotton. Nonporous materials (suc h as plastic sheeting) may trap moisture,
which can damage the paint.
• If possible, remove the vehicle from th e garage or enclosed area, remove
covering, and periodically run the engi ne until it reaches full operating
temperature (the cooling fa n cycles on and off twice).
Preferably, do this once a month.
22 ACURA NSX PMC-31T6N6500.book 430 ページ ２０２１年９月２８日　火曜日　午後４時７分
