ACURA NSX 2022 Owners Manual

2022 NSX
Owner’s Manual

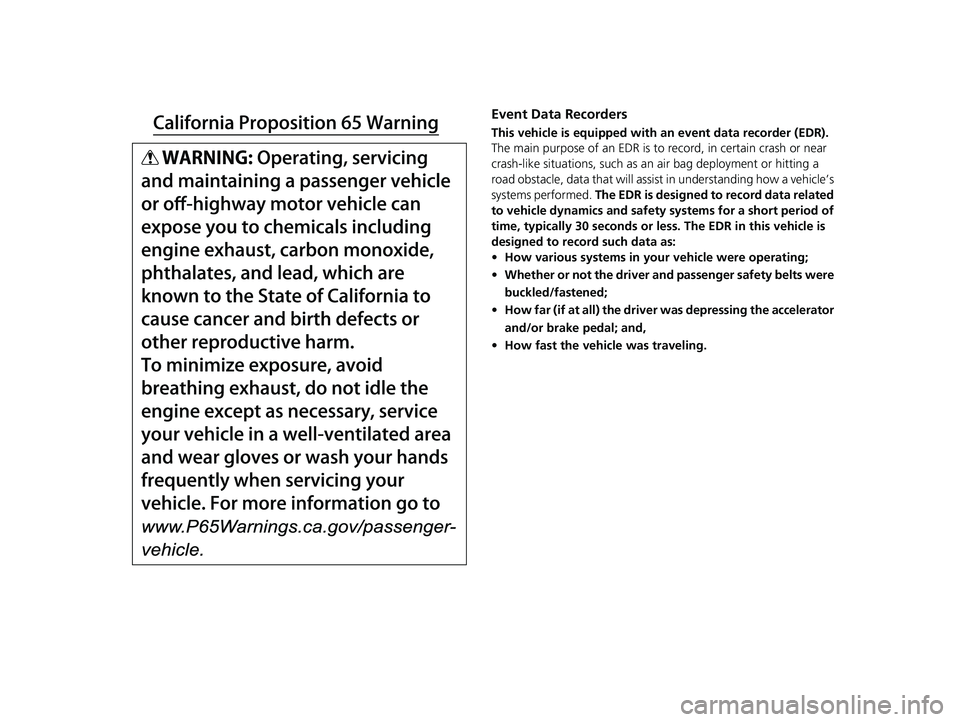

Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
22 ACURA NSX PMC-31T6N6500.book 0 ページ ２０２１年９月２８日　火曜日　午後４時７分

These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-tri vial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howe ver, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the ED R is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can r ead the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.Service Diagnostic Recorders
This vehicle is equipped with serv ice-related devices that record
information about powertrain perfor mance. The data can be used
to verify emissions law requirements and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for research purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Acura upon vehicle start up.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, other property, or the environment.
NOTICE
22 ACURA NSX PMC-31T6N6500.book 1 ページ ２０２１年９月２８日　火曜日　午後４時７分

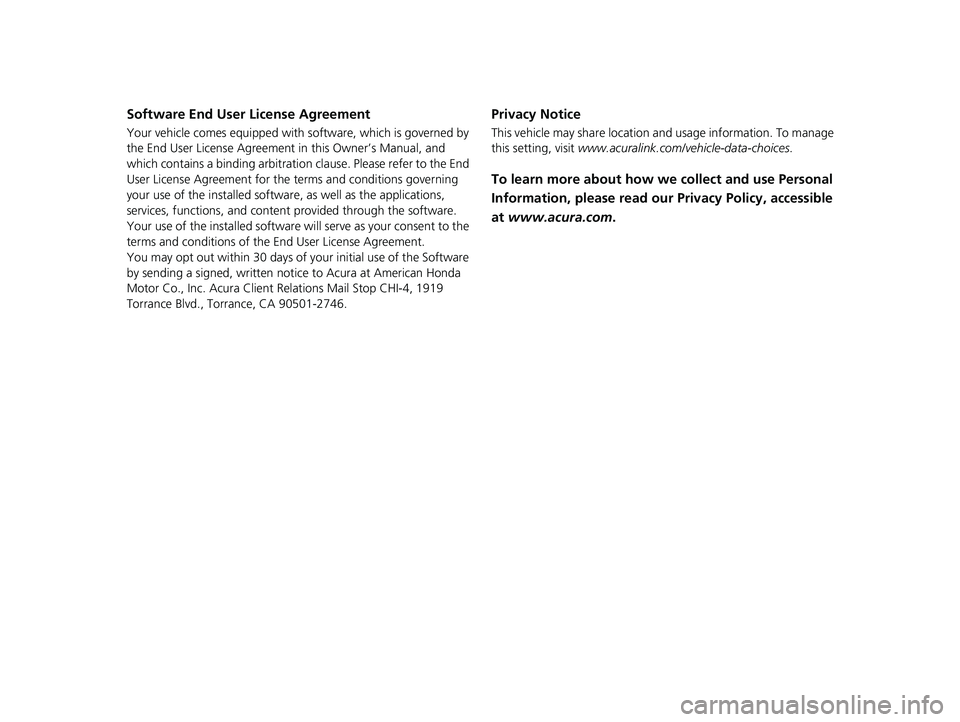

Software End User License Agreement
Your vehicle comes equipped with software, which is governed by
the End User License Agreement in this Owner’s Manual, and
which contains a binding arbitratio n clause. Please refer to the End
User License Agreement for the terms and conditions governing
your use of the installed software , as well as the applications,
services, functions, and content provided through the software.
Your use of the installed software wi ll serve as your consent to the
terms and conditions of the End User License Agreement.
You may opt out within 30 days of your initial use of the Software
by sending a signed, written notice to Acura at American Honda
Motor Co., Inc. Acura Client Relations Mail Stop CHI-4, 1919
Torrance Blvd., Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location and usage information. To manage
this setting, visit www.acuralink.com/ve hicle-data-choices.
To learn more about how we collect and use Personal
Information, please read our Privacy Policy, accessible
at www.acura.com.
22 ACURA NSX PMC-31T6N6500.book 2 ページ ２０２１年９月２８日　火曜日　午後４時７分

A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information al erts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment. You will find this impo
rtant safety information in a variety of forms,
including:●Safety Labels - on the vehicle.
●Safety Messages - preceded by a safety alert symbol 3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
●Safety Headings - such as Important Safety Precautions.
●Safety Section - such as Safe Driving.
●Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTIONYou CAN be HURT if you don't follow
instructions.
22 ACURA NSX PMC-31T6N6500.book 3 ページ ２０２１年９月２８日　火曜日　午後４時７分

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.acura.com
(U.S.) or acura.ca (Canada). If you are the firs t registered owner
of your vehicle, you may request a complimentary printed
copy of the Navigation Manual within the first six months of
vehicle purchase. To request a copy, visit owners.acura.com. In
Canada, please request a copy from your Acura dealer.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s ma nual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 45
2Instrument Panel P. 73
Indicators P. 74 Gauges and Displays P. 99
2Controls P. 107
Clock P. 108 Locking and Unlocking the Doors P. 109
Operating the Switches Around the Steering Wheel P. 130
Climate Control System P. 156
2 Features P. 161
Audio System P. 162 Audio System Basic Operation P. 166
Customized Features P. 243 HomeLink® Universal Transceiver P. 266
2 Driving P. 307
Before Driving P. 308 Towing a Trailer P. 318
Multi-View Rear Camera P. 367
2Maintenance P. 375
Before Performing Maintenance P. 376 Maintenance MinderTM P. 379
Checking and Maintaining Wiper Blades P. 404
Climate Control System Maintenance P. 419
2Handling the Unexpected P. 433
Tools P. 434 If a Tire Goes Flat P. 435
Overheating P. 452 Indicator, Coming On/Blinking P. 454
If You Cannot Open the Hatch P. 467 Refueling P. 468
2Information P. 469
Specifications P. 470 Identification Numbers P. 472
Emissions Testing P. 475 Warranty Coverages P. 477
22 ACURA NSX PMC-31T6N6500.book 4 ページ ２０２１年９月２８日　火曜日　午後４時７分

Contents
Child Safety P. 61Exhaust Gas Hazard P. 70Safety Labels P. 71
Opening and Closing the Hatch P. 122 Security System P. 125 Opening and Closing the Windows P. 128
Adjusting the Mirrors P. 144 Adjusting the Seats P. 146 Interior Convenience Items P. 150
Audio Error Messages P. 222General Information on the Audio System P. 225
Bluetooth ® HandsFreeLink ® P. 269 AcuraLink ® P. 303
When Driving P. 319 Braking P. 355Parking Your Vehicle P. 362
Refueling P. 369 Fuel Economy and CO
2 Emissions P. 372
Maintenance Under the Hood and Hatch P. 385 Replacing Light Bulbs P. 401
Checking and Maintaining Tires P. 407 12-Volt Battery P. 417 Remote Transmitter Care P. 418
Cleaning P. 420 Accessories and Modifications P. 428 Storage P. 430
Power System Won’t Start P. 447 If th e 12-Volt Battery Is Dead P. 450
Fuses P. 460 Emergency Towing P. 465 If You Cannot Unlock the Fuel Fill Door P. 466
Devices that Emit Radio Waves P. 473 Reporting Safety Defects P. 474
Authorized Manuals P. 480 Client Service Information P. 481
Quick Reference GuideP. 6
Safe DrivingP. 33
Instrument PanelP. 73
ControlsP. 107
FeaturesP. 161
DrivingP. 307
MaintenanceP. 375
Handling the UnexpectedP. 433
InformationP. 469
IndexP. 482
22 ACURA NSX PMC-31T6N6500.book 5 ページ ２０２１年９月２８日　火曜日　午後４時７分

6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Steering Wheel Adjustments (P 143)
❚ENGINE START/STOP Button (P 130)
❚ (Vehicle Stability AssistTM (VSA®)
System OFF) Button
(P 345)
❚System Indicators (P 74)
❚Gauges (P 99)
❚Driver Information Interface (P 102)
❚Rear Defogger/Heated Mirror Button
(P 139)
❚Parking Sensor System Button*
(P 364)
❚Hazard Warning Button
❚Seat Heater Buttons (P 155)
❚Audio System (P 162)
❚Climate Control System (P 156)
❚MID Vents (P 22, 156)
❚Navigation System
() See the Navigation System Manual
❚Integrated Dynamics System Mode
Switch
(P 334)
22 ACURA NSX PMC-31T6N6500.book 6 ページ ２０２１年９月２８日　火曜日　午後４時７分

7
Quick Reference Guide
❚Wipers/Washers (P 138)
❚Headlights/Turn Signals (P 133, 134)
❚Paddle Shifter (Shift down) (P 332)
❚Paddle Shifter (Shift up) (P 332)
❚Horn (Press an area around .)
❚Voice Control Buttons (P 184)
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 269)
❚TRIP Button (P 103, 104)
❚Right Selector Wheel (P 102)
❚Audio Remote Controls (P 165)
❚Brightness Control (P 140)
❚Mph/Km/h Change Button (P 99)
❚Cruise Control Buttons (P 341)
* Not available on all models
22 ACURA NSX PMC-31T6N6500.book 7 ページ ２０２１年９月２８日　火曜日　午後４時７分

Visual Index
8
Quick Reference Guide❚Power Window Switches (P 128)
❚Driver’s Front Airbag (P 48)
❚Hatch Release Button (P 122)
❚Hood Release Handle (P 388)
❚Passenger’s Front Airbag
(P 48)
❚Glove Box (P 152)
❚Driver’s Knee Airbag (P 52)
❚Door Mirror Controls (P 145)
❚Power Door Lock Master Switch (P 120)
❚Fuel Fill Door Release Button (P 370)
❚USB Port (P 163)
❚Memory Buttons (P 142)
❚SET Button (P 142)
❚Rearview Mirror (P 144)
❚Driver’s Side Interior Fuse
Boxes
(P 462)
❚Passenger’s Side Interior Fuse
Box
(P 463)
❚USB Port (P 163)
❚Accessory Power Socket
(P 154)
❚Electric Parking Brake Switch
(P 355)
❚Automatic Brake Hold Button
(P 358)
❚Shift Button
Electronic Gear Selector
(P 324)
