Page 421 of 492

419
Maintenance
Climate Control System Maintenance
Air Conditioning
To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.
Never repair or replace the air conditio ning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filters
The climate control system is equipped wi th dust and pollen filters that collect
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filters.
We recommend that you replace the dust an d pollen filters sooner when using your
vehicle in areas with high concentrations of dust.
1 Air Conditioning
NOTICE
Vented refrigerant is harmful to the environmentM
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicleM
Refrigerant in your vehicle
Page 422 of 492

420
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry.
Wipe using a glass cleaner.
■Cleaning Seat Belts
■Cleaning the Window
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consul t an authorized Acura NSX
dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemicals, make su re to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
1Cleaning the Window
Wires are mounted to the in side of the hatch glass.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
22 ACURA NSX PMC-31T6N6500.book 420 ページ 2021年9月28日 火曜日 午後4時7分
Page 423 of 492

421
uuCleaning uInterior Care
Maintenance
The floor mats hook over the floor anchors,
which keep the mats from sliding forward. To
remove the mats for cleaning, turn the anchor
knobs to the unlock position. When
reinstalling the mats after cleaning, turn the
knobs to the lock position.
Do not put additional floor mats on top of
the anchored mat.
To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampen ed with a solution comprised of 90%
water and 10% neutral soap.
3. Wipe away any soap residu e with a clean damp cloth.
4. Wipe away residual water and allo w leather to air dry in the shade.
Do not use abrasive cleaners.
■Floor Mats1 Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Unlock
Lock
■Maintaining Genuine Leather
■Carbon Fiber Meter Visor and Steering Wheel
1 Maintaining Genuine Leather
It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust ca n cause abrasions in the
leather. In addition, pl ease note that some dark
colored clothing can rub onto the leather seats
resulting in discol oration or stains.
22 ACURA NSX PMC-31T6N6500.book 421 ページ 2021年9月28日 火曜日 午後4時7分
Page 424 of 492

422
uuCleaning uExterior Care
Maintenance
Exterior Care
Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
■Washing the Vehicle
1Washing the Vehicle
Do not spray water into the air intake vents. It can
cause a malfunction.
Do not spray water onto the capless unit when the
fuel fill door is open. It ca n cause damage to the fuel
system or engine.
If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position. 2 Changing the Wiper Blade Rubber P. 404
To maintain and protect the matte finish:
•Do not use abrasive materi als, polishing agents, or
wax on the paint surface.
•Do not put the vehicle through an automated car
wash. Instead, hand wash the body using a mild
detergent and a soft sponge or a micro fiber cloth.
Apply light pressure.
•Do not forcefully remove contaminants such as bug
splatter and bird droppings: Saturate the area with
water.
•Wash the car in the shade and wipe the paint dry
so that water spots do not form.
Air Intake Vents
Vehicles with matte finishes
22 ACURA NSX PMC-31T6N6500.book 422 ページ 2021年9月28日 火曜日 午後4時7分
Page 425 of 492

Continued423
uuCleaning uExterior Care
Maintenance
Do not use an automated car wash.
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water direct ly into the engine compartment. Instead,
use low pressure water and a mild detergent.
■Using an Automated Car Wash
■Using High Pressure Cleaners
1 Washing the Vehicle
NOTICE
Never run the vehicle through a conveyor-style car
wash or use any type of motorized cleaning device.
Doing so could damage the vehicle and the paint.
Always wash the vehicle by hand with a mild car
wash detergent and plenty of water.
22 ACURA NSX PMC-31T6N6500.book 423 ページ 2021年9月28日 火曜日 午後4時7分

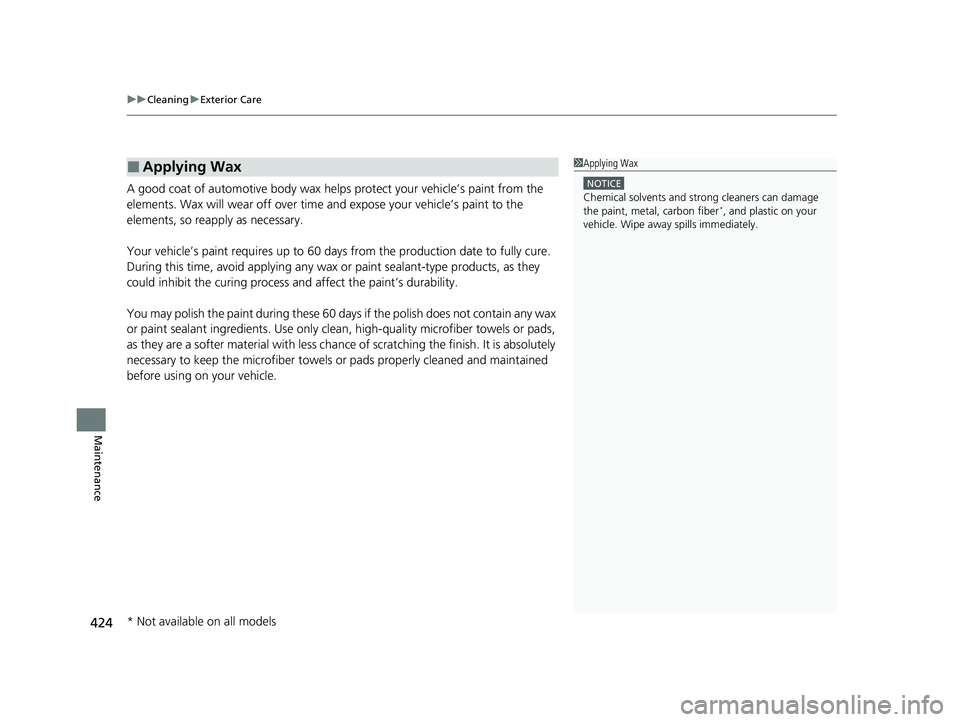

Page 426 of 492

uuCleaning uExterior Care
424
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
Your vehicle’s paint requires up to 60 days from the production date to fully cure.
During this time, avoid applying any wax or paint sealant-type products, as they
could inhibit the curing process and affect the paint’s durability.
You may polish the paint during these 60 days if the polish does not contain any wax
or paint sealant ingredients. Use only clean, high-quality microfiber towels or pads,
as they are a softer material with less chance of scratching the finish. It is absolutely
necessary to keep the microfiber towels or pads properly cleaned and maintained
before using on your vehicle.
■Applying Wax1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, carbon fiber*, and plastic on your
vehicle. Wipe away spills immediately.
* Not available on all models
22 ACURA NSX PMC-31T6N6500.book 424 ページ 2021年9月28日 火曜日 午後4時7分
Page 427 of 492

Continued425
uuCleaning uExterior Care
Maintenance
If you get gasoline, oil, engine coolant, or battery fluid on resi n coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask an authorized Acur a NSX dealer about the
correct coating material when you want to repair the
painted surface of the parts made of resin.
22 ACURA NSX PMC-31T6N6500.book 425 ページ 2021年9月28日 火曜日 午後4時7分
Page 428 of 492

uuCleaning uExterior Care
426
Maintenance
The inside lenses of exterior lights (headli ghts, brake lights, etc.) may fog temporarily
if you have driven in the rain. Dew condensation also may build up inside the lenses
when there is a significant enough differe nce between the ambient and inside lens
temperatures (similar to vehicle windows fogging up in rainy conditions). These
conditions are natural processes, not stru ctural design problems in the exterior
lights.
Lens design characteristics may result in mo isture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by an authorized Acura
NSX dealer.
Keep brake pads and rotors free of substances that are either abrasive or oil based,
as these substances can re duce brake system performance.
NSX brake pads and disks have a high meta llic content. Under certain conditions
these pad and disks may rust to varying degrees, which may cause a clunk noise or
rubbing sound if parked when brakes become wet. This is normal for brakes with
high friction pads and it does not affect operation of the brakes.
To prevent the iron contained in the brake pa ds and rotors from rusting and sticking,
brakes should be dried before parking the ve hicle after driving on wet roads or after
washing the vehicle (especially before long-term storage). To dry the brake pads and
rotors, drive the vehicle at a low sp eed and apply the brakes several times.
By regularly applying strong pressure to the brakes, you can reduce corrosion
buildup on the brake pads and rotors.
■Fogged Exterior Light Lenses
■Cast Iron Brakes*
1 Brake Maintenance
Brake maintenance require s specialized knowledge.
We recommend maintenance to be carried out by an
authorized Acura NSX dealer.
1 Maintenance of Brake Surfaces
Brakes can be dried by driv ing on a dry road for few
miles/kilometers, and a pplying the brake pedal
normally, based on traffic and road conditions. These
steps help maintain br ake system performance.
* Not available on all models
22 ACURA NSX PMC-31T6N6500.book 426 ページ 2021年9月28日 火曜日 午後4時7分

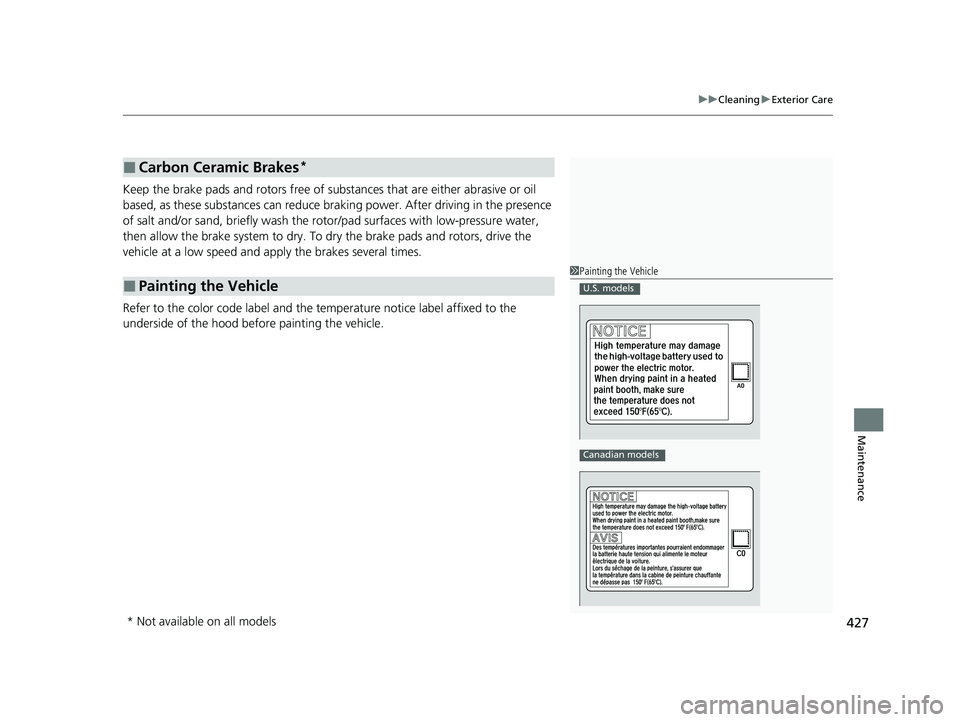

Page 429 of 492

427
uuCleaning uExterior Care
Maintenance
Keep the brake pads and rotors free of subs tances that are either abrasive or oil
based, as these substances can reduce br aking power. After driving in the presence
of salt and/or sand, briefly wash the ro tor/pad surfaces with low-pressure water,
then allow the brake system to dry. To dry the brake pads and rotors, drive the
vehicle at a low speed and apply the brakes several times.
Refer to the color code label and the te mperature notice label affixed to the
underside of the hood before painting the vehicle.
■Carbon Ceramic Brakes*
■Painting the Vehicle
1 Painting the Vehicle
U.S. models
Canadian models
* Not available on all models
22 ACURA NSX PMC-31T6N6500.book 427 ページ 2021年9月28日 火曜日 午後4時7分
Page 430 of 492

428
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any access ories over areas marked SRS AIRBAG, on the sides or
backs of the seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 460
•Before installing any electronic accessory, have the installer contact an authorized
Acura NSX dealer for assistance. If possibl e, have an authorized Acura NSX dealer
inspect the final installation.
1 Accessories and Modifications
Acura Genuine accessori es are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Acura high-voltage
battery assembly, or it s equivalent, in your
vehicle.
22 ACURA NSX PMC-31T6N6500.book 428 ページ 2021年9月28日 火曜日 午後4時7分
